GC100, GC100L
Beginning Manufacturing Date: Jan 1992
Ending Manufacturing Date: Aug 1994
Service Parts
Gas Fireplace – DV
GC100 DV Gas Fireplace

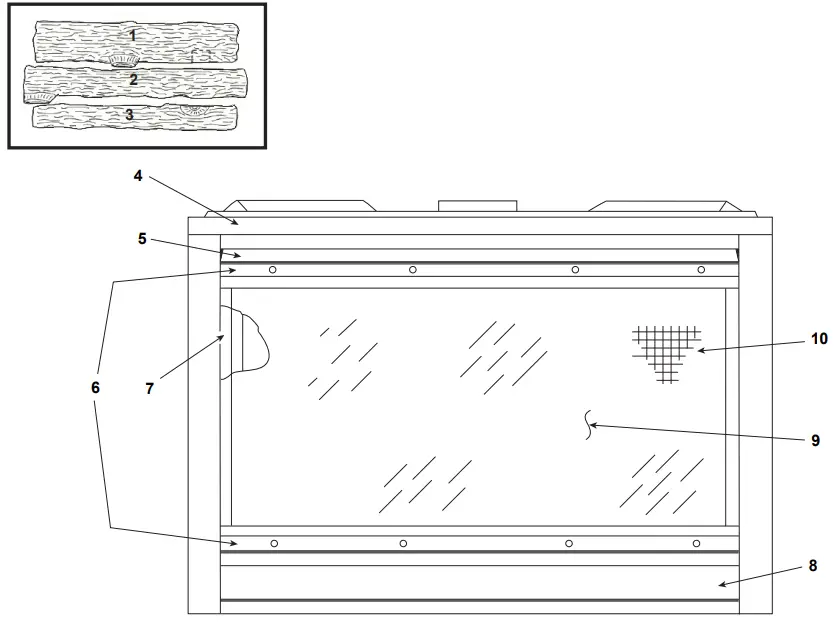

Log Set Assembly
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| Log Set Assembly | No longer available | 16769D | ||
| 1 | Rear Log | No longer available | SRV15691 | |
| 2 | Middle Log | No longer available | SRV15693 | |
| 3 | Front Log | No longer available | 15690C | |
| 4 | Face, Top Front | No longer available | 15674B | |
| 5 | Hood | No longer available | 15675 | |
| 6 | Glass Frame | Qty 2 req | 15687 | |
| 7 | Glass Gasket | 10 FT | 18476/10 | Y |
| 8 | Face, Lower Front | No longer available | 15676D | |
| 9 | Glass Panel | No longer available | SRV15573 | |
| 10 | Screen Assembly | 19196C |
Additional service part numbers appear on following page.
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |

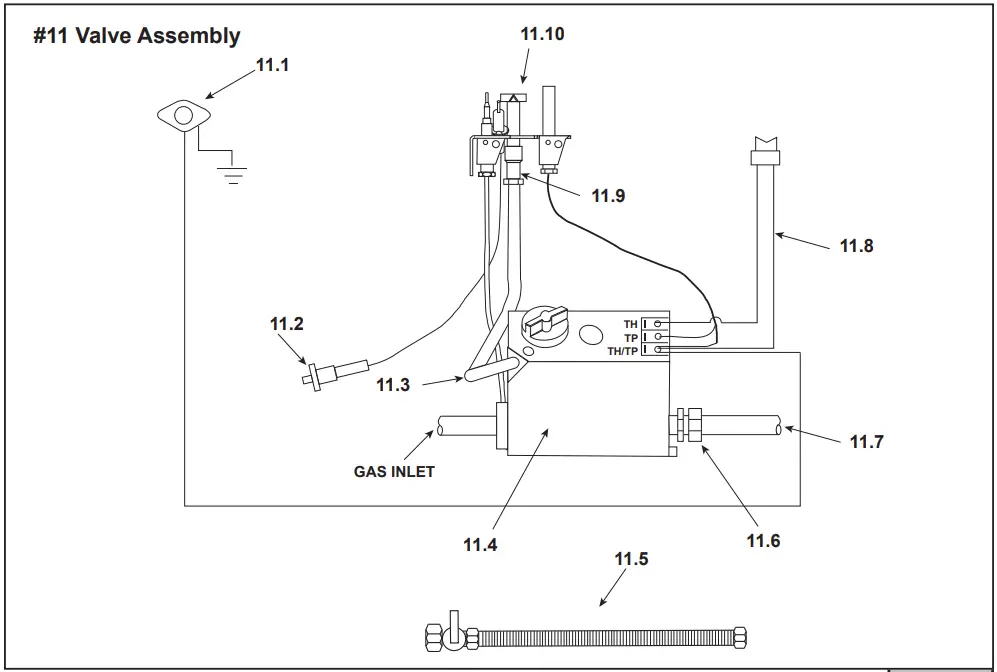

| 11.1 | High Limit Switch | SRV24968 | Y | |
| 11.2 | Push Button Ignitor | 291-513 | Y | |
| 11.3 | Pilot Tube Kit | 26471 | Y | |
| 11.4 | Valve, R/S (90 degree) – NG | 060-500 | Y | |
| Valve, R/S (90 degree) – LP | SRV25810 | Y | ||
| 11.5 | Flex Tube Assembly | Y | ||
| 11.6 | Brass Male Connector – Tube | 13425 | ||
| 11.7 | Burner Gas Tube (RS) | No longer available | 18115B | |
| Burner Gas Tube (WR) | No longer available | 18613A | ||
| 11.8 | Wall Switch Wire Assembly | No longer available | 14720 | |
| 11.9 | Pilot Orifice (.021) – NG | SRV446-505 | Y | |
| Pilot Orifice (.0115) – LP | SRV446-517 | Y | ||
| 11.1 | Pilot Assembly w/ Bracket – NG | 4021-728 | Y | |
| Pilot Assembly w/ Bracket – LP | 4021-729 | Y |
Additional service part numbers appear on following page.IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| Bulkhead Union 3/8 in. | . | SRV13405 | Y | |
| Burner | No longer available | 18072C | ||
| Burner Orifice (.089) – NG | . | SRV14046 | Y | |
| Burner Orifice (.052) – LP | . | SRV14047 | Y | |
| Orifice (out of top of Valve) – NG | No longer available | 15819C | ||
| Orifice (out of top of Valve) – LP | No longer available | 15820B | ||
| GlassGasket | 10 FT | 28091/10 | Y | |
| Junction Box Assembly | No longer available | 15715A | ||
| Log Bracket Assembly | No longer available | 18374A | ||
| Mineral Wool | . | SRV14333 | ||
| Nailing Flange | Qty 4 req | 31190 | ||
| Vermiculite | . | 28746 | ||
| Pilot Bracket | No longer available | 17208B | ||
| Pilot Gas Tube (RS) | No longer available | 18385B | ||
| Vermiculite Shield | No longer available | 18377F | ||
| Wall Switch | No longer available | 13667A | ||
| Wire – 18 AWG 200C, Black | 4.75 Ft req | 9010 | ||
| Conversion Kit NG | Not available for White Rogers | CKN | Y | |
| Conversion Kit LP | CKP | Y | ||
| Installation Instructions/Owner’s Manual | 18386 | |||
| Gas Operations Manual | 71680 | |||
