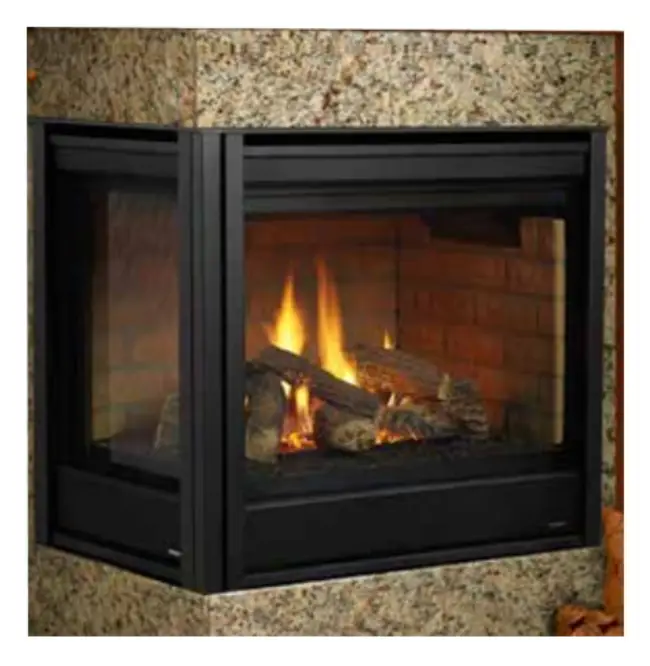

heatilator GDCL60E Caliber 40 Inch Left Corner Gas Fireplace
Service Parts
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |

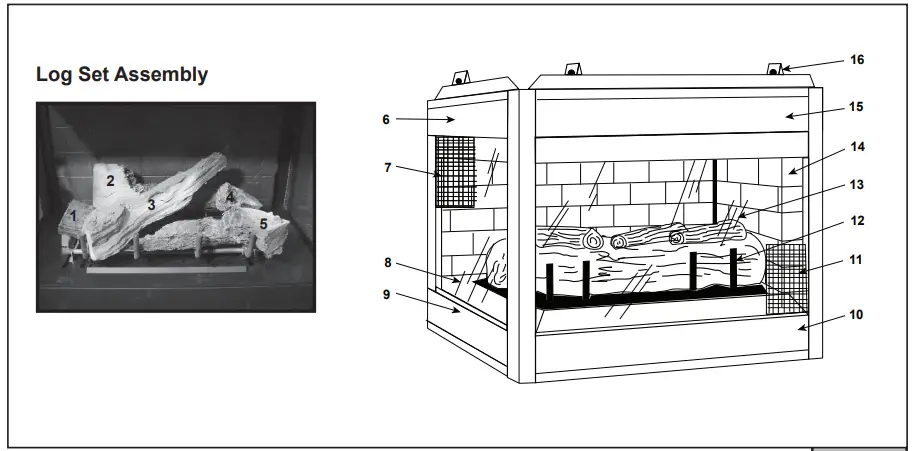

| Log/Grate Assembly | 35595 | |||
| Log Assembly | 35596 | |||
| 1 | Log #1 | SRV33785 | ||
| 2 | Log #2 | SRV35592 | ||
| 3 | Log #3 | SRV35590 | ||
| 4 | Log #4 | SRV33782 | ||
| 5 | Log #5 | SRV35591 | ||
| 6 | End Upper Face | No longer available | 27656 | |
| 7 | End Screen Assembly | 29693 | ||
| 8 | Glass Assembly w/Top Retainer, End (also need *) | SRV4002-045 | ||
| * End Glass Retainer (Bottom) | 4002-043 | |||
| End Glass Retainer (Top) | 4002-044 | |||
| 9 | End Lower Face | No longer available | 25913 | |
| 10 11 | Lower Front Access Panel Screen Assembly | 25893 | ||
| 26161 | ||||
| 12 | Grate | 26249 | ||
| 13 | Front Glass Assembly | 4002-053 |

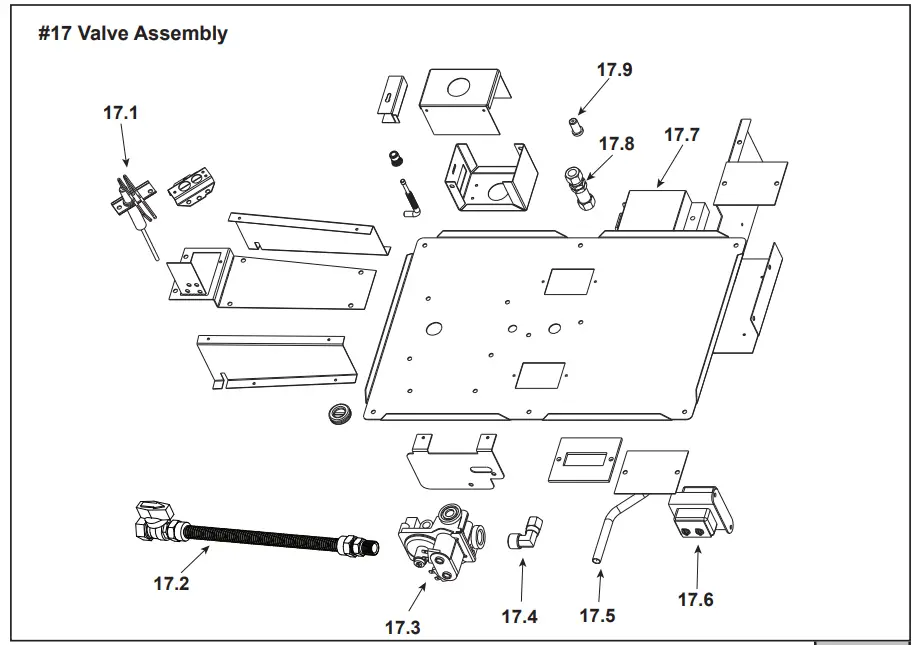

17 Valve Assembly
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| 17.1 | Ignitor | Pre 3/2/97 | 26541 | Y |
| Post 3/2/97 | 28048 | Y | ||
| 17.2 | Flex Tube Assembly | SRV302-320 | Y | |
| 17.3 | Valve, NG | SRV462-500B | Y | |
| Valve, LP | SRV462-501B | Y | ||
| 17.4 | Brass Elbow | SRV17524 | ||
| 17.5 | Burner Supply Tube | 33619 | Y | |
| 17.6 | Transformer | SRV20947 | Y | |
| 17.7 | Ignitor Control Panel | SRV15695 | Y | |
| 17.8 | Bulkhead | SRV13405 | Y | |
| 17.9 | Burner Orifice (.115) – NG | SRV26617 | Y | |
| Burner Orifice (.067) – LP | 17812 | Y | ||
| Brass Connector – Male – Tube | 13425 |
Additional service part numbers appear on following page.
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
DESCRIPTION | Stocked at Depot | |||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| Burner Pan Assembly | 33970 | Y | ||
| Exhaust Collar Assembly | No longer available | 25837 | ||
| Exhaust Cover Plate | No longer available | 25840 | ||
| Flue Adapter Assembly | No longer available | 25881 | ||
| Flue Cover Plate | No longer available | 25901 | ||
| Glass Latch Assembly | No longer available | 30537 | ||
| Post GA1337846 | 33858/2 | Y | ||
| Glass Latch Handle | 4002-061 | Y | ||
| Hood | 27658 | |||
| Hood, Short | No longer available | 27659 | ||
| Intake Collar Assembly | No longer available | 25841 | ||
| Intake Cover Plate | No longer available | 25844 | ||
| Junction Box Kit | No longer available | 31581 | ||
| Light Kit Replacement Parts | ||||
| Glass Panel | No longer available | 33791 | ||
| Halogen Light | Qty 2 req | 33961 | Y | |
| Light Assembly | No longer available | 33611 | ||
| Power Box Assembly | No longer available | 33920 | ||
| Nailing Flanges | Qtt 8 req | 31190 | ||
| Screen Bracket | Qty 4 req | SRV28159 | Y | |
| Seal Plate Gasket | 4002-039 | |||
| Touch-up Paint | 71479 | |||
| Lava Rock | 4021-296 | |||
| Mineral Wool | SRV14333 | |||
| Vermiculite | 28746 | |||
| Conversion Kit NG | DCKVN | Y | ||
| Conversion Kit LP | DCKVP | Y | ||
| Installation Instructions | 35593 | |||
