Heatilator Gdst36e Caliber 36 Inch See-thru Gas Fireplace Owner's Manual

Service Parts     GDST36E, GDST36LE

Caliber 36” See-thru Gas Fireplace – DV

Beginning Manufacturing Date: July 1997
Ending Manufacturing Date: Dec. 2001

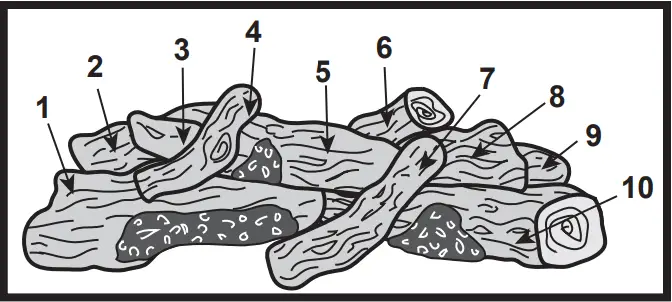

Log Set Assembly

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.				Stocked at Depot
ITEM	DESCRIPTION	COMMENTS	PART NUMBER
	Log Assembly		27794	Y
	Log/Grate Assembly		27793	Y
1	Front Bottom Left Log		SRV26623
2	Top Left Log		SRV24839
3	Back Left Log		SRV26621
4	Front Top Left Log	No longer available	SRV17229
5	Middle Log		SRV26620
6	Rear Top Log		SRV26627
7	Front Middle Log		SRV26626
8	Middle Right Log		SRV26625
9	Back Right Log		SRV26622
10	Front Bottom Right Log		SRV26624

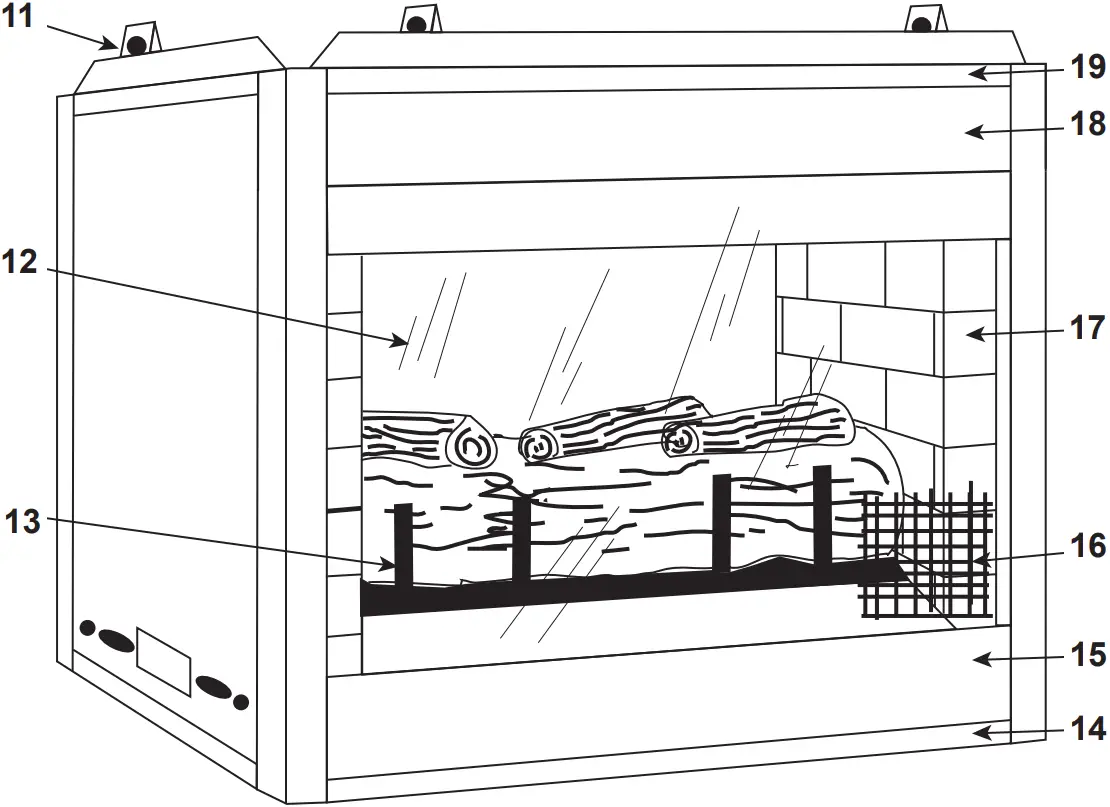

11	Top Standoff	Qty 4 req	SRV4044-111
12	Glass Assembly	Qty 2 req	4002-053	Y
13	Grate		26249
14	Front Bottom Face	No longer available	25916
15	Front Lower Face Access Panel		25893
16	Screen Assembly	Qty 2 req	26161	Y
17	Refractory		25835
18	Front Upper Face – Overlay only	Qty 2 req	27655
19	Front Top Face	No longer available	27651

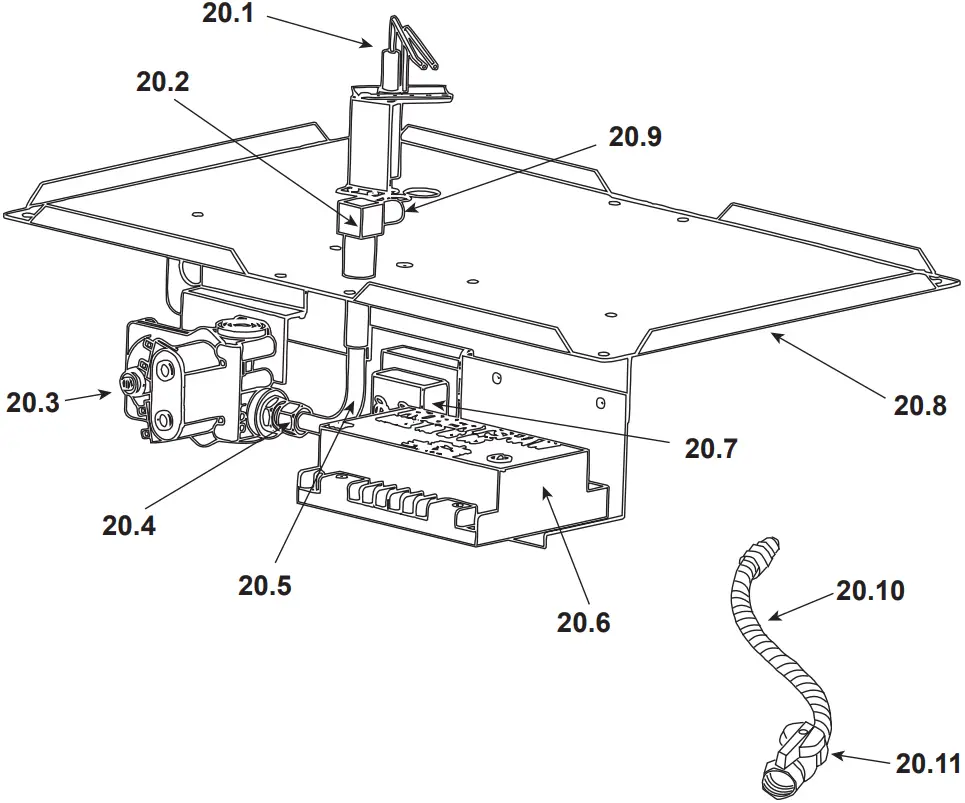

#20 Valve Assembly

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.				Stocked at Depot
ITEM	DESCRIPTION	COMMENTS	PART NUMBER
20.1	Ignitor		28048	Y
20.2	Bulkhead	No longer available	35403
20	Valve, NG		SRV462-500B	Y
	Valve, LP		SRV462-501B	Y
20.4	Brass Connector – Male – Valve/Tube		13425
20.5	Burner Supply Tube	No longer available	27901
20.6	Ignition Control Box		SRV15695	Y
20.7	Transformer		SRV20947	Y
20.8	Burner Pan Assembly		25847	Y
20.9	Burner Orifice (.115) – NG		SRV26617	Y
	Burner Orifice (.067) – LP		17812	Y
20.10	Flex Line		SRV4121-006	Y
20.11	ON/OFF Valve		SRV15697	Y
	Back Lower Face	No longer available	25912
	Brass Connector – Flex	Pkg of 5	303-315/5	Y
	Connector, 90° Brass – Flex		SRV4021-045
	Corner Bracket	No longer available	23439A
	Exhaust Collar Assembly	No longer available	25837
	Exhaust Cover Plate	No longer available	25840
	Flue Adapter Assembly	No longer available	25881
	Flue Cover Assembly	No longer available	25900
	Flue Cover Plate	No longer available	25901
	Glass Gasket	10 FT	28091/10	Y
	Glass Latch Assembly	No longer available	30537
	Glass Latch Handle	Qty 6 req	4002-061	Y
	Glass Retainer	Qty 4 req	26798
	Grate Retainer Bracket	Qty 2 req	25920
	Hearth Assembly w/ Burner Pan Assembly	No longer available	27795
	High Limit Switch	Pre 20/99	SRV22922	Y
	High Limit Switch Bracket	No longer available	26619
	Hood	Qty 2 req	27658
	Ignitor Bracket	No longer available	27136
	Intake Collar Assembly	No longer available	25841
	Intake Cover Plate	No longer available	25844
	Junction Box Assembly		22130	Y
	Latch Bracket		29458
	Lava Rock	Qty 2 req	4021-296
	Mineral Wool	Qty 2 req	SRV14333
	Nailing Flanges	Qty 8 req	31190
	Push Button Ignitor	Pre Sept. 1998	291-513	Y
	Screen Bracket	Qty 4 req	SRV28159	Y
	Stop Bracket	No longer available	22132
	Touch-up Paint		71479
	Valve Bracket	No longer available	31827
	Vermiculite		28746
	Wiring Harness, Electrical	No longer available	23002
	Conversion Kit NG		CKVN	Y
	Conversion Kit LP		CKVP	Y
	Installation Instructions		28886
