Service Parts
Caliber 36”Gas Fireplace – BV
GCBC60i, GCBC60LI
Beginning Manufacturing Date: Sept 2003
Ending Manufacturing Date: Jan. 2005
GCBC60i Caliber 36 Inch Gas Fireplace
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.

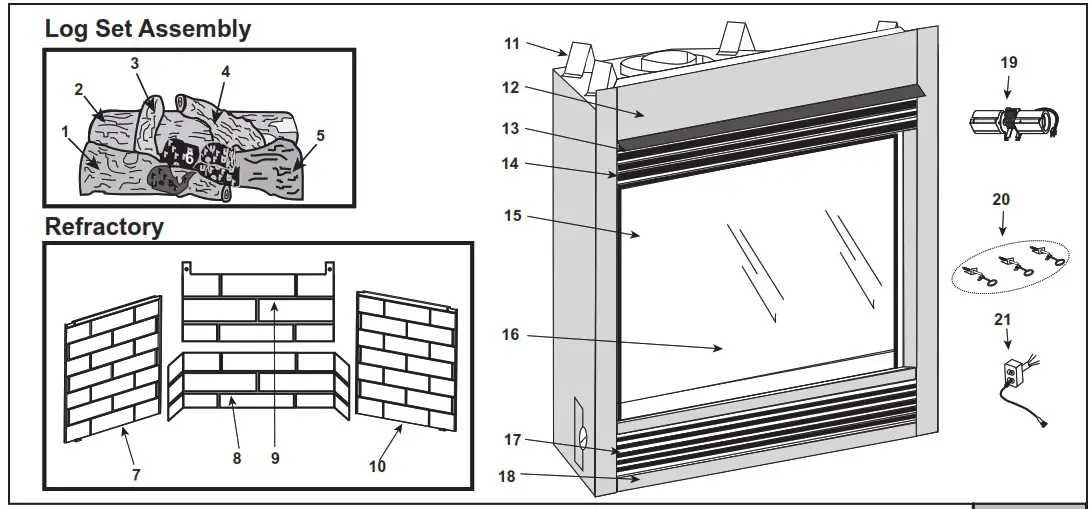

| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| Log and Grate Assembly | 30837 | Y | ||
| 1 | Log. Front Left | No longer available, Must order complete assembly | SRV29779 | |
| 2 | Log. Back | SRV30036 | ||
| 3 | Log. Middle Left | SRV29829 | ||
| 4 | Log. Top | SRV29830 | ||
| 5 | Log. Front Right | SRV29780 | ||
| 6 | Log. Burnt Out | SRV30037 | ||
| 7 | Refractory. Left Side | No longer available | 30905 | |
| 8 | Refractory. Back Lower | No longer available | 30982 | |
| 9 | Refractory. Back Upper | No longer available | 30980 | |
| 10 | Refractory. Right Side | No longer available | 30906 | |
| 11 | Standoff. Top | Qty. 4 req. | SRV4044-111 | |
| 12 | Face. Top Front | No longer available | 29573 | |
| 13 | Hood | 29575 | ||
| 14 | Grille. Upper | 26637 | ||
| 15 | Screen Assembly | 35106 | Y | |
| 16 | Glass Frame Assembly | GLA4031-095 | Y | |
| 17 | Grille. Lower | 25016 | ||
| 18 | Face. Bottom Front | No longer available | 24570 | |
| 19 | Fan Kit | GFK160B | ||
| 20 | Glass Latch Assembly | Pkg of 2 | 33858/2 | Y |
| 21 | Junction Box | SRV4021-013 | Y |
Additional service part numbers appear on following page.

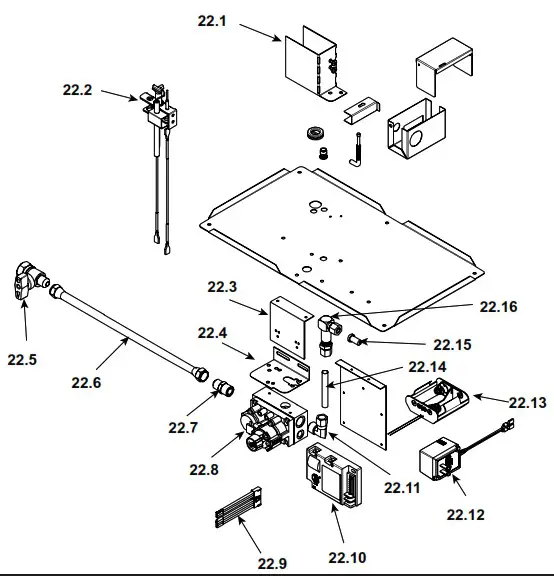

#22 IValve Assembly
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| 22. | Pilot Bracket | 29825 | ||
| 22. | Pilot Assembly – NG | 4021-584 | Y | |
| Pilot Assembly – LP | 4021-585 | Y | ||
| 22. | Valve Bracket – Upper | No longer available | 30014 | |
| 22. | Valve Bracket – Lower | 31824 | ||
| 23. | ON/OFF Valve | SRV15697 | Y | |
| 23. | Flex Line 16 in. | SRV4121-006 | Y | |
| 23. | Brass Male Connector – Flex | Pkg of 5 | 303-315/5 | Y |
| 23. | Valve – NG | 750-500 | Y | |
| Valve – LP | 750-501 | Y | ||
| 23. | Wiring Harness | SRV593-590 | Y | |
| 22.10 | Control Module | SRV593-592 | Y | |
| 22. | Brass Elbow | SRV17524 | ||
| 22. | 3V Adapter Plug | SRV593-593 | Y | |
| 22. | Battery Pack | SRV593-594 | Y | |
| 22. | Orifice Tube | No longer available | 35402 | |
| 22. | Orifice. Burner (.110) – NG | SRV17235 | Y | |
| Orifice. Burner (.067) – LP | SRV17812 | Y | ||
| 22. | Bulkhead | No longer available | 35403 |
| Air Diverter | No longer available | 26650 | ||
| Firebox Back | No longer available | 30672 | ||
| Glass Heat Shield | No longer available | 30633 | ||
| Lava Rock Retainer | No longer available | 29821 | ||
| Nailing Flange | Qty. 4 req. | 31190 | ||
| Touch-up Paint | 71479 | |||
| Burner Pan Assembly | 31392 | Y | ||
| High Limit Switch | SRV30988 | Y | ||
| High Limit Switch Bracket | 30985 | |||
| Junction Box Cover Plate | SRV4031-222 | |||
| Wall Switch Wire | Pre 38/04 | SRV28602 | Y | |
| Post 38/04 | SRV2118-170 | Y | ||
| Wool, Rock. Vermiculite | 4040-094 | |||
| Lava Rock | 4021-296 | |||
| Mineral Wool | SRV14333 | |||
| Vermiculite | 28746 | |||
| Conversion Kit NG | DCKVN | Y | ||
| Conversion Kit LP | DCKVP | Y | ||
| Pilot Orifice (.021) – NG | SRV446-505 | Y | ||
| Pilot Orifice (.0115) – LP | SRV446-517 | Y | ||
| Installation Assembly | 4000-105 |
