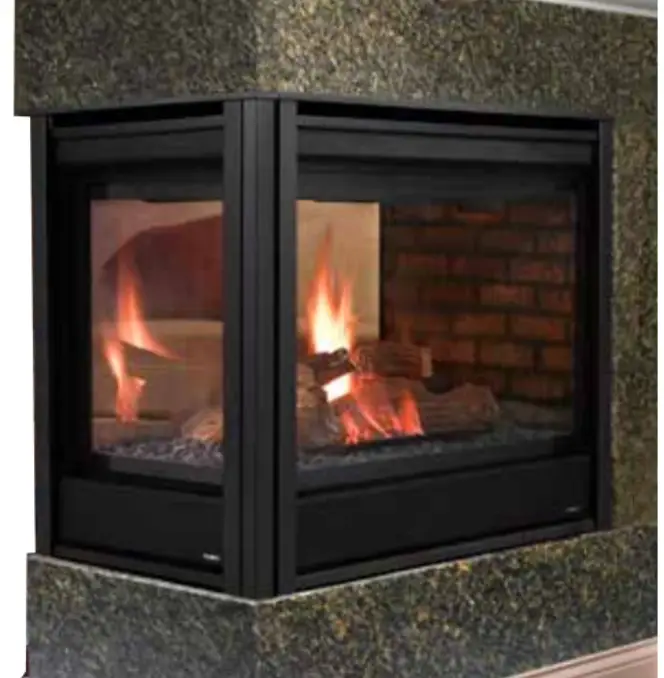

heatilator GDFL36E 36 Inch Peninsula Gas Fireplace
Service Parts
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.

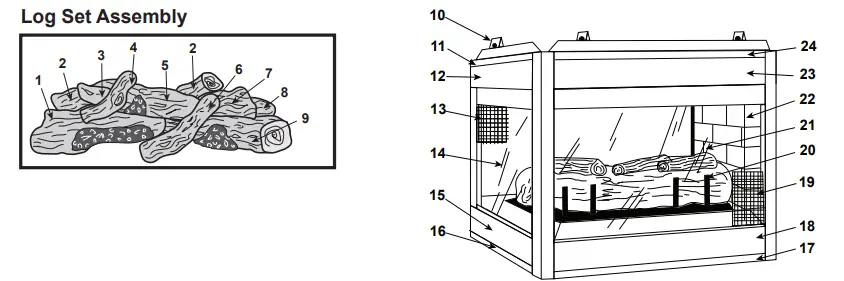

| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| Log/Grate Assembly | 27793 | Y | ||
| Log Assembly | 27794 | Y | ||
| 1 | Front Bottom Left Log | SRV26623 | ||
| 2 | Rear Top Logs | Qty 2 req | SRV26627 | |
| 3 | Back Left Log | SRV26621 | ||
| 4 | Front Top Left Log | No longer available | SRV17229 | |
| 5 | Middle Log | SRV26620 | ||
| 6 | Front Middle Log | SRV26626 | ||
| 7 | Middle Right Log | SRV26625 | ||
| 8 | Back Right Log | SRV26622 | ||
| 9 | Front Bottom Right Log | SRV26624 | ||
| 10 | Top Standoff | Qty 4 req | SRV4044-111 | |
| 11 | End Top Right Face | No longer available | 28112 | |
| 12 | End Upper Face | No longer available | 27656 | |
| 13 | End Screen Assembly | 29693 | Y | |
| 14 | End Glass Assembly | Tempered | SRV4002-045 | Y |
| No longer available | SRV4002-062 | |||
| 15 | End Lower Face | No longer available | 25913 | |
| 16 | End Bottom Face | No longer available | 25914 | |
| 17 | Front Bottom Face | No longer available | 25916 | |
| 18 | Front Control Access Door Assembly | 25893 | ||
| 19 | Front Screen Assembly | Qty 2 req | 26161 | Y |
| 20 | Grate | 26249 | ||
| 21 | Front Glass Assembly | Qty 2 req | 4002-053 | Y |
| 22 | End Refractory | 25835 | ||
| 23 | Front Upper Face – Overlay only | Qty 2 req | 27655 | |
| 24 | Front Top Face | No longer available | 27651 |

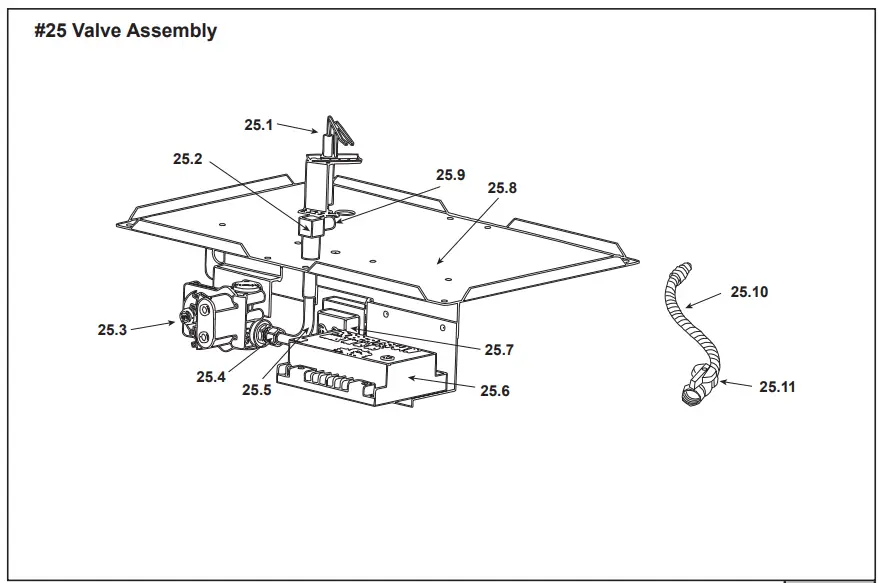

25 Valve Assembly
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| 25.1 | Ignitor | Pre 32/97 | 26541 | Y |
| Post 32/97 | 28048 | Y | ||
| 25.2 | Bulkhead | No longer available | 35403 | |
| 25 | Valve, NG | SRV462-500B | Y | |
| Valve, LP | SRV462-501B | Y | ||
| 25.4 | Brass Connector – Male – Valve/Tube | 13425 | ||
| 25.5 | Burner Supply Tube | No longer available | 27901 | |
| 25.6 | Ignitor Control Box | SRV15695 | Y | |
| 25.7 | Transformer | SRV20947 | Y | |
| 25.8 | Burner Pan Assembly | 25847 | Y | |
| 25.9 | Burner Orifice (.115) – NG | SRV26617 | Y | |
| Burner Orifice (.067) – LP | 17812 | Y | ||
| 25.10 | ON/OFF Valve | SRV15697 | Y | |
| 25.11 | Flex Line | SRV302-320 | Y |
