The first name in fireplaces
Service Parts
Gas Fireplace – BV
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Sept 2001
G270E, G270LE

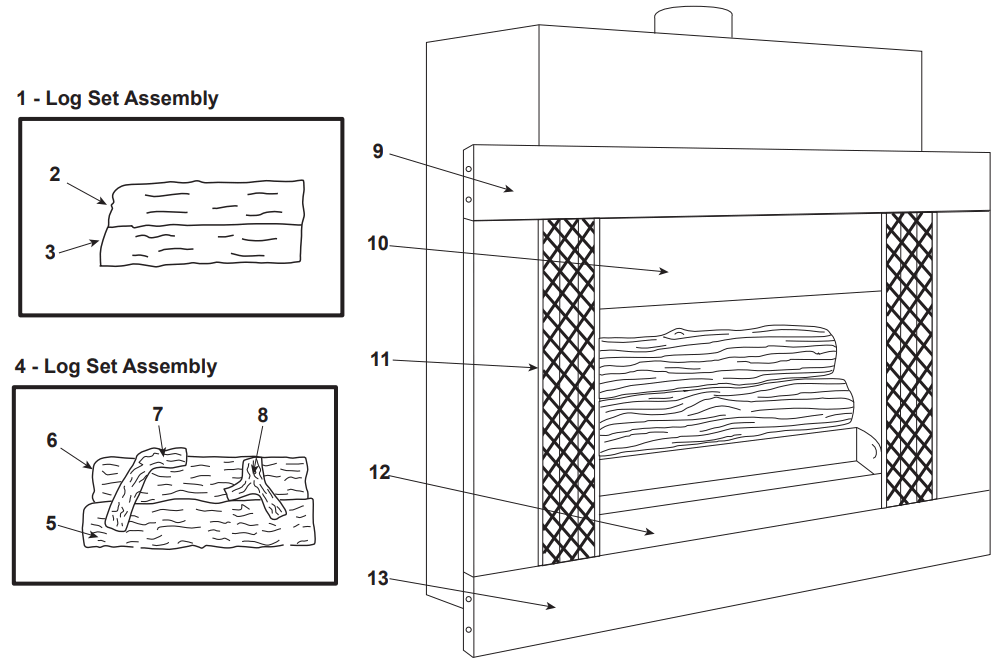

G270E Gas Fireplace-BV
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| 1 | Log Assembly | Pre 41/95 | ||
| 2 | Back Log | No longer available | 15097C | |
| 3 | Front Log | No longer available | 15096C | |
| 4 | Log Assembly | Post 41/95 | ||
| 5 | Front Log | No longer available | SRV26632 | |
| 6 | Back Log | No longer available | SRV24538 | |
| 7 | Top Left Log | No longer available | SRV24539 | |
| 8 | Top Right Log | No longer available | SRV24540 | |
| 9 | Top Front Face – Overlay only | No longer available | 15028C | |
| No longer available | 30058 | |||
| 10 | Hood | No longer available | 30059 | |
| 11 | Screen Assembly | No longer available | 15035 | |
| 12 | Lower Cover | No longer available | 15031D | |
| 13 | Lower Front Face | No longer available | 29729 |
Additional service part numbers appear on the following page.
#14 Valve Assembly
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| 14.1 | High Limit Switch | SRV24672 | Y | |
| 14.2 | Ignition Control Box | SRV15695 | Y | |
| 14.3 | Transformer | SRV20947 | Y | |
| 14.4 | Valve W/R | Pre 41/95 | SRV71511 | Y |
| Valve R/S – NG | No longer available | 71516 | ||
| Valve R/S – LP | No longer available | 71518 | ||
| Valve, NG | SRV462-500B | Y | ||
| Valve, LP | SRV462-501B | Y | ||
| 14.5 | Brass Elbow | SRV17524 | ||
| 14.6 | Burner Supply Tube | No longer available | 24789A | |
| 14.7 | Ignitor Ground Wire | No longer available | 25405 | |
| 14.8 | Ignitor | Pre 39/95 | 26541 | Y |
| Post 39/95 | 26542 | Y | ||
| 14.9 | Junction Box Assembly | 22130 | Y | |
| 14.1 | ON/OFF, Switch | SRV32D0232 | Y | |
| 14.11 | Flex Line | SRV4121-006 | Y |
Additional service part numbers appear on the following page.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| Baffle, Back | No longer available | 15038B | ||
| Brass Male Connector | Pkg of 5 | 303-315/5 | ||
| Bulkhead | Depleting Stock | 35403 | Y | |
| Bulkhead Service Pack | 4001-041 | |||
| Burner Assembly – NG | No longer available | 24723 | ||
| Burner Assembly – LP | No longer available | 24722 | ||
| Burner Orifice – NG | No longer available | 12194D | ||
| Burner Orifice – LP | No longer available | 15139E | ||
| Burner Orifice (.078) – NG | SRV24005 | Y | ||
| Burner Orifice (.046) – LP | 24526 | Y | ||
| Burner Tube | No longer available | 12170B | ||
| No longer available | 24527 | |||
| Firescreen Rod – Qty. 2 req. | No longer available | 15037A | ||
| Grate Bars – Qty. 3 req. | No longer available | 15099B | ||
| Lava Rock | 4021-296 | |||
| Mineral Wool | SRV14333 | |||
| Nailing Flange | Qty. 4 req. | 31190 | ||
| ON/OFF Valve at Flex Line | SRV15697 | Y | ||
| Rock Guard | No longer available | 24676A | ||
| Top Radiation Shield | No longer available | 15009A | ||
| Top Standoff | No longer available | 24675B | ||
| Touch-up Paint | 71479 | |||
| Valve Bracket | No longer available | 31829 | ||
| Vermiculite | 28746 | |||
| Wiring Harness | No longer available | 24699B | ||
| Conversion Kit NG | CKN | Y | ||
| Conversion Kit LP | CKP | Y | ||
| Installation Instructions | 30094 | |||
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
