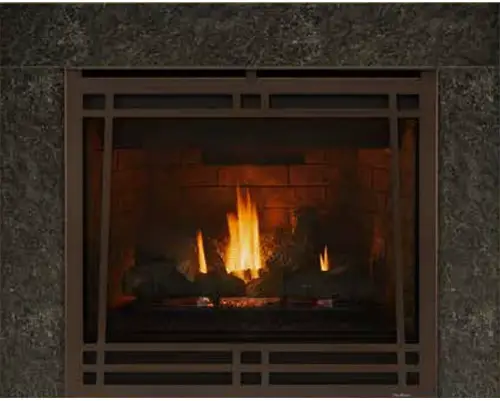

heatilator GC100E DV Gas Fireplace Instruction Manual
Log Set Assembly
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked |
| Log Set Assembly | No longer available | 16769D | ||

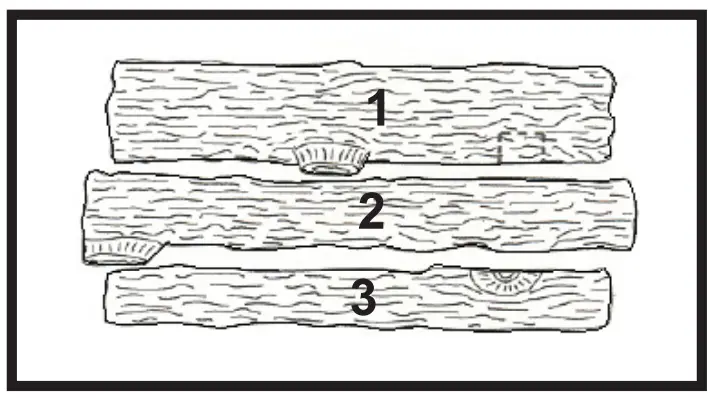

| 1 | Rear Log | No longer available | SRV15691 | |
| 2 | Middle Log | No longer available | SRV15693 | |
| 3 | Front Log | No longer available | 15690C | |

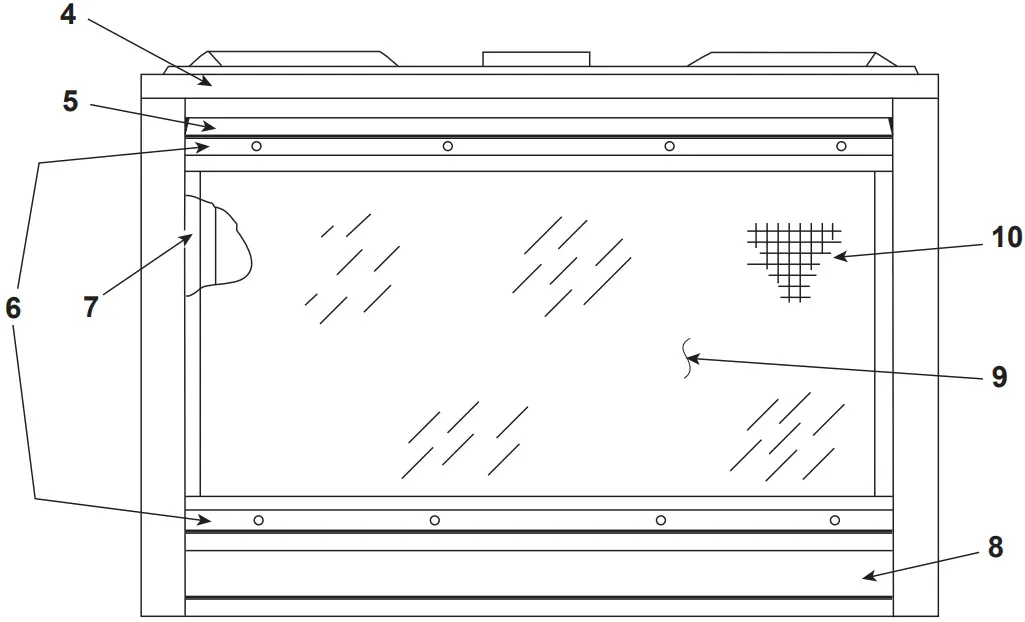

| 4 | Face, Top Front | No longer available | 15674B | |
| 5 | Hood | No longer available | 15675 | |
| 6 | Glass Frame | Qty. 2 req. | 15687 | |
| 7 | Glass Gasket, U-channel Silicone, Top & Bottom of Glass | 10 Ft | 18476/10 | |
| 8 | Face, Lower Front | No longer available | 15676D | |
| 9 | Glass Panel | No longer available | SRV15573 | |
| 10 | Screen Assembly | 19196C | ||
| Glass Seal, Braid Gasket on Unit | 10 Ft | 28091/10 | Y | |
| Junction Box Assembly | No longer available | 15715A | ||
| Log Bracket Assembly | No longer available | 18374A | ||
| Mineral Wool | SRV14333 | |||
| Nailing Flange | Qty. 4 req. | 31190 | ||
| Vermiculite | 28746 | |||
| Installation Instructions/Owner’s Manual | 18386 | |||
| Gas Operations Manual | 71680 |
Electronic Ignition Wiring Diagram
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| 11.1 | High Limit Switch | SRV4021-383 | Y | |
| 11.2 | Transformer | SRV20947 | Y | |
| 11.3 | Ignition Control Box | SRV15695 | Y | |
| 11.4 | Valve, R/S (90 degree) – NG | 71512 | Y | |
| Valve, R/S (90 degree) – LP | No longer available | 71514 | ||
| Valve, W/R (90 degree) | SRV71511 | Y | ||
| 11.5 | Electronic Ignitor | 26542 | Y | |
| Burner | No longer available | 18072C | ||
| Control Panel | No longer available | 17075H | ||
| Conversion Kit – LP | No longer available | 15714A | ||
| Cord Clip | No longer available | 14218 | ||
| Flex Gas Line – 10 in. Stainless Steel | SRV302-320 | Y | ||
| ON/OFF Valve | SRV15697 | Y | ||
| Orifice (out of top of Valve) – NG | No longer available | 15819F | ||
| Orifice (out of top of Valve) – LP | No longer available | 15820D | ||
| Vermiculite Shield | No longer available | 18377F | ||
| Wall Switch | No longer available | 13667A | ||
| Wall Switch Wire Assembly | No longer available | 14720 | ||
| Wire Assembly HIBLK57FF | No longer available | 20977A |
