heatilator GDFL60E Caliber 40 Inch Peninsula DV Gas Fireplace
 | ||||
| IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. | Stocked at Depot | |||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |

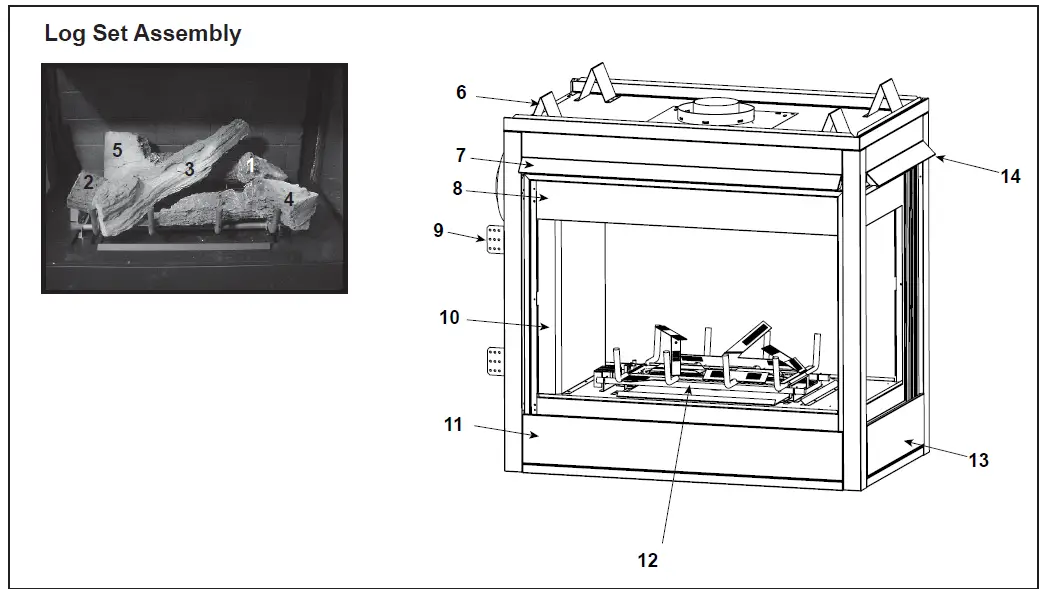

| Log/Grate Assembly | 35595 | Y | ||
| Log Assembly | 35596 | Y | ||
| 1 | Log | SRV33782 | ||
| 2 | Log | SRV33785 | ||
| 3 | Log | SRV35590 | ||
| 4 | Log | SRV35591 | ||
| 5 | Log | SRV35592 | ||
| 6 | Standoff | Qty 4 req | SRV4044-111 | |
| 7 | Long Hood | Pre 03/04 | 27658 | |
| Post 03/04 | 29575 | |||
| 8 | Front Panel (overlay only) | Qty 2 req | 27655 | |
| 9 | Nailing Flanges | Qty 4 req | 31190 | |
| 10 | End Refractory | No longer available | 35367 | |
| No longer available | 4002-071 | |||
| 11 | Control Access Door Assembly | 25893 | ||
| 12 | Grate | 35594 | ||
| 13 | Lower Side Face | No longer available | 25913 | |
| 14 | Hood, Small End | No longer available | 27659 | |
 | ||||
| IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. | Stocked at Depot | |||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |

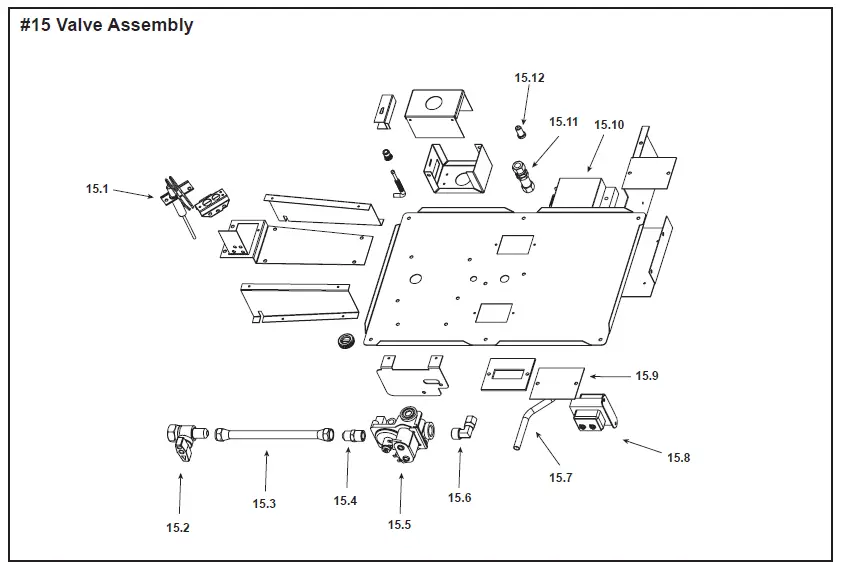

| 15.1 | Ignitor | 26541 | Y | |
| 15.2 | ON/OFF Valve | SRV15697 | Y | |
| 15.3 | Flex Line | SRV302-320 | Y | |
| 15.4 | Brass Connector – Male – Flex | Pkg of 5 | 303-315/5 | Y |
| 16 | Valve, NG | SRV462-500B | Y | |
| Valve, LP | SRV462-501B | Y | ||
| 15.6 | Brass Elbow | SRV17524 | ||
| 15.7 | Burner Supply Tube | 33619 | Y | |
| 15.8 | Transformer | SRV20947 | Y | |
| 15.9 | Light Plate Solid | No longer available | 33927 | |
| 15.10 | Ignition Control Box | SRV15695 | Y | |
| 15.11 | Bulkhead | SRV13405 | Y | |
| 15.12 | Burner Orifice (.115) – NG | SRV26617 | Y | |
| Burner Orifice (.067) – LP | 17812 | Y | ||
| IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. | Stocked at Depot | |||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| Burner Assembly | 33970 | Y | ||
| Electrical Wiring Harness | No longer available | 23002 | ||
| End Glass Assembly | SRV4002-045 | Y | ||
| End Screen Assembly | 29693 | Y | ||
| Exhaust Collar Assembly | No longer available | 25837 | ||
| Exhaust Cover Plate | No longer available | 25840 | ||
| Flue Adapter Assembly | No longer available | 25881 | ||
| Flue Cover Plate | No longer available | 25901 | ||
| Glass Assembly | 4002-053 | Y | ||
| Glass Latch Assembly | No longer available | 30537 | ||
| Post GA1338745 | 33858/2 | Y | ||
| Intake Collar Assembly | No longer available | 25841 | ||
| Intake Cover Plate | No longer available | 25844 | ||
| Junction Box Kit | No longer available | 31581 | ||
| Light Kit Replacement Parts | No longer available | 33792 | ||
| Glass Panel | No longer available | 33791 | ||
| Halogen Light | 33961 | Y | ||
| Power Box Assembly | No longer available | 33920 | ||
| Rear Face. Lower | No longer available | 25912 | ||
| Screen Assembly | 26161 | Y | ||
| Screen Bracket | SRV28159 | Y | ||
| Seal Plate Gasket | 4002-039 | |||
| Upper End Face | No longer available | 27656 | ||
| Conversion Kit NG | CKVN | Y | ||
| Conversion Kit LP | CKVP | Y | ||
