Service Parts
GC400SFE, GC400SFLE

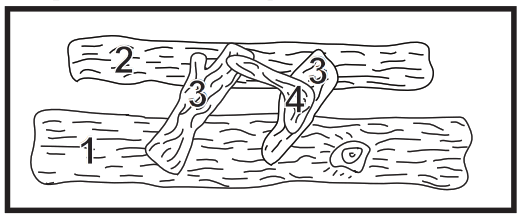

Log Set Assembly
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. provide the model number and serial number when requesting service parts from your dealer or distributor.

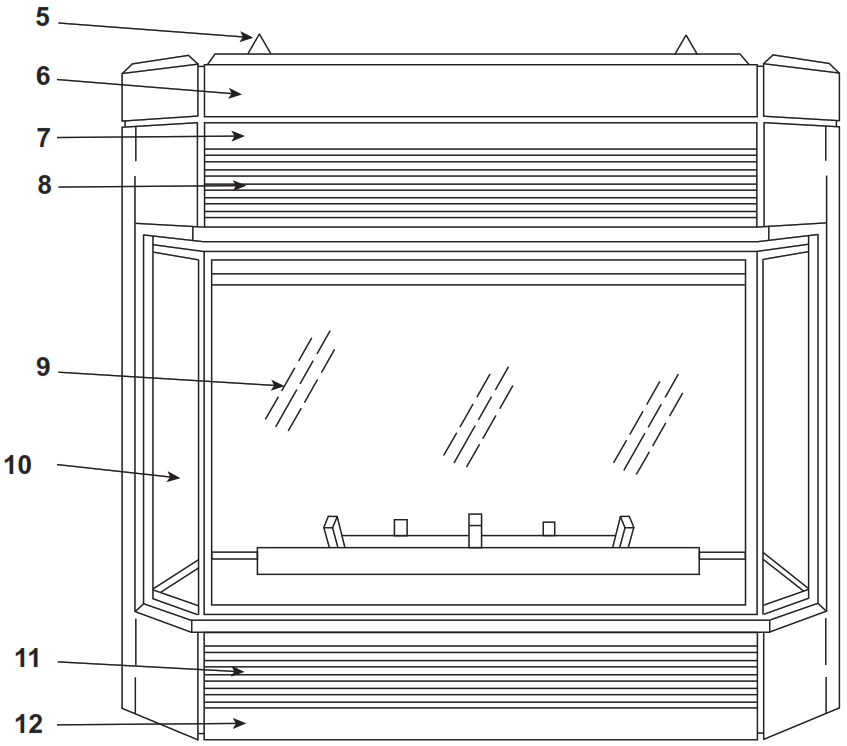

| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| Log Assembly | No longer available | 17560B | ||
| 1 | Front Log | No longer available | 17561C | |
| 2 | Back Log | No longer available | 17648C | |
| 3 | Top Log | No longer available | SRV17133 | |
| 4 | Top Twig | No longer available | SRV17229 | |
| 5 | Top Standoff | Qty 4 req | SRV4044-111 | |
| 6 | Face, Top Front | No longer available | 19727B | |
| 7 | Face, Upper Front – Overlay only | No longer available | 19725D | |
| 8 | Grille, Upper | No longer available | 19693A | |
| 9 | Glass Panel, Front | SRV25650 | ||
| 10 | Glass Panel, Side | No longer available | 25652 | |
| 11 | Grille, Lower | No longer available | 19733 | |
| 12 | Face, Bottom Front – Overlay only | No longer available | 19725D | |
| 13 | Junction Box | 22130 | Y |
Additional service part numbers appear on the following page.
#14 Electronic Ignition
Wiring Diagram
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. provide the model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| Air Deflector, Lower | No longer available | 19729B | ||
| Air Deflector, Top | 19728B | |||
| AVK Fastener Kit | No longer available | 25274A | ||
| Back Log Support | 19158 | |||
| Brass Elbow | SRV17524 | |||
| Brass Male Connector – Flex | Pkg of 5 | 303-315/5 | Y | |
| Brass Trim (around the glass) | No longer available | 20248 | ||
| Bulkhead | No longer available | 35403 | ||
| Burner Assembly | 19163B | Y | ||
| Flexline | SRV4121-006 | Y | ||
| Glass Frame Assembly – Post-Aug. 1996 | No longer available | 25639 | ||
| Glass Gasket – Front and Side Glass | 10 FT | 28091/10 | Y | |
| Glass Retainer | Qty 4 req | 25647 | ||
| High Limit Switch Bracket | No longer available | 15920C | ||
| Ignitor Ground Wire | No longer available | 25405 | ||
| Louvre Bracket | No longer available | 19039A | ||
| Micro Switch | No longer available | SRV13426 | ||
| Mineral Wool | SRV14333 | |||
| Nailing Flange | Qty 4 req | 31190 | Y | |
| ON/OFF, Switch | SRV32D0232 | Y | ||
| ON/OFF Valve | SRV15697 | |||
| Touch-up Paint | 71479 | |||
| Vermiculite | 28746 | |||
| Valve Bracket | No longer available | 19303C | ||
| Installation Instructions/Owner’s Manual | 19740 |
42” Bay Gas Fireplace – DV
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Oct. 1999
