heatilator GDFL60I 40 Inch Caliber Peninsula DV Gas Fireplace

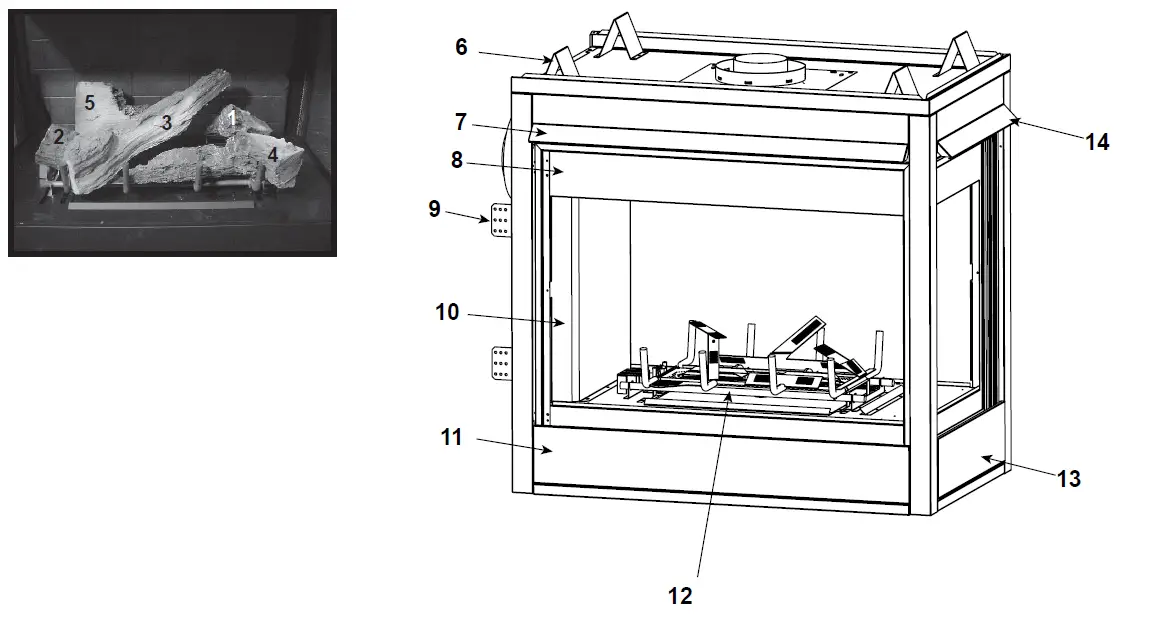

Log Set Assembly
|
| ||||
| IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. | Stocked at Depot | |||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| Log/Grate Assembly | 35595 | Y | ||
| Log Assembly | 35596 | Y | ||
| 1 | Log | SRV33782 | ||
| 2 | Log | SRV33785 | ||
| 3 | Log | SRV35590 | ||
| 4 | Log | SRV35591 | ||
| 5 | Log | SRV35592 | ||
| 6 | Standoff | Qty 4 req | SRV4044-111 | |
| 7 | Front Hood | Pre 03/04 | 27658 | |
| Post 03/04 | 29575 | |||
| 8 | Front Panel (overlay only) | Qty 2 req | 27655 | |
| 9 | Nailing Flange | Qty 4 req | 31190 | |
| 10 | End Refractory | No longer available | 35367 | |
| No longer available | 4002-071 | |||
| 11 | Control Access Door Assembly | Qty 2 req | 25893 | |
| 12 | Grate Assembly | 35594 | ||
| 13 | Lower Side Face | No longer available | 25913 | |
| 14 | Hood, Small End | No longer available | 27659 | |
15 Valve Assembly
|
| |||||
| IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. | Stocked at Depot | ||||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | ||
| 15.1 | Flex Ball Valve Assembly | SRV302-320 | Y | ||
| 15.2 | Variable Valve | NG | 750-500 | Y | |
| Propane | 750-501 | Y | |||
| 15.3 | Brass Elbow | SRV17524 | |||
| 15.4 | Burner Tube 3/8 | 33619 | Y | ||
| 15.5 | Control Module | SRV593-592 | Y | ||
| 15.6 | Light Plate Solid | No longer available | 33927 | ||
| 15.7 | Bulkhead | SRV13405 | Y | ||
| 15.8 | Burner Orifice (.115) | SRV26617 | Y | ||
| 15.9 | Elect Pilot (RS) | Pre GA1548727 | 4021-584 | Y | |
| Post GA1548727 | 4021-324 | Y | |||
| Pilot Orifice (.021/.0115) | SRV446-505 | Y | |||
| 15.10 | 3V Transformer | SRV593-593 | Y | ||
| Battery Pack | SRV593-594 | Y | |||
| Pilot Bracket | 4002-037 | ||||
| Seal Plate Gasket | 4002-039 | ||||
| IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. | Stocked at Depot | |||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| Burner Pan Assembly | 33970 | Y | ||
| Exhaust Collar Assembly | No longer available | 4002-004 | ||
| Exhaust Cover Plate | No longer available | 25840 | ||
| Flue Adapter Assembly | No longer available | 25881 | ||
| Glass Assembly, End | SRV4002-045 | Y | ||
| Glass Assembly, Side | Qty 2 req | 4002-053 | Y | |
| Glass Latch Assembly | No longer available | 30537 | ||
| Post GA1337846 | 33858/2 | Y | ||
| Glass Latch Handle | 4002-061 | Y | ||
| Intake Collar Assembly | 4002-002 | |||
| Intake Cover Plate | No longer available | 25844 | ||
| Junction Box Kit | No longer available | 31581 | ||
| Lava Rock 2# Bag | Qty 2 req | 4021-296 | ||
| Mineral Wool | Qty 2 req | SRV14333 | ||
| Screen Assembly, End | 29693 | Y | ||
| Screen Assembly, Side | Qty 2 req | 26161 | Y | |
| Screen Bracket | Qty 4 req | SRV28159 | Y | |
| Vermiculite (Small) | 28746 | |||
| Conversion Kit NG | DCKVN | Y | ||
| Conversion Kit LP | DCKVP | Y | ||
| Installation Instructions | Pre GA1548726 | 35593 | ||
| Post GA1548726 | 4002-079 | |||
