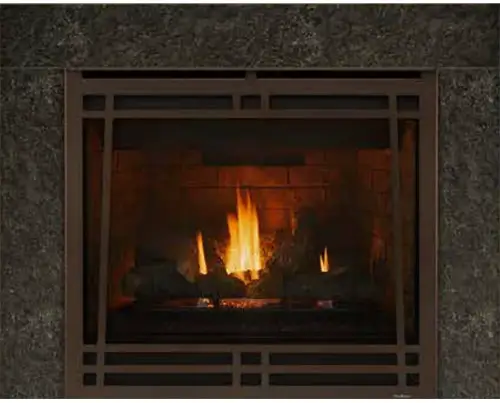

Heatilator G270 Gas Fireplace-BV User Manual
Assembly Instructions
1 – Log Set Assembly
4 – Log Set Assembly
 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. | Stocked at Depot | |||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |

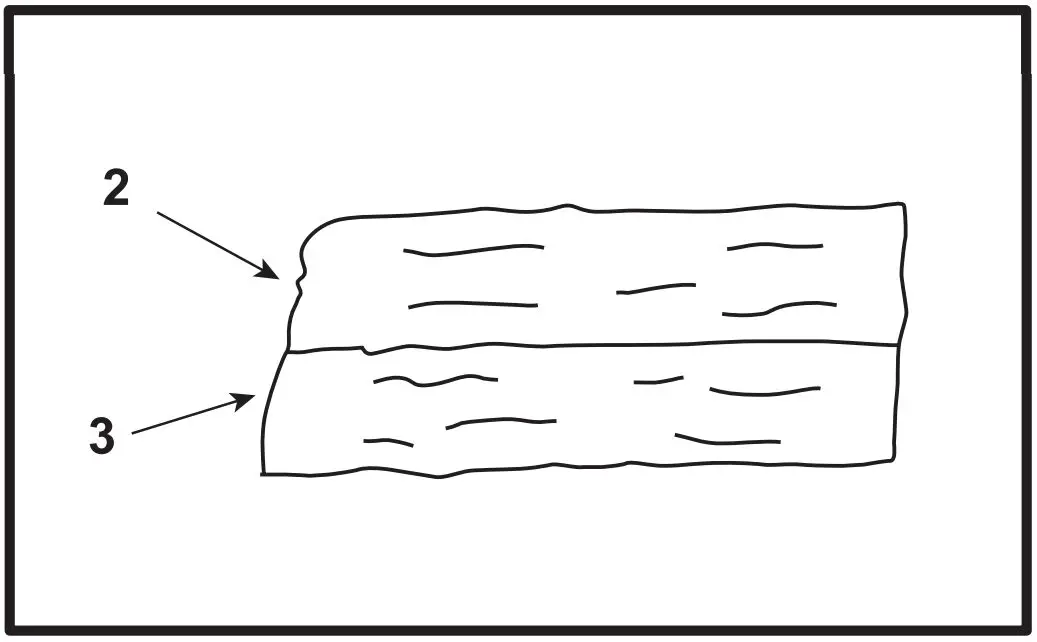

| 1 | Log Assembly | Pre 41/95 | ||
| 2 | Back Log | No longer available | 15097C | |
| 3 | Front Log | No longer available | 15096C | |

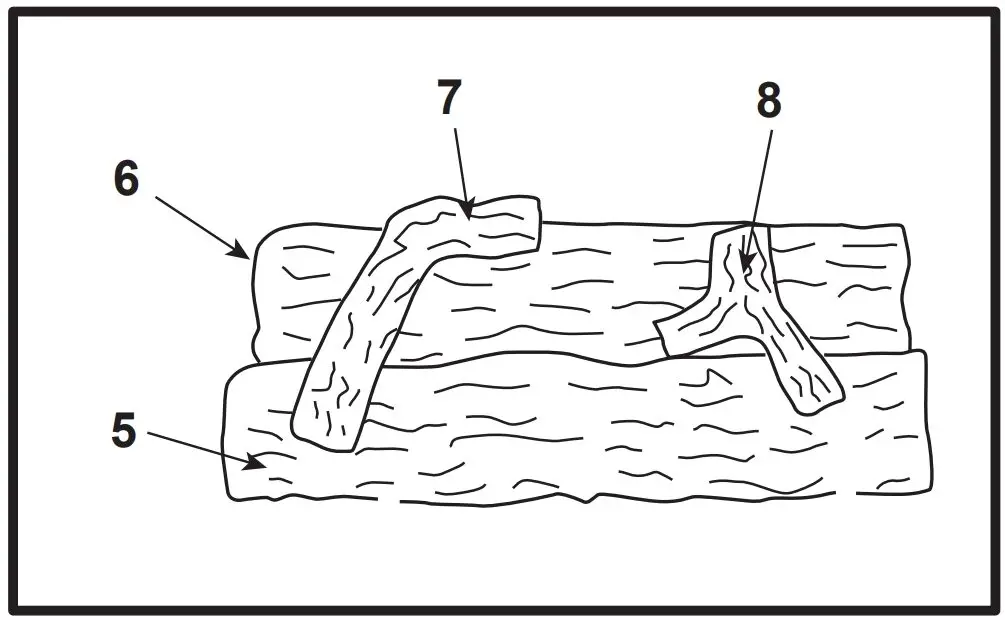

| 4 | Log Assembly | Post 41/95 | ||
| 5 | Front Log | No longer available | SRV26632 | |
| 6 | Back Log | No longer available | SRV24538 | |
| 7 | Top Left Log | No longer available | SRV24539 | |
| 8 | Top Right Log | No longer available | SRV24540 | |

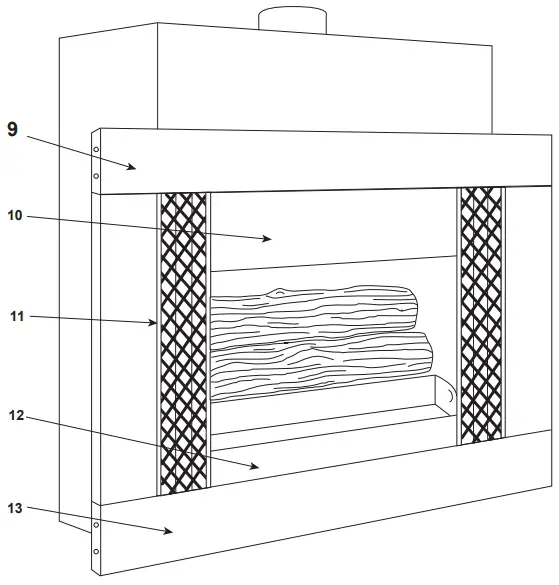

| 9 | Top Front Face – Overlay only | No longer available | 15028C | |
| No longer available | 30058 | |||
| 10 | Hood | No longer available | 30059 | |
| 11 | Screen Assembly | No longer available | 15035 | |
| 12 | Lower Cover | No longer available | 15031D | |
| 13 | Lower Front Face | No longer available | 29729 | |

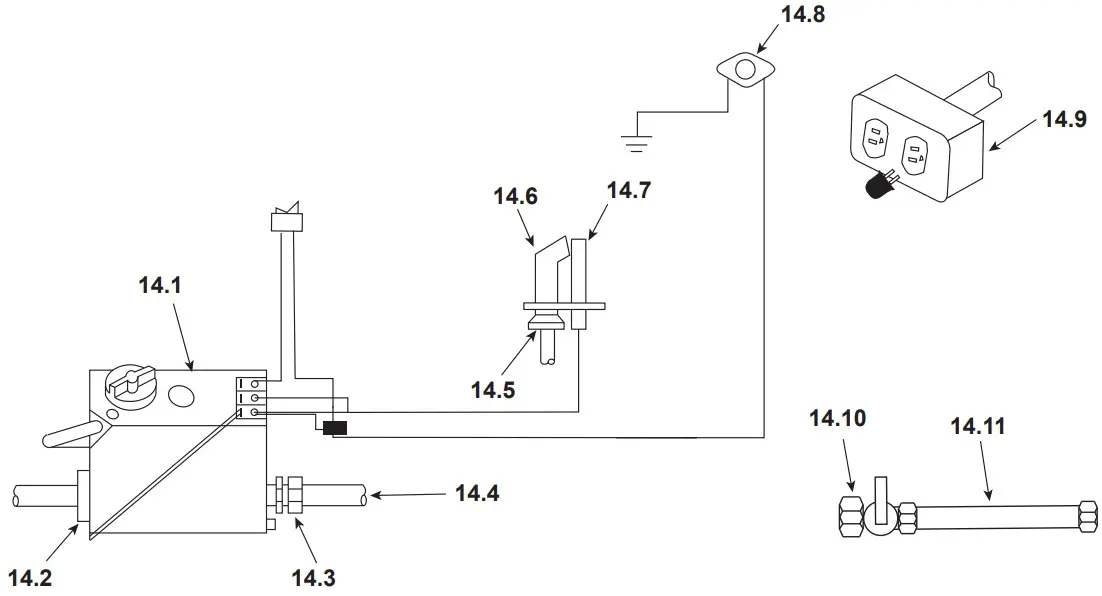

Wiring Assembly
| IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. | Stocked at Depot | |||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
|
14.1 | Valve W/R – NG | Pre 41/95 | SRV71492 | Y |
| Valve W/R – LP | No longer available | 71485 | ||
| Valve R/S – NG | Pre 41/95 | 060-500 | Y | |
| Valve R/S – LP | Pre 41/95 | SRV25810 | Y | |
| Valve | No longer available | 14320B | ||
| 14.2 | Brass Male Connector | Pkg of 5 | 303-315/5 | Y |
| 14.3 | Brass Elbow | SRV17524 | ||
| 14.4 | Burner Supply Tube | No longer available | 24789A | |
| 14.5 | Orifice, Pilot – NG | 060-505 | Y | |
| Orifice, Pilot – LP | SRV446-517 | Y | ||
|
14.6 | Pilot Assembly – NG | No longer available | 12915A | |
| No longer available | 14201D | |||
| Pilot Assembly – LP | No longer available | 15144A | ||
| No longer available | 14206C | |||
| 14.7 | Thermopile | Pre 41/95 | 2103-512 | Y |
| 14.8 | High Limit Switch | SRV24672 | Y | |
| 14.9 | Junction Box Assembly | 22130 | Y | |
| 14.10 | ON/OFF Valve at Flex Line | SRV15697 | Y | |
| 14.11 | Flex Line | SRV4121-006 | Y | |
| Baffle, Back | No longer available | 15038B | ||
| Bulkhead | No longer available | 35403 | ||
| Burner Assembly – NG | No longer available | 15018 | ||
| Burner Assembly – LP | No longer available | 15129 | ||
| Burner Orifice – NG | No longer available | 12194D | ||
| Burner Orifice (.078) – NG | SRV24005 | Y | ||
| Burner Orifice – LP | No longer available | 15139E | ||
| Burner Orifice (.046) – LP | No longer available | 24526 | ||
| Burner Tube | No longer available | 12170B | ||
| No longer available | 24527 | |||
| Firescreen Rod – Qty. 2 req. | No longer available | 15037A | ||
| Grate Bars – Qty. 3 req. | No longer available | 15099B | ||
| Lava Rock | 4021-296 | |||
| Mineral Wool | SRV14333 | |||
| Nailing Flange | Qty. 4 req. | 31190 | ||
| ON/OFF, Switch | SRV32D0232 | Y | ||
| Pilot Bracket | No longer available | 26351 | ||
| Regulator – NG | No longer available | 18775A | ||
| Regulator – LP | No longer available | 18773A | ||
| Rock Guard | No longer available | 24676A | ||
| Thermocouple Adapter | No longer available | 72815 | ||
| Top Radiation Shield | No longer available | 15009A | ||
| Top Standoff | No longer available | 24675B | ||
| Touch-up Paint | 71479 | |||
| Valve Bracket | No longer available | 24484 | ||
| Vermiculite | 28746 | |||
| Wiring Harness | No longer available | 24699B | ||
| Conversion Kit NG | CKN | Y | ||
| Conversion Kit LP | CKP | Y | ||
| Installation Instructions | 30094 | |||
