The New Gen.2 of HIGH PERFORMANCE
TRUE ONLINE DOUBLE CONVERSION UPS
Features
– DSP Control
– 1.0 Output Power Factor (PF)
– Wide Input Range 110-275VAC(depend on load)
– Configurable Battery q’ty 16 to 20 pcs per string without power derating
– Battery capacity calculation
– Event log via LCD
– No power derating in the full operating temperature range
– High Efficiency Inverter mode @95%
– Input THDI < 3%
– Output THDv < 5%
– Frequency Converter Mode
– Variety of Communication Ports that includes RS232, USB, EPO, Dry In (for remote action), Dry out (for UPS status)
– Maintenance bypass switch
– 3 hours recharging to 90% of battery capacity
– Charger current is adjustable, 1A to 12A through LCD
– N + X Parallel Redundancy
– Over Voltage Cut-Off device (OVCD) for Tough environment
– Emergency Power Off (EPO)
– Short Circuit Clearance with current limit
– Optional SNMP, Relay Cards & MODBUS
– Free Power Management Software for Standalone LAN & WAN

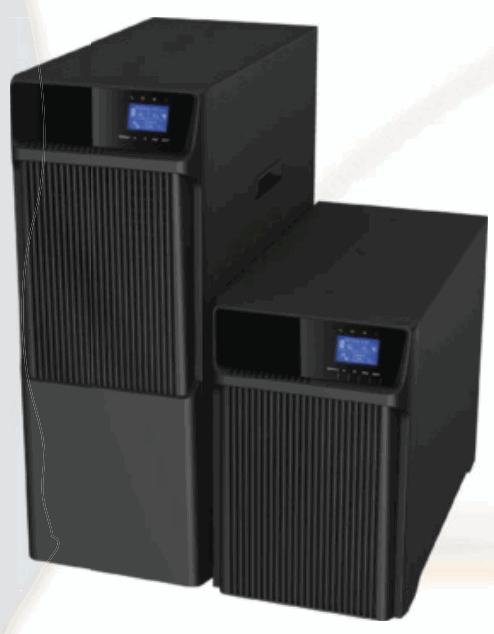

Titan Elite Gen.2 series, built for the most reliability, purity, and power
Titan Elite Gen.2 Series UPS is a feature-rich UPS that makes use of the unique True Online Double Conversion circuitry to detect the electric current and voltage output of the utility power supply. The current is input via high-frequency PWM to maintain uniform waveform and phase in line with the voltage, so as to attain a high input power factor over to 0.995 and avoid generating comparatively significant harmonic interference on the power network.
With the use of the outstanding IGBT as the power conversion component, so as to get the full performance of output capacity at PF 1.0, Higher working efficiency of the inverter also improves the overall efficiency of UPS up to 95% and higher inversion frequency reduces the noise of the inverter as well.
Product Information
| MODEL | TE-6k | TE-6kS | TE-10k | TE-10kS | |||
| CAPACITY | VA/WATT | 6000VA/6000W (PF1.0) | 10000VA/10000W (PF1.0) | ||||
| INPUT | Voltage Range | 110 – 275 VAC | |||||
| Frequency Range | 45-55Hz/54-66Hz (extendable to 40-70Hz when load <60%) | ||||||
| Phase | Single phase with ground | ||||||
| Current THDI | <3% | ||||||
| Power Factor | >=0.995 | ||||||
| Generator Input | 1.5 x UPS Rating Power | ||||||
| OUTPUT | Voltage Range | 220VAC/230VAC/240VAC (± 1%) | |||||
| Phase | Single phase with ground | ||||||
| Frequency (Synchronized Range) | 45-55Hz/54-66Hz (extendable to 40-70Hz when load <60%) | ||||||
| Frequency (Battery Mode) | 50/60Hz ± 0.01Hz | ||||||
| Current Crest Ratio | 3:1 | ||||||
| Harmonic Distortion | < 1% THD @Linear Load , <5% @non-linear load | ||||||
| Protection | Short Circuit Protection | ||||||
| Output Waveform | Pure Sinewave | ||||||
| Outlet | Terminal Block | ||||||
| Overload Capacity | Line Mode | 10 min @ 105%~125% ; 30 sec @ 125% ~ 150% ; 500 msec @ > 150% | |||||
| Battery Mode | 1 min @ 105%~125% ; 30 sec @ 125% ~ 150% ; 500 msec @ > 150% | ||||||
| EFFICIENCY | AC Mode / Battery Mode | > 95% / >95 % | |||||
| ECO mode | > 98% | ||||||
| BATTERY | Number of Batteries Per Set | 16/17/18/19/20 | Depending on the capacity of external batteries | 16/17/18/19/20 | Depending on the capacity of external batteries | ||
| Battery Capacity (Ahr) | 12V/(7/9)Ahr | 12V/(7/9)Ahr | |||||
| Backup Time (depend on load) | >15 min | >15 min | |||||
| Recharge Time (to 90%) | 3 Hours | 3 Hours | |||||
| Charge Current Adjustable | default 1A(0-4A) | default 4.0A (0-12A) | default 1A(0-4A) | default 4.0A (0-12A) | |||
| Rated Battery Voltage | 192-240 Vdc (adjustable) | ||||||
| Battery Type | Sealed Lead Acid Maintenance Fee | ||||||
| TRANSFER TIME | AC to DC | Zero | |||||
| Parallel | N+X Parallel Redundancy | Max 3 (Load Sharing) | |||||
| INDICATOR | LED & LCD display | LED: Online mode, Battery mode, Bypass/Standby mode, Fault. LCD: Input/Output Voltage&Frequency, Load level, Load Watt, Load VA, Battery Voltage, Battery status, Converter mode, Battery Remaining Time, Battery running Time, UPS status, Fault indicator, Event Log, etc. | |||||
| AUDIBLE ALARM | Battery Mode | Sounding every 4 seconds | |||||
| Low Battery | Sounding every second | ||||||
| Overload | Sounding twice every second | ||||||
| Fault | Continuously Sounding | ||||||
| DIMENSION | W x H x D mm | 220 x 589 x 492 | 220 x 348 x 492 | 220 x 589 x 492 | 220 x 348 x 492 | ||
| WEIGHT | kg | 52.7 | 13 ex.bat | 60.3 | 15.2 ex.bat | ||
| ENVIRONMENT | Operating Environment | 0-40° C | |||||
| Relative Humidity | 0-95% (NON-CONDENSING) | ||||||
| Noise Level | <45dB @ 1 Meter | <50dB @ 1 Meter | |||||
| INTERFACE | USB & RS-232 | The software supports Windows Family, Linux, Sun Solaris, IBM AIX, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC | |||||
| Smart Slot (Option) | SNMP Adapter/ AS400 Relay Card / RS485 / USB | ||||||
| INTERNATIONAL STANDARDS | CE | Safety (IEC62040-1-1), EMC: IEC/EN 62040-2, IEC 61000-4-2(ESD):level 3, IEC 61000-4-3 (Radiated field): level 3, IEC 61000-4-4(EFT):level 4, IEC61000-4-5 (Fast transients): level 4, IEC 61999-4-6 (Electromagnetic field): level 3, IEC 61000-4-8 (Conducted magnetic field):level 4, Performance: IEC/EN 62040-3 | |||||
Specification is subject to change without prior notice.
Syndrome Electronics Industry Co., Ltd.
Tel: (66)28726900 (auto)
Fax: (66)28726909
URL: http://www.syndome.com
Email: [email protected]
MK-S-21-Revo ed.01/08/2017
