heatilator GC300ST See-thru Gas Fireplace
Ending Manufacturing Date: Aug 1997
|
| ||||
| IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. | Stocked at Depot | |||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |

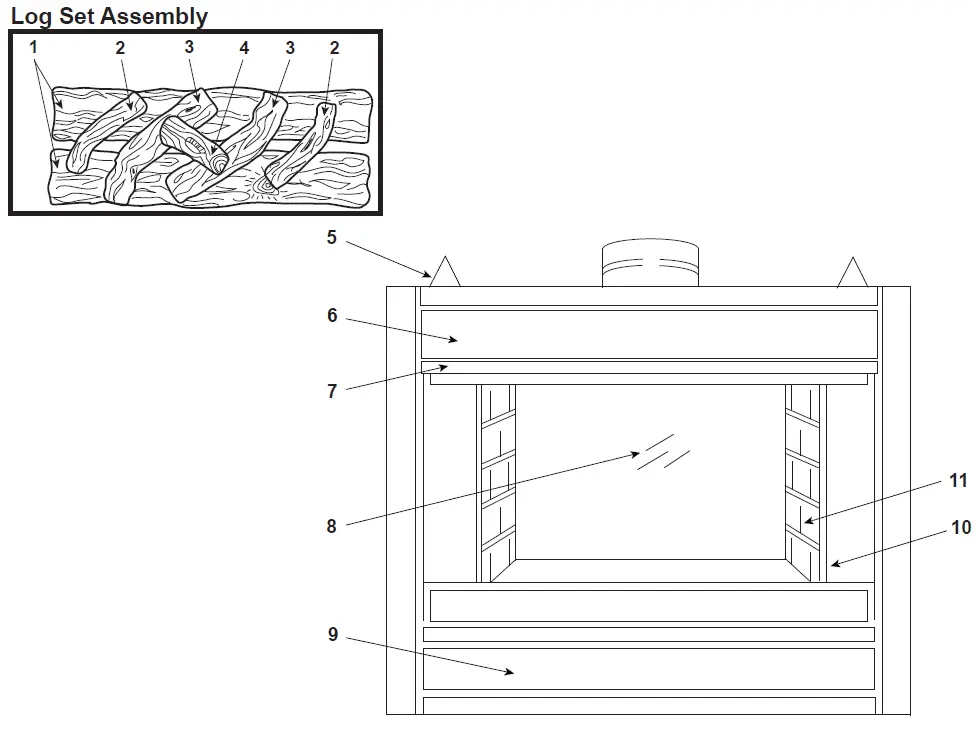

| Log Assembly | No longer available | 19630 | ||
| 1 | Logs, Front & Back | No longer available | 19331 | |
| 2 | Logs, Top Left & Right | No longer available | SRV17229 | |
| 3 | Twigs, Top Left & Right | No longer available | SRV17133 | |
| 4 | Log, Top Center | No longer available | SRV18780 | |
| 5 | Standoff, Top | Qty 4 req | SRV4044-111 | |
| 6 | Face, Front Upper – Overlay only | No longer available | 19571A | |
| 7 | Trim, Front – Black | No longer available | 19806A | |
| 8 | Front Glass Panel | Qty 2 req | SRV13379 | Y |
| 9 | Control Panel Door Assembly | No longer available | 19629 | |
| 10 | Refractory, Corner | Qty 4 req | 13320A | |
| 11 | Refractory, Side | Qty 2 req | 13319 | |

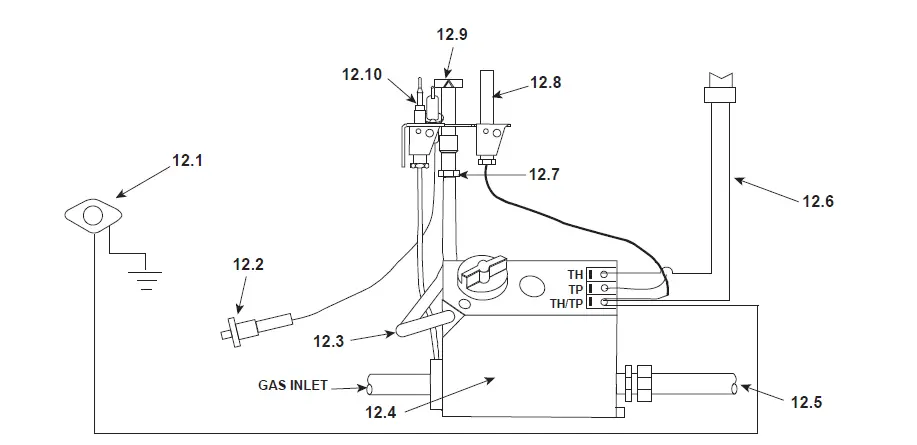

| #17 Valve Assembly
| ||||||
| 12.2 TH TP TH/TP | ||||||
| 12.3
GAS INLET 12.4 |
12.5 | |||||
| IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. | Stocked at Depot | |||||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |||
| 12.1 | High Limit Switch | SRV24968 | Y | |||
| 12.2 | Ignitor, Push Button | 291-513 | Y | |||
| 12.3 | Pilot Tube Kit – assembled | SRV446-301 | Y | |||
| Pilot Tube Kit – unassembled | 26471 | Y | ||||
|
12.4 | Valve R/S – NG | Pre 21/96 | 060-500 | Y | ||
| Valve W/R – NG | Pre 21/96 | SRV71492 | Y | |||
| Valve – NG | Post 21/96 | SRV23363 | Y | |||
| Valve R/S – LP | Pre 21/96 | SRV25810 | Y | |||
| Valve W/R – LP | No longer available | 71485 | ||||
| Valve – LP | Post 21/96 | SRV25812 | Y | |||
| 12.5 | Connector, Male, Brass – Tube | 13425 | ||||
| 12.6 | Wire Assembly, Wire Switch | No longer available | 14720 | |||
| 12.7 | Orifice, Pilot – NG (.021) | SRV446-505 | Y | |||
| Orifice, Pilot – LP (.0115) | SRV446-517 | Y | ||||
| 12.8 | Thermopile | 2103-512 | Y | |||
|
12.9 | Pilot Assembly – NG | Pre 21/96 | 4021-728 | Y | ||
| No longer available | SRV4021-726 | |||||
| Pilot Assembly – LP | Pre 21/96 | 4021-729 | Y | |||
| Post 21/96 | 4021-727 | Y | ||||
| 12.10 | Thermocouple | SRV72956 | Y | |||
| Orifice, Burner – NG (.120) | SRV18677 | Y | ||||
| Orifice, Burner – LP (.067) | 17812 | Y | ||||
| IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. | Stocked at Depot | |||
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| Bulkhead Union, 3/8 in. | SRV13405 | Y | ||
| Burner Assembly | No longer available | 19328 | ||
| Burner Supply Tube, 90 degree | 19768A | |||
| Connector, Male, Brass – Flex | Pkg of 5 | 303-315/5 | Y | |
| Face, Bottom Front – Overlay only | No longer available | 17085A | ||
| Face, Top Front w/Drywall Lip – Overlay only | No longer available | 13253G | ||
| Firescreen Assembly, Access Side | No longer available | 19833D | ||
| Firescreen Assembly, Back Side | No longer available | 20097 | ||
| Flex Line Assembly | No longer available | 12303C | ||
| Gasket, Glass | 10 Ft | 28091/10 | Y | |
| Gasket, Silicone | 10 Ft | 18476/10 | Y | |
| Glass Frame | Qty 4 req | 13376i | Y | |
| High Limit Switch Bracket | No longer available | 19687A | ||
| Junction Box | 22130 | Y | ||
| Lava Rock | 4021-296 | |||
| Micro Switch | No longer available | SRV13426 | ||
| Mineral Wool | SRV14333 | |||
| Nailing Flange | Qty 4 req | 31190 | ||
| ON/OFF Valve | SRV15697 | Y | ||
| Orifice Bracket | No longer available | 19632B | ||
| Pilot Bracket | No longer available | 25227A | ||
| Retainer, Refractory Back | No longer available | 19594 | ||
| Retainer, Upper Seal | No longer available | 19583A | ||
| Valve Bracket R/S | No longer available | 19303 | ||
| Valve Bracket W/R | No longer available | 18795D | ||
| Valve Burner Tube | No longer available | 19769A | ||
| Vermiculite | 28746 | |||
| Conversion Kit NG | Not available for White Rogers | CKN | Y | |
| Conversion Kit LP | CKP | Y | ||
| Installation Instructions | 19781 | |||
