Service Parts
Gas Fireplace – DV
GC100AE, GC100ALE
Beginning Manufacturing Date: Jan 1992
Ending Manufacturing Date: June 1994

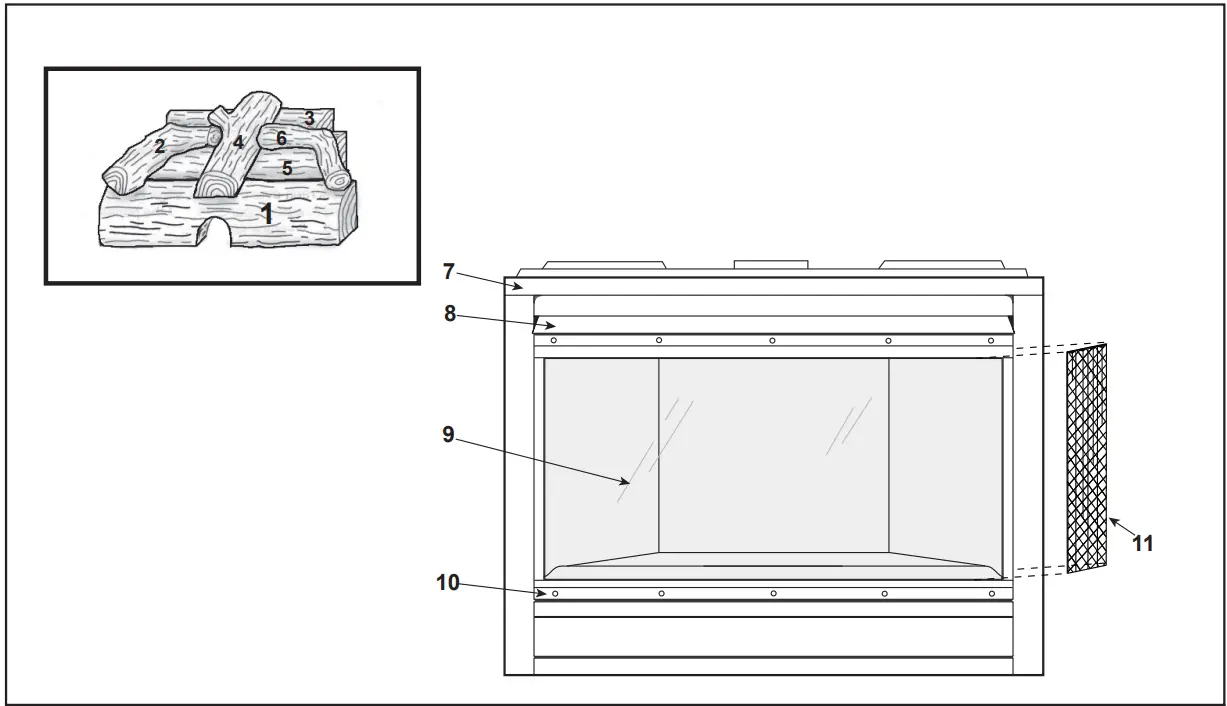

Log Set Assembly
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| Log Assembly | No longer available | 19877 | ||
| 1 | Log, Front | No longer available | 19744A | |
| 2 | Log, Left | No longer available | 19743A | |
| 3 | Log, Back | No longer available | 20684A | |
| 4 | Log, Top Middle | No longer available | SRV18781 | |
| 5 | Log, Bottom Middle | No longer available | SRV18757 | |
| 6 | Log, Right | No longer available | SRV18780 | |
| 7 | Face, Upper Front | No longer available | 15674B | |
| 8 | Hood | No longer available | 15675C | |
| 9 | Glass Panel | No longer available | SRV15573 | |
| 10 | Glass Frame | Qty 2 req | 15687 | |
| 11 | Firescreen Assembly | 19196C | ||
| Burner Assembly | No longer available | 18788A | ||
| Glass Seal | 10 FT | 28091/10 | Y | |
| Lava Rock – 2 lbs. | 4021-296 | |||
| Vermiculite Shield | No longer available | 18,377 F | ||
| Installation Instructions and Owner’s Manual | 20064 |
Additional service part numbers appear on following page.

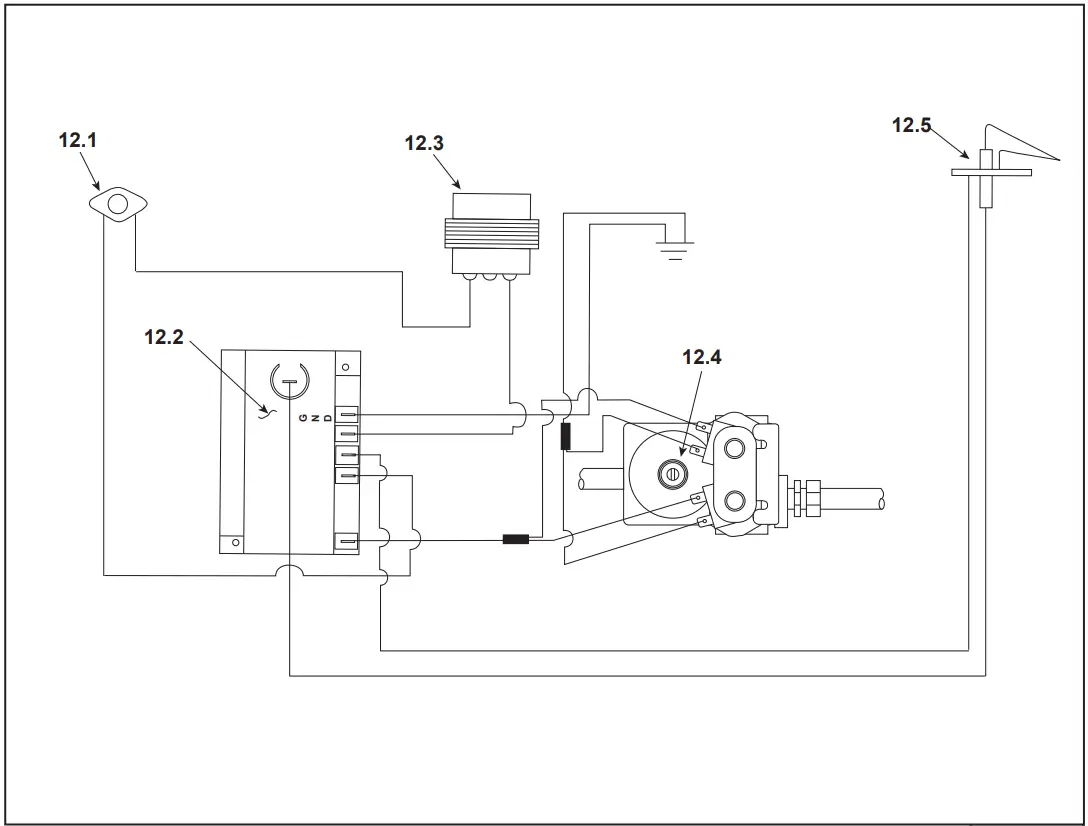

#12 Electronic Ignition Wiring Diagram
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | Stocked at Depot |
| 12. | High Limit Switch | SRV4021-383 | Y | |
| 12. | Ignition Control Box | SRV15695 | Y | |
| 12. | Transfomer | SRV20947 | Y | |
| 12. | Valve (R/S) – NG | 71512 | Y | |
| Valve (R/S) – LP | No longer available | 71514 | ||
| Valve (W/R) | SRV71511 | Y | ||
| 13. | Ignitor | 26542 | Y | |
| Burner Orifice (.093) – NG | SRV16752 | Y | ||
| Burner Orifice (.052) – LP | SRV14047 | Y | ||
| Burner Tube (R/S) | No longer available | 18115B | ||
| Burner Tube (W/R) | No longer available | 18613A | ||
| Valve Bracket (W/R) – NG | No longer available | 18795D |
