Heatilator Gdst60iv 40 Inch Caliber See-thru Gas Fireplace Instruction Manual

heatilator GDST60iV 40 Inch Caliber See-Thru Gas Fireplace

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide the model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.						Stocked at Depot
ITEM	DESCRIPTION		COMMENTS		PART NUMBER

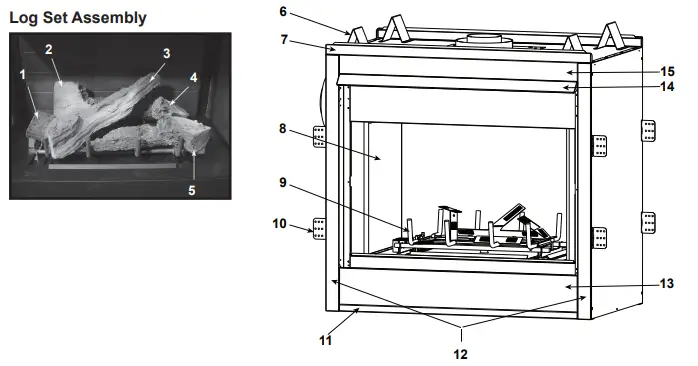

	Log/Grate Assembly				35595	Y
	Log Assembly				35596	Y
1	Log #1				SRV33785
2	Log #2				SRV35592
3	Log #3				SRV35590
4	Log #4				SRV33782
5	Log #5				SRV35591
6	Top Standoff		Qty 4 req		SRV4044-111
7	Top Front Face		No longer available		27651
8	End Refractory		No longer available		35367
			No longer available		4002-071
9	Grate Assembly				35594
10	Nailing Flanges		Qty 8 req		31190
11	Columns		No longer available		25909
12	Bottom Front Face		No longer available		25916
13	Control Access Door Assembly		Qty 2 req		25893
14	Front Hood		Pre 03/04		27658
			Post 03/04		29575
15	Upper Front Face		No longer available		27655

Additional service part numbers appear on the following page.

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide the model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.				Stocked at Depot
ITEM	DESCRIPTION	COMMENTS	PART NUMBER

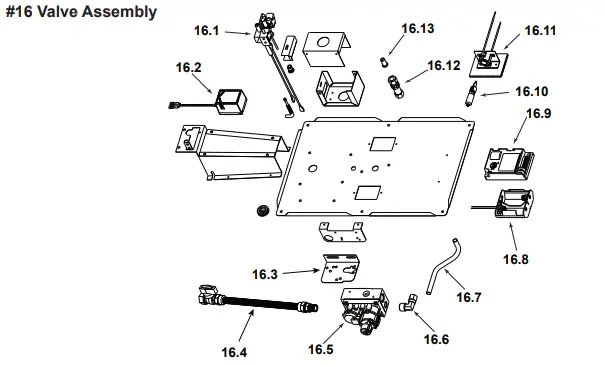

16.1	Elect Pilot (RS) – NG		4021-584	Y
	Elect Pilot (RS) – LP		4021-585	Y
16.2	3V Transformer		SRV593-593	Y
16.3	Valve Bracket – Lower		31824
16.4	Flex Tube Assembly		SRV302-320	Y
16.5	Valve – NG		750-500	Y
	Valve – LP		750-501	Y
16.6	Brass Elbow		SRV17524
16.7	Burner Supply Tube		33619	Y
16.8	Battery Pack		SRV593-594	Y
16.9	Control Module		SRV593-592	Y
	Light Kit Replacement Parts
16.10	Halogen Light	Qty. 2 Req.	33961	Y
16.11	Light Assembly	No longer availalble	33611
	Glass Panel	No longer available	33791
	Power Box Assembly	No longer available	33920
16.12	Bulkhead		SRV13405	Y
16.13	Burner Orifice (.110) – NG		SRV17235	Y
	Burner Orifice (.063) – LP		17236	Y

Additional service part numbers appear on the following page.
