PRO DECK DESIGN
1616 HotTub PT
HotTub PT PRO DECK DESIGN
Nobody Beats Our Prices. Guaranteed.
If you find a current lower price on an identical, in-stock item from a local retailer’s store or website, we will match the price and beat it by 10%. If you find a current lower price n an identical, in-stock item from a Canadian online-only retailer’s website, we will price match only. Items from online-only retailers are not eligible for the 10% discount. Prices will be matched to localized online prices if available. See associate for complete terms and conditions.
Ready to Make this Deck Yours?
Book a virtual deck design consultation today to conveniently order your materials or work with a Home Depot deck design consultant to customize this design even further.
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the correct user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.

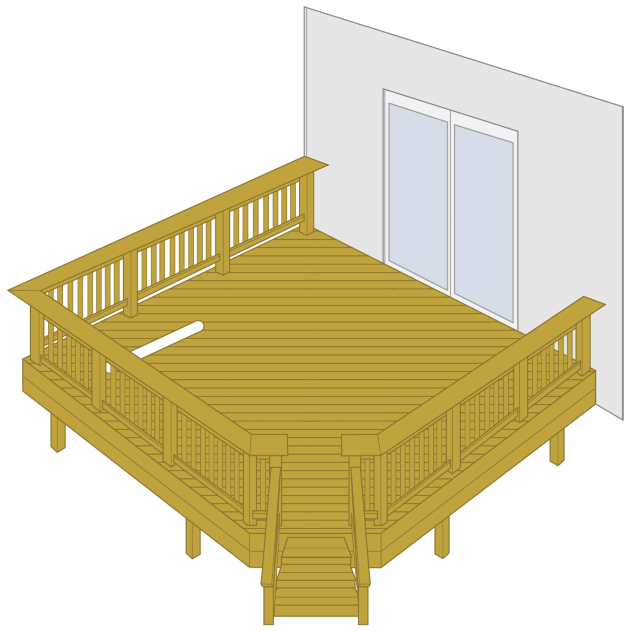

3D View
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the orrect user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.

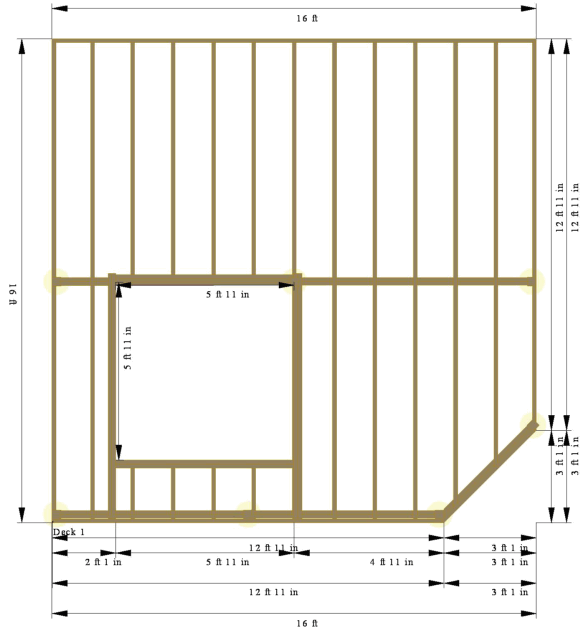

Dimension View – Deck 1
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the orrect user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.

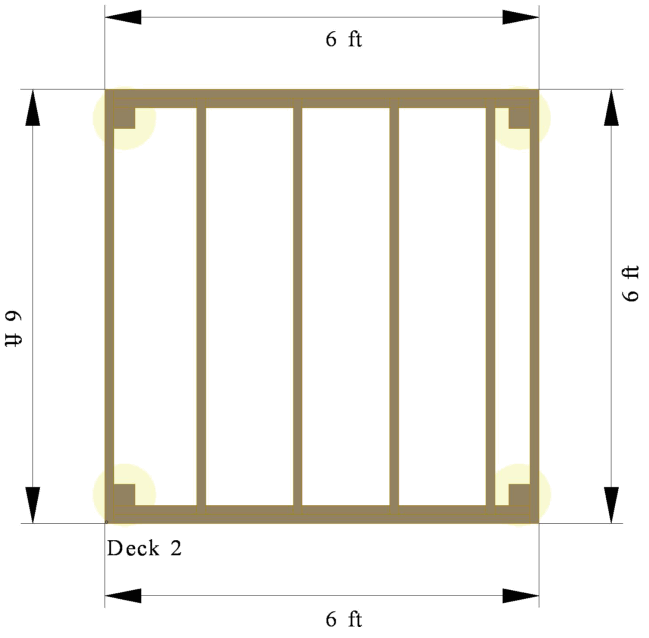

Dimension View – Deck 2
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the orrect user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.

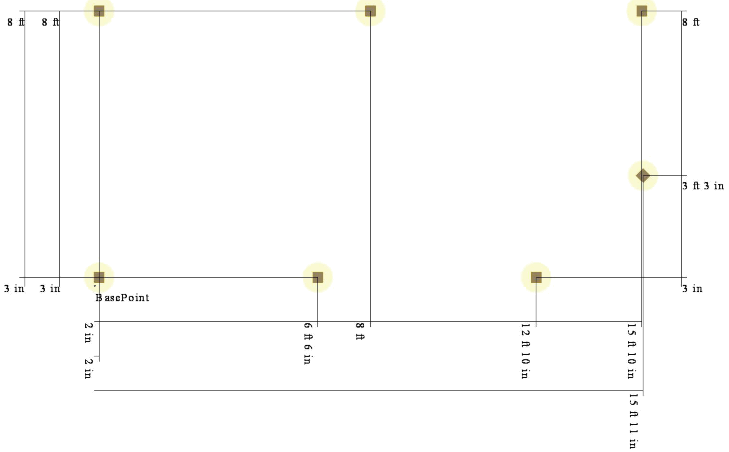

Post View – Deck 1
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the orrect user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. Actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.

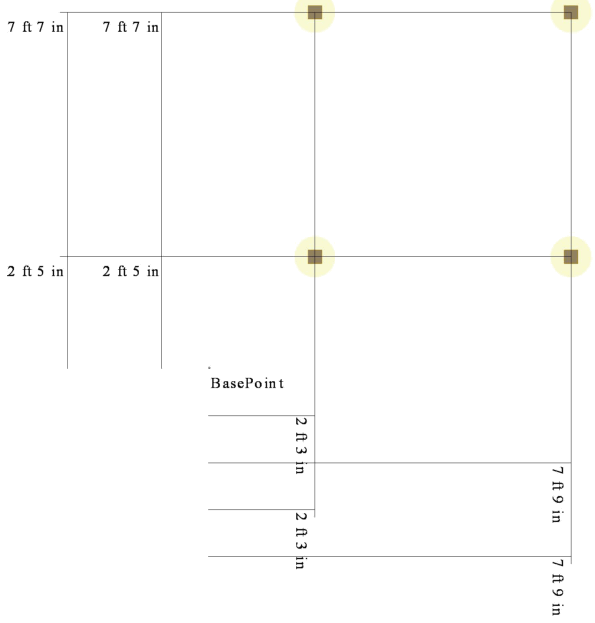

Post View – Deck 2
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the orrect user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.
Joist Layout View
Note: Allioist and strig spacing dimensions are measured in oc
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the orrect user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.
Article Usage List
| Usage | Article | Description | Quantity |
| Beam | 790208 EA | 2x8x12 MicroPro Sienna Treated Wood | 1 |
| Beam | 790393 EA | 2x12x12 MicroPro Sienna Treated Wood | 9 |
| Decking | 680731 EA | 5/4x6x16MicroPro Sienna Treated Wood | 23 |
| Decking | 680736 EA | 5/4x6x12MicroPro Sienna Treated Wood | 6 |
| Decking | 680741 EA | 5/4x6x10MicroPro Sienna Treated Wood | 3 |
| Decking | 680745 EA | 5/4x6x8 MicroPro Sienna Treated Wood | 13 |
| Joist | 789781 EA | 2x6x10 MicroPro Sienna Treated Wood | 3 |
| Joist | 790082 EA | 2x6x12 MicroPro Sienna Treated Wood | 3 |
| Joist | 790085 EA | 2x6x16 MicroPro Sienna Treated Wood | 10 |
| Ledger | 790085 EA | 2x6x16 MicroPro Sienna Treated Wood | 1 |
| Post | 790178 EA | 4x4x8 MicroPro Sienna Treated Wood | 1 |
| Rim Joist | 790082 EA | 2x6x12 MicroPro Sienna Treated Wood | 3 |
| Rim Joist | 790084 EA | 2x6x8 MicroPro Sienna Treat Wood | 1 |
| Rim Joist | 790085 EA | 2x6x16 MicroPro Sienna Treated Wood | 3 |
| Riser | 789777 EA | 2x4x8 MicroPro Sienna Treated Wood | 3 |
| Stair Stringer | 790393 EA | 2x12x12 MicroPro Sienna Treated Wood | 2 |
| Step Tread | 680741 EA | 5/4x6x10 MicroPro Sienna Treated Wood | 2 |
Decking MicroPro PT Spruce-Pine-Fir No. 1
| Usage | Article | Description | Quantity |
| DeckScrew Tan | 109819 EA | 8X2-1/2 FLT SKT.SCREW-CEDAR 350PC | 4 |
| Thread Screw | 109819 EA | 8X2-1/2 FLT SKT.SCREW-CEDAR 350PC | 1 |
Beam on Post Connection 1 Simpson Strong-Tie
| Usage | Article | Description | Quantity |
| LPC4Z | 151759 EA | Z-MAX4” XPOST CAP ADJ. | 14 |
| LPC4Z Screw | 670114 EA | 1-1/2IN STRUCTURAL SCREW 100CT | 2 |
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the orrect user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.
Article Usage List
Beam to Post Connection 1 Paulin
| Usage | Article | Description | Quantity |
| Bolt for 4×4 | 441917 EA | 1/2 X 7 GR2 CARRIAGE BOLT HDG | 8 |
| Nut | 141758 EA | 1/2-13 HEX NUTS HDG | 8 |
| Washer | 141587 EA | 1/2 LOCK WASHERS HDG | 8 |
Blocking Fasteners 1 Paulin
| Usage | Article | Description | Quantity |
| Nails | 683339 EA | 3 1/2” Spiral Hot Galv 1.5kg | 2 |
Builders Tube 1 King
| Usage | Article | Description | Quantity |
| 10” for 4×4 Post | 133472 EA | BUILDERS TUBE 10” X4’ | 11 |
Built Beam Fasteners 1 Paulin
| Usage | Article | Description | Quantity |
| Nails | 683339 EA | 3 1/2” Spiral Hot Galv 1.5kg | 1 |
Concrete 2 Quikrete
| Usage | Article | Description | Quantity |
| 10” Pier for 4×4 | 149580 EA | CONCRETE MIX 30KG | 50 |
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the orrect user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.
Diagonal Bracing Connection 1 Paulin
| Usage | Article | Description | Quantity |
| Post to Beam Lag | 683760 EA | 6” HeadLok 12pcs | 4 |
| Post to Joist Lag | 683760 EA | 6” HeadLok 12pcs | 4 |
Diagonal Bracing 1 Generic
| Usage | Article | Description | Quantity |
| Post To Beam | 789777 EA | 2x4x8 MicroPro Sienna Treated Wood | 4 |
| Post to Joist | 789777 EA | 2x4x8 MicroPro Sienna Treated Wood | 4 |
Flashing Fasteners 1 Paulin
| Usage | Article | Description | Quantity |
| Nails | 683208 EA | 1 1/4” Roofing Electro Galv 11GA 420g | 1 |
Flashing 1 Peak
| Usage | Article | Description | Quantity |
| White | 108239 EA | DRIP FLASHING 2X1-3/4X3/8” WHITE | 2 |
Joist Hangers/Fasteners 1 Simpson Strong-Tie
| Usage | Article | Description | Quantity |
| LUS210Z | 151774 EA | Z-MAX 2″ X6″ JOIST HANGER 18 GA. | 19 |
| LUS210Z Screw | 670112 EA | 2-1/2IN STRUCTURAL SCREW 100CT | 2 |
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the orrect user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.
Ledger Fasteners 1 Paulin
| Usage | Article | Description | Quantity |
| Lag Bolt | 683768 EA | 5″ LedgerLok 12pcs | 1 |
Post Base Connection 1 Simpson Strong-Tie
| Usage | Article | Description | Quantity |
| ABA44Z | 152236 EA | Z-MAX 4” X4” ADJ. POST BASE | 11 |
| ABA44Z Screw | 670114 EA | 1-1/2IN STRUCTURAL SCREW 100CT | 1 |
| Anchor Bolt | 149708 EA | 1/2X8 FOUNDATION BOLT W/NUT&WASHER | 11 |
Railings Rail Blazer 42×72 Railing
| Usage | Article | Description | Quantity |
| Bottom Stair Post | 1001501064 EA | STAIR POST WHAT | 3 |
| Brackets 45D | 163948 EA | UNIVERSAL CONNECTOR WHITE | 1 |
| Corner Post | 1001500979 EA | CORNER POST 90-DEGREE WHAT | 1 |
| Deck Baluster Kit | 1001495576 EA | 6′ WIDE PICKET AND SPACER WHAT | 10 |
| End Post | 1001495789 EA | END POST WHAT | 3 |
| Line Post | 1001501312 EA | MID POST WHAT | 6 |
| Line Post 45D | 1001495789 EA | END POST WHAT | 1 |
| Rail Kit | 1001500692 EA | 6 HAND AND BASE RAIL WHAT | 10 |
| Rail Post Fastener | 762178 EA | Trailblazer Post Bolt Kit White | 15 |
| Stair Baluster Kit | 1001495579 EA | 6′ STAIR RAIL WIDE KIT WHAT | 2 |
| Stair Rail Kit | 1001500692 EA | 6 HAND AND BASE RAIL WHAT | 2 |
| Top Stair Post | 1001495789 EA | END POST WHAT | 2 |
| Universal Brackets | 163948 EA | UNIVERSAL CONNECTOR WHITE | 4 |
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the correct user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.
Rim Joist Fasteners 1 Paulin
| Usage | Article | Description | Quantity |
| Nails | 683339 EA | 3 1/2” Spiral Hot Galv 1.5kg | 1 |
| SM Rim Joist Angle | 682321 EA | ZMAX Heavy Angle 2”x4” | 4 |
| SM Rim Joist Angle Fasteners | 682323 EA | Connector Screw 1/4”x1 1/2” | 1 |
Stringer Connection 1 Simpson Strong-Tie
| Usage | Article | Description | Quantity |
| LSCZ | 682318 EA | ZMAX Adjustable Stringer Connector | 4 |
| LSCZ Screw | 670114 EA | 1-1/2IN STRUCTURAL SCREW 100CT | 1 |
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the orrect user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.
Disclaimer
IMPORTANT: Before installing manufacturer-specific products, refer to the manufacturer’s installation instructions.
Consumer Information Sheet for MicroPro Sienna® Treated Wood
Cut ends / Field cuts – When building your outdoor project with pressure-treated wood it is important to protect the cut ends, drill holes, and other field cuts. Failure to apply n end-cut wood preservative or Cut-N-Seal® at the time of construction will void the MicroPro Sienna Lifetime Residential Limited Warranty.
- For pressure-treated wood used in ground contact applications, two applications of a brush-on copper naphthenate-based end-cut preservative must be applied to all saw cuts, rill holes, and other field cuts at the time of construction before the wood is installed. Follow the manufacturer’s directions for proper application.
- For pressure-treated wood used in above-ground applications, such as deck boards, railings, post tops, or fence boards, a brush-on end-cut wood preservative or Cut-N-Seal product should be applied to all saw cuts, drill holes, and other field cuts at the time of construction. Follow the manufacturer’s directions for proper application.
Fasteners – Wood treated with MicroPro technology exhibits corrosion rates on metal products similar to untreated wood. Use fasteners and hardware designed for exterior construction that is in compliance with the manufacturer’s recommendations and the building codes for their intended use.
Aluminum – Aluminum building products may be placed in direct contact with MicroPro Sienna Treated Wood products are used for interior uses and above-ground exterior applications where the wood in not exposed to frequent and prolonged wetting, such as decks and fencing. MicroPro Sienna Treated Wood in direct contact with aluminum products should only be used in code-compliant construction applications that provide proper water drainage and do not allow the wood to be exposed to, or remain in contact with continual moisture source, standing water, or water immersion. In addition, MicroPro Sienna Treated Wood should not be encased, sealed, or wrapped with aluminum products where moisture or water can be trapped, so as to avoid pitting or other undesirable results.
Warning and important instructions: This is not a final design plan or estimate. Home Depot of Canada Inc. (and its affiliates) and EDGE NET assume no responsibility for the orrect user or output of this program. All information contained on this page is subject to the terms in the disclaimer located at the end of this document.
All figures presented are estimates only and are provided for comparison purposes only. These calculations are not advertisements for specific prices. The actual selling price and product availability at the time of purchase may vary. Prices and product availability may vary by store, and between online and in-store. See your local Home Depot associate for details.
