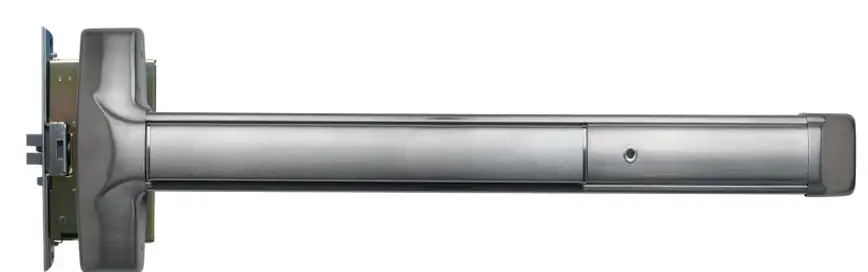

105645 Anti-Vandal 30 Series Mortise Trim
Instruction Manual
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR 03ZM ANTI-VANDAL 30 SERIES MORTISE TRIM
DWG# 105645
105645 Anti-Vandal 30 Series Mortise Trim
Should you have a Question/Problem with your Detex device please call Detex Technical Support from the job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.
For WARRANTY information, scan the code below or go to www.detex.com/warranty
Owner’s Copy
For device installation videos, scan the code below or go to www.detex.com/videos
Tools Required
- Safety Glasses
- Power Drill
- Pencil
- Hammer
- Center Punch
- Tape Measure
- Phillips Screwdriver
- 5/16″ drill bit
- 3/8″ drill bit
- 3/4″ drill bit
- 1-1/4″ drill bit
STEP 1: PREP DOOR – TRIM SIDE (LHR shown)

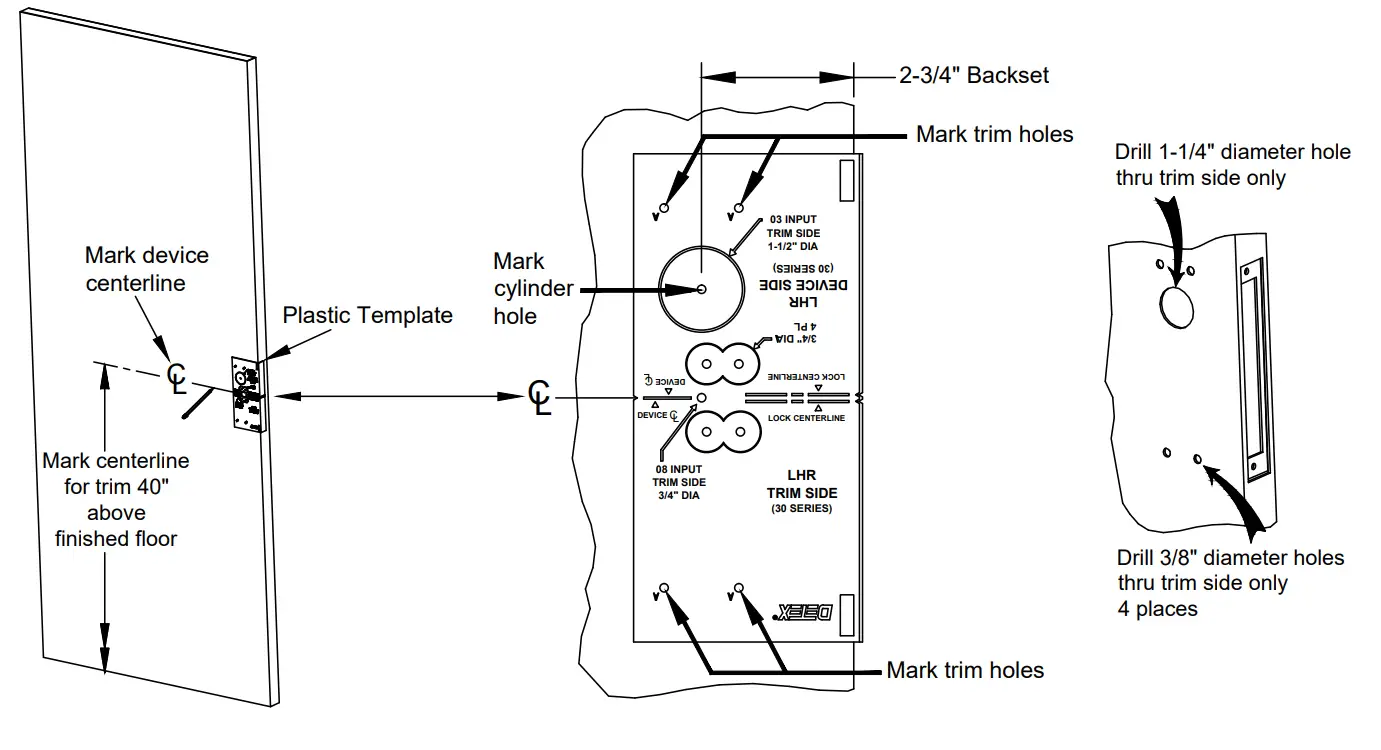

Use the plastic template to mark and drill TRIM holes
STEP 2: PREP DOOR – DEVICE SIDE (LHR shown)

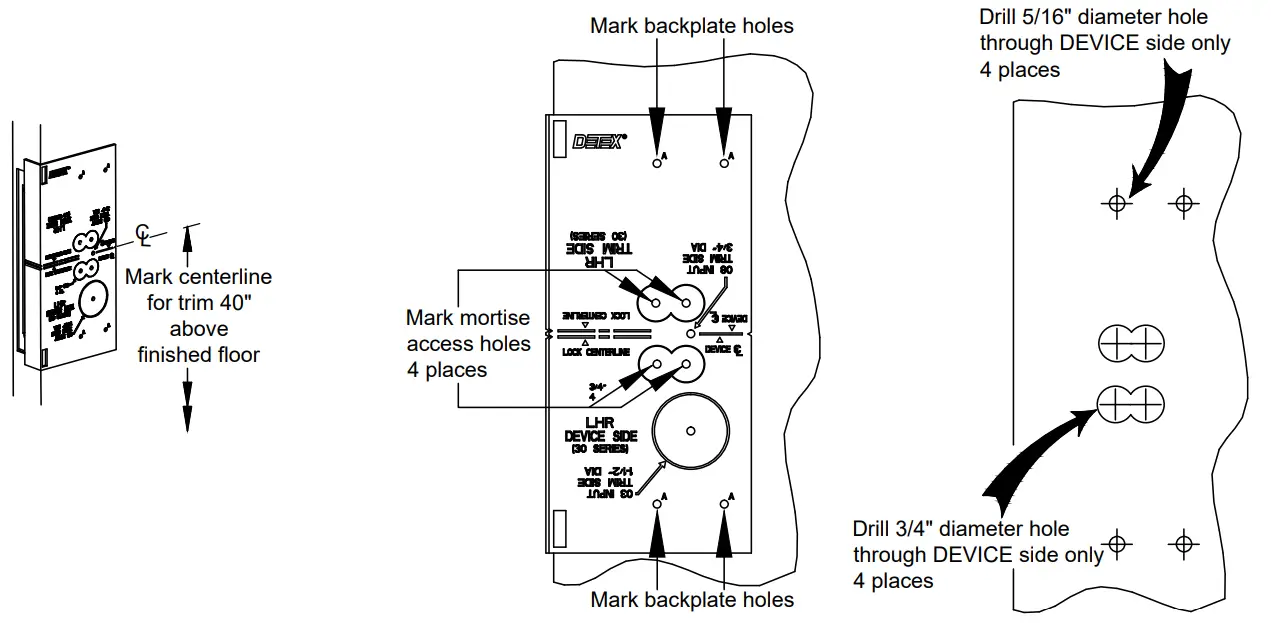

Use the plastic template to mark and drill MOUNTING PLATE holes

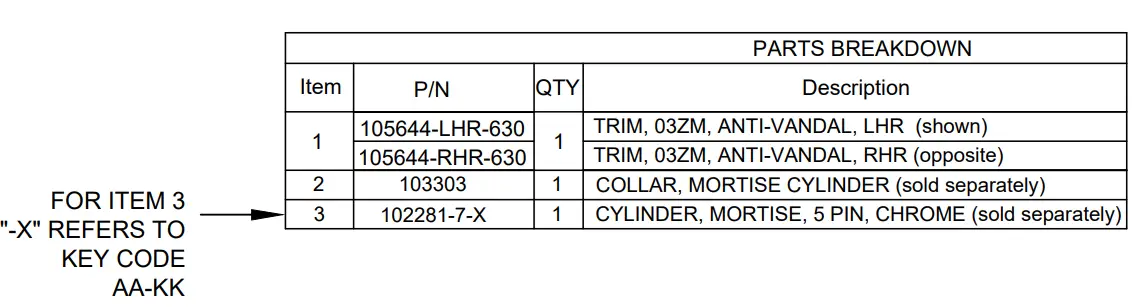

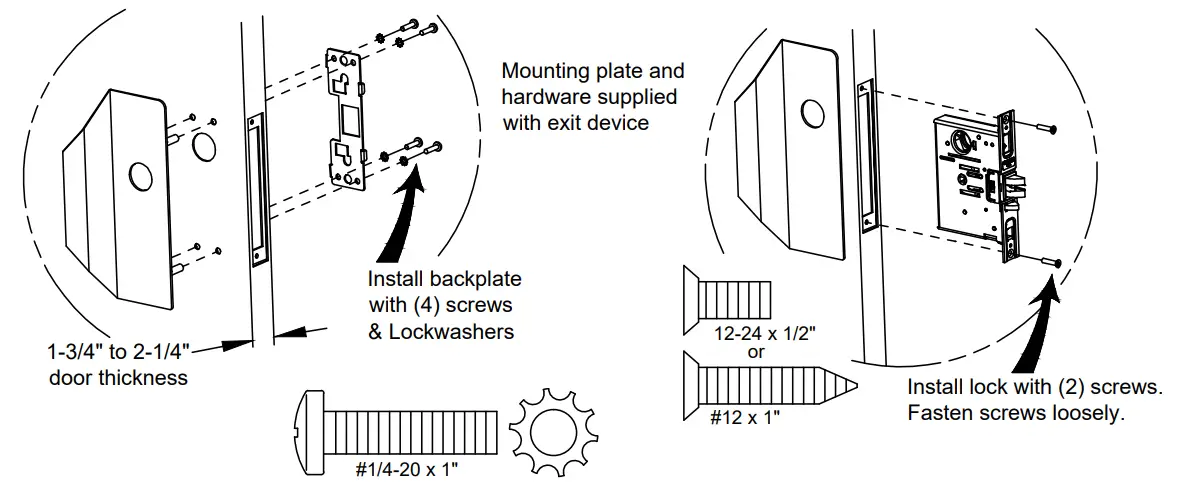

STEP 3: INSTALL MORTISE LOCK & TRIM
IMPORTANT! For modular cable devices, see electrical instructions for cable routing.

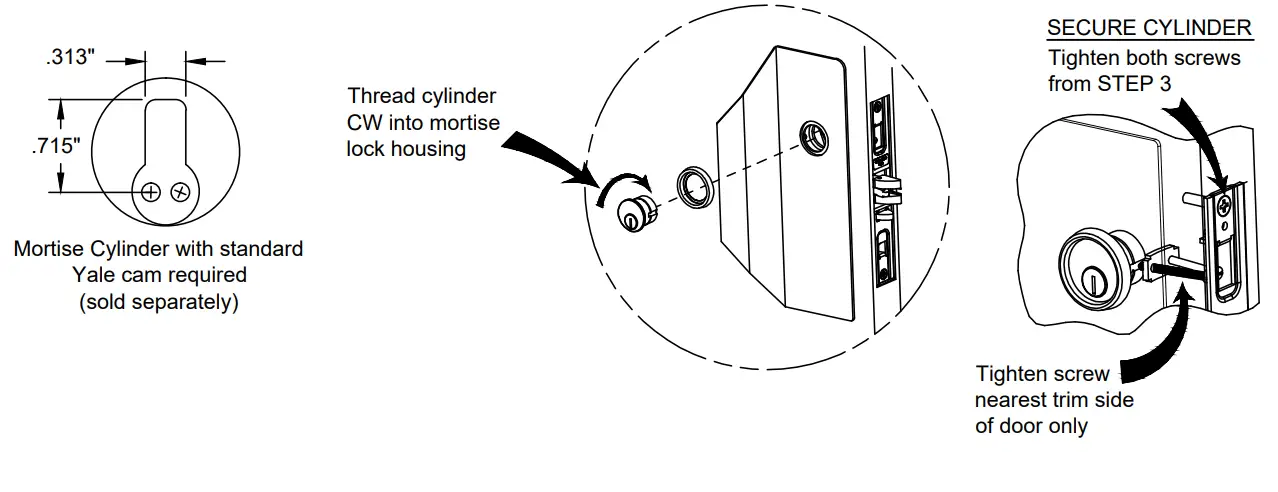

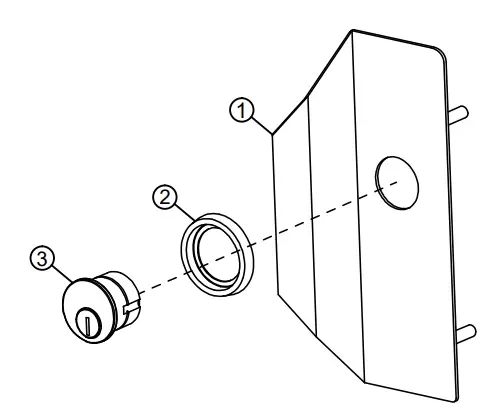

STEP 4: INSTALL MORTISE CYLINDER
TRIM INSTALLATION COMPLETE
Continue installation using device instructions (p/n: 101349)
detex.com
