DETEX Mortise 01CM Outside Trims
PRODUCT DESCERIPTION

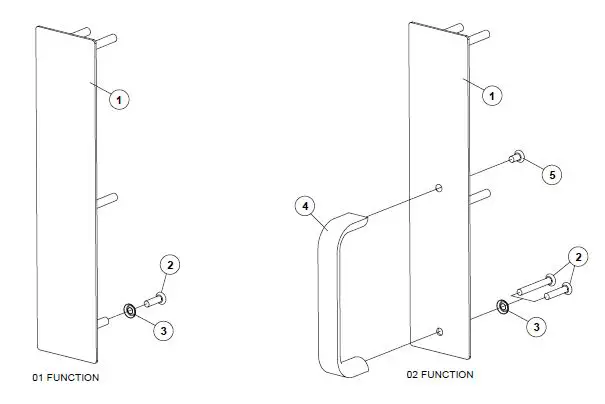

| ITEM | PART NO. | QTY | DESCRIPTION |
| 1 | 102219-9 | 1 | TRIM PULLPLATE, 01, (BLANK), BRUSHED STAINLESS STEEL FINISH (630) |
| 102218-9 | TRIM PULLPLATE, 02 (W/PULL), BRUSHED STAINLESS STEEL FINISH (630) | ||
| 2 | 102271-116 | 1 | SCREW, MACH, 1/4-20 X 1″, PFH, STAINLESS STEEL (01) |
| 102271-136 | SCREW, MACH, 1/4-20 X 2-1/4″, PFH, STAINLESS STEEL (02) | ||
| 102271-144 | SCREW, MACH, 1/4-20 X 2-3/4″, PFH, STAINLESS STEEL (02) | ||
| 3 | 102272-2 | 1 | WASHER, #14, FINISHED, STAINLESS STEEL |
| 4 | 102235-9 | 1 | PULL, 02C |
| 5 | 102264-1 | 1 | SCREW, MACH, 1/4-20 X 1/2″ UNDERCUT, PFH (02) |
INSTALLATION
STEP 1: PREP DOOR
MARK & DRILL HOLES – TRIM SIDE:
Use plastic template to mark TRIM holes (LHR shown)
NOTE: The height from the finished floor to the trim/device centerline that Detex recommends is 40″.
If unsure of trim/device centerline location, use the method below and at right to determine correct trim location.

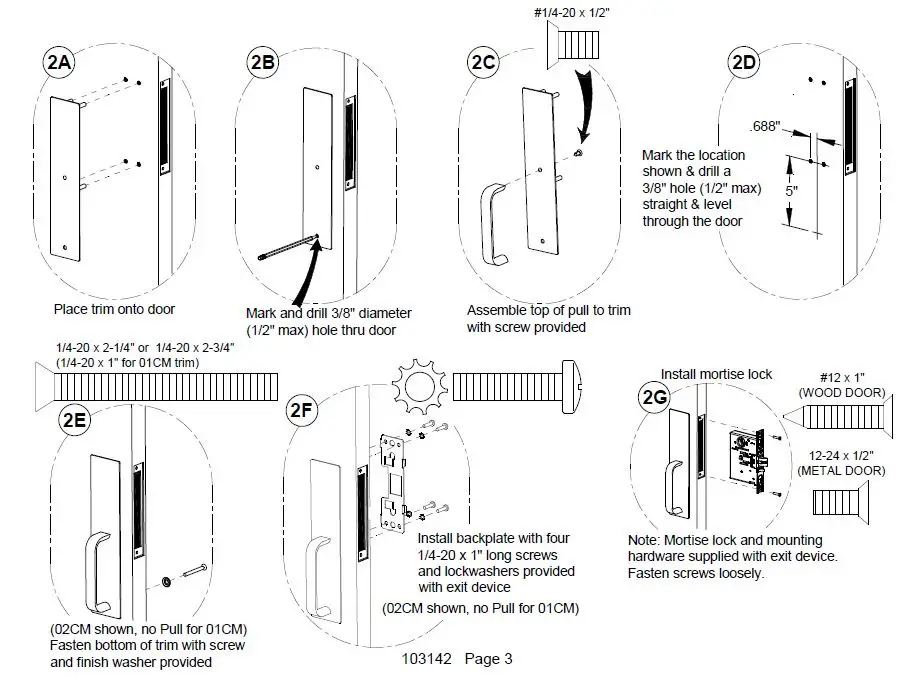

STEP 2: PREP & INSTALL TRIM
Note: Steps 2A through 2C are for 02CM (trim with pull) installation. For 01CM (trim without pull) installation, skip to step 2D
TRIM INSTALLATION COMPLETE
Continue installation using device instructions
