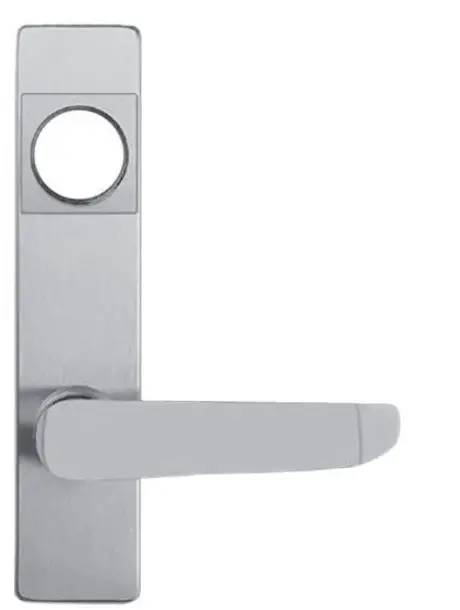

DETEX 101998 02D Outside Lever Trim
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR 02D, 02DT, 02DU, 02Dx2W OUTSIDE LEVER TRIM
Drawing & p/n: 101998 and 105662
NOT DESIGNED FOR 2″ STILE DOOR
Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.For WARRANTY information, scan code below or go to www.detex.com/warranty For device installation videos, scan code below or go to www.detex.com/videos
- Wide Stile mounting plate subassembly (included with exit device, 4 mounting holes)
- Narrow Stile mounting plate subassembly (included with exit device, 2 mounting holes)

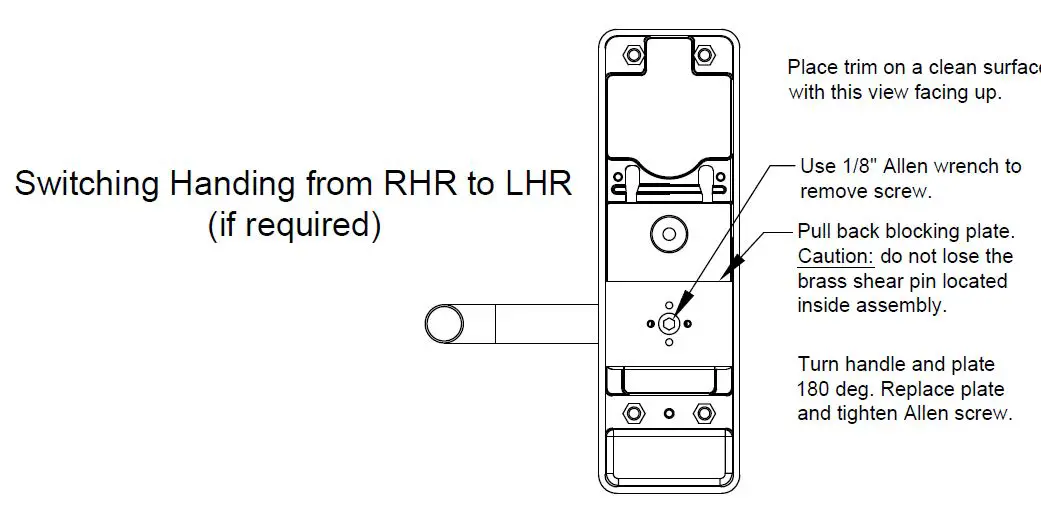

LHR INSTALLATION SHOWN

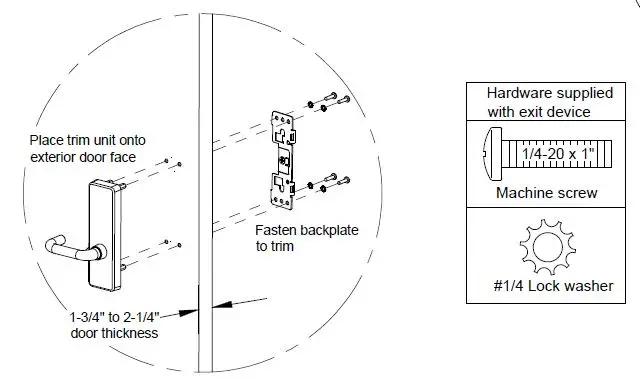

NOTE: Wide stile mounting shown, Narrow stile similar
Tools required:
- Safety Glasses Pencil
- Power Drill Hammer
- Tape Measure Screw Driver
- Center Punch Drill bit set

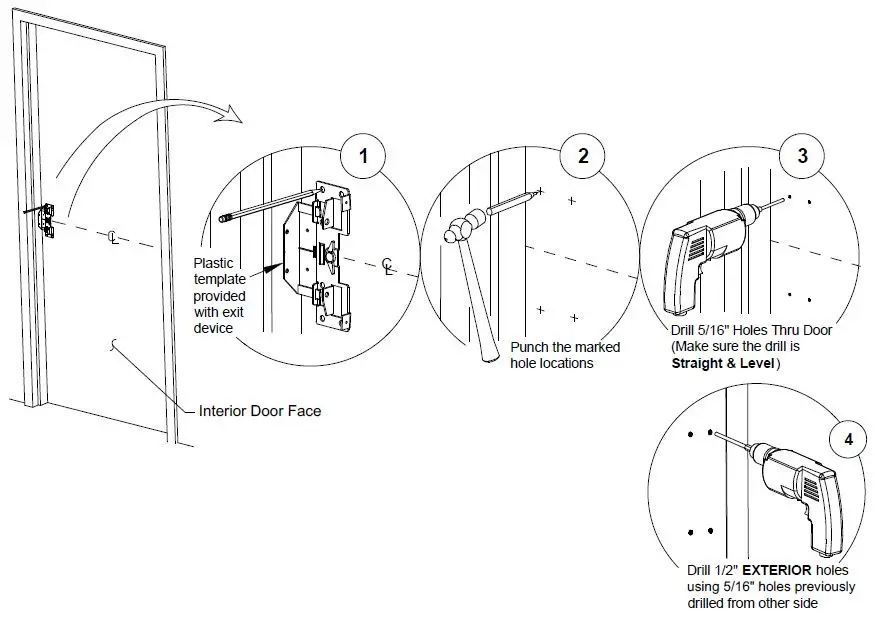

Note: All Holes Must Be Drilled Straight and Level
CONTINUE WITH EXIT DEVICE INSTRUCTIONS
