DETEX 104200 Lever Trim Instruction Manual
Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.
For WARRANTY information, scan code below or go to www.detex.com/warranty
For device installation videos, scan code below or go to www.detex.com/videos

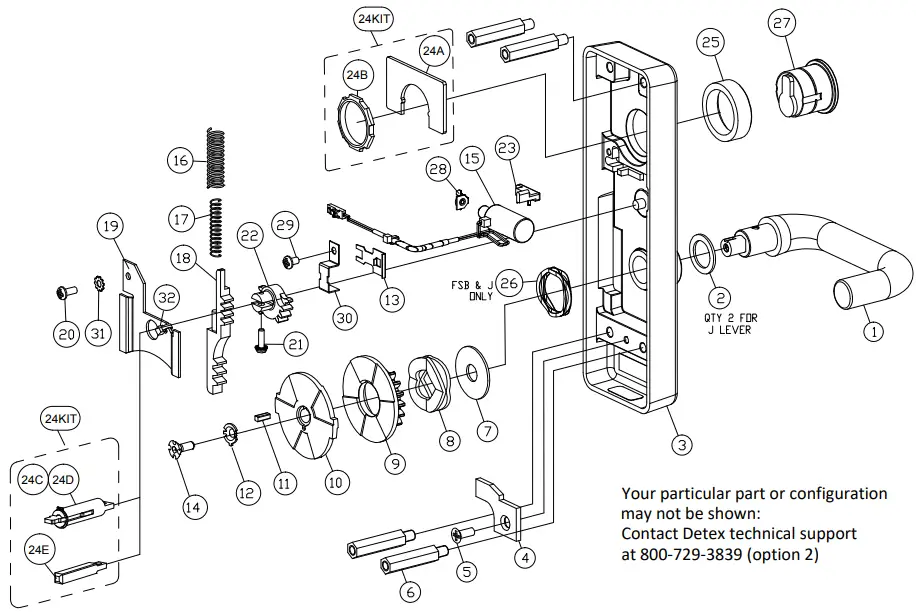

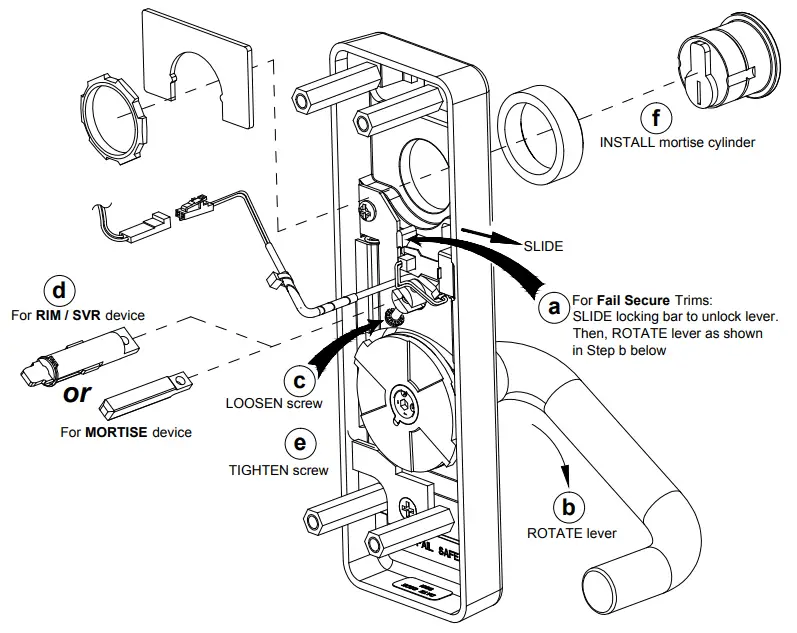

LHR ASSEMBLIES SHOW
| PARTS BREAKDOWN | ||||
| Item | P/N | QTY | Description | |
| 106264-7 | 1 | LEVER ASSY, Q, 626 | ||
| 106264-14 | LEVER ASSY, Q, 693 | |||
| 106264-15 | LEVER ASSY, Q, 695 | |||
| 101376-7 | LEVER ASSY, S, 626 | |||
| 101376-14 | LEVER ASSY, S, 693 | |||
| 101376-15 | LEVER ASSY, S, 695 | |||
| 1 | 101375-7 | LEVER ASSY, U, 626 | ||
| 101375-14 | LEVER ASSY, U, 693 | |||
| 101375-15 | LEVER ASSY, U, 695 | |||
| 101374-7 | LEVER ASSY, T, 626 | |||
| 101374-14 | LEVER ASSY, T, 693 | |||
| 101374-15 | LEVER ASSY, T, 695 | |||
| 2 | 106603 | 2 | WASHER, FLAT, 1″x0.02 THK (J LEVER ONLY) | |
| 100851 | 1 | WASHER, FLAT, 1″x0.06 THK (ALL EXCEPT J LEVER) | ||
| 3 | 104210-9 | 1 | ESCUTCHEON ASSY, BP1, EU, 630 FINISH (BP11 FOR EUV) | |
| 4 | 100771 | 1 | STOP, ROTATIONAL | |
| 5 | PP-5305-108 | 1 | SCREW, MACH, 10-24 X 1/2 PFH | |
| 6 | 100777 | 4 | STANDOFF, HEX | |
| 100777-1 | STANDOFF, HEX, CVR (V) | |||
| 7 | 100775 | 1 | WASHER, FLAT | |
| 8 | 103047 | 1 | CLUTCH SPRING | |
| 9 | 103043 | 1 | BOTTOM GEAR, WIDE | |
| 10 | 103044 | 1 | TORQUE PLATE, WIDE | |
| 11 | 103994 | 1 | KEY, SHEAR PIN, STEEL | |
| 12 | 100821 | 1 | WASHER CLUTCH | |
| 13 | 104205 | 1 | SOLENOID ALIGNMENT LOCK, EU | |
| 14 | 102536-1 | 1 | SCREW, 10-24, CUSTOM | |
| 104209-1 | SOLENOID, 24V, PULL TYPE, FAIL SECURE | |||
| 15 | 104209-2 | 1 | SOLENOID, 24V, PUSH TYPE, FAIL SAFE | |
| 104209-3 | SOLENOID, 12V, PULL TYPE, FAIL SECURE | |||
| 104209-4 | SOLENOID, 12V, PUSH TYPE, FAIL SAFE | |||
| 16 | 100766 | 1 | SPRING, RETURN | |
| 17 | 101509 | 1 | SPRING, RETURN, HELPER | |
| 18 | 104212-1 | 1 | RACK ASSEMBLY, EU, RHR | |
| 104212-2 | RACK ASSEMBLY, EU, LHR | |||
| 104206-2 | COVER PLATE, MACHINED, EU, LHR | |||
| 104206-1 | COVER PLATE, MACHINED, EU, RHR | |||
| 19 | 106459-2 | 1 | COVER PLATE, MACHINED, LS, EU, LHR | |
| 106459-1 | COVER PLATE, MACHINED, LS, EU, RHR | |||
| 20 | PP-5378-106 | 2 | SCREW, MACH, 8-32 x 3/8 PPH | |
| 21 | 102291-108 | 1 | SCREW, MACH, 6-32 x 1/2 SEMS, PPH | |
| PP-5367-110 | SCREW, MACH, 6-32 x 5/8 PPH (LS) | |||
| 22 | 104202 | 1 | TOP GEAR, MACHINED, EU | |
| 23 | 104213-2 | 1 | LOCK SLIDE ASSY, EU, LHR | |
| 104213-1 | LOCK SLIDE ASSY, EU, RHR | |||
| 105673-1 | LEVER TRIM HARDWARE KIT, RIM, SVR | |||
| 24KIT | 105673-2 | 1 | LEVER TRIM HARDWARE KIT, MORTISE | |
| 105673-3 | LEVER TRIM HARDWARE KIT, V | |||
| 24A | 100754 | 1 | PLATE, CYLINDER POSITION | |
| 24B | 100783 | 1 | NUT, HEXAGON, CYLINDER | |
| 24C | 101478 | SHAFT EXTENSION ASSEMBLY | ||
| 24D | 106694 | 1 | TAILPIECE ASSEMBLY, D TRIM, CVR UNIVERSAL | |
| 24E | 103218 | SHAFT, INPUT (MORTISE) | ||
| 100572-9 | 1 | CYLINDER COLLAR, SHORT | ||
| 100752-9 | CYLINDER COLLAR, TALL | |||
| 26 | 105964 | 1 | WASHER, WAVE | |
| 27 | 103800-626 | 1 | CYLINDER HOUSING, SFIC, MORTISE, 7 PIN, CHROME | |

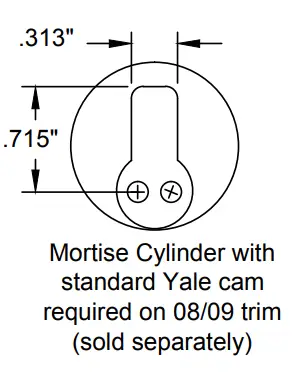

| 102281-7-X | CYLINDER, MORTISE, 5 PIN, CHROME | |||
| 28 | 104207 | 1 | BRACKET, SOLENOID PLUNGER | |
| 29 | PP-5378-104 | 1 | SCREW, MACH, 8-32×1/4″ PPH | |
| PP-5378-106 | SCREW, MACH, 8-32×3/8″ PPH (LS) | |||
| 30 | 104208 | 1 | BRACKET, SOLENOID | |
| 31 | PP-5067-8 | 1 | LOCKWASHER, #8 | |
ELECTRIC UNLOCK:

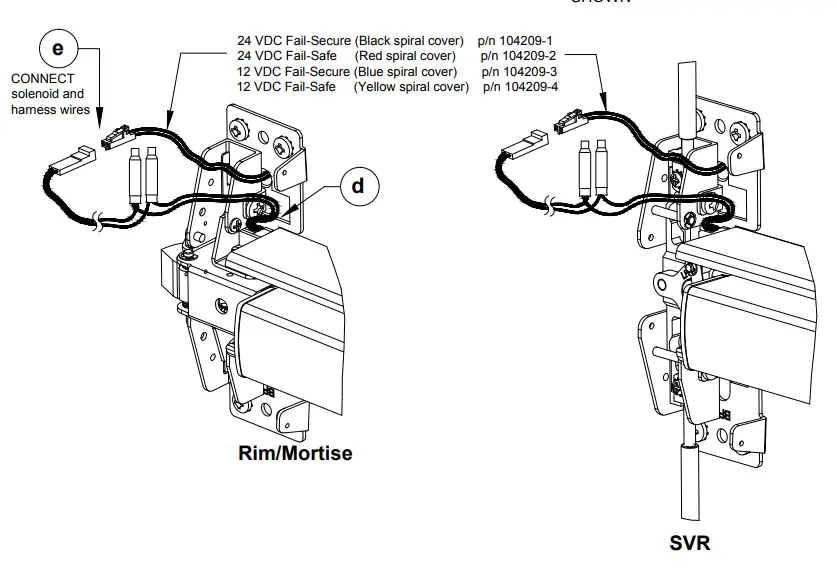

A DC power source is connected across the brown wires to power the internal solenoid. The solenoid connection is not polarized. The applied voltage will unlock for Fail-Secure and lock for Fail-Safe. Units are color coded as follows:
24 VDC Fail-Secure (Black spiral cover) p/n 104209-1
24 VDC Fail-Safe (Red spiral cover) p/n 104209-2
12 VDC Fail-Secure (Blue spiral cover) p/n 104209-3
12 VDC Fail-Safe (Yellow spiral cover) p/n 104209-4
LHR ASSEMBLIES SHOWN
RHR assemblies have switch assemblies & levers on opposite side
NOTE: Assemblies CANNOT be rehanded
STEP 1: PREP TRIM DEVICE
Install tailpiece for RIM, SVR or input shaft for MORTISE and cylinder
NOTE: Mortise cylinder NOT supplied with trim, but can be ordered separately

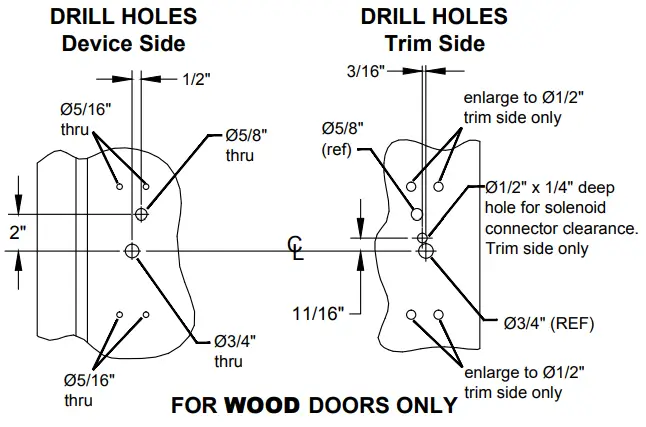

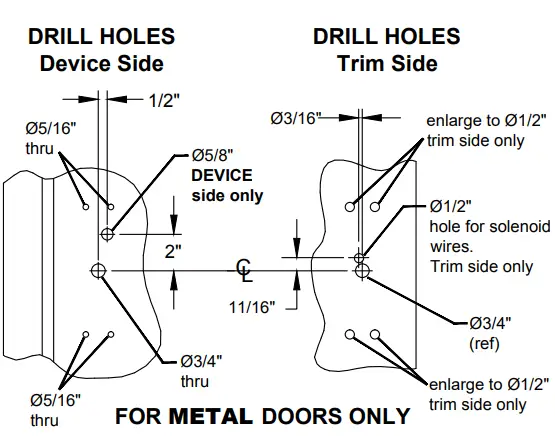

STEP 2a: PREP DOOR (Rim & SVR
NOTES:
- For a retrofit application, remove lock and device before installing new trim.
- LHR installation shown (Reverse all steps for RHR).
STEP 2b: PREP DOOR (Mortise)

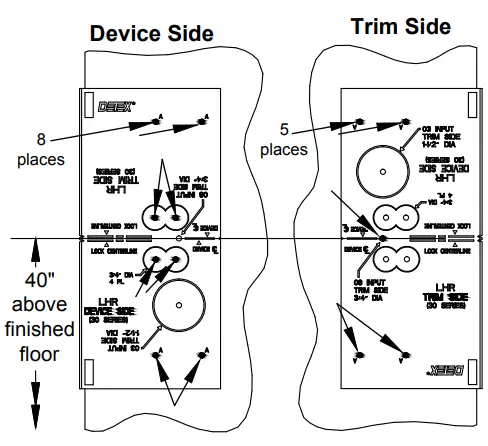

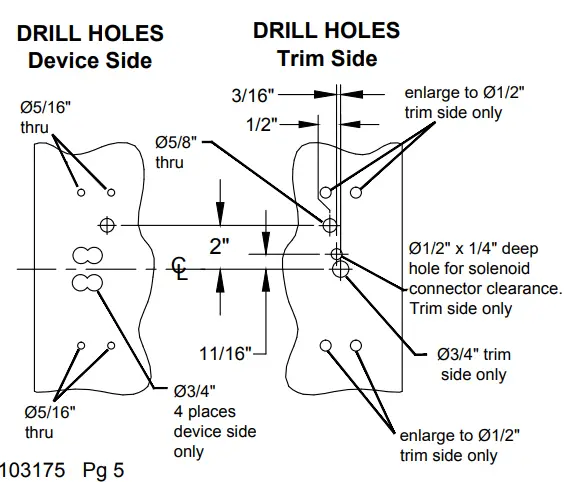

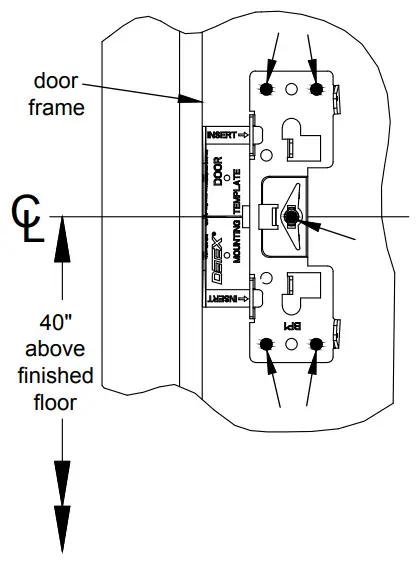

Use plastic template to mark the locations shown below

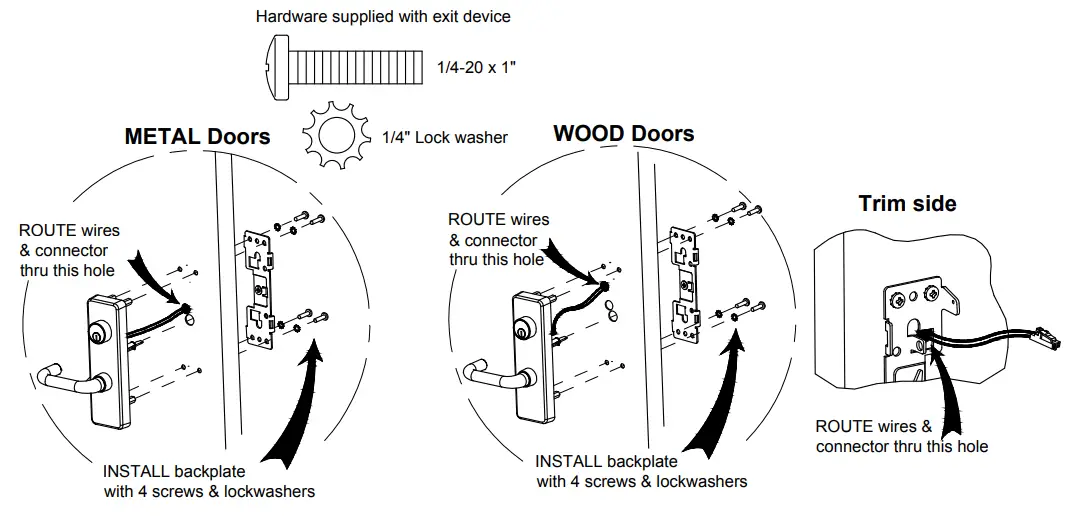

STEP 3a: INSTALL TRIM DEVICE (Rim & SVR)
Install TRIM for Rim & SVR Device

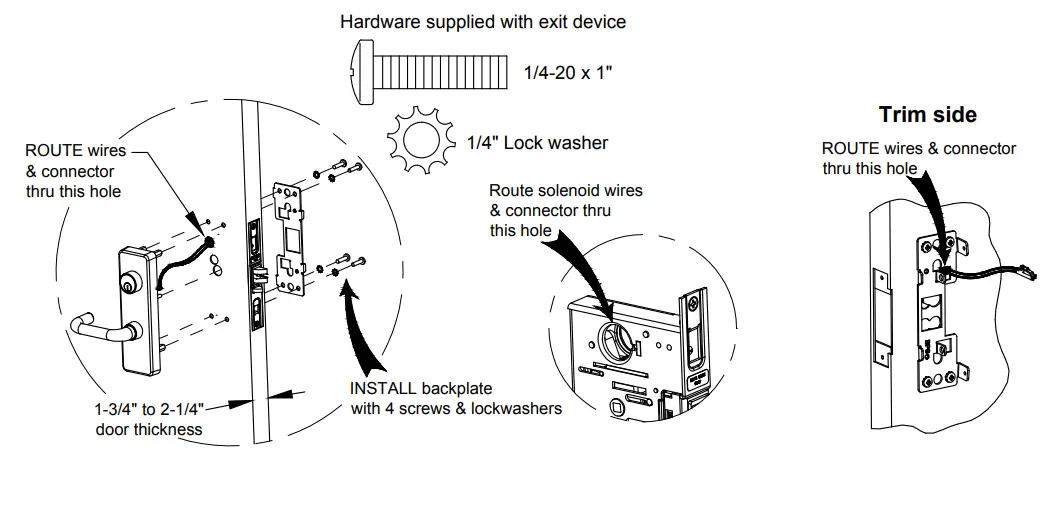

STEP 3b: INSTALL TRIM DEVICE (Mortise)
Install TRIM for Mortise Device
NOTE:
- Mortise lock NOT supplied with TRIM device.

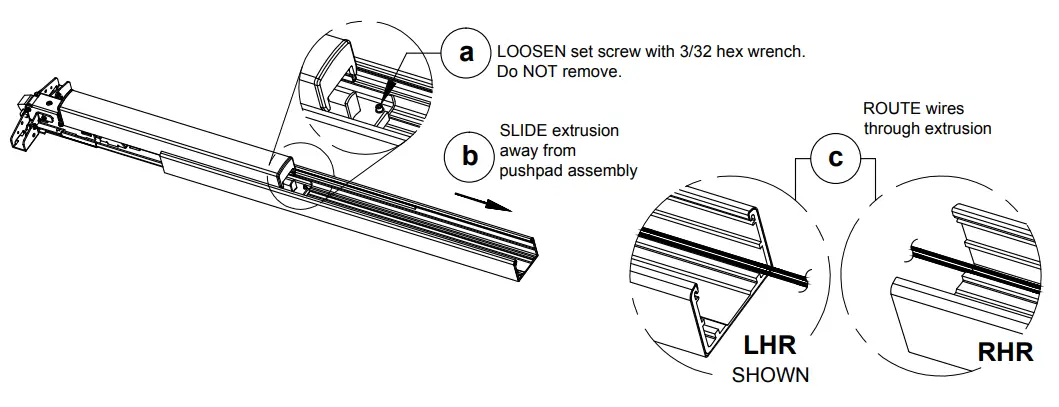

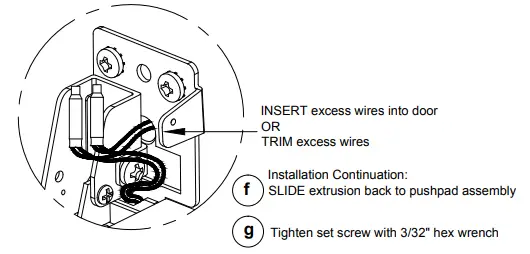

STEP 4: ROUTING WIRES THROUGH DEVICE
Wires can be routed through device or door
NOTE:
- Detex recommends the power supply to located within 15 feet of the device.
- Detex recommends using minimum 20 GA
wire for power. - Current draw: 24VDC = 150 mA
12VDC = 250 mA
