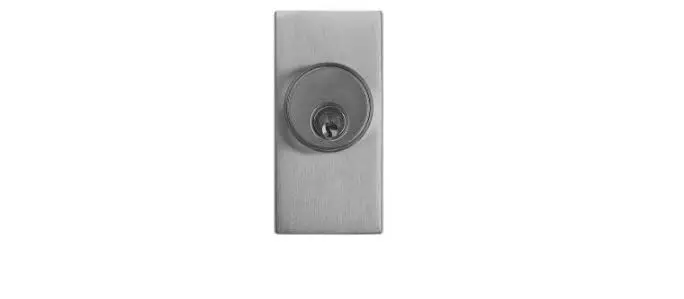

DETEX 03WM Electric Unlock Trim
TOOLS AND SUPPLIES
Safety Glasses
(Always put on safety glasses prior to beginning installation of unit)
Pencil
Center Punch
Hammer
Drill Motor
Drill Bits & Taps
Screw Driver (Phillips Drive)
Tape Measure
For WARRANTY information, scan code below
or go to
www.detex.com/warranty
For device installation videos,
scan code below
or go to www.detex.com/videos
OVERVIEW

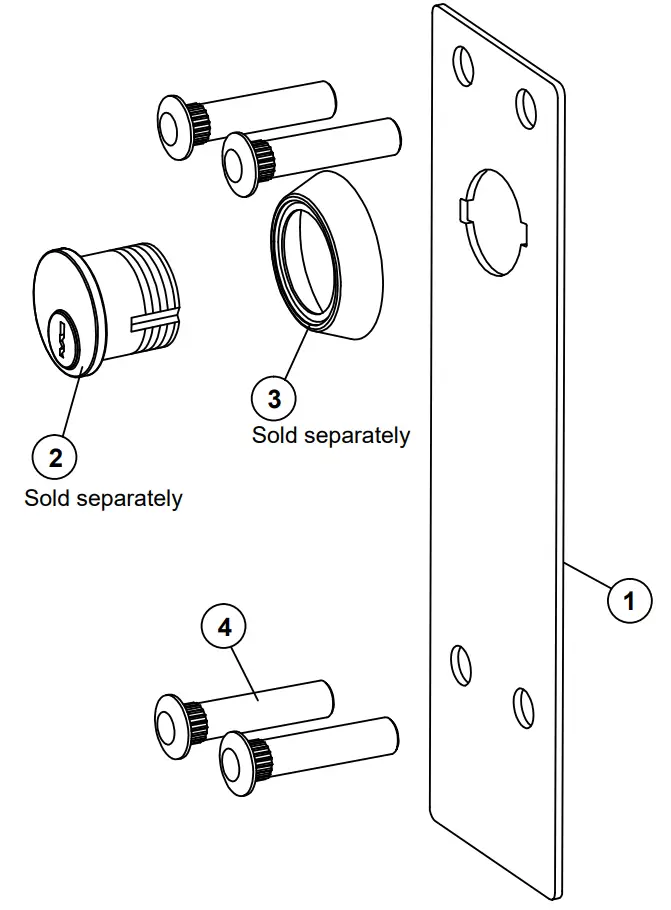

| ITEM | PART NO. | QTY | DESCRIPTION |
| 1 | 103291-9 | 1 | TRIM PLATE, 03WM, BRUSHED STAINLESS STEEL FINISH (630) |
| 2 | 102281-X | 1 | CYLINDER, MORTISE, 5 PIN |
| 3 | 100752-X | 1 | CYLINDER COLLAR, TALL |
| 4 | 100464-9 | 4 | SEX NUT, 1/4-20 |
STEP 1: PREP DOOR

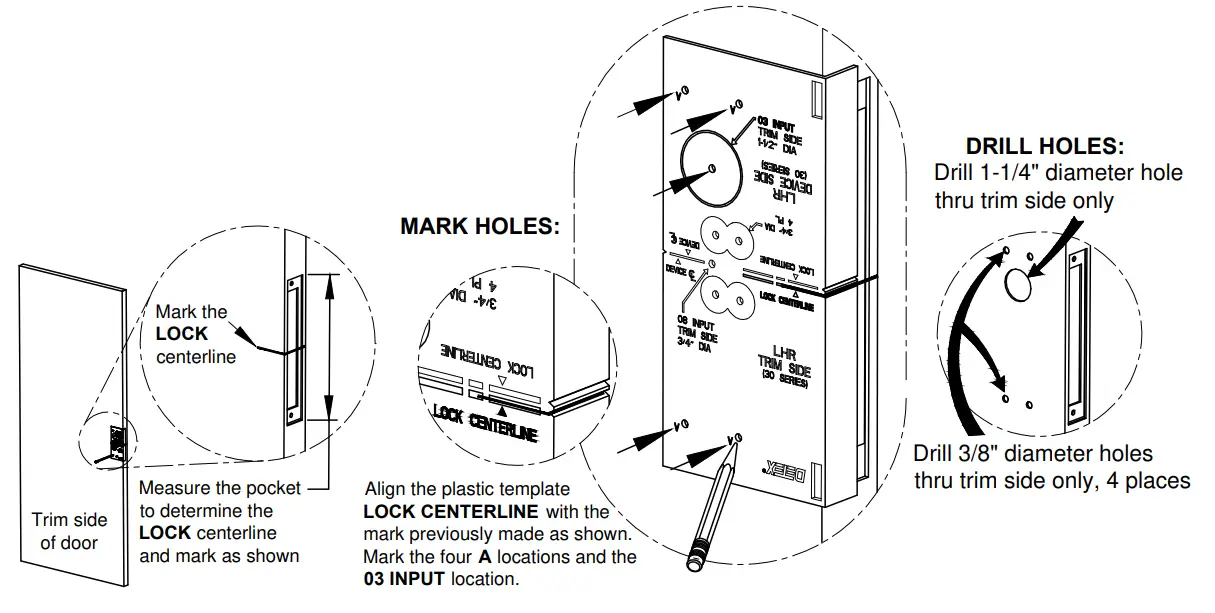

MARK & DRILL HOLES – TRIM SIDE:
Use plastic template to mark TRIM holes (LHR shown)
NOTE: The height from the finished floor to the trim/device centerline that Detex recommends is 40″.
If unsure of trim/device centerline location, use the method below and at right to determine correct trim location.

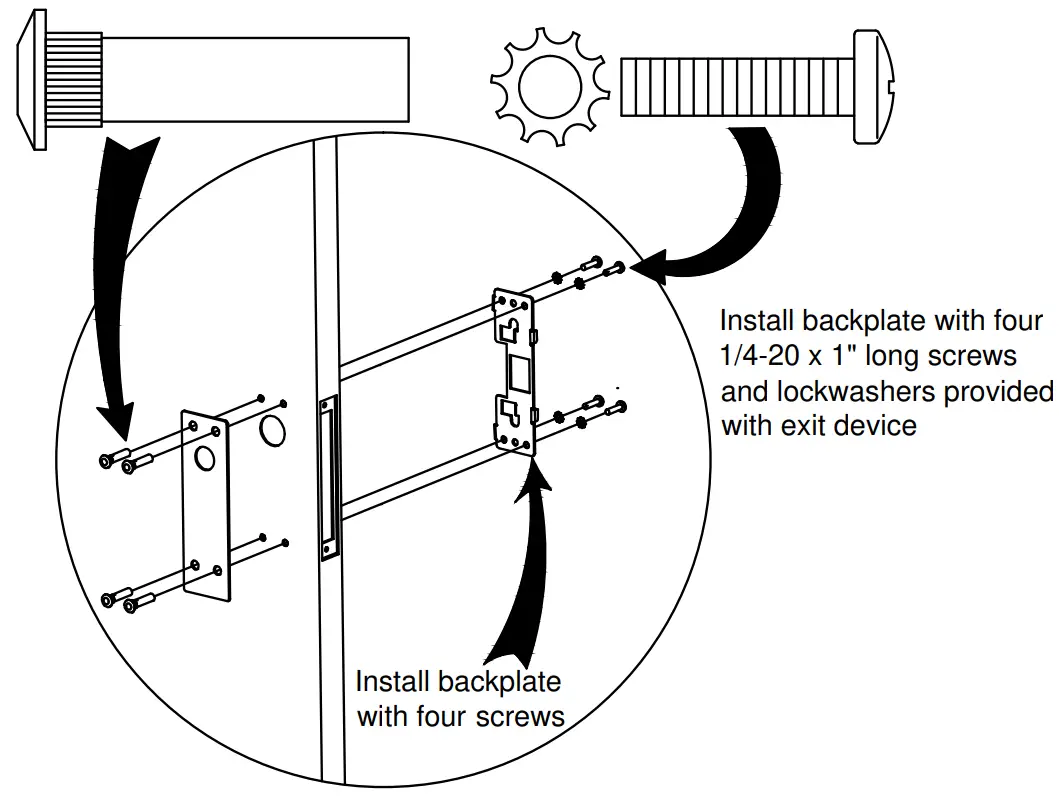

STEP 2: INSTALL TRIM

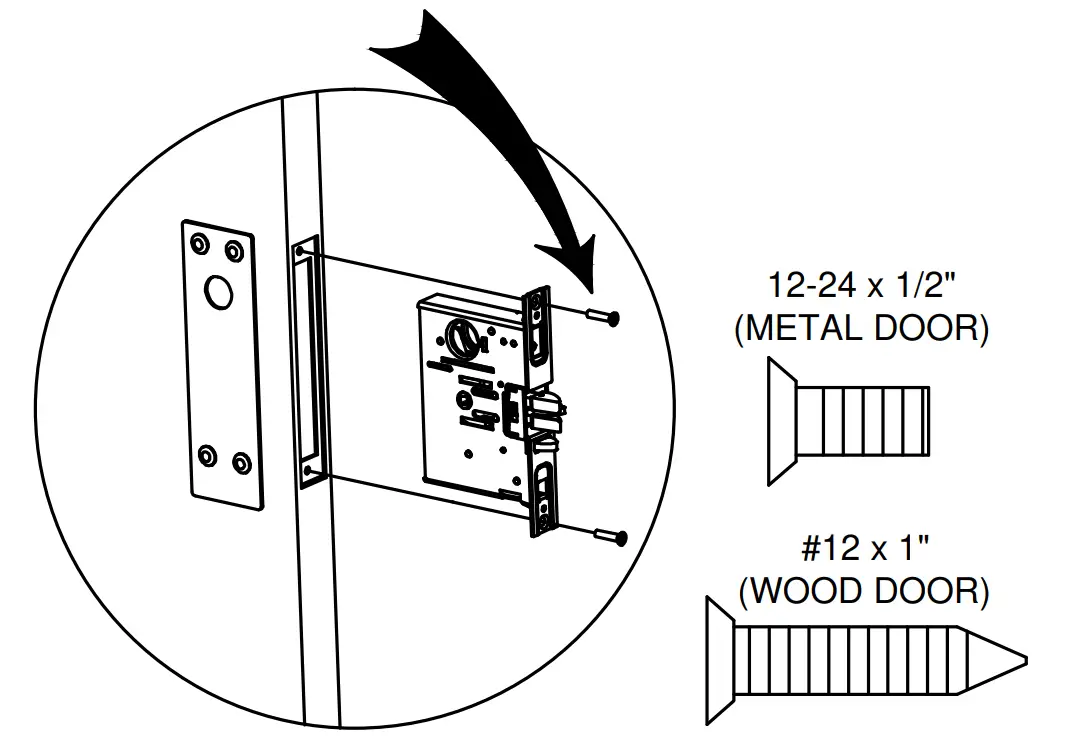

STEP 3: INSTALL MORTISE LOCK STEP 2: INSTALL TRIM
Mortise lock and mounting hardware provided with exit device. Fasten loosely.

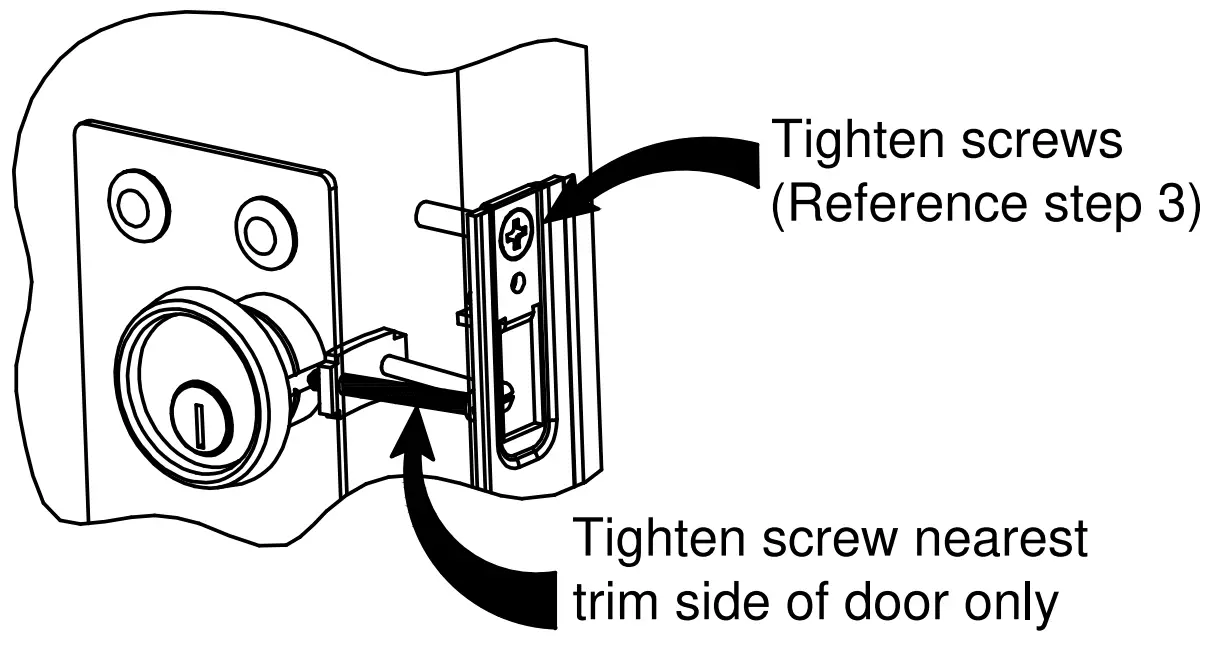

STEP 4: INSTALL MORTISE CYLINDER
STEP 5: SECURE CYLINDER
TRIM INSTALLATION COMPLETE
Continue installation using device instructions
