105665 Pacific Lock
Instruction Manual
104870 January 15, 2021
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839
Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com
INSTALLATION INSTRUCTIONS FOR 08D x 2W, 09D x 2W and 14D x 2W
TRIM drawing 105665: 08D x 2W drawing
105666: 09D x 2W drawing 105668: 14D x 2W
Should you have a Question/Problem with your Detex device please call Detex
Technical Support from the job site at 1-800-729-3839 and choose option 2 on our menu.
Please do not return the product to the distributor.
Owner’s Copy
For WARRANTY information, scan the code below or go to www.detex.com/warranty
For device installation videos, scan the code below or go to www.detex.com/videos
LHR ASSEMBLIES SHOWN
Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)
Tools Required:
Safety Glasses Power Drill
Tape Measure Level Pencil
Center Punch Hammer
#2 and #3 Phillips Screw Drivers
Drill bits: 5/16″ 1/2″ 3/4″
FOR ITEM 26 “-X” REFERS TO
KEY CODE AA-KK

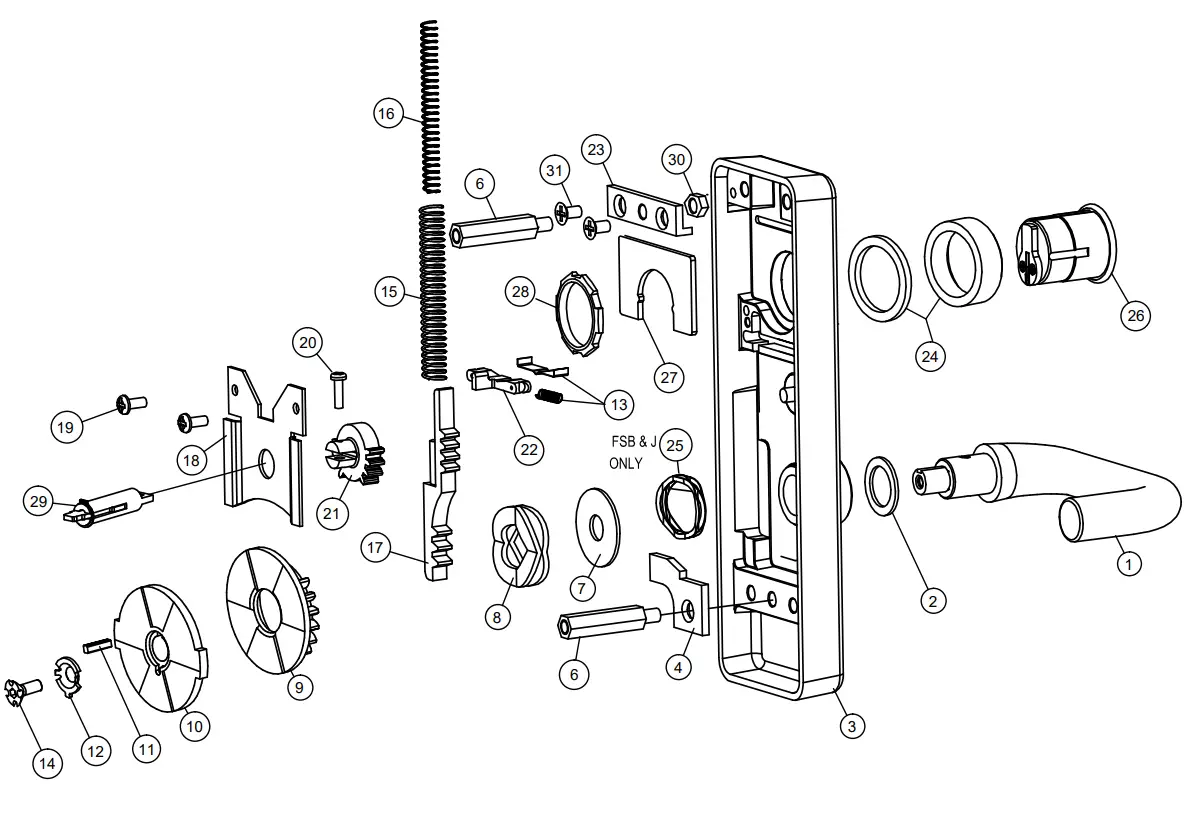

PARTS BREAKDOWN
| Item | P/N | QTY | Description |
| 1 | 106264-7 | 1 | LEVER ASSY, 0, 626 |
| 106264-14 | LEVER ASSY. 0, 693 | ||
| 106264-15 | LEVER ASSY. 0, 695 | ||
| 101376-7 | LEVER ASSY. S, 626 | ||
| 101376-14 | LEVER ASSY. S, 693 | ||
| 101376-15 | LEVER ASSY. S. 695 | ||
| 101375-7 | LEVER ASSY. U. 626 | ||
| 101375-14 | LEVER ASSY. U. 693 | ||
| 101375-15 | LEVER ASSY. U. 695 | ||
| 101374-7 | LEVER ASSY, T, 626 | ||
| 101374-14 | LEVER ASSY. T. 693 | ||
| 101374-15 | LEVER ASSY. T. 695 | ||
| 2 | 106603 | 2 | WASHER. FLAT. 1″x0.02 THK (J LEVER ONLY) |
| 100851 | 1 | WASHER. FLAT. 1″x0.06 THK (ALL EXCEPT J LEVER) | |
| 3 | 105664-9 | 1 | ESCUTCHEON ASSY. O8Dx2W / 09Wx2W. BP2. 630 FINISH |
| 105669-9 | ESCUTCHEON ASSY. 14Dx2W. BP2. 630 FINISH | ||
| 4 | 100771 | 1 | STOP. ROTATIONAL |
| 6 | 104220 | 2 | STANDOFF. HEX. BP2, EU |
| 7 | 100775 | 1 | WASHER. FLAT |
| 8 | 103047 | 1 | CLUTCH SPRING |
| 9 | 103043 | 1 | BOTTOM GEAR. WIDE |
| 10 | 103044 | 1 | TORQUE PLATE. WIDE |
| 11 | 103994 | 1 | KEY. SHEAR PIN. STEEL |
| 12 | 100821 | 1 | WASHER CLUTCH |
| 13 | 100773 | 1 | FLAT SPRING LOCKING (08D function only) |
| 101997 | SPRING. COMPRESSION (09D function only) | ||
| 14 | 102536-1 | 1 | SCREW. 10-24. CUSTOM |
| 15 | 100766 | 1 | SPRING. RETURN |
| 16 | 101509 | 1 | SPRING. RETURN. HELPER |
| 17 | 101436 | 1 | RACK ASSEMBLY |
| 18 | 100753 | 1 | COVER PLATE |
| 19 | PP-5378-106 | 2 | SCREW. MACH, 8-32 x 3/8 PPH |
| 20 | PP-5367-108 | 1 | SCREW. MACH. 6-32 x 1/2 PPH |
| 21 | 100762 | 1 | TOP GEAR |
| 22 | 101993 | 1 | LOCK SLIDE (08D / 09D only) |
| 23 | 104214 | 1 | ADAPTER PLATE. BP2. EU |
| 24 | 100572-9 | 1 | CYLINDER COLLAR. SHORT |
| 100752-9 | CYLINDER COLLAR. TALL | ||
| 25 | 105964 | 1 | WASHER. WAVE |
| 26 | 103800-626 | 1 | CYLINDER HOUSING. SFIC. MORTISE. 7 PIN. CHROME |
| 102281-7-X | CYLINDER. MORTISE. 5 PIN. CHROME | ||
| 27 | 100754 | 1 | PLATE. CYLINDER POSITION |
| 28 | 100783 | 1 | NUT. HEXAGON. CYLINDER |
| 29 | 101478 | 1 | SHAFT EXTENSION ASSEMBLY |
| 30 | 104224-14 | 1 | LOCKNUT. 1/4-20. NYLON INSERT |
| 31 | 102264-2 | 2 | SCREW. 1/4-20 x 3/8 PFH. UNDERCUT |
STEP 1: PREP TRIM

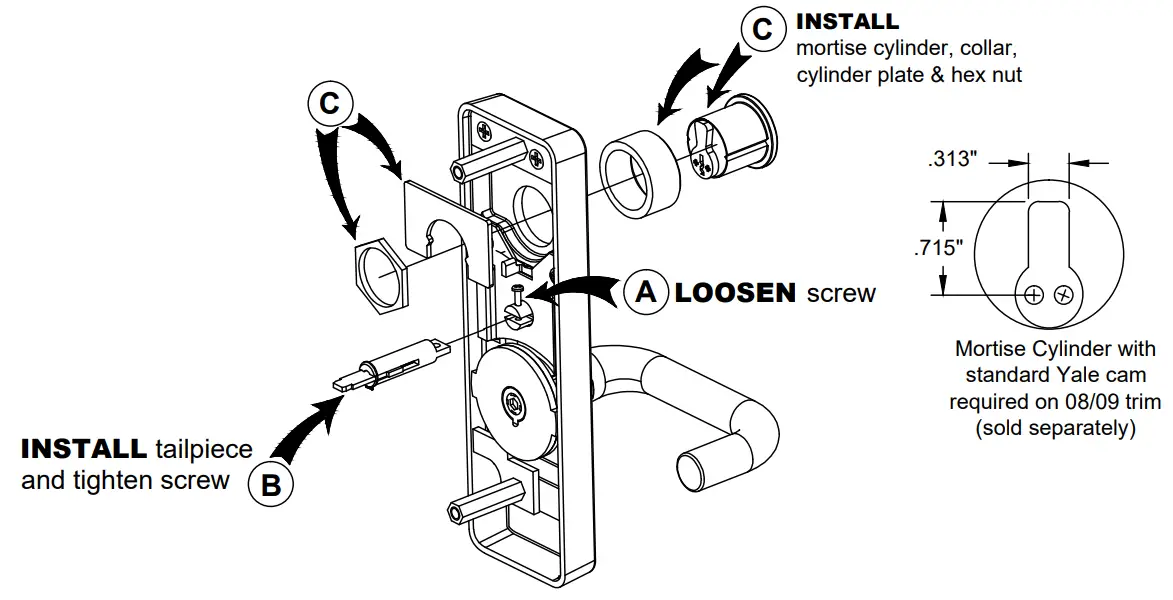

Install tailpiece & cylinder (14 function requires no cylinder)
NOTE:
- Mortise cylinder NOT supplied with trim, but can be ordered separately.
- Trim handing is field reversible.
- 6-pin cylinder installation shown.
Follow steps A through C in order:

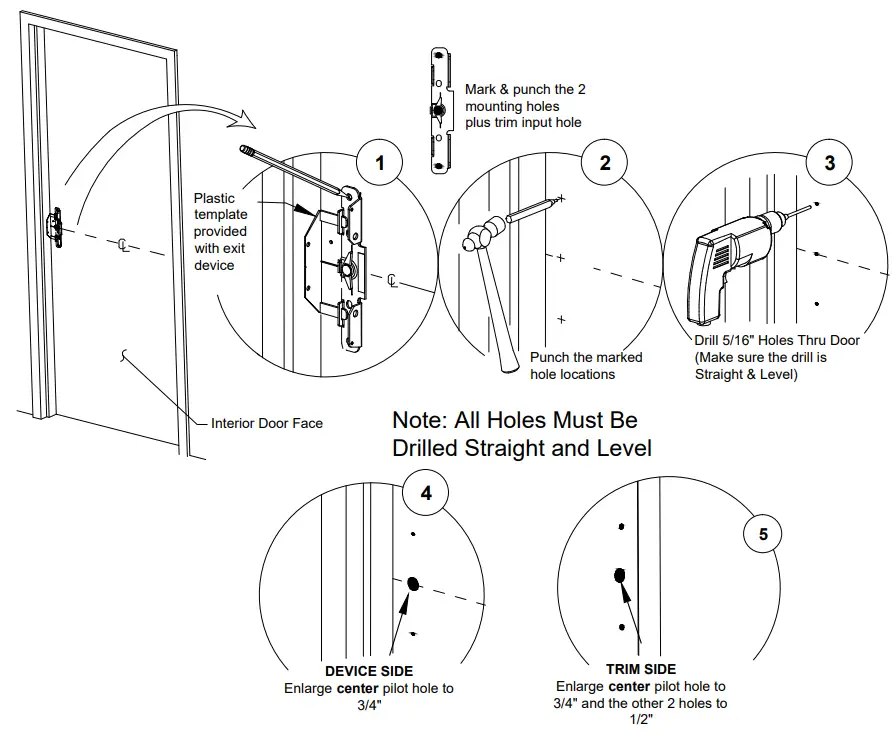

STEP 2: PREP DOOR

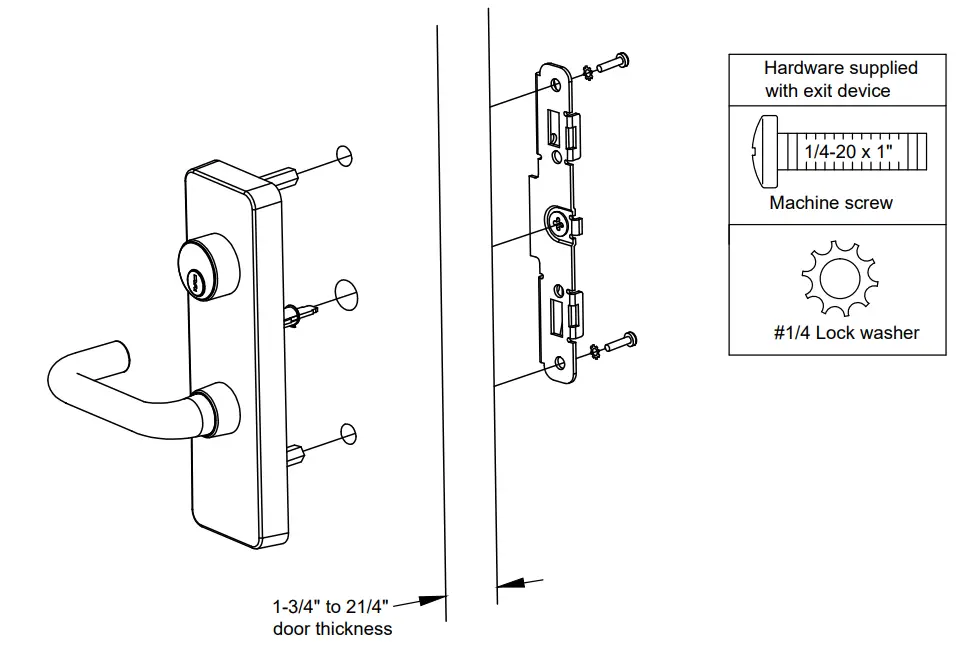

STEP 3: INSTALL TRIM
TRIM INSTALLATION COMPLETE
Continue installation using device instructions
CHANGE LEVER HANDING

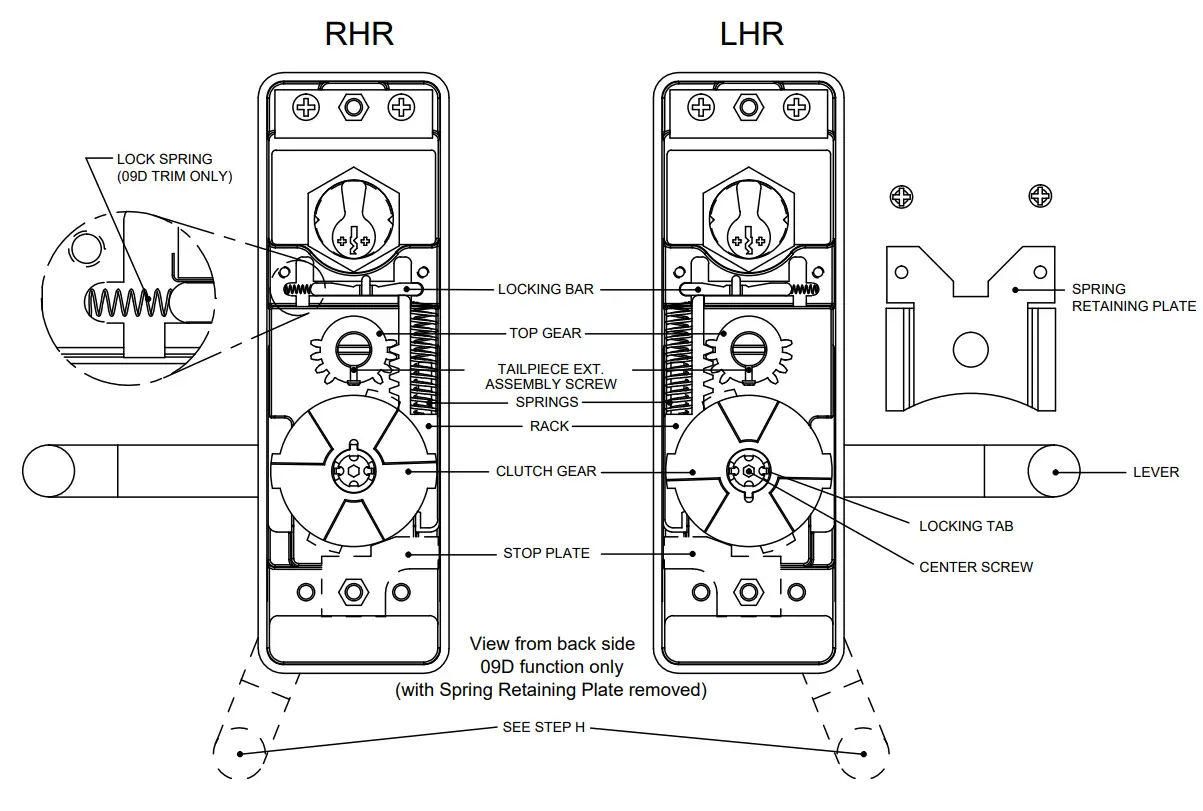

A. Remove tailpiece extension assembly screw. (Remove tailpiece extension assembly if necessary.
B. Remove lower stand-off and stop plate.
C. WARNING: Springs under pressure! Remove the spring retaining plate. Carefully remove the springs.
D. Switch the lock spring to the opposite side (for the 09 function only).
E. Remove top gear.
F. Loosen the clutch center screw for approximately two (2) turns. Bend the locking tab back to disengage with a notch.
G. Slide the locking bar away from the rack (not necessary for 14 functions). Remove the rack while rotating the lever.
H. Continue rotating the lever to the opposite side.
I. Rotate the lever to the position shown. Partially engage the rack and the clutch gear on the opposite side.
J. Rotate the lever until the rack is completely seated.
K. Insert the top gear.
L. Add permanent thread locking adhesive and tighten the clutch center screw. Bend the tab over the screw notch so that screw cannot turn.
M. Warning: Springs under pressure! Install the springs. Hold the lever in the down position, firmly compressing the springs in place.
N. While holding the lever in the down position, replace the spring retaining plate and fasten the two (2) screws.
O. Reverse the stop plate and fasten the stand-off.
P. Replace tailpiece extension assembly (if removed) and assembly screw.
Handing is complete.
