DETEX 105600-X Value Series Trim Lock System

DETEX-105600-X-Value-Series-Trim-Lock-System-product-image

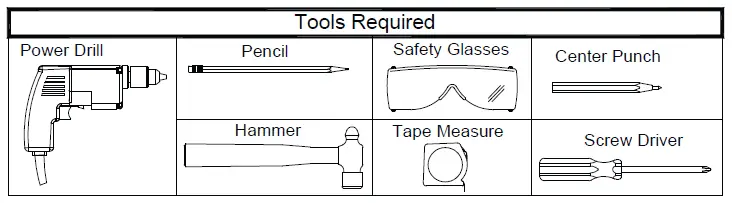

DETEX-105600-X-Value-Series-Trim-Lock-System-01DETEX-105600-X-Value-Series-Trim-Lock-System-02

Door Preparation

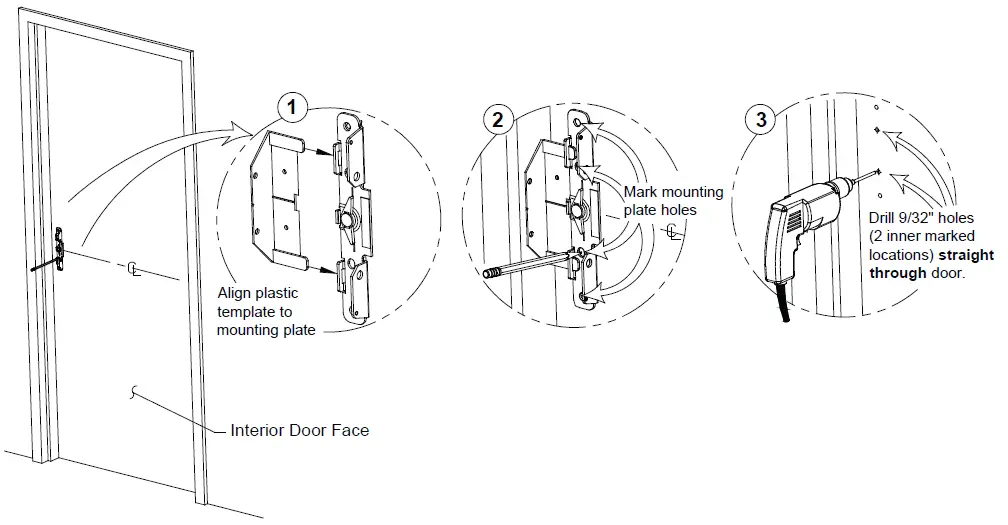

DETEX-105600-X-Value-Series-Trim-Lock-System-03

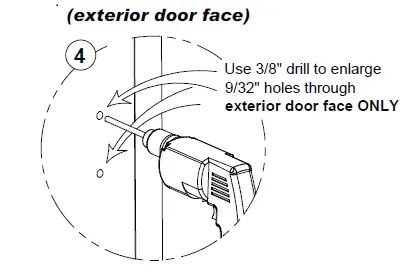

DETEX-105600-X-Value-Series-Trim-Lock-System-04

Installing the Trim

Note: Rim device shown for reference only. Refer to device instructions for further detail)
Align plastic template to mounting plate Hammer Tape Measure Center Punch

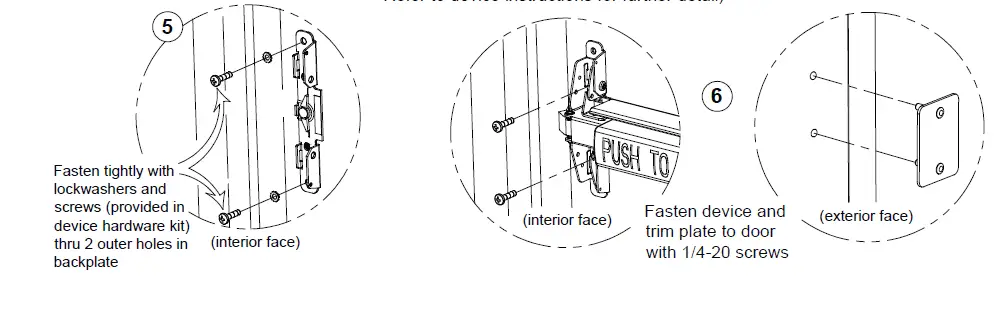

DETEX-105600-X-Value-Series-Trim-Lock-System-05
