Detex 105151 Trim Lock Device Instruction Manual

INSTALLATION INSTRUCTIONS FOR ADVANTEX NARROW (01DN) TRIM OR WIDE (01D) TRIM
Drawing # 105151 & 105150

PREPARING THE DOOR

1. Mark and centerpunch the exit device mounting plate holes according to the exit device instructions.
2. Drill pilot holes at centerpunched locations. CAUTION: Be sure to drill STRAIGHT through the door.
3. For METAL doors: DEVICE SIDE: drill a 5/16″ hole
   TRIM SIDE: drill 1/2″ hole
   For WOOD doors: drill a 1/2″ hole through a door

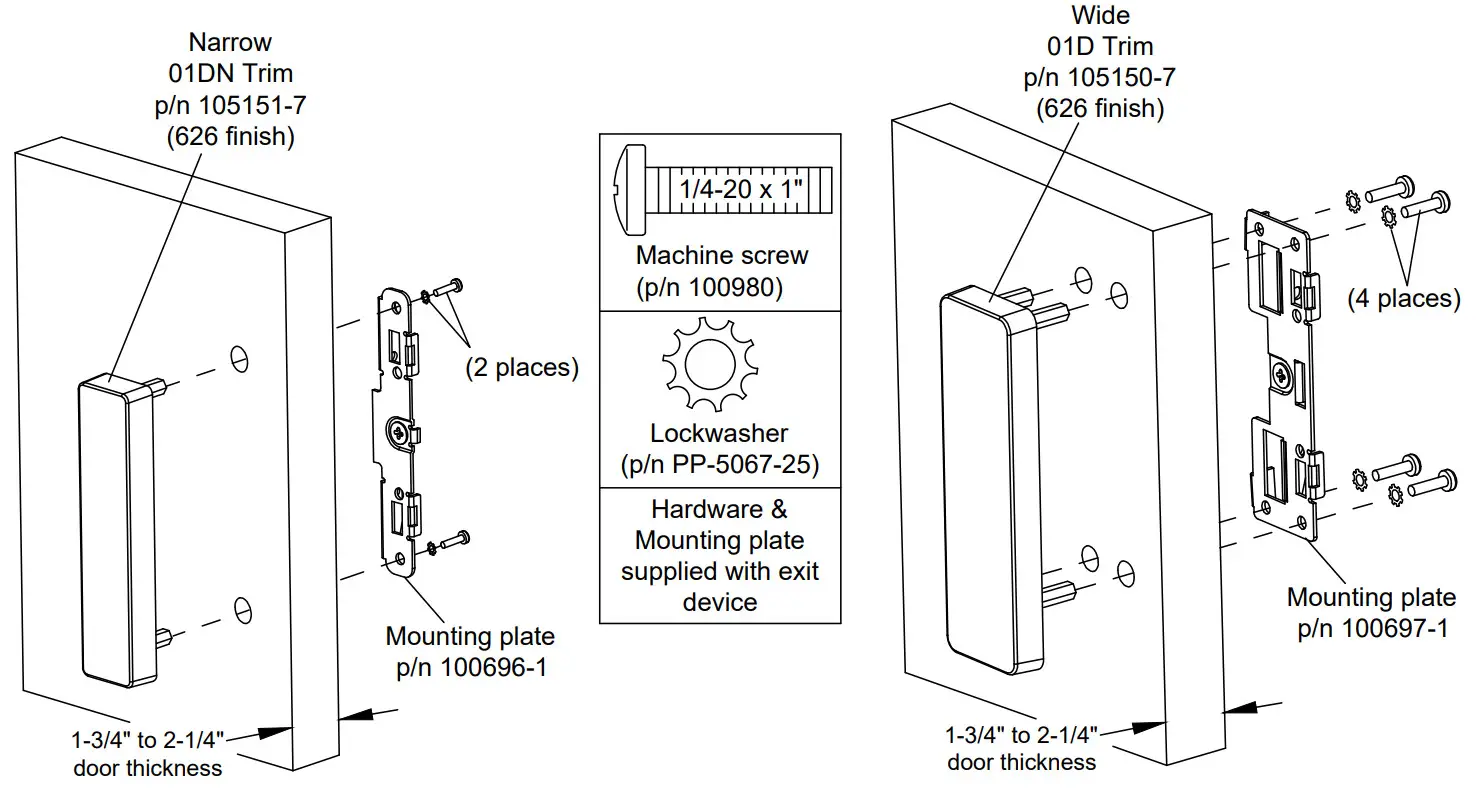

ASSEMBLE THE OUTSIDE TRIM AND BACKPLATE AS SHOWN BELOW.

Resume the exit device instructions.

Should you have a Question/Problem with your Detex device please call Detex Technical Support from the job site at 1-800-729-3839 and choose option 2 on our menu. Please do  not return the product to the distributor.
For WARRANTY information, scan code below or go to www.detex.com/warranty

https://qrs.ly/p9aw78s

For device installation videos, scan code below or go to www.detex.com/videos

 https://qrs.ly/roaw7bp
