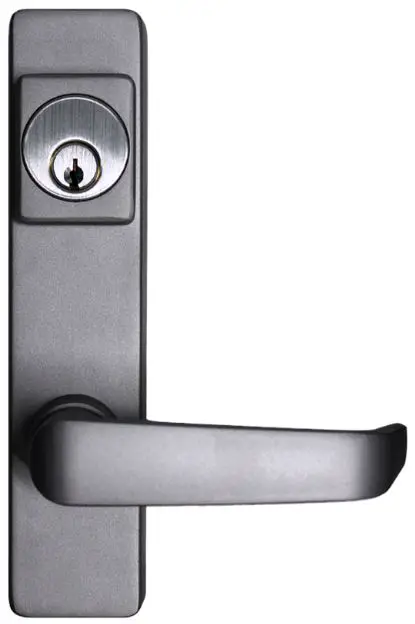

DETEX 101998 Outside Lever Pull Trim
TOOLS AND SUPPLIES
- Safety Glasses
(Always put on safety glasses prior to beginning installation of unit)
- Pencil
- Center Punch
- Hammer
- Drill Motor
- Drill Bits 8& Taps
- Screw Driver (Phillips Drive)
- Tape Measure
WARRANTY
For WARRANTY information, scan code below or go to www.detex.com/warranty
Device installation
For device installation videos, scan code below or go to www.detex.com/videos

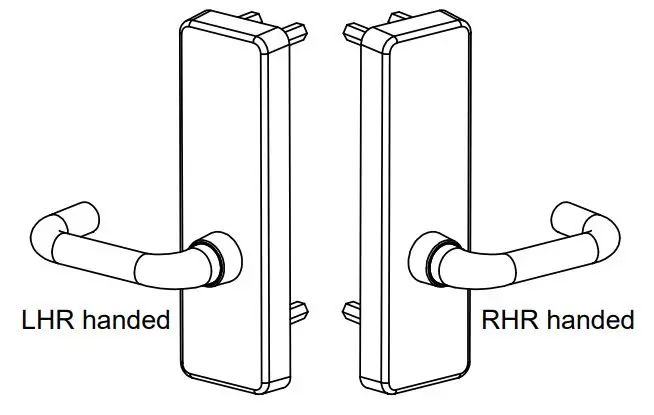

LEFT-HAND REVERSE ASSEMBLY SHOWN
INSTALLATION
- STEP 1: PREP DOOR
- Use plastic template to mark TRIM holes (LHR shown)
- Use plastic template to mark TRIM holes (LHR shown)
NOTE: The height from the finished floor to the trim/device centerline that Detex recommends is 40″.
- If unsure of trim/device centerline location, use the method below and at right to determine correct trim location.

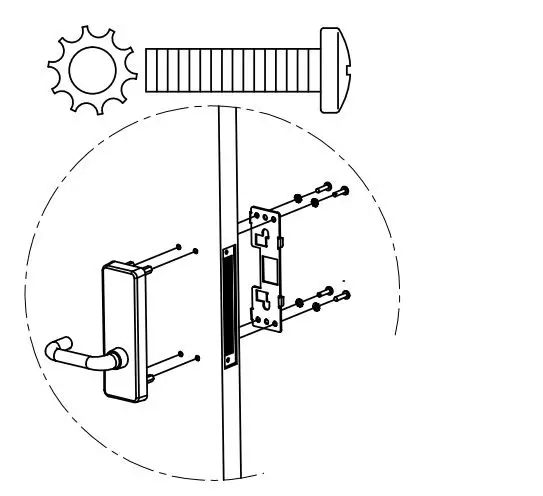

- STEP 2: INSTALL TRIM & BACKPLATE
Install backplate with four 1/4-20 x 1″ long screws and lockwashers provided with exit device

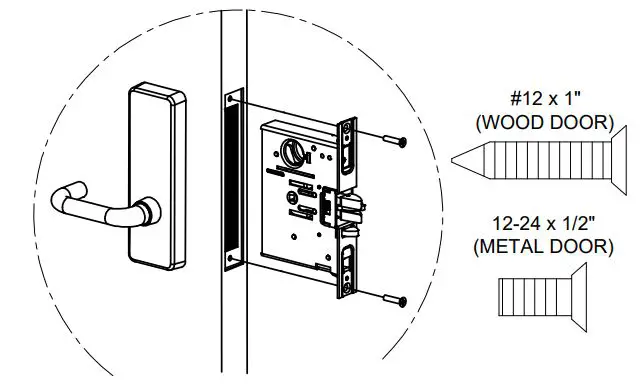

STEP 3: INSTALL MORTISE LOCK
STEP 3: INSTALL MORTISE LOCK
Note: Mortise lock and mounting hardware supplied with exit device. Fasten screws loosely.
IMPORTANT!
For modular cable devices, see electrical instructions for cable routing.

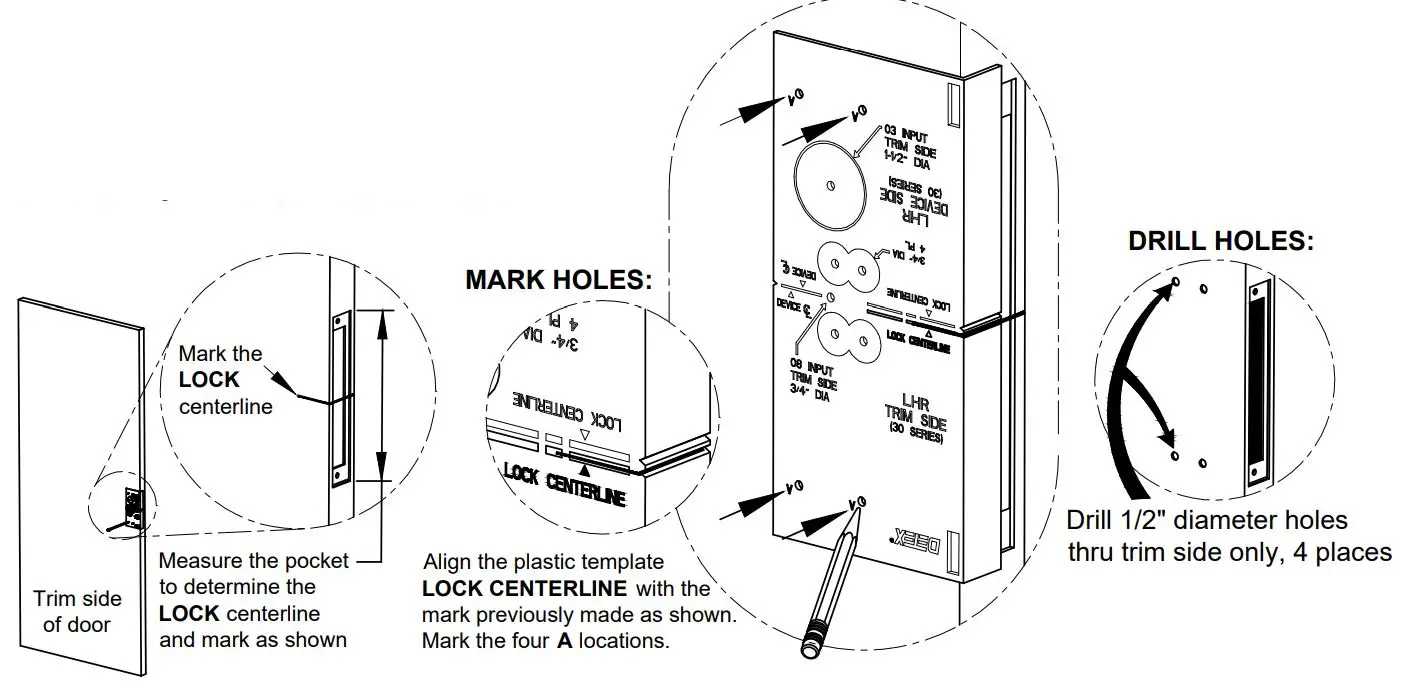

MARK & DRILL HOLES – TRIM SIDE:
Mortise lock NOT supplied with TRIM. For a retrofit application, remove lock and exit device before installing new trim

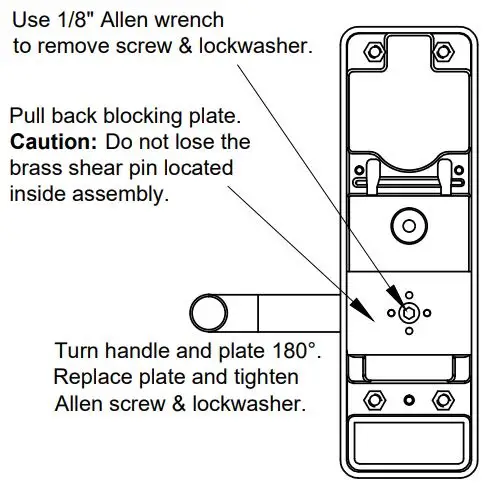

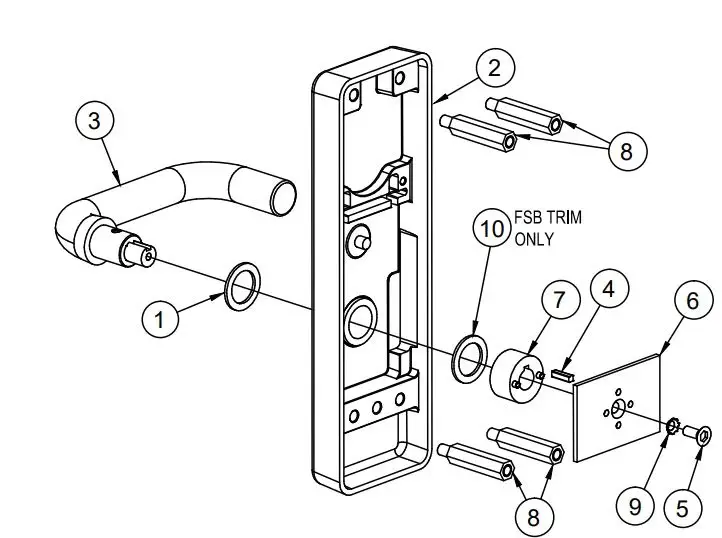

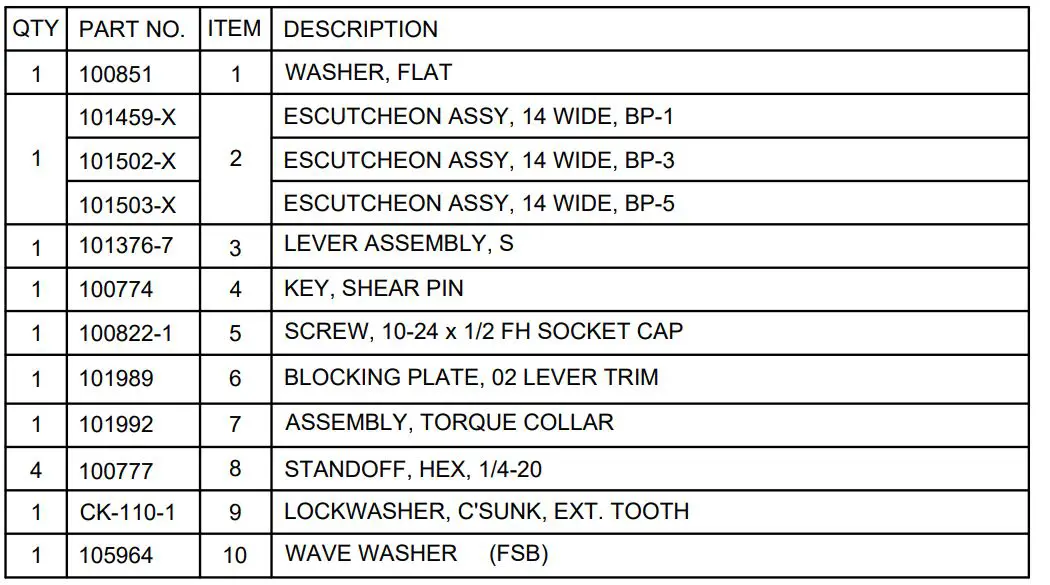

Change Handing (if required) (Place trim on a clean surface with this view facing up)
