INSTALLATION INSTRUCTIONS FOR “EU2W” LEVER TRIM,
4-1/2″ MINIMUM STILE
ELECTRIC UNLOCK:NOTE: Trim is not fielded reversible.
A DC power source is connected across the brown wires to power the internal solenoid. The solenoid connection is not polarized. The applied voltage will unlock for Fail-Secure and lock for Fail-Safe. Units are color-coded as follows:
| 24 voe Fail-Secure | (Black spiral tubing) | p/n 104209-1 |
| 24 voe Fail-Safe | (Red spiral tubing) | p/n 104209-2 |
| 12 VDC Fail-Secure | (Blue spiral tubing) | p/n 104209-3 |
| 12 voe Fail-Safe | (Yellow spiral tubing) | p/n 104209-4 |
PREP TRIM DEVICE

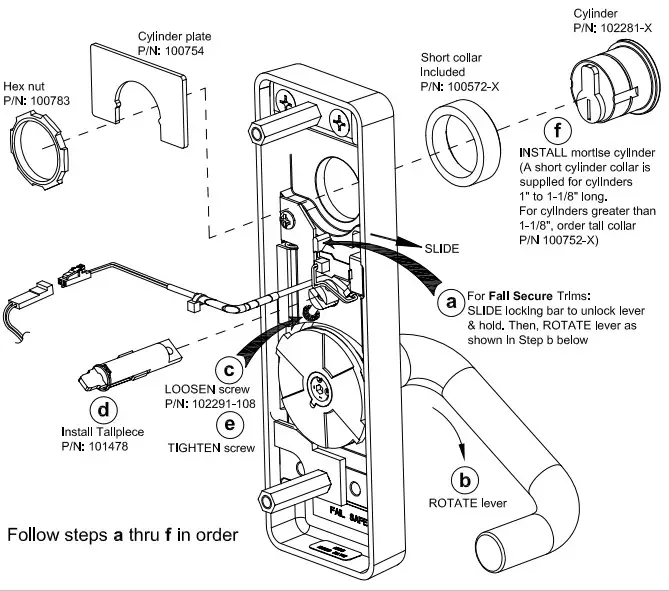

Install tailpiece for RIM or SVR
NOTE: Mortise cylinder NOT supplied with trim, but can be ordered separately.
PREP DOOR (Rim & SVR)

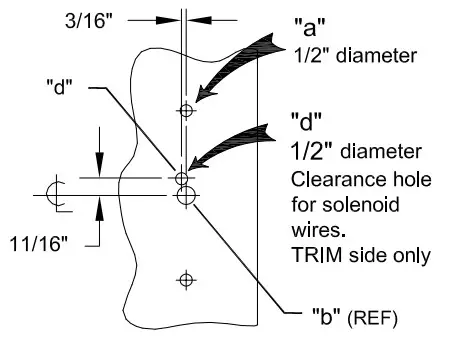

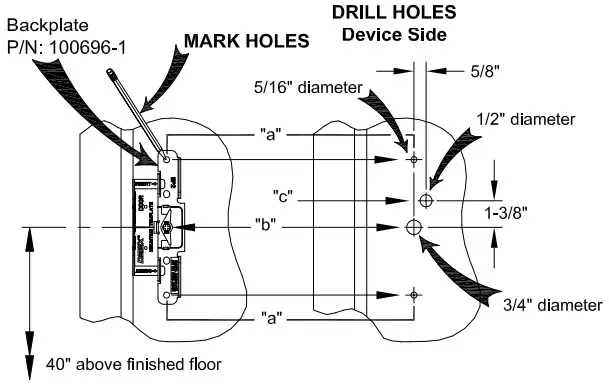

Mark & Drill holes
NOTES:
- For a retrofit application, remove the device before installing new trim.
- LHR installation was shown (Reverse all steps for RHR).

| (Metal Doors Only) | ||||
| Holes “S | Hole “b” | Hole “c” | Hole “d” | |
| Device Side 5/16″ | Trim Side 1/2″ | Trim & Device Side 3/4″ | Device Side ONLY 1/2″ | Trim Side ONLY VT |

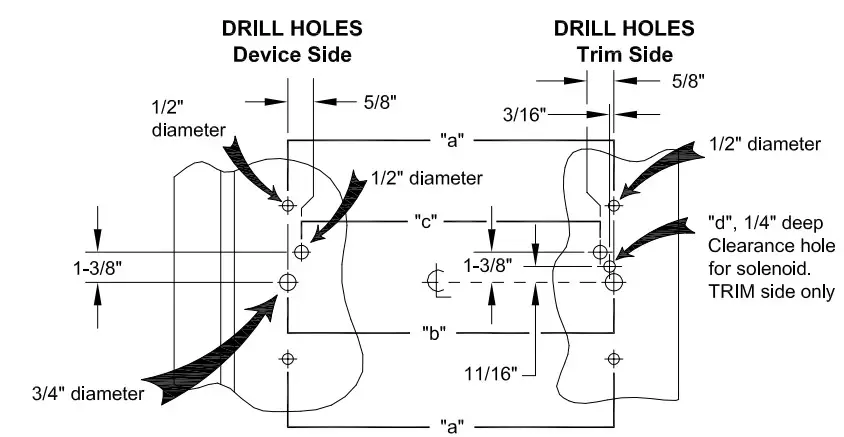

DRILL HOLES
Trim Side
| (Wood Doors Only) | |||
| Holes “a” | Hole “b” | Hole “c” | Hole “d” |
| Trim & Device Side 1/2″ | Trim & Device Side 3/4″ | Trim & Device Side 1/2″ | Trim Side ONLY 1/2″ |

INSTALL TRIM DEVICE (Rim & SVR)
Install TRIM for Rim & SVR Device

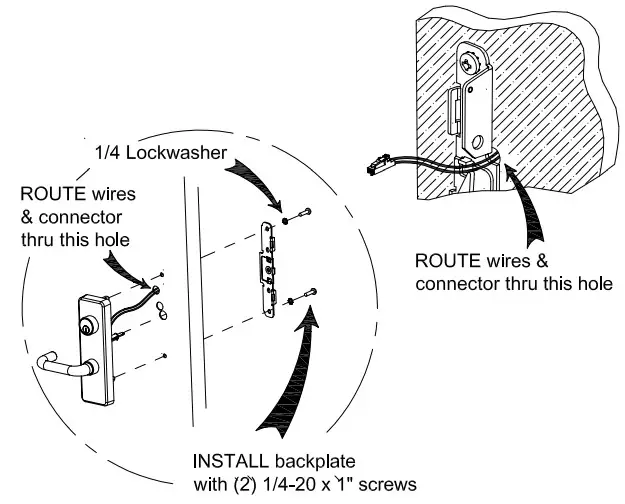

WOOD Doors

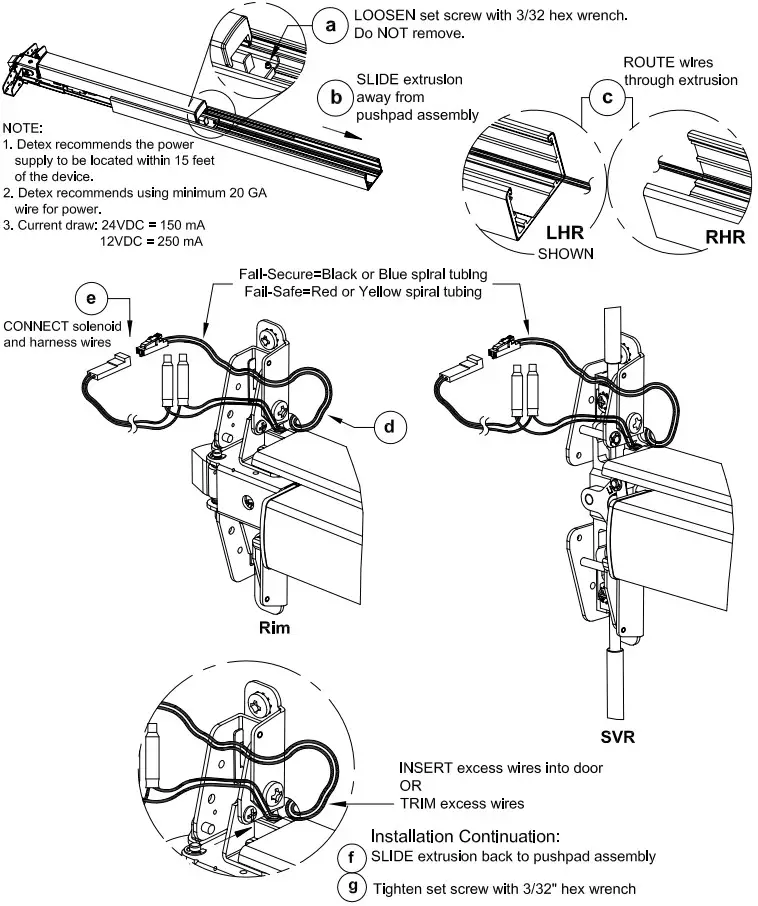

ROUTING WIRES THROUGH DEVICE
Wires can be routed through a device or door
