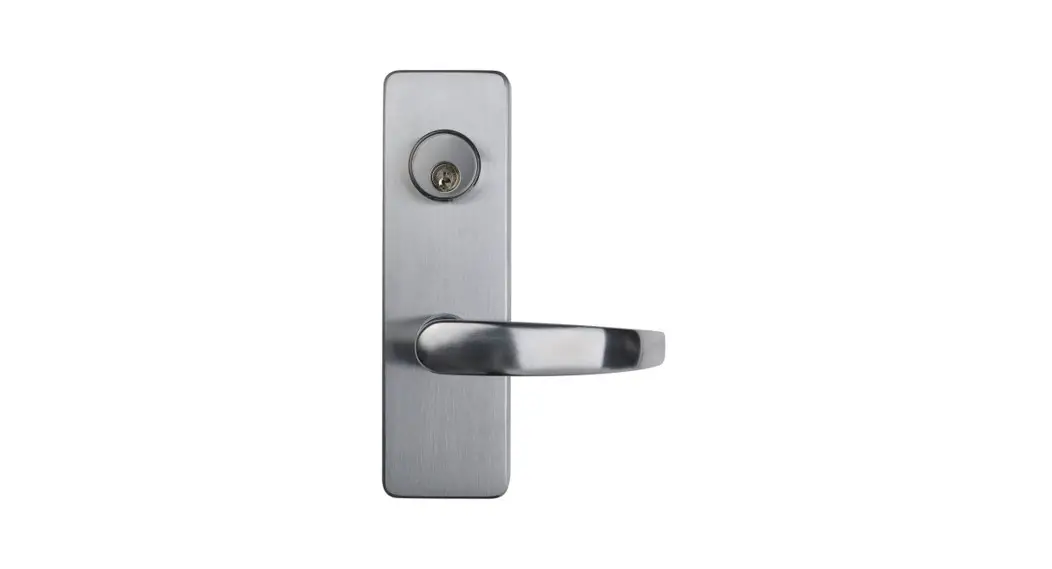

INSTALLATION INSTRUCTIONS FOR 02Z & 03Z ANTI-VANDAL TRIM
02Z ANTI-VANDAL TRIM P/N: 105640
03Z ANTI-VANDAL TRIM P/N: 105650
| PARTS BREAKDOWN | |||
| Item | P/N | QTY | Description |
| 1 | 105641-630 | 1 | TRIM, 02Z, ANTI-VANDAL |
| 105649-LHR-630 | TRIM, 03Z, ANTI-VANDAL, LHR | ||
| 105649-RHR-630 | TRIM, 03Z, ANTI-VANDAL, RHR | ||
| 2KIT | 105646-2 | 1 | KIT, 03Z TRIM |
| 2A | PP-5066-12 | 2 | LOCKWASHER, #12 |
| 2B | 100980 | 4 | SCREW, 114-20 x 1 |
| 2C | 101454-1 | 1 | TAILPIECE ASSEMBLY, RIM, 03WS |
| 2D | 101480-1 | 1 | TAILPIECE, 03 WSN (for 2-114″ thick door) |
| 3 | 100752-9 | 1 | CYLINDER COLLAR, TALL |
| 4 | ECL-445-7-X | 1 | CYLINDER, 5 PIN RIM (sold separately) |
| IC7R-626 | CYLINDER, 7 PIN RIM (sold separately) | ||
FOR ITEM 4
“-X” REFERS TO
KEY CODE
AA-KK
Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)
Tools Required:
Safety glasses
Tape measure
Pencil
Hammer
Center punch
Drill
3/8″ drill bit
1-1/2″ Hole saw (for 03Z)
3/4″ drill bit (for 03Z)
Screwdriver

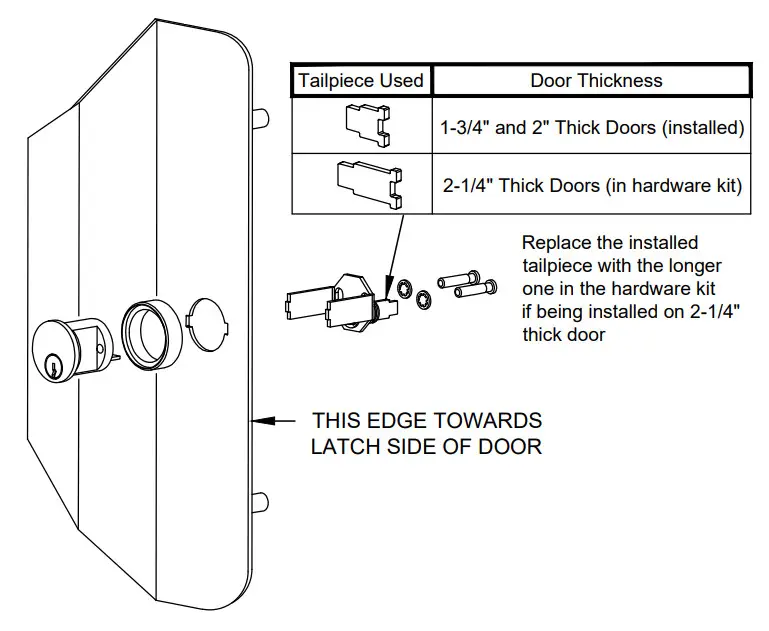

03Z Trim Prep
(No prep necessary for 02Z trims)
Install cylinder and tailpiece assembly
(LHR shown, RHR opposite)

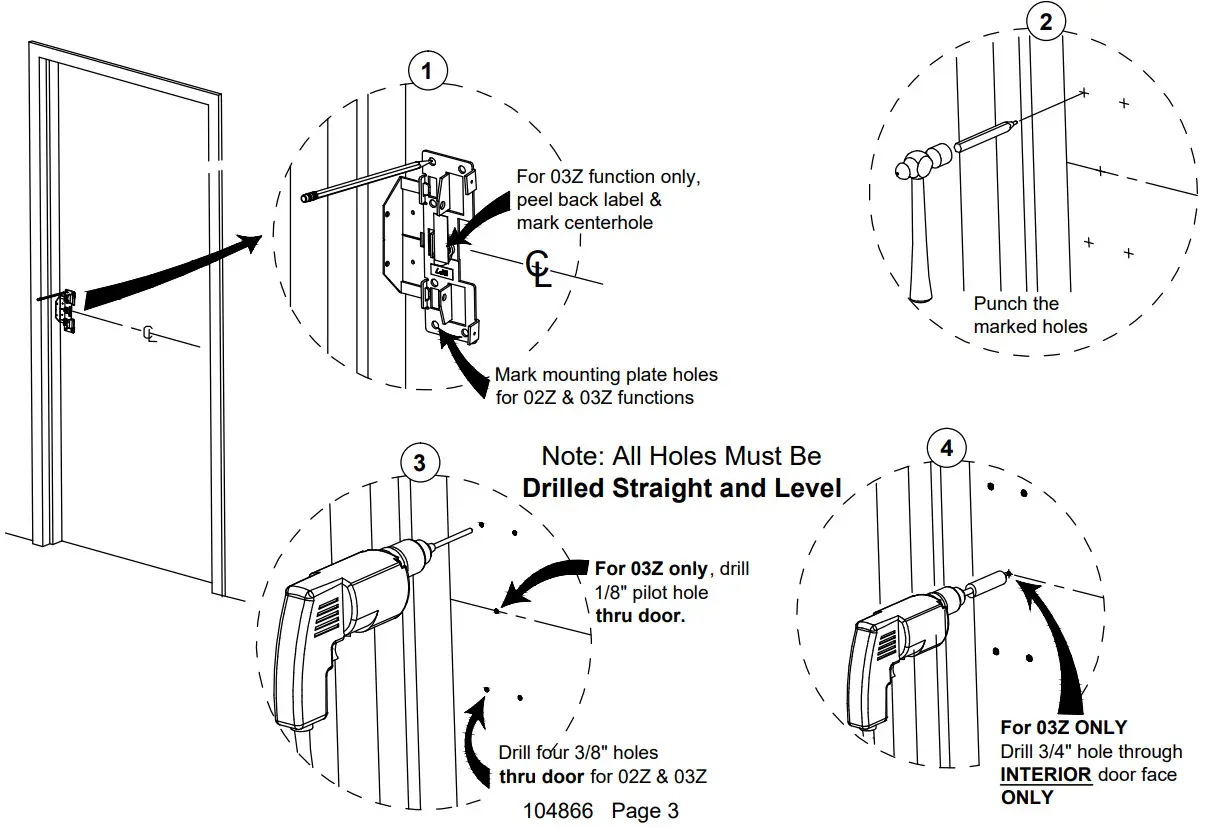

Door Prep – Interior Door Face (LHR shown)

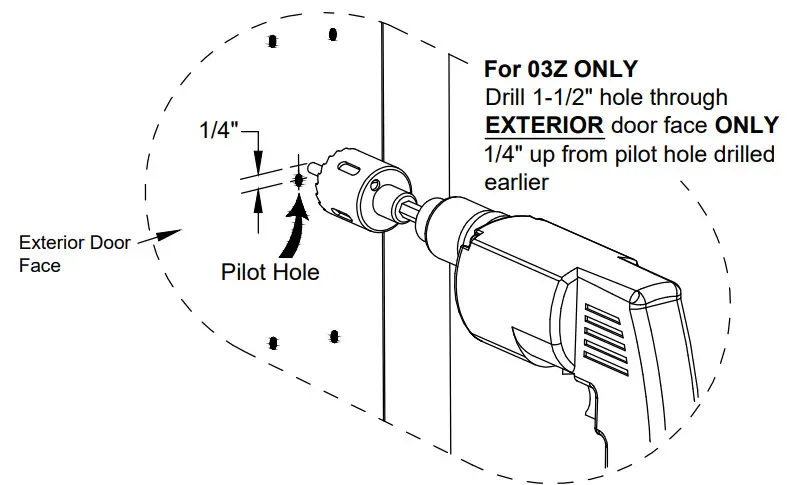

Door Prep – Exterior Door Face – 03Z only (LHR shown)
Install Trim (03Z shown)
Be sure to engage the trim tailpiece to the cam on the mounting plate (with the key out of the cylinder)
Continue with Exit
Hardware Instructions
Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.
For WARRANTY information,
scan the code below or go to www.detex.com/warranty
For device installation videos,
scan code below or go to www.detex.com/videos
https://qrs.ly/roaw7bp
