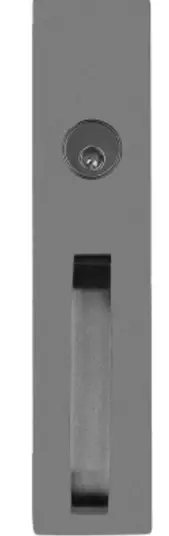

DETEX 102237 Pullplate Trim

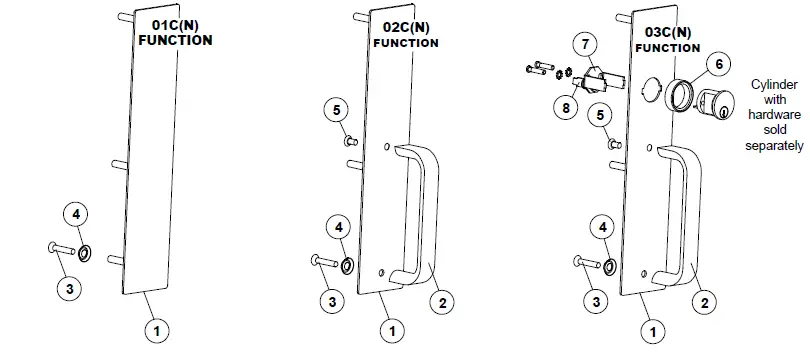

| ITEM | PART NO. | QTY | DESCRIPTION |
|
1 | 102219-9 |
1 | TRIM PULLPLATE, 01C (WIDE BP-1 OR BP-11) |
| 102228-9 | TRIM PULLPLATE, 01CN (NARROW BP-2) | ||
| 105633-9 | TRIM PULLPLATE, 01CNV (NARROW CVR BP-10) | ||
| 102218-9 | TRIM PULLPLATE, 02C (WIDE BP-1 OR BP-11) | ||
| 102227-9 | TRIM PULLPLATE, 02CN (NARROW BP-2) | ||
| 105632-9 | TRIM PULLPLATE, 02CNV (NARROW CVR BP-10) | ||
| 102217-9 | TRIM PULLPLATE, 03C (WIDE BP-7 OR BP-13) | ||
| 102226-9 | TRIM PULLPLATE, 03CN (NARROW BP-8) | ||
| 105631-9 | TRIM PULLPLATE, 03CNV (NARROW CVR BP-12) | ||
| 2 | 102235-9 | 1 | PULL, 03, 02 C, CN |
| 3 | 102271-136 | 1 | 1/4-20 X 2-1/4″ SCREW, S/S, PFH (02, 03 w 1-3/4″ TO 2″ DOOR) |
| 102271-144 | 1/4-20 X 2-3/4″ SCREW, S/S, PFH (02, 03 w 2-1/4″ DOOR) | ||
| 102271-116 | 1/4-20 X 1″ SCREW, S/S, PFH, (01 ALL) | ||
| 4 | 102272-2 | 1 | 1/4″ FINISH WASHER, S/S (01, 02, 03) |
| 5 | 102264-1 | 1 | SCREW, 1/4-20 X 1/2″, UNDERCUT, PFH (02, 03) |
| 6 | 100752-9 | 1 | CYLINDER COLLAR, TALL (03) |
| 105227-7 | TAPERED CYLINDER COLLAR, CVR (03) | ||
| 7 | 101454-1 | 1 | TAILPIECE ASSY (03) |
| 105238-3 | TAILPIECE ASSEMBLY (03 CVR) | ||
| 8 | 101480-1 | 1 | TAILPIECE, 03 |
| 105239-1 | TAILPIECE, 2.25 THK DOOR (03, CVR) |
Trim Preparation 03 function only

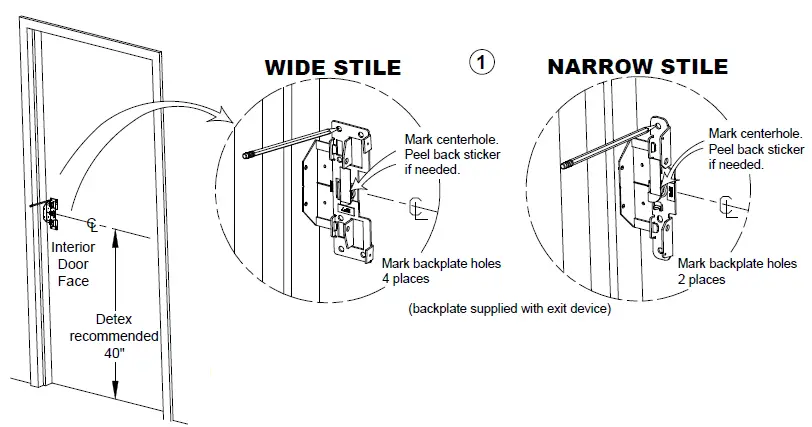

Door Preparation – Interior Door Face
NOTE: WIDE STILE installation shown through the remainder of instruction
Note: All holes MUST be drilled STRAIGHT and LEVEL
Door Preparation – Exterior Door Face
