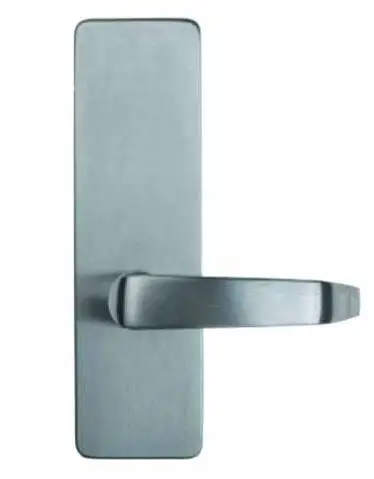

DETEX 14D Advantex Outside Lever Trim
LHR ASSEMBLIES SHOWN
(RHR assemblies opposite)
Your particular part or configuration may not be shown: Contact Detex technical support at 800-729-3839 (option 2)

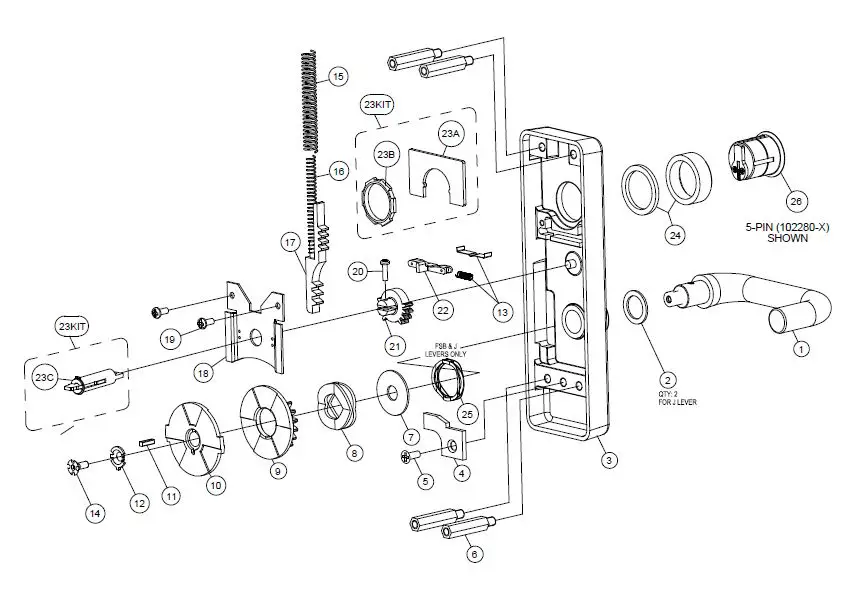

| PARTS BREAKDOWN | |||
| Item | P/N | QTY | Description |
|
1 | 106264-7 |
1 | LEVER ASSY, Q, 626 |
| 106264-14 | LEVER ASSY, Q, 693 | ||
| 106264-15 | LEVER ASSY, Q, 695 | ||
| 101376-7 | LEVER ASSY, S, 626 | ||
| 101376-14 | LEVER ASSY, S, 693 | ||
| 101376-15 | LEVER ASSY, S, 695 | ||
| 101375-7 | LEVER ASSY, U, 626 | ||
| 101375-14 | LEVER ASSY, U, 693 | ||
| 101375-15 | LEVER ASSY, U, 695 | ||
| 101374-7 | LEVER ASSY, T, 626 | ||
| 101374-14 | LEVER ASSY, T, 693 | ||
| 101374-15 | LEVER ASSY, T, 695 | ||
| 2 | 106603 | 2 | WASHER, FLAT, 1″x0.02 THK (J LEVER ONLY) |
| 100851 | 1 | WASHER, FLAT, 1″x0.06 THK (ALL EXCEPT J LEVER) | |
| 3 | 101373-9 | 1 | ESCUTCHEON ASSY, 08W / 09W, BP1, 630 FINISH |
| 101459-9 | ESCUTCHEON ASSY, 14W, BP1, 630 FINISH | ||
| 4 | 100771 | 1 | STOP, ROTATIONAL |
| 5 | PP-5305-108 | 1 | SCREW, MACH, 10-24 X 1/2 PFH |
| 6 | 100777 | 4 | STANDOFF, HEX |
| 7 | 100775 | 1 | WASHER, FLAT |
| 8 | 103047 | 1 | CLUTCH SPRING |
| 9 | 103043 | 1 | BOTTOM GEAR, WIDE |
| 10 | 103044 | 1 | TORQUE PLATE, WIDE |
| 11 | 103994 | 1 | KEY, SHEAR PIN, STEEL |
| 12 | 100821 | 1 | WASHER CLUTCH |
| 13 | 100773 | 1 | FLAT SPRING LOCKING (08 function only) |
| 101997 | SPRING, COMPRESSION (09 function only) | ||
| 14 | 102536-1 | 1 | SCREW, 10-24, CUSTOM |
| 15 | 100766 | 1 | SPRING, RETURN |
| 16 | 101509 | 1 | SPRING, RETURN, HELPER |
| 17 | 101436 | 1 | RACK ASSEMBLY |
| 18 | 100753 | 1 | COVER PLATE |
| 19 | PP-5378-106 | 2 | SCREW, MACH, 8-32 x 3/8 PPH |
| 20 | PP-5367-108 | 1 | SCREW, MACH, 6-32 x 1/2 PPH |
| 21 | 100762 | 1 | TOP GEAR |
| 22 | 101993 | 1 | LOCK SLIDE |
| 23KIT | 105673-1 | 1 | LEVER TRIM HARDWARE KIT, RIM/SVR |
| 105673-3 | LEVER TRIM HARDWARE KIT, CVR | ||
| 23A | 100754 | 1 | PLATE, CYLINDER POSITION |
| 23B | 100783 | 1 | NUT, HEXAGON, CYLINDER |
| 23C | 101478 | 1 1 | SHAFT EXTENSION ASSEMBLY |
| 106694 | TAILPIECE ASSEMBLY, D TRIM, CVR UNIVERSAL | ||
| 24 | 100572-9 | CYLINDER COLLAR, SHORT | |
| 100752-9 | CYLINDER COLLAR, TALL | ||
| 25 | 105964 | 1 | WASHER, WAVE |
| 26 | 103800-626 | 1 | CYLINDER HOUSING, SFIC, MORTISE, 7 PIN, CHROME |
| 102281-7-X | CYLINDER, MORTISE, 5 PIN, CHROME | ||
Tools Required:
- Safety Glasses
- Power Drill
- Tape Measure
- Level
- Pencil
- Center Punch
- Hammer
- 2 and 3 Phillips Screw Drivers
- Drill bits:
- 5/16″
- 1/2″
- 3/4

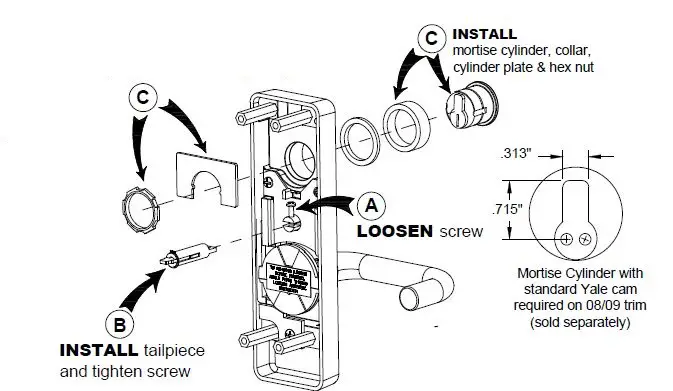

STEP 1: PREP TRIM
Install tailpiece & cylinder
(14 function requires no cylinder)
NOTE:
- Mortise cylinder NOT supplied with trim, but can be ordered separately.
- Trim handing is field reversible.
- 6-pin cylinder installation shown

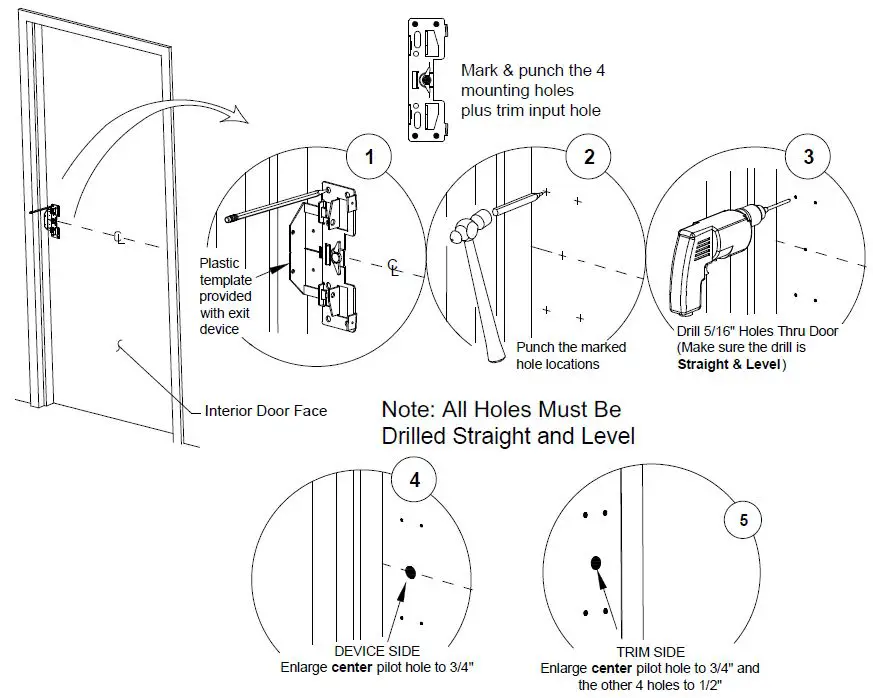

STEP 2: PREP DOOR
Mark and drill holes
(LHR installation shown, reverse for RHR)

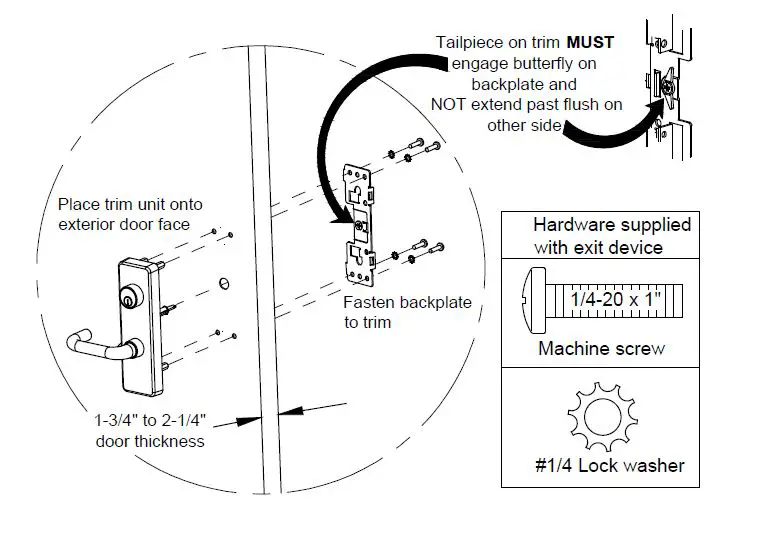

STEP 3: INSTALL TRIM

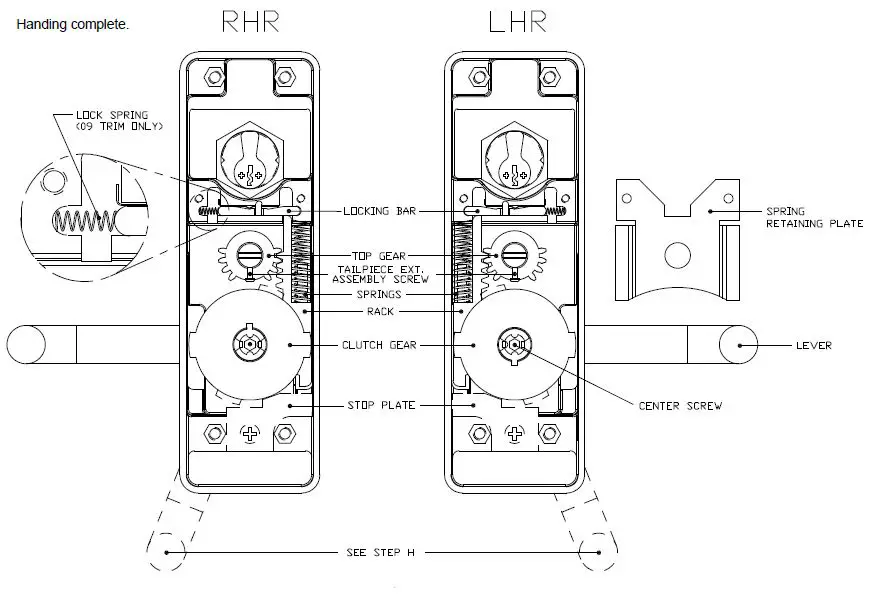

CHANGE LEVER HANDING (if required)
- Remove tailpiece extension assembly screw. Remove tailpiece extension assembly if already installed.
- Remove stop plate.
- Warning: Springs under pressure! Remove the spring retaining plate and carefully remove the springs.
- Switch the lock spring to the opposite side (for 09 function only).
- Remove top gear.
- Loosen the clutch center screw for approximately two (2) turns. Bend the locking tab back to disengage with a notch.
- Slide the locking bar away from the rack (not necessary for 14 functions). Remove the rack while rotating the lever.
- Continue rotating the lever to the opposite side.
- Rotate the lever to the position shown. Partially engage the rack and the clutch gear on the opposite side.
- Rotate the lever until the rack is completely seated.
- Insert the top gear.
- Add permanent thread locking adhesive and tighten the clutch center screw. Bend tab over the screw notch so the screw cannot turn.
- WARNING: Springs under pressure! Install the springs. Hold the lever in the down position, firmly compressing the springs in place.
- While holding the lever in the down position, replace the spring retaining plate and fasten the two (2) screws.
- Reverse the stop plate and fasten the screw.
- Replace the tailpiece extension and screw
Should you have a Question/Problem with your Detex device please call Detex Technical Support from job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.
For WARRANTY information, scan code below or go to www.detex.com/warranty
