Should you have a Question/Problem with your Detex device please call Detex Technical Support from the job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.
For WARRANTY information, scan code below or
go to www.detex.com/warranty
For device installation videos, scan code below or
go to www.detex.com/vidoes

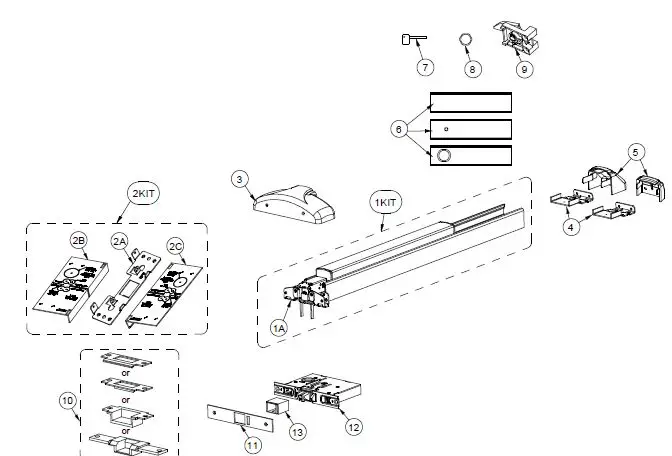

| PARTS BREAKDOWN | ||
| Item | Order Part # | Description |
| 1KIT | 105500-X | Centercase/Pushpad SubAssembly (includes 1A) |
| 1A | 100698-2 | Centercase Assembly, Wide Stile |
| 2KIT | 103806-9 | Mounting Plate/Strike Locator Kit, Mortise (includes 2A, 2B & 2C) |
| 2A | 103215 | Mounting Plate, BP9 |
| 2B | 103284 | Template, RHR, Mortise |
| 2C | 103285 | Template, LHR, Mortise |
| 3 | 102353-1 | Centercase Cover, Stainless Steel, Wide, 10 series, 630 |
| 104601-1 | Centercase Cover, Aluminum, Wide, 10 series, 628 | |
| 4 | 100147 | Endcap bracket for EC1 (ramped) endcap w/o battery holder |
| 101093 | Endcap bracket for EC1 (ramped) endcap w/ battery holder | |
| 104303 | Endcap bracket for EC2 (flush) endcap w/o battery holder | |
| 104636 | Endcap bracket for EC2 (flush) endcap w/ battery holder | |
| 5 | 101642-9 | Endcap, EC1 (ramped) Stainless Steel, 630 |
| 104304-9 | Endcap, EC2 (flush) Stainless Steel, 630 | |
| 104612-1 | Endcap, EC2 (flush) Aluminum, 628 | |
|
6 | Fillerplate, Subassembly, S&R, Less Dogging, LD, 10 series, 36″ | |
| Fillerplate, Subassembly, S&R, Hex Dogging, HD, 10 series, 36″ | ||
| Fillerplate, Subassembly, S&R, Cylinder Dogging,CD, 10 series, 36″ | ||
| 7 | 100450 | Hex Key (for Hex Dogging) |
| 8 | 100783 | Cylinder Nut (for Cylinder Dogging) |
| 9 | 102216-2 | Hex Dogging Assembly |
| 102216 | Cylinder Dogging Assembly | |
| 10 | 103285-X | Strike Kit, ANSI (includes hardware) |
| 103294-X | Strike Kit, ANSI, flat lip (includes hardware) | |
| 103286-X | Strike Kit, Double door, short open back (includes hardware) | |
| 103289-X | Strike Kit, Double door, long open back (includes hardware) | |
| 11 | 103203-X | Front plate |
| 12 | 103320-1 | Mortise lock, standard |
| 103303-2 | Mortise lock, EE | |
| 13 | 103273 | Latchbolt block |
Hardware Table for BASIC device mounting.
Additional hardware is provided per the device configuration

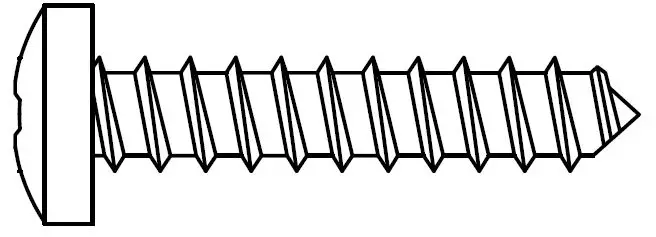

| Fastener Part No | Drill Bit | |

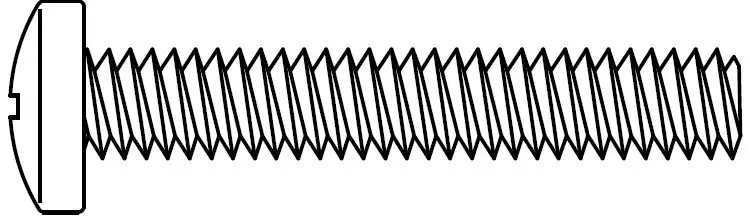

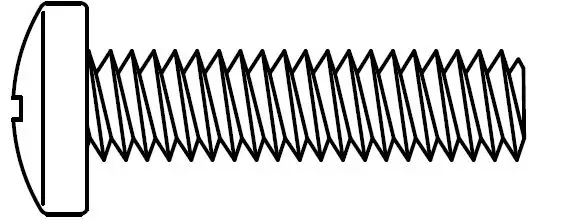

 | P/N: 100980 1/4-20 x 1″ PPH | #7 or 13/64″ |
| P/N: 100954 1/4-20 x 1-1/2″ PPH | #7 or 13/64″ |
 | P/N: 101621-5 1/4-20 x 1/4″ PPHMS | #7 or 13/64″ |
 | P/N: 101632-2 10-32 x 5/16″ PFHUMS (multiple finishes included) | ———- |
 | P/N: 100162-106 6-32 x 3/8″ PFHUMS (multiple finishes included) | ———- |

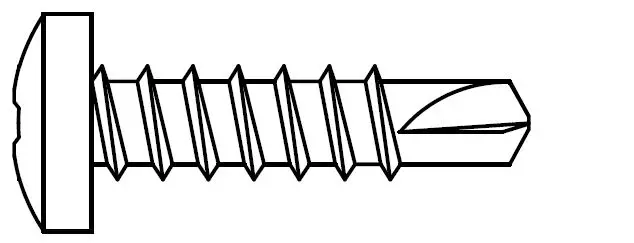

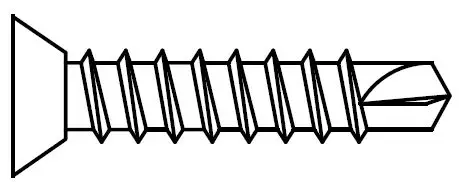

 | P/N: 103276-63 #14 x 1″ PPH self-drilling | 1/8 pilot hole recommended for self-drilling screws |
 | P/N: PP-5183-110 #14 x 1-1/4″ PPH wood screw | 1/8 pilot hole recommended for wood screws |
| P/N: PP-5067-25 #14 Lockwasher | |
 | P/N: 100156-108 #8-32 x 1/2 “ | ———- |
| P/N: PP-5802-118 12-24 x 1/2″ | ———- |
 | P/N: 103253-52 #12 x 1″ self-drilling | ———- |
Tools Required:
- Safety Glasses pencil
- Power Drill hammer
- Tape Measure pliers
- Level 1/4- 20 Tap
Phillips & small flat Screw Drivers
Combination Square
Center Punch
Saw for cutting device if necessary (chopsaw preferred)

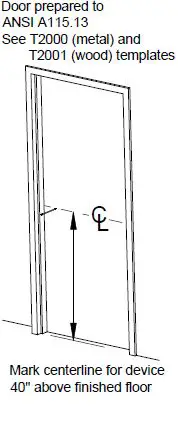

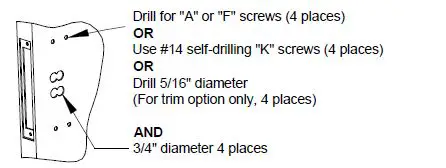

STEP 1: DOOR PREP (Note: LHR installation shown)

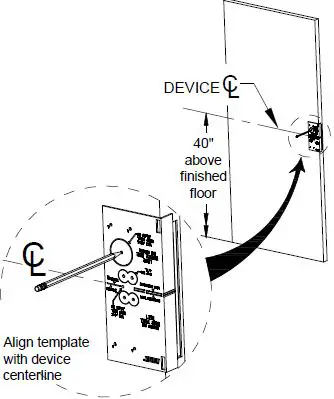

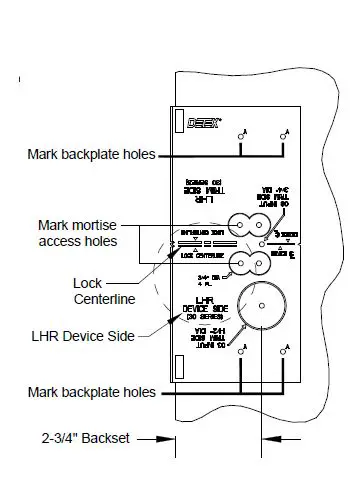

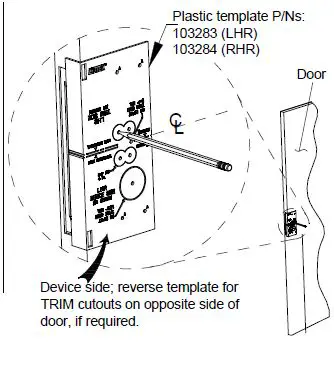

Use plastic template to mark and drill mortise lock and backplate holes
NOTES:
- File sharp corners to complete slots where needed.
- See Trim instructions where applicable for drilling trim holes.
- See electrical instructions for wiring electrical devices.

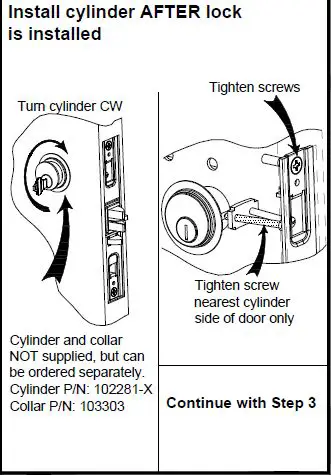

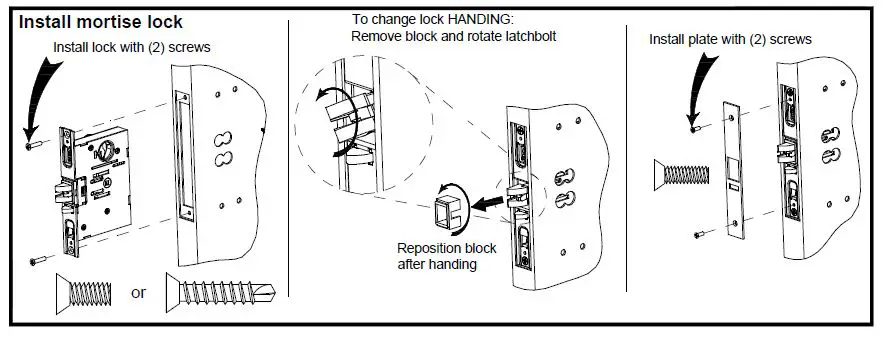

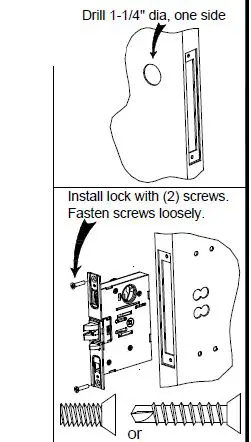

INSTALL MORTISE LOCK

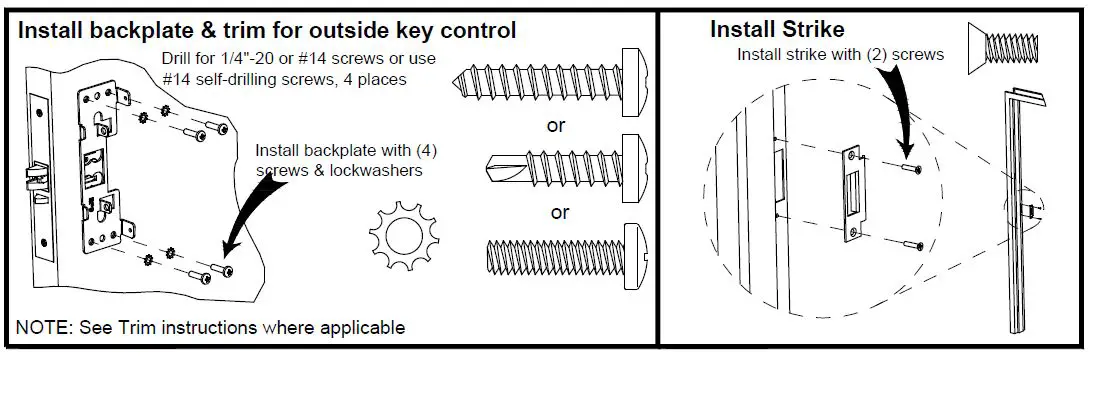

INSTALL BACKPLATE

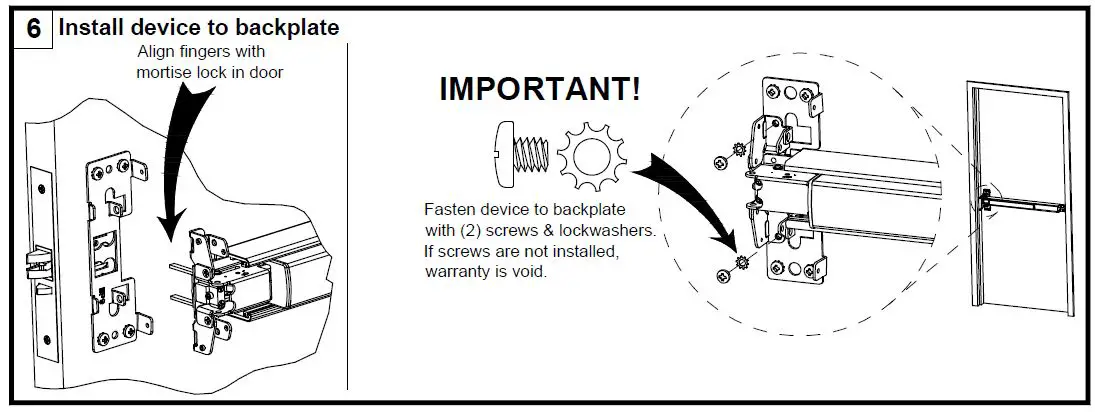

INSTALL DEVICE

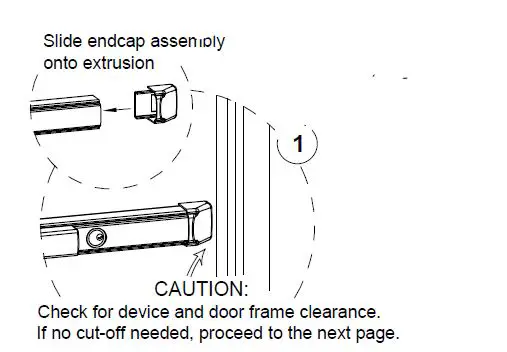

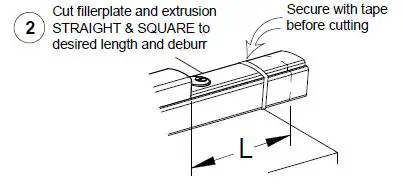

Minimum Filler plate Length Type Length (L) LD 2-1/2″ HD/CD 3″ For aluminum Advantix finish cutdown applications: After cutting, the baseplate extrusion can be reversed to place the cut end inside the head cover. To do so, loosen the setscrew inside the aluminum baseplate extrusion and slide extrusion out, reverse, & slide back in. Tighten setscrew.

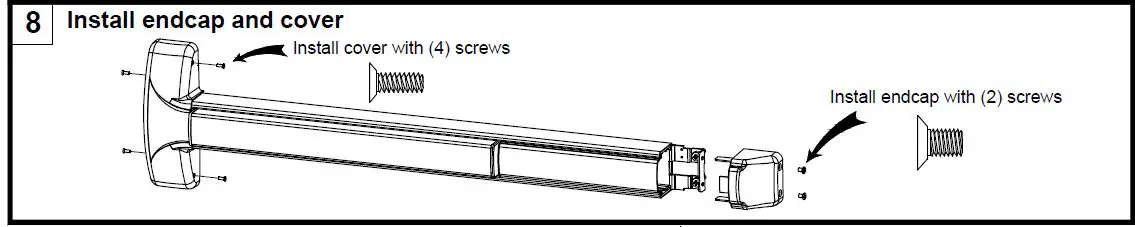

INSTALL DEVICE
