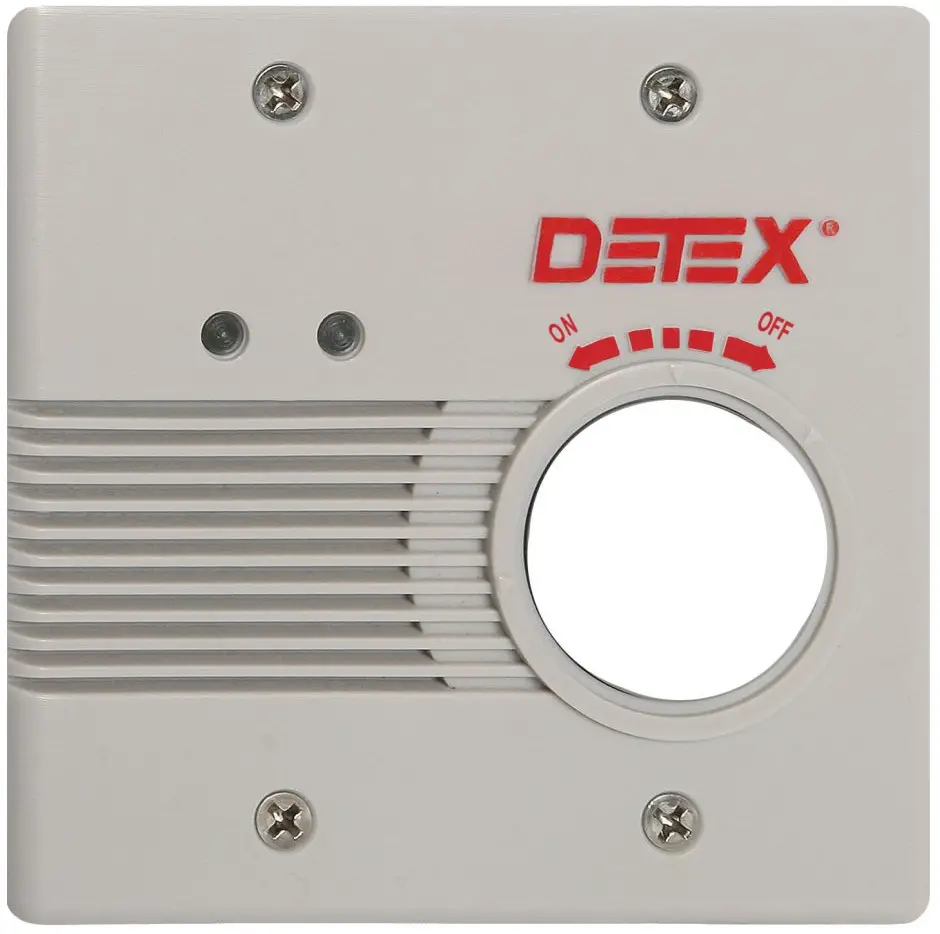

DETEX CS900 Remote Alarm Instruction Manual
Induction
AC Adapter P/N (CS2900 Only): 103985-1: Install wires to terminal block. Striped Wire is (+).
CS900 / CS2900 Terminal Block Table | |
| Functions | Description |
| Ext 9V DC(+)Striped wire | DC Power Supply not supplied with CS900 products) |
| Ext 9V DC (—) | |
| Loop Monitor | To Open Loop security device |
| Loop Return | |
Normally open contact.
Closed contacts sound alarm.
Recommended Wire Sizes | |
| Wire Gauge | Maximum Length of |
22 AWG | 50 Feet of twisted pair |
| 20 AWG | 250 Feet of twisted pair |
18 AWG | 1000 Feet of twisted pair |

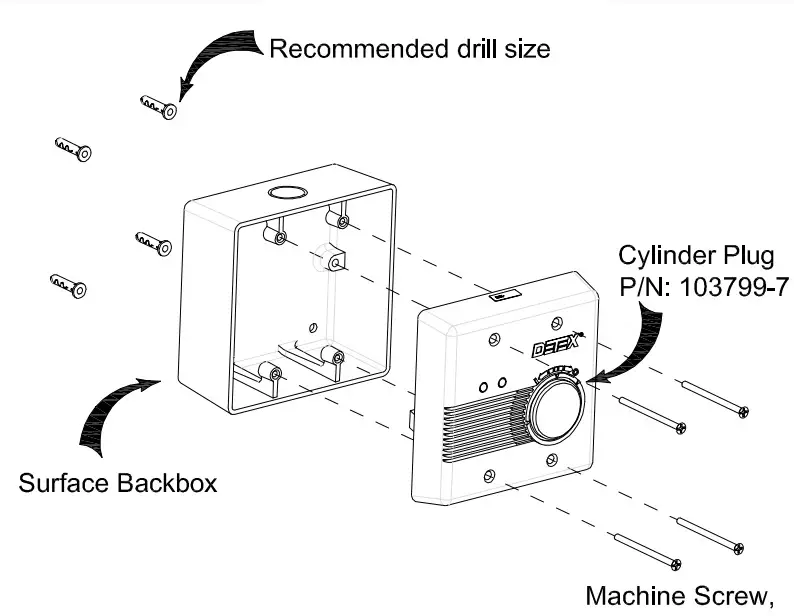

Surface Installation
- Press-In Anchors
P/N: 102642-3
Recommended drill size for anchors: 1/4″ diameter
NOTE: Also included are self-drilling screws - Surface Backbox
P/N(s): 102649-1 (Gray)
102649-2 (Black) - Cylinder Plug
P/N: 103799-7 - Machine Screw, #6-32 x 2-1/8″
P/N: 102866-17

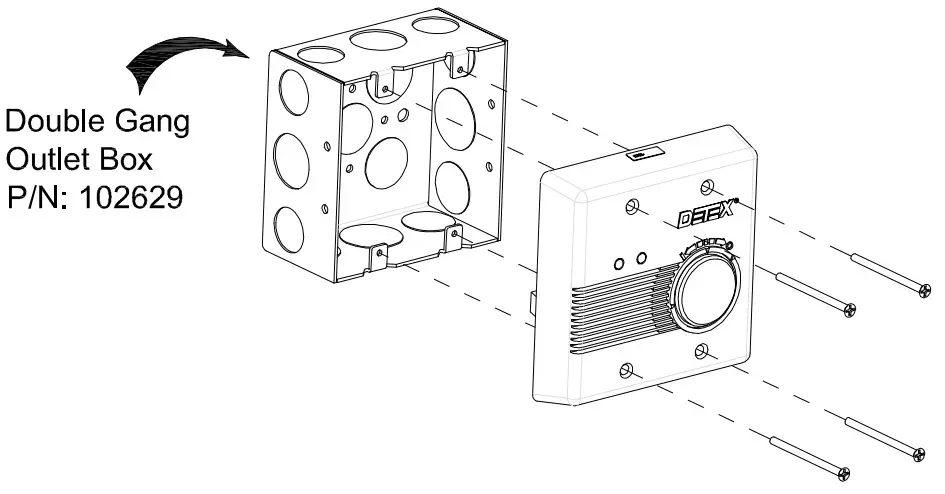

Flush Installation
Support
Detex Corporation, 302 Detex Drive,
New Braunfels, Texas
78130-3045 (830)629-2900
1-800-729-3839
Fax (830)620-6711
E-MAIL: [email protected]
