Oplight W
Design Jasper Morrison, 2021
INSTRUCTION FOR CORRECT INSTALLATION AND USE
WARNING!
The safety of this fitting can only be guaranteed if these instructions are observed, during both installation and use. Please retain these instructions safety.
REMARKS:
- When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
- The appliance may in no way be modified or tampered with. Any modification may compromise safety and making the appliance itself dangerous.
FLOS declines all responsibility for products that are modified. - This appliance must be connected to an efficient grounding system in order to work safely and correctly.
- The device carries no risk of photobiological emissions.
- The light source cannot be replaced by the customer. Contact FLOS for information.
- The device’s light intensity can be adjusted using commercially available dimmers (see the list of compatible dimmers included inside the package).
- The symbol
shown on the device indicates that the product must be disposed of in a different manner than with the urban waste.
shown on the device indicates that the product must be disposed of in a different manner than with the urban waste.TECHNICAL DATA

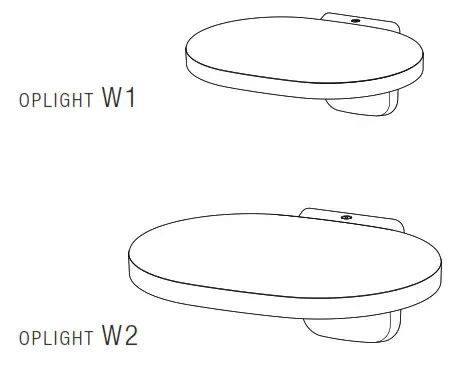

W1 16W LED.
W2: 25W LED.
CLEANING INSTRUCTIONS
- Use only a soft cloth to clean the appliance, dampened with water and soap or mild cleanser if needed for resistant dirt.
- Warning: do not use alcohol or other solvents.
Pic.3a/3b

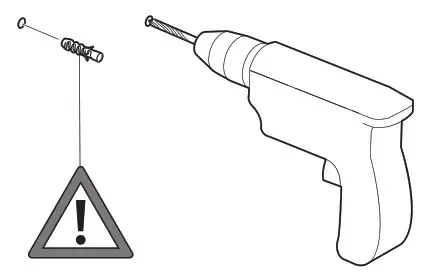

NOTE: Select and employ screw anchors which are suited to the surface where the appliance is to be installed.
| VERSION | Assembly Sequence |
| W1 EUR | Fig.1 – 2a – 3a – 4a – 5. |
| W1 USA | Fig.1 – 2a – 3c – 4a – 5. |
| W2 EUR | Fig.1 – 2b – 3b – 4b – 5. |
| W2 USA | Fig.1 – 2b – 3d – 4b – 5. |

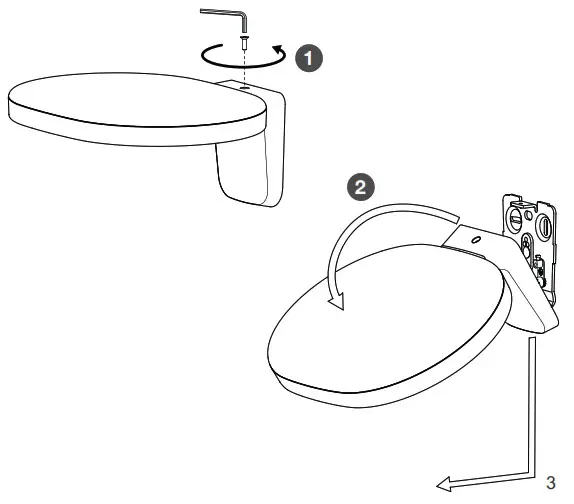

Fig. 1
EUR-USA

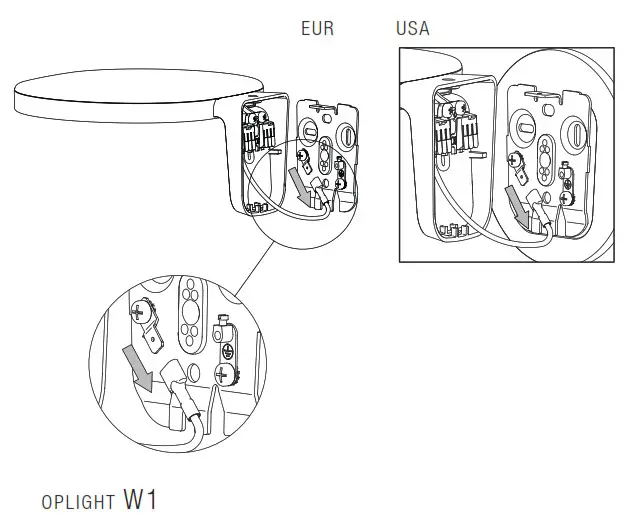

Fig. 2a
EUR-USA

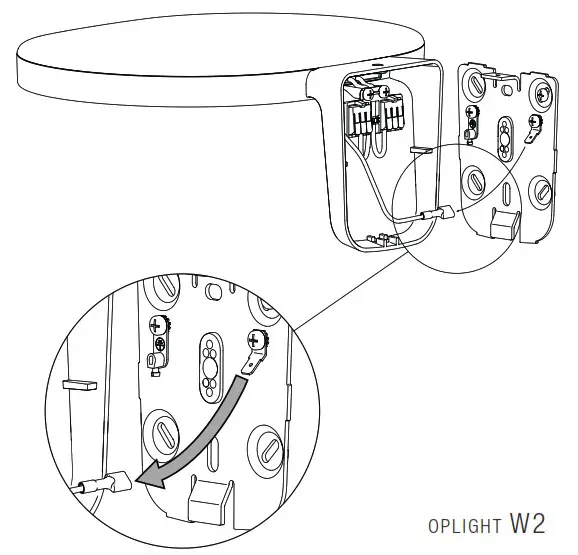

Fig. 2b
EUR-USA

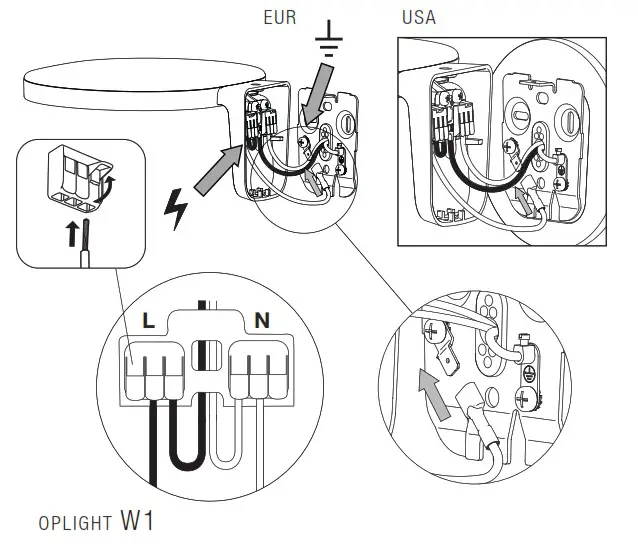

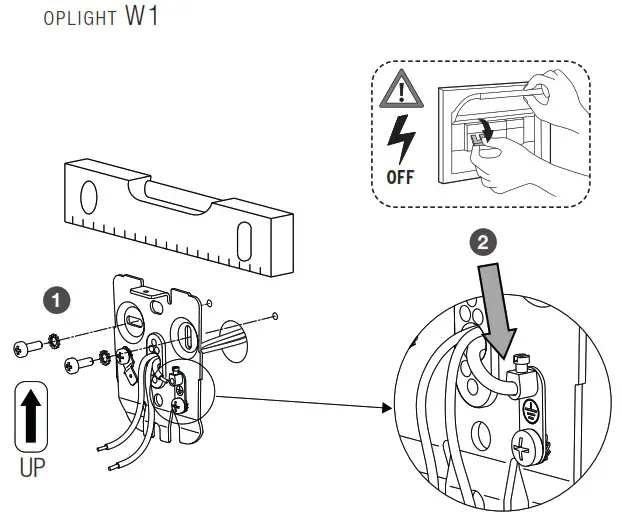

Fig. 3a
EUR

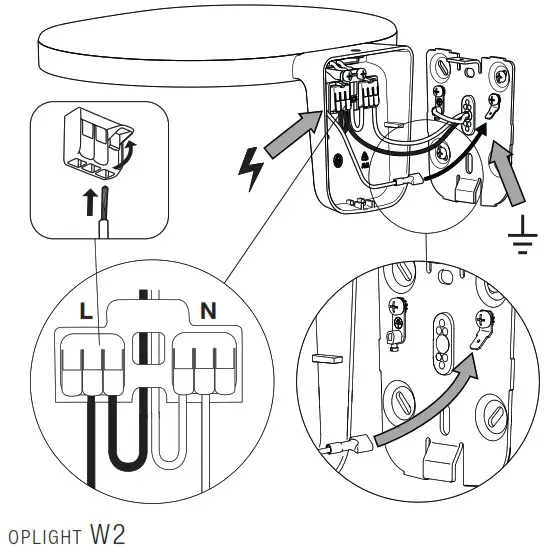

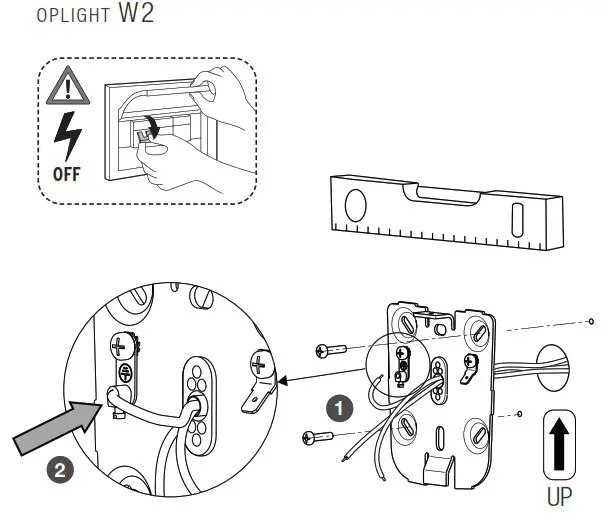

Fig. 3b
EUR

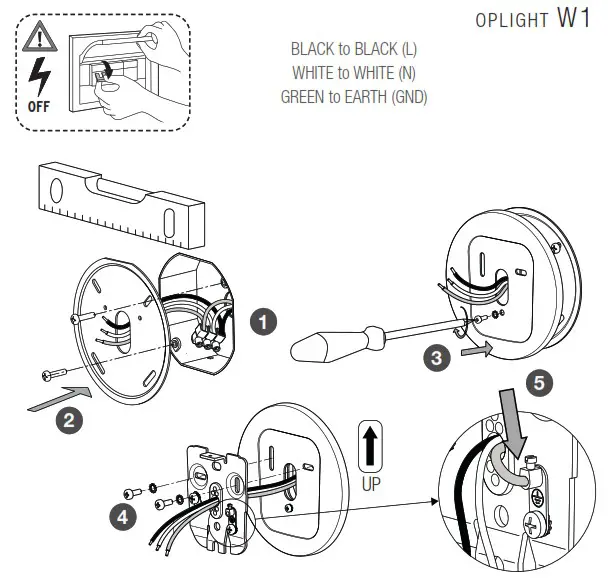

Fig. 3c
USA

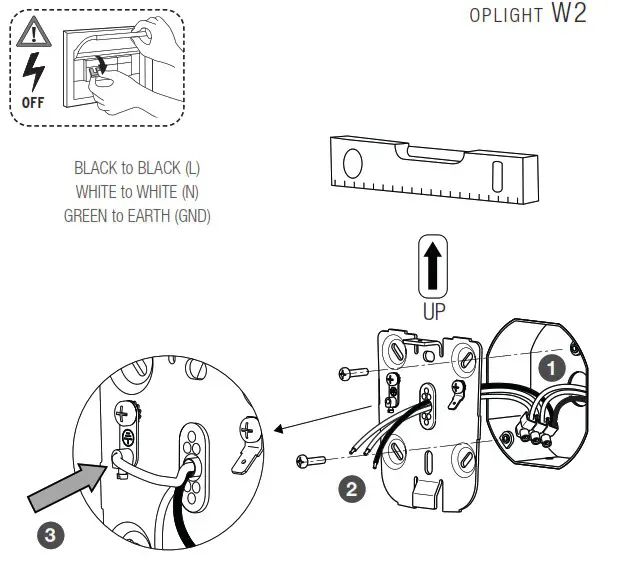

Fig. 3d
USA

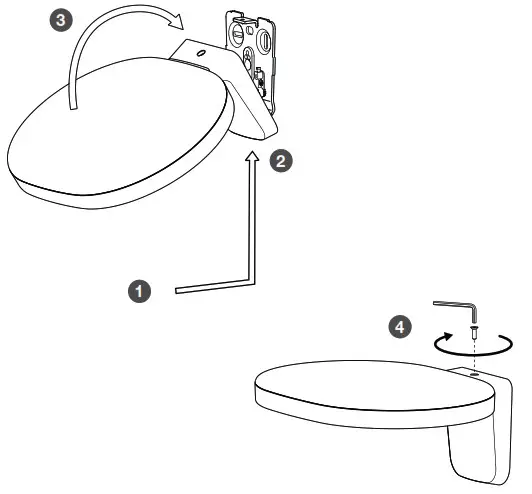

Fig. 4a
EUR-USA
Fig. 4b
EUR-USA
Fig. 5
EUR-USA
Elenco dei varialuce compatibili con OPLIGHT W1/W2 EUR/USA
List of dimmers compatible with OPLIGHT W1/W2 EUR/USA

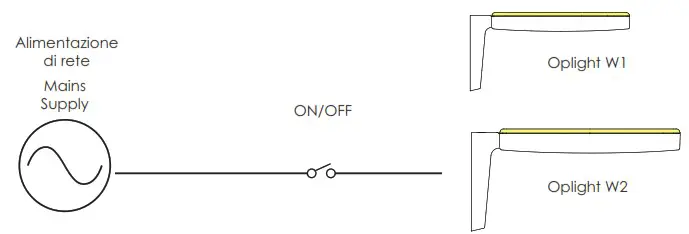

Oplight W can be turned ON and OFF by an wall switch.

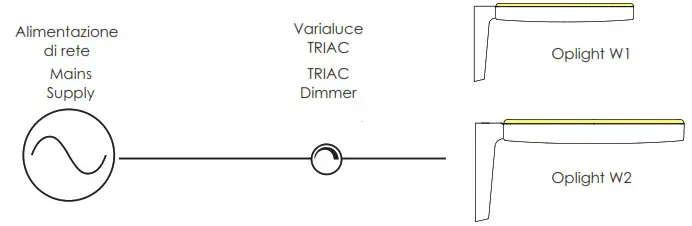

It is possible to adjust the light intensity of this product with some TRIAC dimmers availble in the market. FLOS recommends the following dimmers:
| Installazione Oplight W1 EUR 230V | Installazione Oplight W2 EUR 230V | Installazione Oplight W1-W2 USA 120V |
| Tecnel FLO7636M Niko 310-02800 Bodo Ehmann T39.07 Finder Type 15.81 Relco RT34DMA | Tecnel FLO7636M Niko 310-02800 Bodo Ehmann T39.07 Finder Type 15.81 Feller 40300.RC.FMI.61 Jung 225 NVD | Lutron DVELV300P-WH Lutron DVCL-153P-WH Leviton Decora DSL06-1LZ |
Use the trimmer to calibrate the minimum light level.
In an effort to support our Customers in choosing a suitable dimmer to use to adjust the light flow of our Oplight W, we have checked its peration with some of the dimmers available on the market. The checks were performed with the power supply “controlled” (stabilised oltage, sinusoidal waveform, etc.); use of the Oplight W device in real operating conditions could be subject to specific variables relating to the environmental ambient conditions in the specific installation ( power supply conditions, interference in the mains network, interference caused by connection of other devices to the mains network). The real operating conditions could be different to those encountered during the tests depending on any changes made by manufacturers to the specific dimmers and also depending on the tolerances of the electronic components used on the card inserted in the Oplight W device.
