Almendra
S6
Design Patricia Urquiola, 2022
INSTRUCTION FOR CORRECT INSTALLATION AND USE
WARNING!
The safety of this fitting can only be guaranteed if these instructions are observed, during both installation and use. Please retain these instructions safety.
REMARKS:
- When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
- The appliance may in no way be modified or tampered with. Any modification may compromise safety and making the appliance itself dangerous. FLOS declines all responsibility for products that are modified.
- This appliance must be connected to an efficient grounding system in order to work safely and correctly.
- The device carries no risk of photobiological emissions.
- The light source cannot be replaced by the customer. Contact FLOS for information.
- Should the external trailing cable get damaged, it must be replaced by FLOS or by qualified personnel in order to avoid any danger.
- The symbol shown on the device indicates that the product must be disposed of in a different manner than with the urban waste.
TECHNICAL DATA
EUR: 90W LED.
USA: 95W LED.
CLEANING INSTRUCTIONS
- Use only a soft cloth to clean the appliance, dampened with water and soap or mild cleanser if needed for resistant dirt.
- Warning: do not use alcohol or other solvents.
| VERSION | Assembly Sequence |

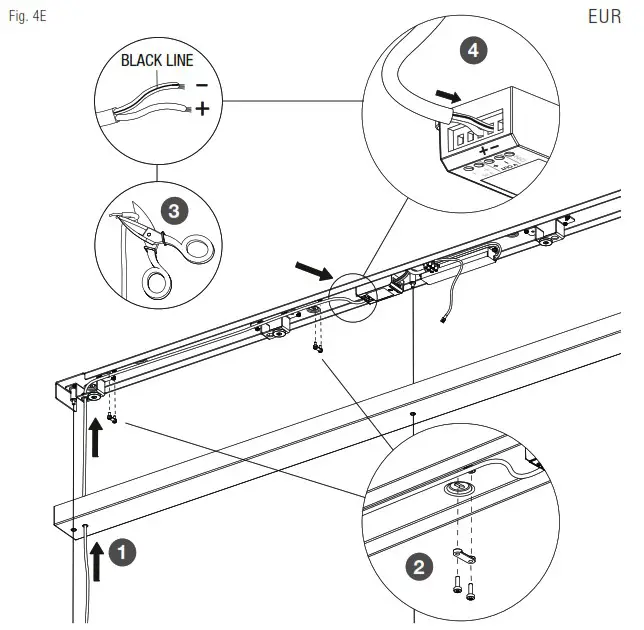

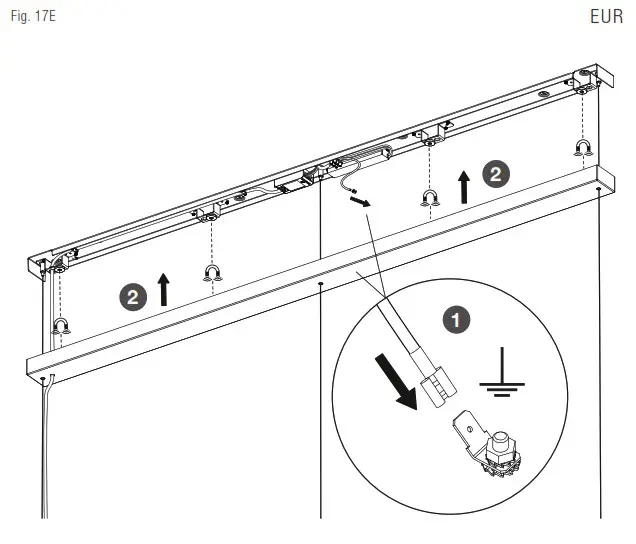

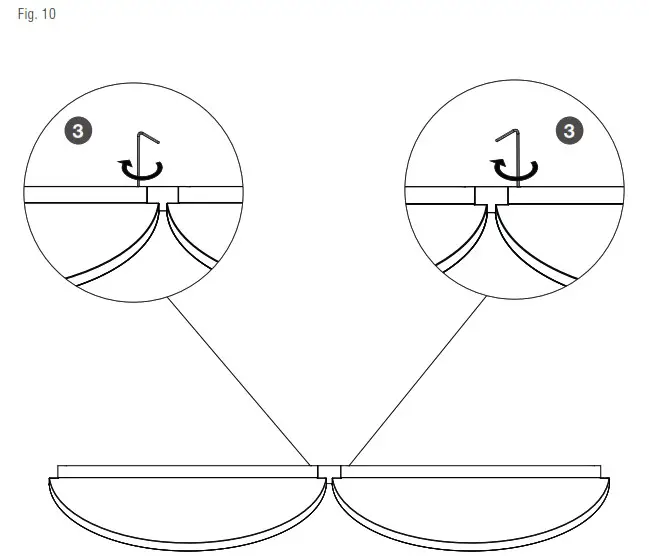

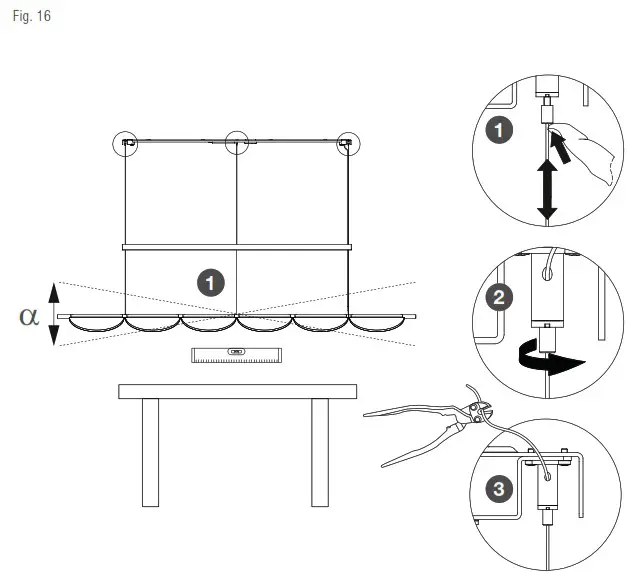

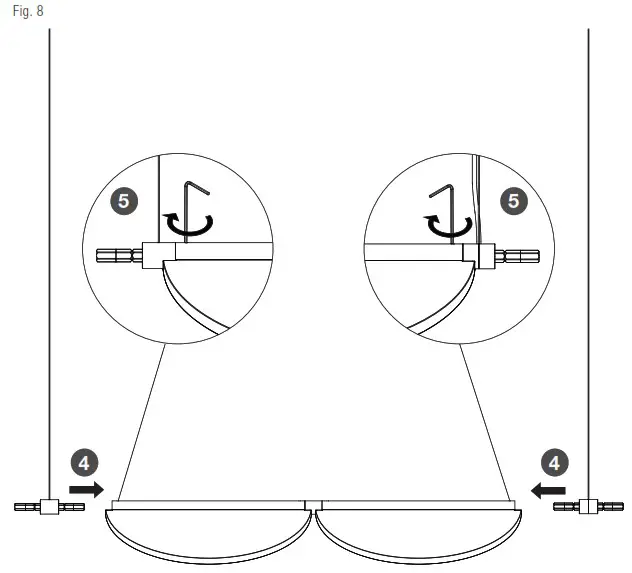

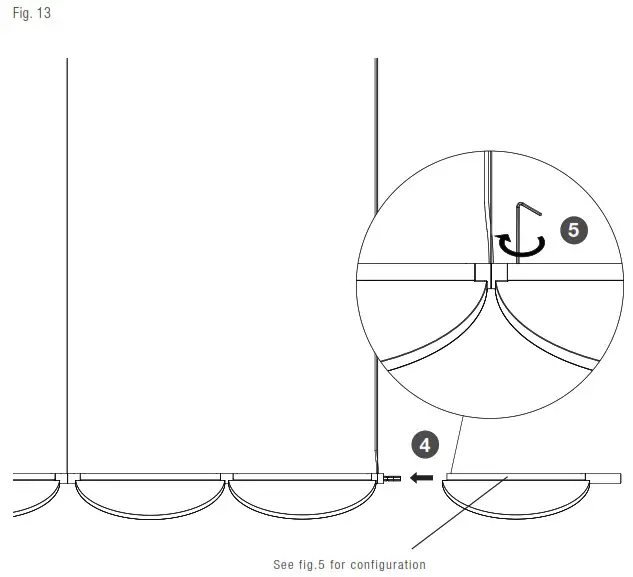

| EUR | Fig.1E – 2E – 3 – 4E – 5 – 6 -7 – 8 – 9 – 10 – 11 – 12 -13 – 14 – 15 – 16 – 17E. |

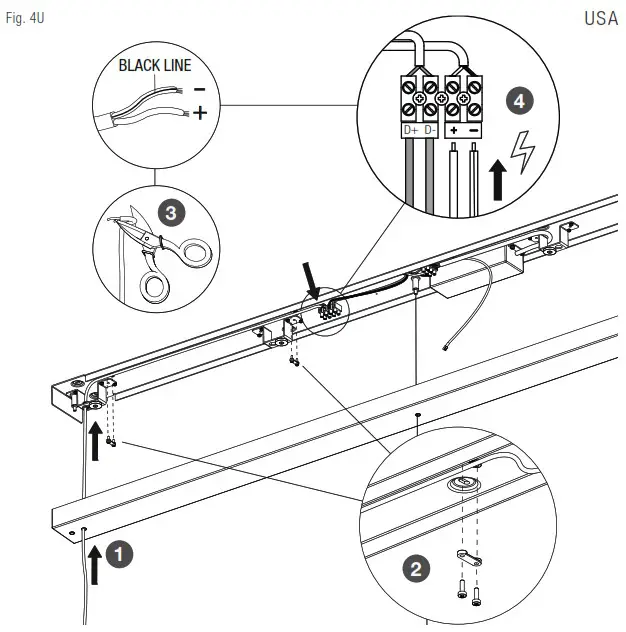

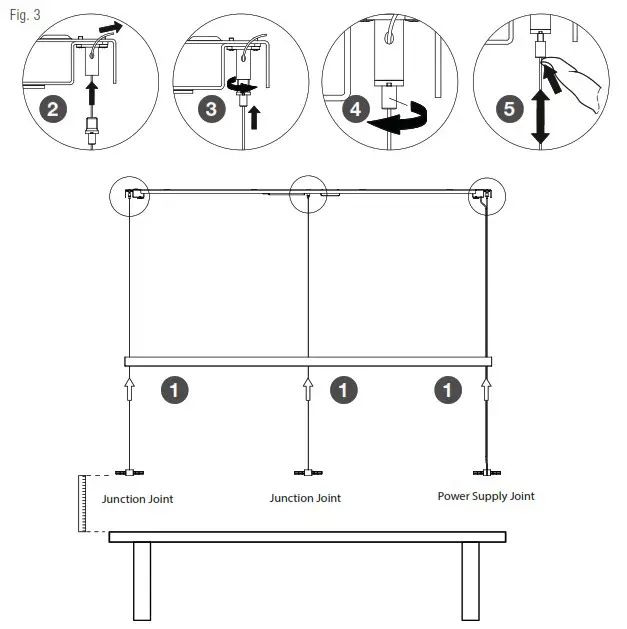

| USA | Fig.1U – 3 – 4U – 5 – 6 -7 – 8 – 9 – 10 – 11 – 12 -13 -14 – 15 – 16 – 17U. |
Pic.1E-1U NOTE: Select and employ screw anchors which are suited to the surface where the appliance is to be installed.

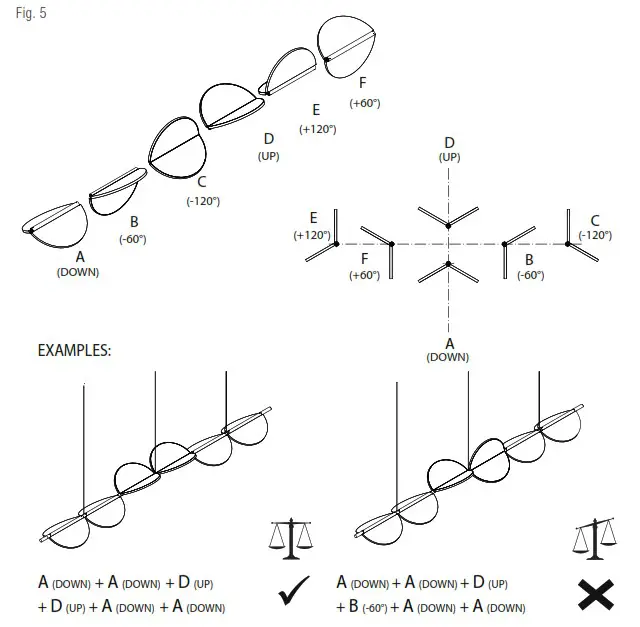

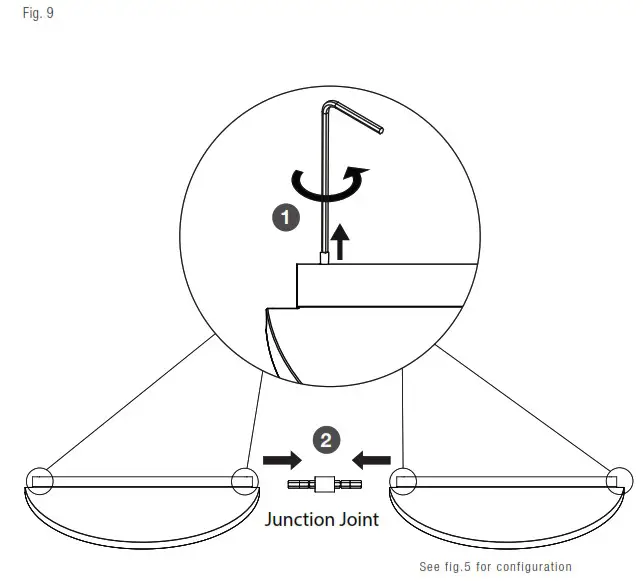

Pic.5 You can create your preferred product configuration by combining the diffuser bodies in the positions indicated (A-B-C-D-E-F) provided that the symmetry of the appliance is respected so it remains balanced once assembled (please see the configuration examples in the diagram).
