265
Design by PAOLO RIZZATTO
INSTRUCTION FOR CORRECT INSTALLATION AND USE
WARNING!
The safety of this fitting can only be guaranteed if these instructions are observed, during both installation and use. Please retain these instructions safely.
REMARKS:
– When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
– The appliance may in no way be modified or tampered with, any modification may compromise safety causing the appliance to become dangerous. FLOS declines all responsibility for products that are modified.
– Should the external trailing cable get damaged,it must be replaced by FLOS or by qualified personnel in order to avoid any danger.
– The symbol
marked on the appliance indicates the need to use self-protected bulbs.
– The symbol
marked on the appliance indicates the minimum distance at which the subject to be illuminated should be placed.
– The symbol
shown on the device indicates that the product must be thrown out in a different manner than with the urban trashes.
TECHNICAL DATA
– EUR: Incandescent lamp MAX 75W attachment E27 type HSGSA.
– USA: Incandescent lamp MAX 60W attachment E26 type A.
CLEANING INSTRUCTIONS
– Use only a soft cloth to clean the appliance, dampened with water and soap or mild cleanser if needed for resistant dirt.
– Warning: do not use alcohol or other solvents.

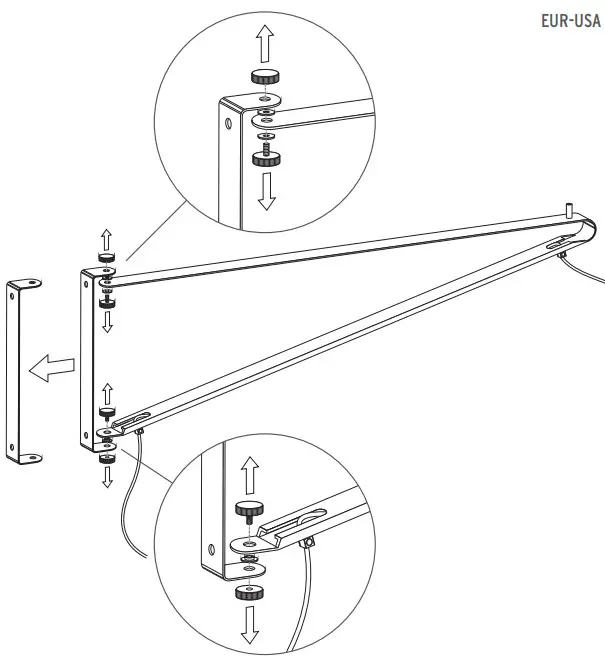

Fig.1 | Fig.2E
|

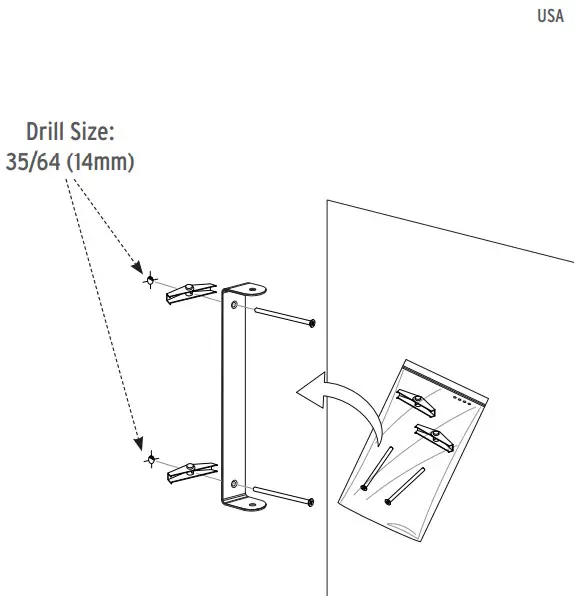

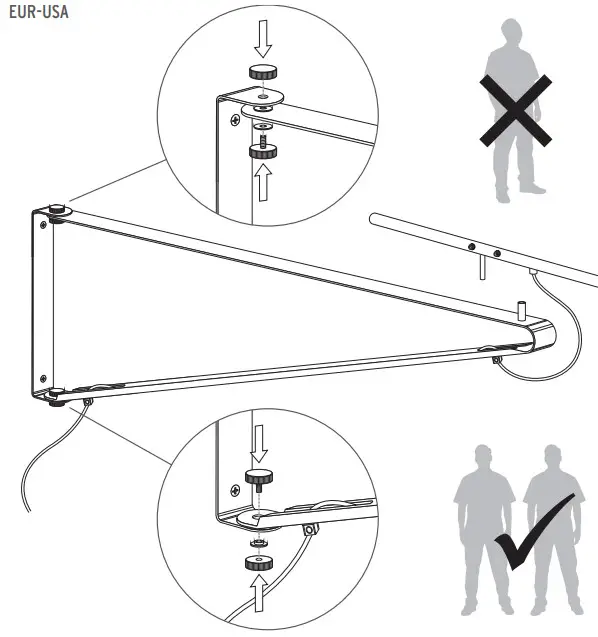

Fig.2U | Fig.3 |

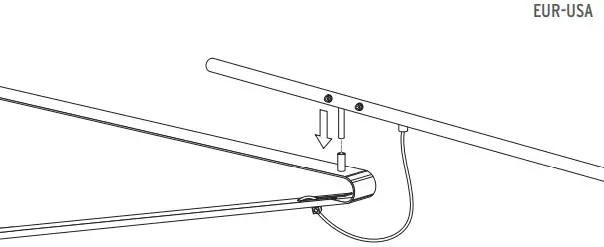

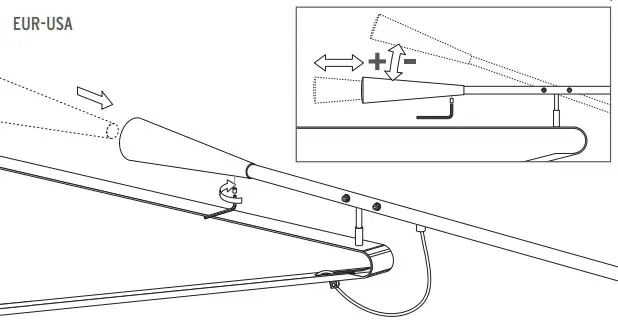

Fig.4 | Fig.5 |

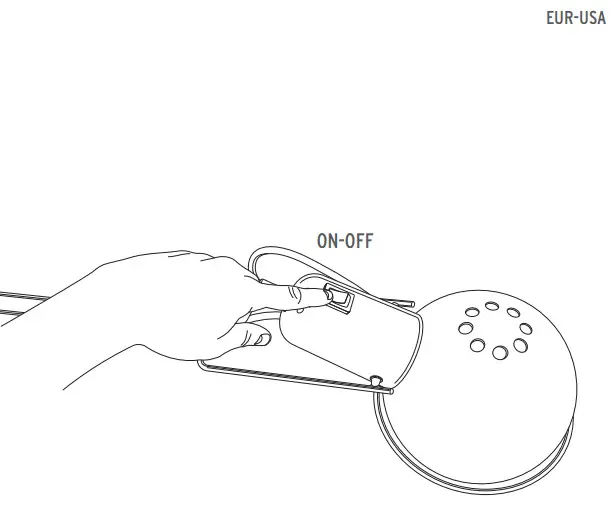

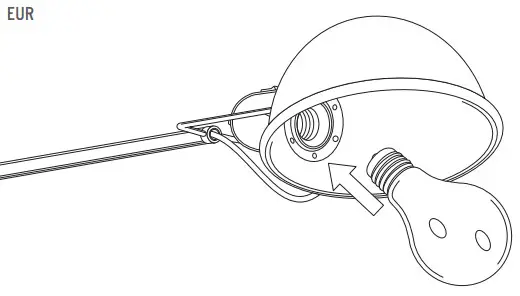

Fig. 6E | Fig. 7 |

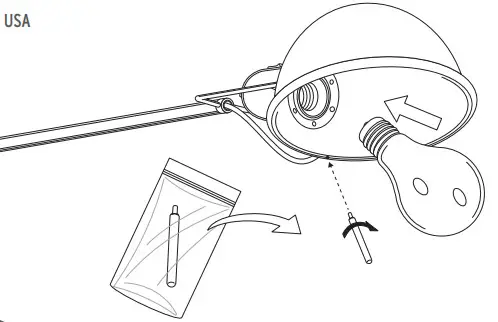

Fig. 6U |

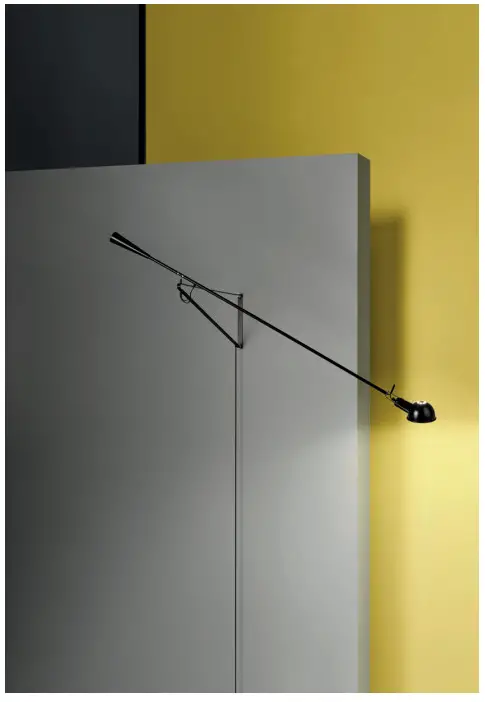

Pic.2 NOTE: Select and employ screw anchors which are suited to the surface where the appliance is to be installed.
 |  |
