IKEA LEDSJÖ LED Wall Lamp Instruction Manual

LEDSJO

IKEA LEDSJÖ LED Wall Lamp

warning icon IMPORTANT!
Always shut off power to the circuit before starting installation work. In some countries electrical installation work may only be carried out by a authorised electrical contractor. Contact your local electricity authority for advice.



INSTALLATION IN BATHROOMS

The installation shall be carried out by an authorised electrical contractor. The luminaire must be permanently installed in the electric system and placed in the correct zone.

The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.

Different materials require different types of fittings. Always choose screws and plugs that are specially suited to the material.

FIG 1 Tools needed

FIG 2 Tools needed

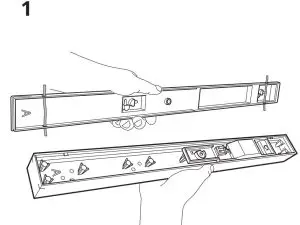

FIG 3 Setup

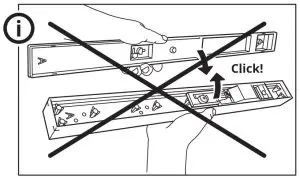

FIG 4 Setup

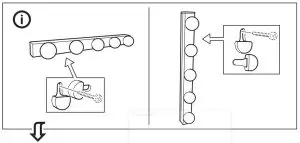

FIG 5 Setup

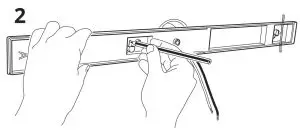

FIG 6 Setup

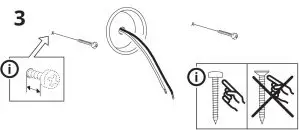

FIG 7 Setup

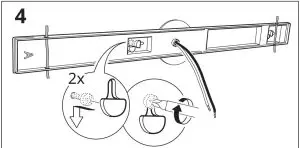

FIG 8 Setup

warning icon A covering cap or lid must be used if the back of the lamp does not completely cover the wall box.

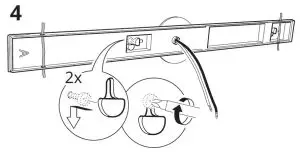

FIG 9 Setup

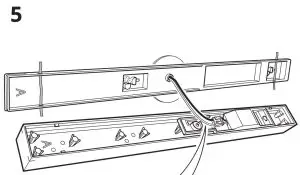

FIG 10 Setup

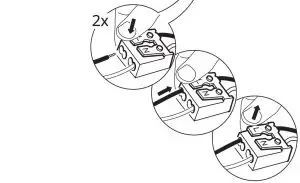

FIG 11 Setup

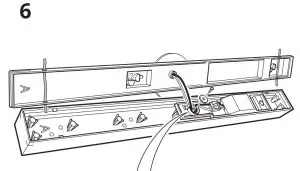

FIG 12 Setup

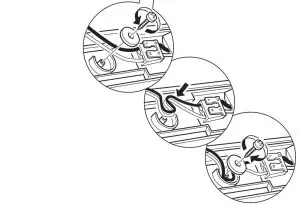

FIG 13 Setup



FIG 14 Setup

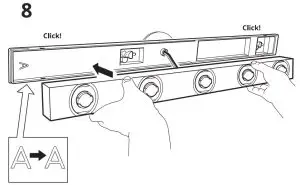

FIG 15 Setup



FIG 15 Setup

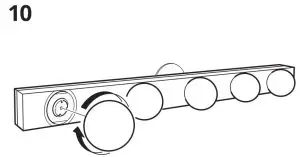

FIG 16 Setup
