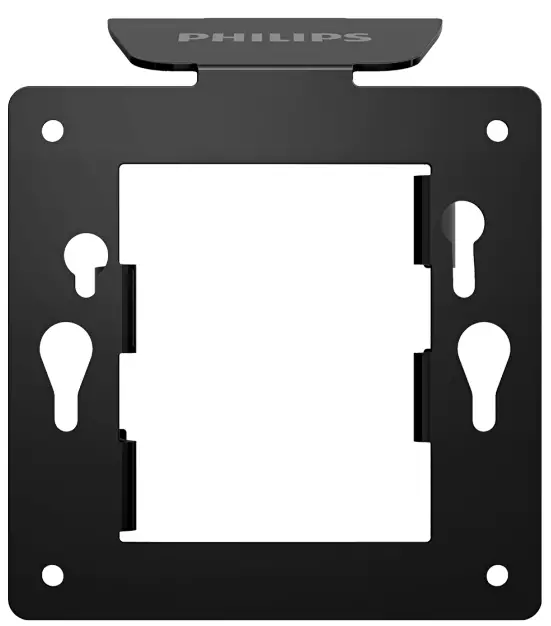

BS6B3234B VESA Client Mounting Bracket
User Guide
BS6B3234B VESA Client Mounting Bracket

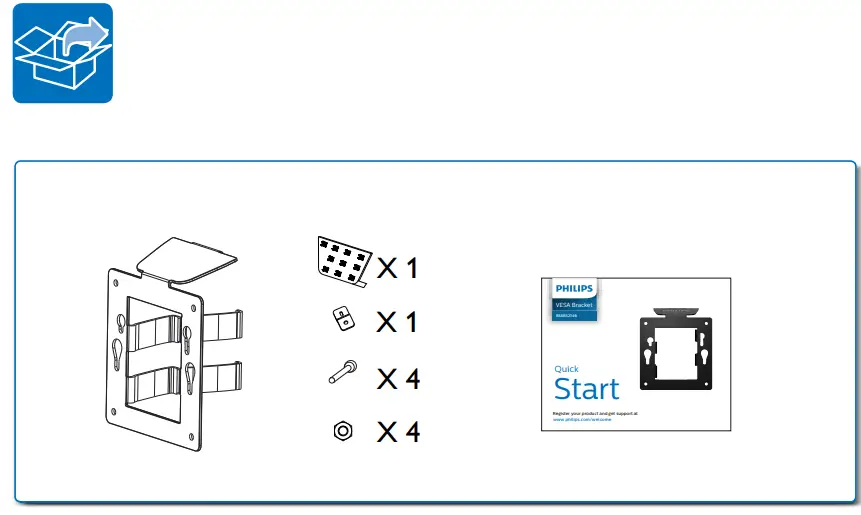

Quick Start
Register your product and get support at www.philips.com/welcome
Compatible with Philips Height Adjustment Base of 328P6/328B6/BDM3275/BDM3270/BDM3470/349P7
Option:

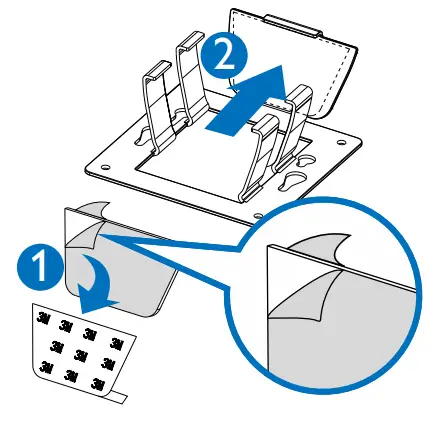

Paste the adhesive foam strip to the VESA bracket under the top side and attach it to the monitor stand. This is an optional step. If you don’t want to stick the VESA bracket to the monitor stand, go to the next step.

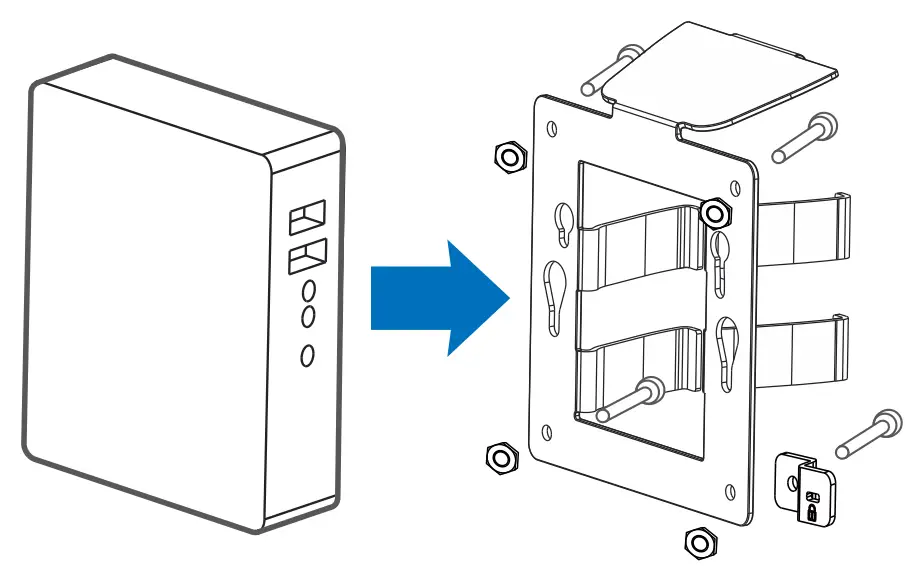

Align holes of VESA compliant device with those of bracket and screw up with the screws provided.

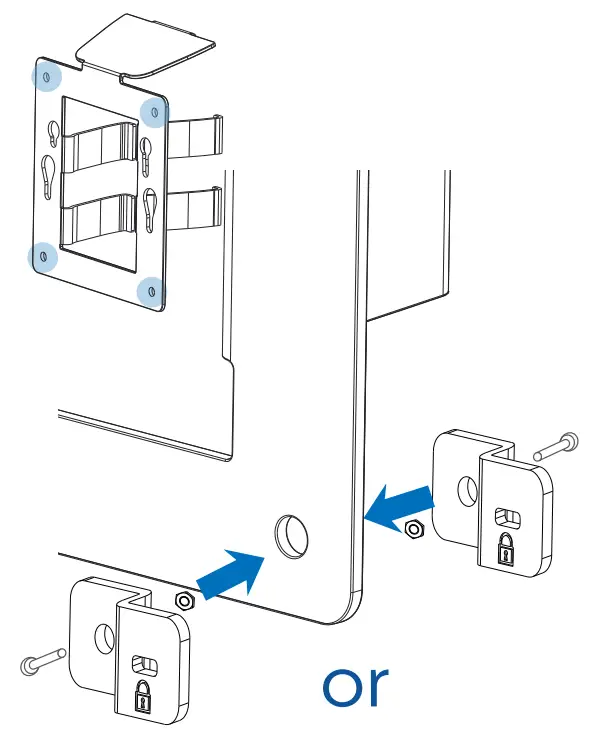

Kensington Lock.
Slide down the bracket with the mounted device into the Philips Height Adjustment base.
Version: M6BS6B3234Q1T
