Thin Client VESA Mounting Bracket

ACCSMNT

*actual product may vary from photos

For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/ACCSMNT.

Manual Revision: 07/28/2017

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Instruction manual

Warning statements

Make sure that you assemble this product according to the instructions.
Never operate this product if parts are missing or damaged.
When you assemble this product, do not over-tighten the screws.
At regular intervals (at least every three months), check to make sure that the product components are secure.
This product is intended for indoor use only and should not be used outdoors.
Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage. This product can support the following weight: 11 lb. (5 kg).
Make sure that the surface that you are attaching this product to can safely support the combined weight of the equipment and all of the hardware and components.

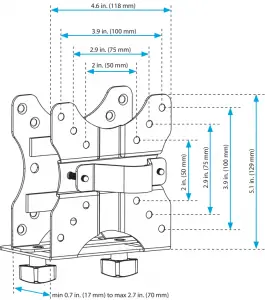

Product dimensions

Product diagram

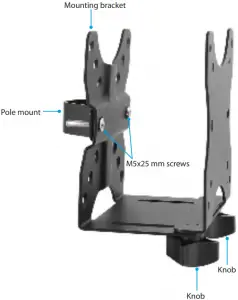

Pole mount setup pictured

Package contents

1 2

Mounting bracket Adjustable strap
Qty: One Qty: One

3 4

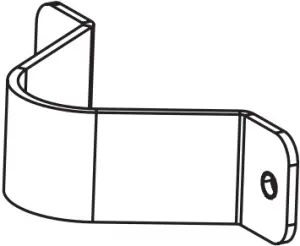

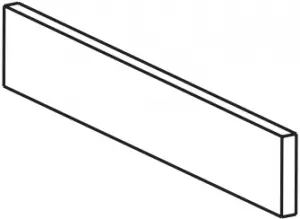

Pole mount Pads
Qty: One Qty: Six

5 6

M5x25 mm screws M4x12 mm screws
Qty: Two Qty: Eight

7 8

M4 nuts Screws
Qty: Four Qty: Four
9 10

Washers Instruction manual
Qty: Four Qty: One

Introduction

The ACCSMNT is compatible with 75×75 and 100×100 VESA monitor mount configurations.

You can mount the ACCSMNT to a pole, to a VESA monitor mount, or under a desk or table. Select the mounting option that works best for your setup and follow the corresponding instructions to assemble and mount the ACCSMNT.

The ACCSMNT can be mounted to a pole that is approximately 30 mm in diameter.

Mount to a pole

Requirements

Phillips type screwdriver

Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ACCSMNT.

Assemble the ACCSMNT

Caution! Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage. This product can support the following weight: 11 lb. (5 kg).
Caution! Make sure that the surface that you are attaching this product to can safely support the combined weight of the equipment and all of the hardware and components.

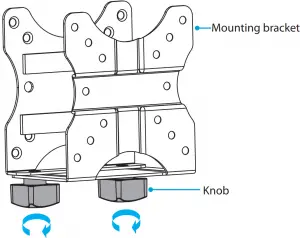

1. Turn the knobs on the mounting bracket clockwise and remove them from the mounting bracket. (figure 1)

figure 1

2. Pull the two halves of the mounting bracket apart. (figure 2)
figure 2

3. Place the pole mount around the back of a pole.
4. Place the half of the mounting bracket with the extended platform at the front of the pole, and align the holes on the pole mount with the two holes on the raised part of the mounting bracket.
5. Use a screwdriver to insert the two M5x25 mm screws through the mounting bracket and into the pole mount, and then tighten the screws. (figure 3)
figure 3

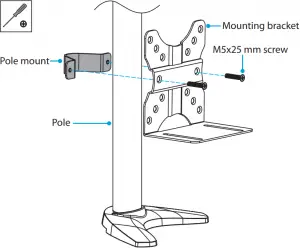

Assemble the ACCSMNT figure 3 — Pole mount, Mounting bracket, screw

6. Remove the adhesive backing from one of the pads and stick it to the raised platform on the half of the mounting bracket with the extended platform. If necessary, attach additional pads in the same location to accommodate the size or shape of the equipment that you’re mounting. (figure 4)

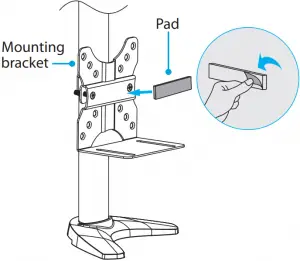

figure 4

Assemble the ACCSMNT figure 4 — Mounting bracket, Pad

7. Stick two of the pads to the other half of the mounting bracket. If necessary, attach additional pads to accommodate the size or shape of the equipment that you’re mounting. (figure 5)
figure 5

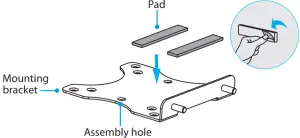

Assemble the ACCSMNT figure 5 — Pad, Mounting bracket, Assembly hole

8. Insert the mounting bracket into the slots on the other half of the mounting bracket. (figure 6)
figure 6

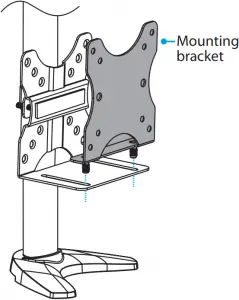

Assemble the ACCSMNT figure 6 — Mounting bracket

9. Thread the knobs onto the bolts on the bottom of the mounting bracket. Do not tighten the knobs at this point in the assembly. (figure 7)
figure 7

Assemble the ACCSMNT figure 7 — Mounting bracket, Knob

10. Carefully slide your equipment onto the mounting bracket. (figure 8)

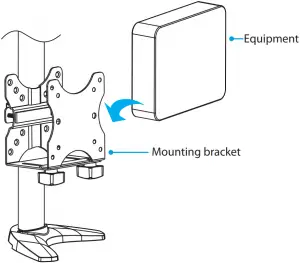

figure 8

Assemble the ACCSMNT figure 8 — Equipment, Mounting bracket

11. Slide the mounting bracket until it’s positioned tight against the equipment.
12. Tighten the knobs on the bottom of the mounting bracket.

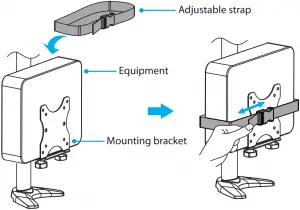

13. Place the adjustable strap around the mounting bracket, and adjust the strap so that it fits tightly around the equipment. (figure 9)
figure 9

Assemble the ACCSMNT figure 9 — Adjustable strap, Equipment, Mounting bracket

Mount under a desk or table

Requirements

Phillips type screwdriver

Note: The provided mounting hardware may not be appropriate for the mounting surface that you’re using. If that is the case, you will need to use different mounting hardware than what was provided.

Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ACCSMNT.

Assemble the ACCSMNT

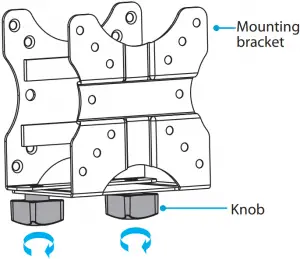

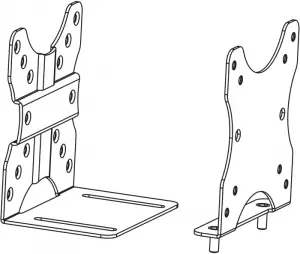

2. Pull the two halves of the mounting bracket apart. (figure 11)
figure 11

3. Remove the adhesive backing from one of the pads and stick the pad to the raised platform on the half of the mounting bracket with the extended platform. If necessary, attach additional pads in the same location to accommodate the size or shape of the equipment that you’re mounting. (figure 12)

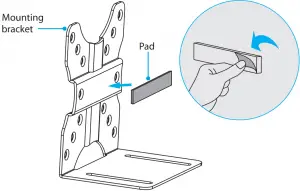

figure 12

Assemble the ACCSMNT figure 12 — Mounting bracket, Pad

4. Stick two of the pads to the other half of the mounting bracket. If necessary, attach additional pads to accommodate the size or shape of the equipment that you’re mounting. (figure 13)

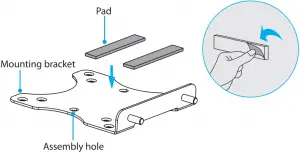

figure 13

Assemble the ACCSMNT figure 13 — Pad, Mounting bracket, Assembly hole

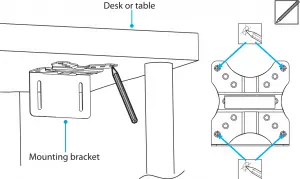

5. Use the four mounting holes in the half of the mounting bracket with the extended platform as a template and mark the place under the desk or table where you intend to mount the ACCSMNT. (figure 14)
figure 14

Assemble the ACCSMNT figure 14 — Mounting bracket, Desk or table

6. Position the adjustable strap behind the half of the mounting bracket with the extended platform and line up the holes on the mounting bracket with the marks that you made in the previous step.
7. Use a screwdriver to insert the screws through the mounting bracket and into the desk or table, and then tighten the screws. (figure 15)

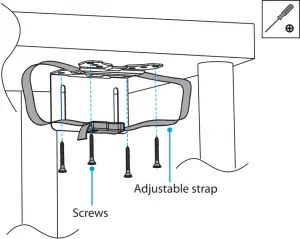

figure 15

Assemble the ACCSMNT figure 15 — Screws, Adjustable strap

8. Insert the mounting bracket into the slots on the other half of the mounting bracket. (figure 16)

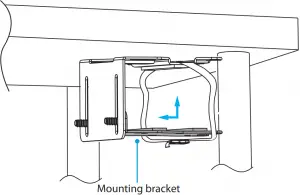

figure 16

Assemble the ACCSMNT figure 16 — Mounting bracket

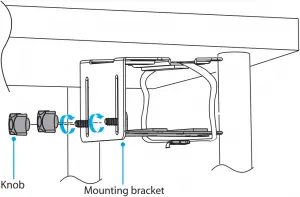

9. Thread the knobs onto the bolts on the bottom of the mounting bracket. Do not tighten the knobs at this point in the assembly. (figure 17)
figure 17

Assemble the ACCSMNT figure 17 — Mounting bracket, Knob

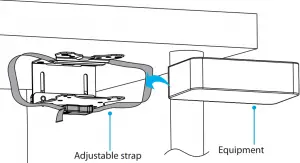

10. Carefully slide your equipment onto the mounting bracket. (figure 18)
figure 18

Assemble the ACCSMNT figure 18 — Adjustable strap, Equipment

11. Slide the mounting bracket until it’s positioned tight against the equipment.
12. Tighten the knobs on the mounting bracket.

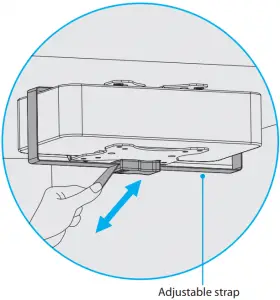

13. Adjust the adjustable strap so that it fits tightly around the mounted equipment. (figure 19)
figure 19

Assemble the ACCSMNT figure 19 — Adjustable strap

Mount to a VESA monitor mount

Requirements

Phillips type screwdriver
Wrench

Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ACCSMNT.

The ACCSMNT is compatible with 75×75 and 100×100 VESA monitor mount configurations.

Assemble the ACCSMNT

Caution! Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage. This product can support the following weight: 11 lb. (5 kg).
Caution! Make sure that the mounting surface that you are attaching this product to can safely support the combined weight of the equipment and all of the hardware and components.

1. Turn the knobs on the mounting bracket clockwise and remove them from the mounting bracket. (figure 20)
figure 20

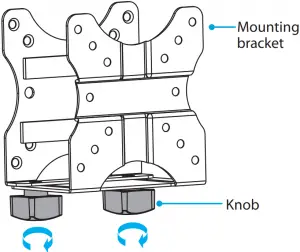

Assemble the ACCSMNT figure 20 — Mounting bracket, Knob

2. Pull the two halves of the mounting bracket apart. (figure 21)
figure 21

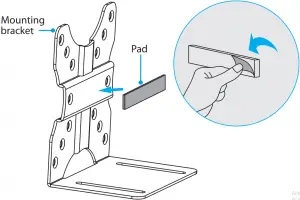

figure 22

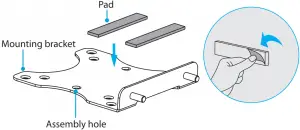

Assemble the ACCSMNT figure 23 — Mounting bracket, Pad, Assembly hole

5. Place the half of the mounting bracket with the shorter platform over the VESA monitor mount so that the holes on the bracket line up with the holes on the mount.
6. Insert the four M4x12 mm screws through the mounting bracket and the VESA monitor mount.
7. Slide the washers over the ends of the M4x12 mm screws.
8. Use a wrench and attach the M4 nuts onto the ends of the screws and tighten the nuts in place.
9. If necessary, use a screwdriver and/or wrench to tighten the screws. (figure 24)
figure 24

Assemble the ACCSMNT figure 24 — M4 nut, Washer, screw, Mounting bracket

10. Place the adjustable strap in the recessed area on the half of the mounting bracket with the extended platform, and line up the mounting holes on the mounting bracket with the mounting holes on the back of your monitor.
11. Insert the M4x12 mm screws through the mounting bracket and into the monitor.
12. Insert the bolts on the mounting bracket into the slots on the mounting bracket and monitor assembly.
13. Thread the knobs onto the bolts on the bottom of the mounting bracket. Do not tighten the knobs at this point in the assembly. (figure 25)
figure 25

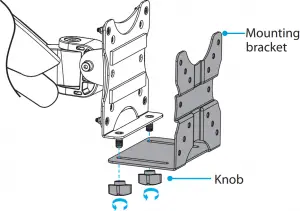

Assemble the ACCSMNT figure 25 — Mounting bracket, Knob

Note: The monitor bracket is pictured without the monitor attached for illustration purposes only.

14. Carefully slide your equipment onto the mounting bracket. (figure 26)

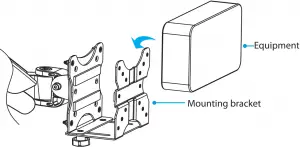

figure 26

Assemble the ACCSMNT figure 26 — Mounting bracket, Equipment

15. Adjust the knobs on the mounting bracket.
16. Place the adjustable strap around the equipment and the mounting bracket, and adjust the strap so that it fits tightly around the mounted equipment. (figure 27)
figure 27

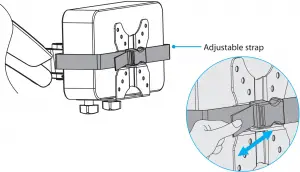

Assemble the ACCSMNT figure 27 — Adjustable strap
