004854 wall mount bracket
Instruction Manual
WALL MOUNT BRACKET
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions).
Care for the environment!
Recycle discarded products in accordance with local regulations. Jula reserves the right to make changes. For the latest version of operating instructions, see www.jula.com
 |  |  |
 |  |  |
SAFETY INSTRUCTIONS
Read the operating instructions carefully before use!
Please retain them for future reference.
WARNING!
- Any use with products heavier than the rated maximum load indicated may result in personal injury or material damage.
- Mount brackets must be attached as specified in the operating instructions. Improper installation may result in material damage and/or personal injury.
- Safety equipment and suitable tools must be used. This product should only be installed by qualified professionals.
- This product is designed to be installed on wood stud walls, solid concrete walls, or brick walls.
- Make sure that the wall can support the combined weight of the mount bracket and the equipment it is attached to.
- lighten the screws properly. Do not overtighten as this may lead to material damage.
- This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
- This product Is intended for indoor use only. Using this product outdoors could lead to personal injury and/or material damage.
IMPORTANT: - Ensure that you have received all parts according to the component checklist. Contact Jula’s customer service if any parts are missing or damaged.
- Check at least every three months that the bracket is correctly mounted.
TECHNICAL DATAMaximum load 25 kg Suitable for screen sizes 13″-Max. 27″ INSTALLATION

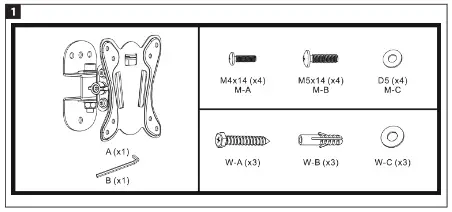

FIG. 1

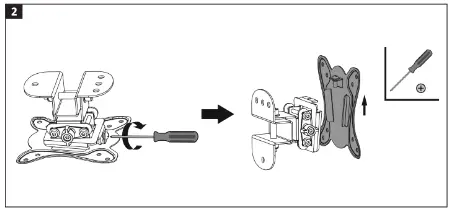

FIG. 2

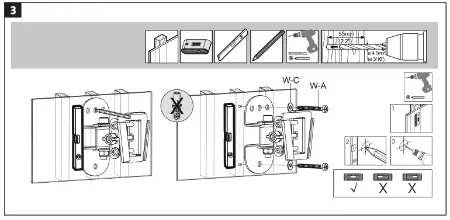

FIG. 3

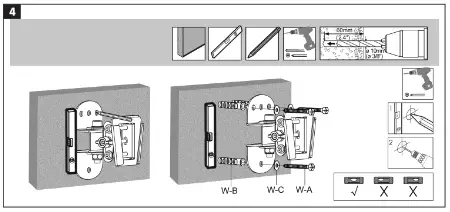

FIG. 4

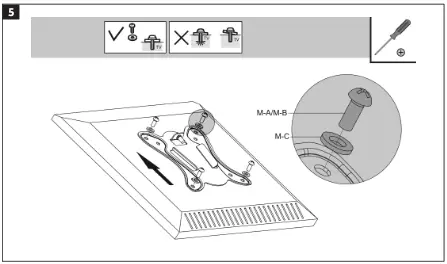

FIG. 5

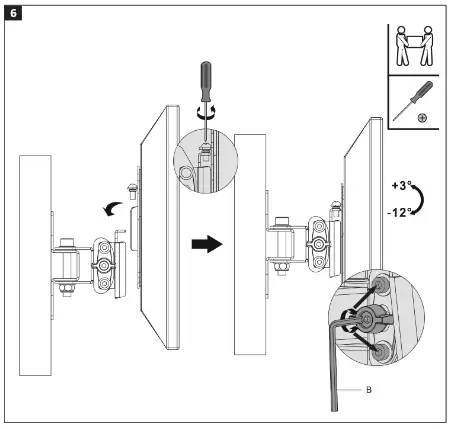

FIG. 6
LULA AB, BOX 363, SE-532 24 SKARA
2022-01-05
©Jula AB
