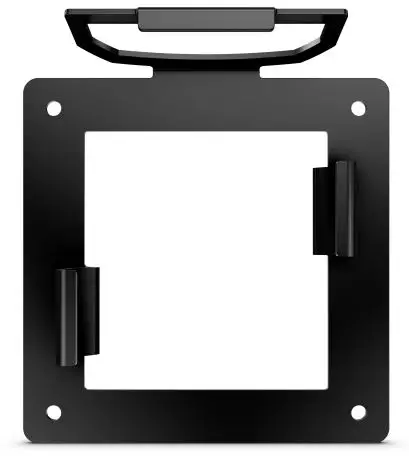

PHILIPS BS8B27B Client Mounting Bracket

PHILIPS-BS8B27B-lient-Mounting-Bracket-PRODUCT

Register your product and get support at www.philips.com/welcome

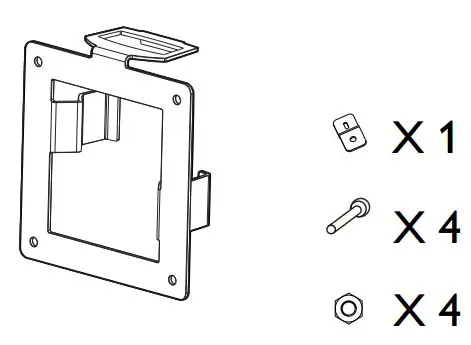

WHAT’S IN THE BOX

PHILIPS-BS8B27B-lient-Mounting-Bracket-FIG-1

INSTALLATION

  1. Align holes of VESA compliant device with those of bracket and screw up with the screws provided. PHILIPS-BS8B27B-lient-Mounting-Bracket-FIG-2
  2. Kensington Lock PHILIPS-BS8B27B-lient-Mounting-Bracket-FIG-2

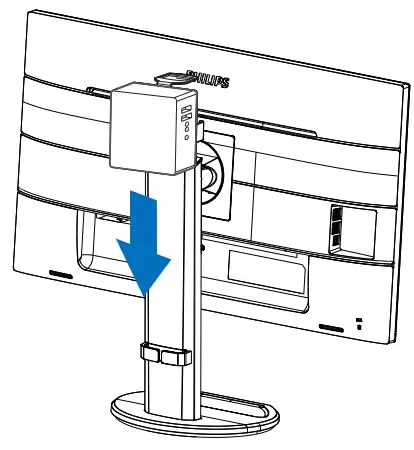

  3. Slide down the bracket with the mounted device into the Philips Height Adjustment base. PHILIPS-BS8B27B-lient-Mounting-Bracket-FIG-4
