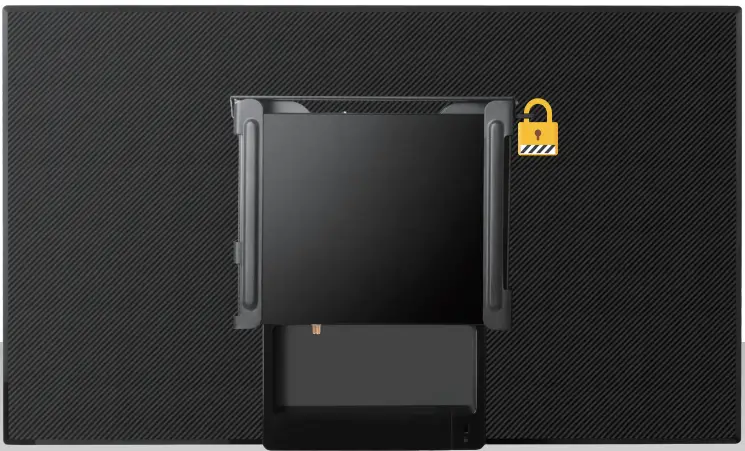

Giada JZ183 VESA Mount User Manual
SAFETY INSTRUCTIONS
WARNING: Before beginning, turn off the media player, disconnect the AC adapter from the electrical outlet and the media player, and remove any other external cables from the media player.
Note: The VESA Mount is compatible with the following players: Giada D67 / D68 / D610 / D611 / DM5 / DM6 / DM8 / F103D / F105D / F106D / F110D / i39B.
VESA MOUNTING MATERIALS
- Hanging Bracket

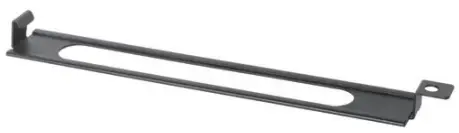

- Anti-theft Lock
- M4*L10MM Screws
| Parts | Quantity |
| Hanging Bracket | 1 |
| Anti-theft Lock | 1 |
| M4*L10MM Screws | 5 |

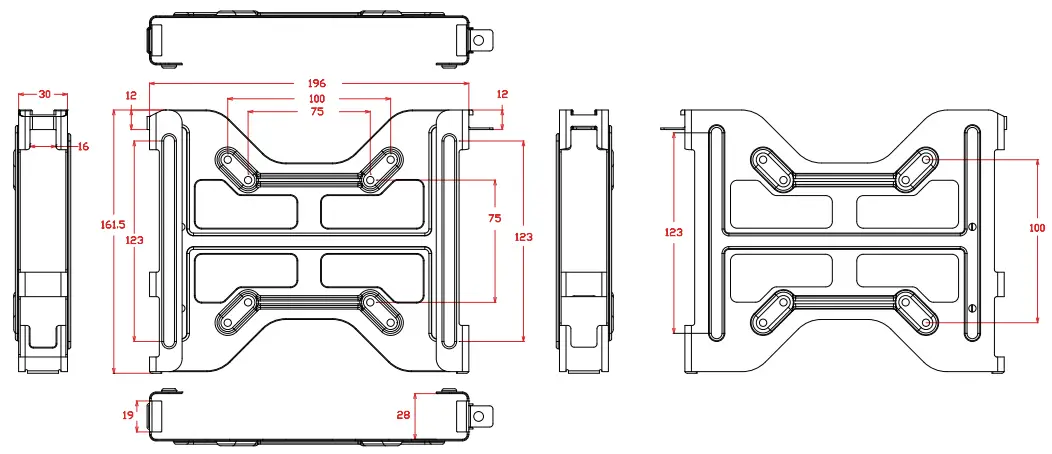

DIMENSIONS
INSTALLATION

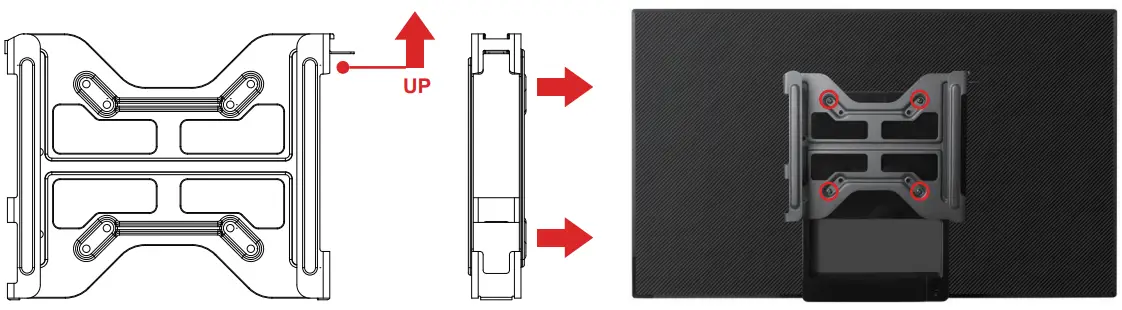

- Assemble the Hanging Bracket (in the direction shown in the following figure) to the rear of a compatible display with four M4*L10MM Screws.

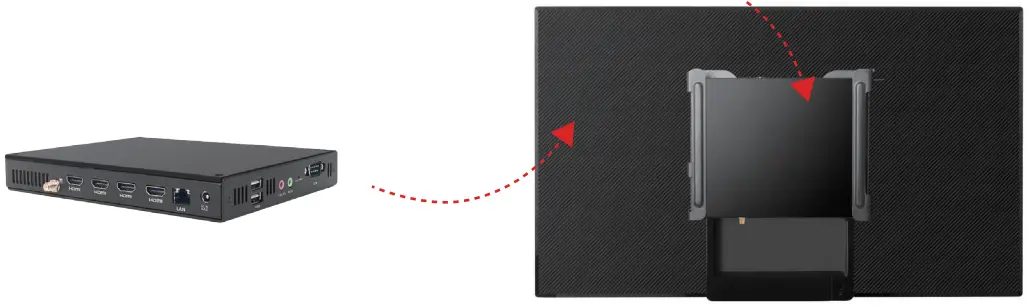

- Slide and insert the media player.

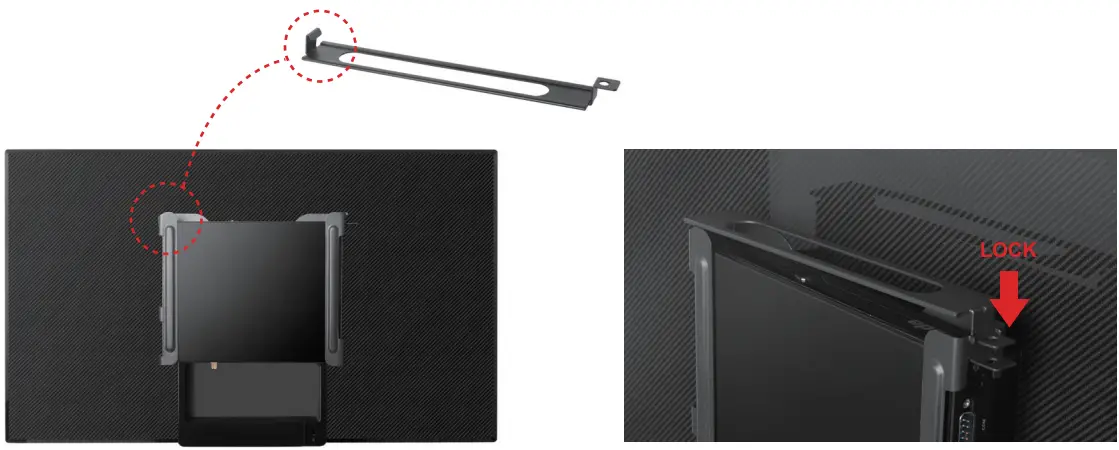

- Stuck to assemble the Anti-theft Lock.

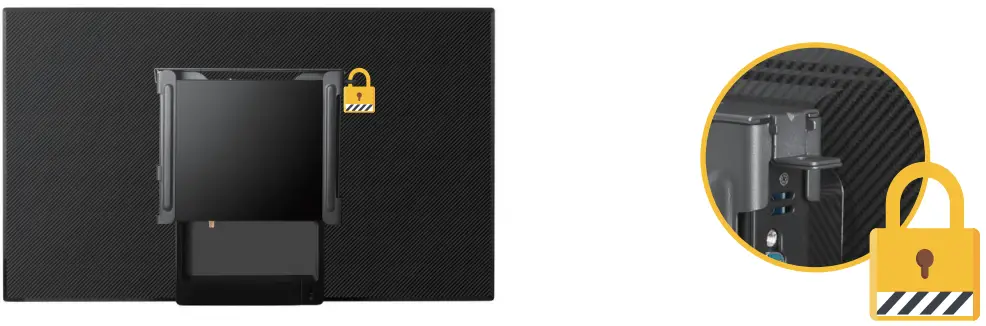

- Lock the media player with your own lock if needed.The installation is completed.
