Hanwha Techwin SBV-136B (IVORY) Mount Bracket

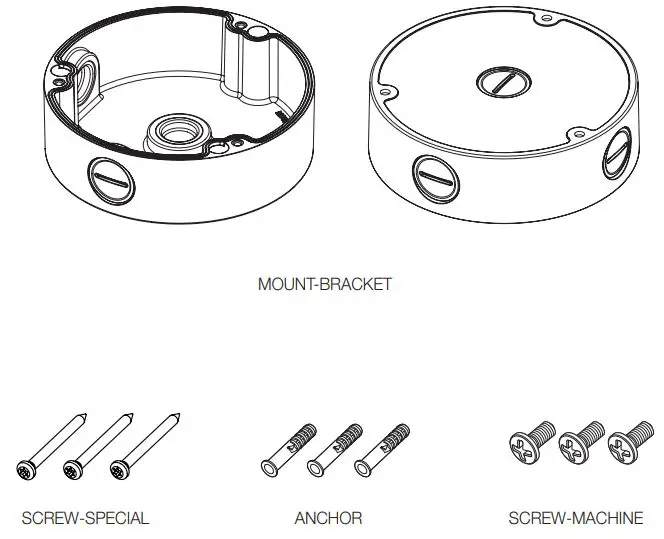

Package

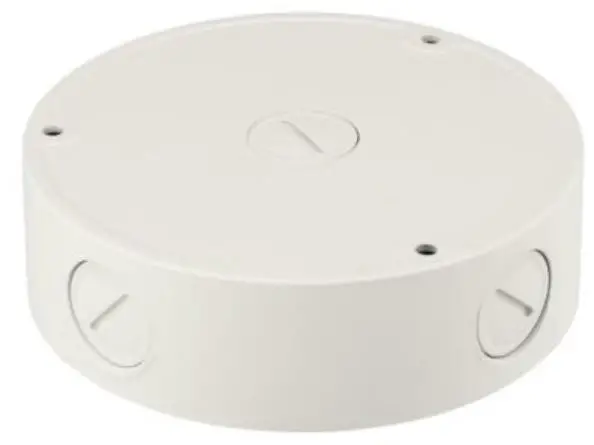

Product Overview
This product is an adaptor used to install our Vandal Dome Camera in the electric gang box or on the wall or ceiling.
Installation Precautions
Please make sure to install on an area which is strong enough to support more than 4 times of the total weight of this product and the camera. Depending on some installation conditions, this product can be connected to 0.75” PF which is a screw peak processed pipe.
Installation

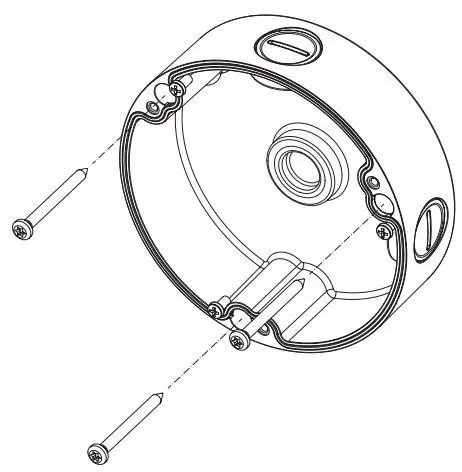

- Install the mount bracket on a desired position.

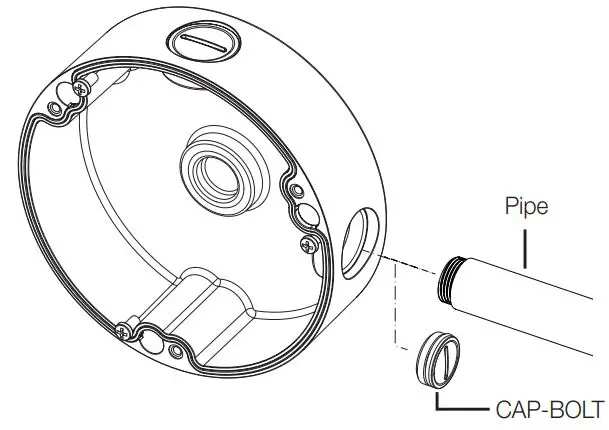

- Remove the cap-bolt in the selected direction before inserting the pipe.
- However, take into consideration the pipe insertion direction.

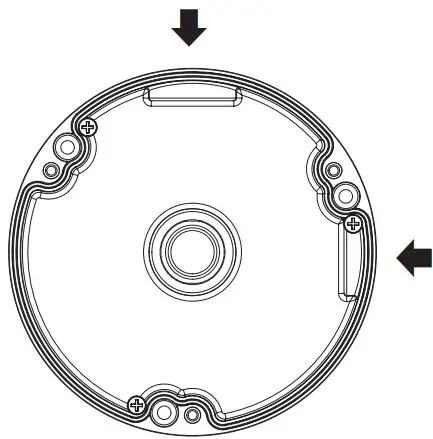

There are three directions available for inserting the pipe.
- However, take into consideration the pipe insertion direction.

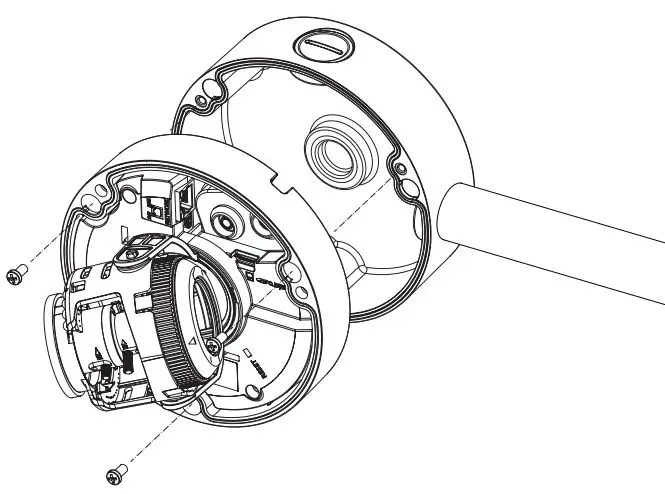

- Attach the case-bottom to the mount bracket.
Product Specifications
| Weight | 345g |
| Material | Aluminum |
| Operating Temperature | -50°C~60°C |
| Operating Humidity | 0~100% |

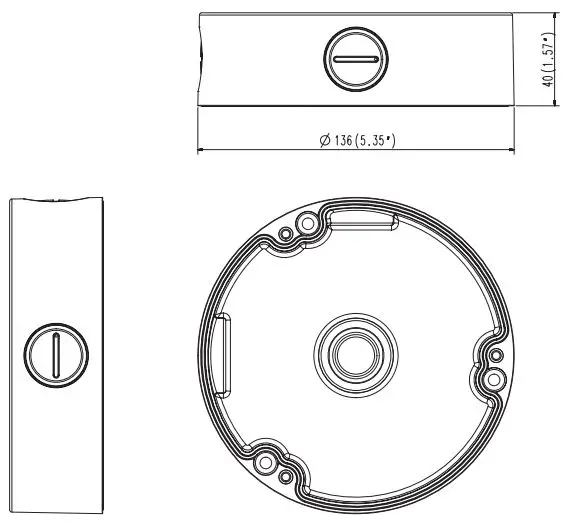

Product Outline
