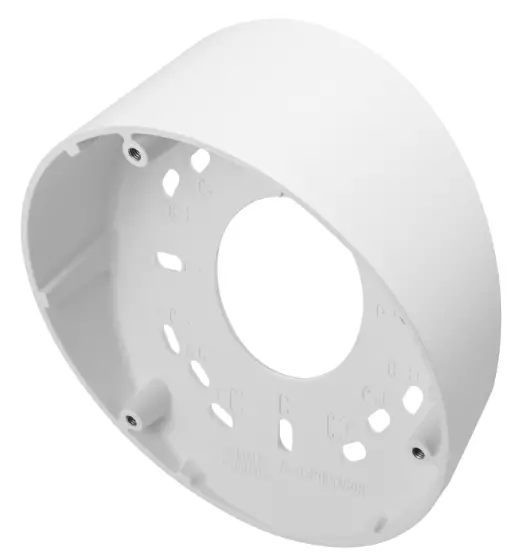

Hanwha Techwin SBV-140TMW Tilt Mount

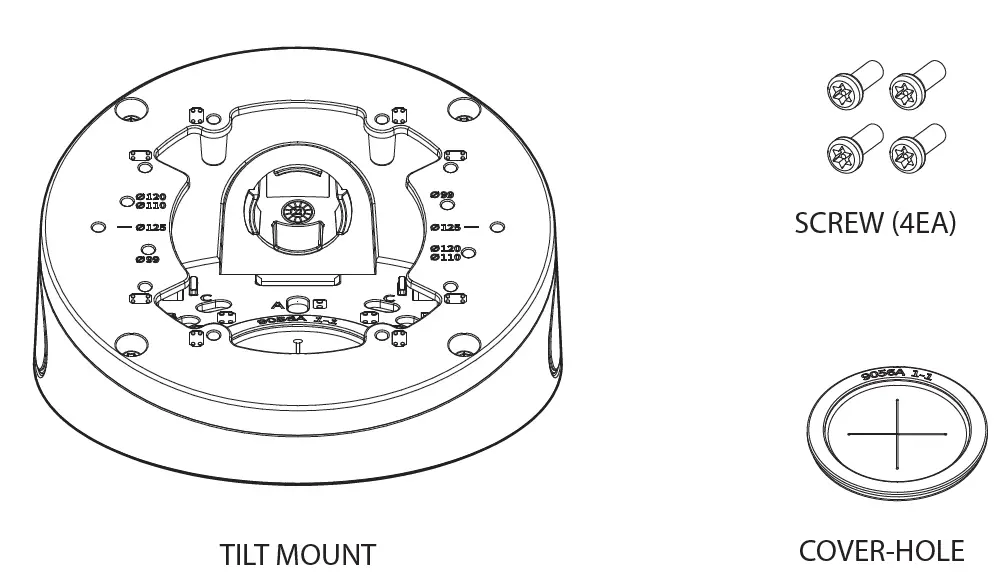

Package
Product Information

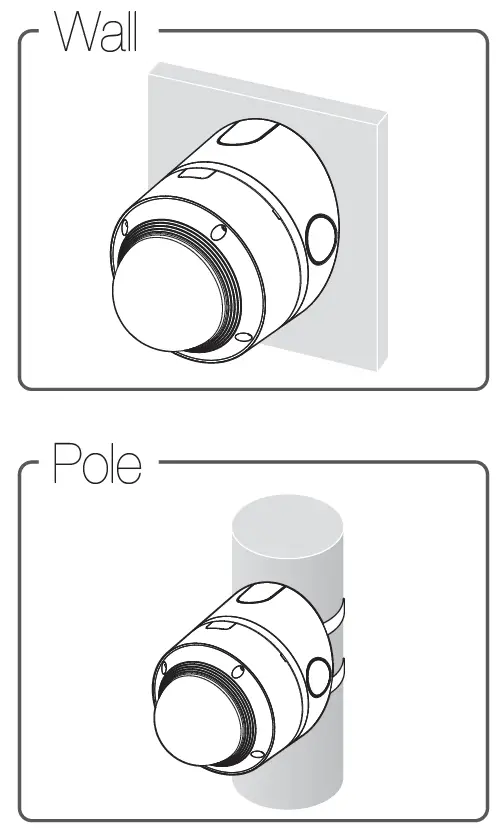

The SBV-140TMW Tilt Mount is designed to securely mount a camera onto a wall or pole. The tilt mount comes with four screws and a cover-hole for easy installation. The mounting holes are designed to accommodate cameras with different sizes.
Installation Precautions
- Ensure that the installation location can support at least four times the total weight of the camera and tilt mount.
- If installing the tilt mount outdoors, use interlocking devices made of stainless steel.
- Make sure that the installation place can endure at least 4 times of the total weight of the Tilt Mount and Camera.
- When installing the product outdoors, use interlocking devices made of stainless steel.
Product Usage Instructions
- Choose the appropriate mounting hole based on the size of your camera.

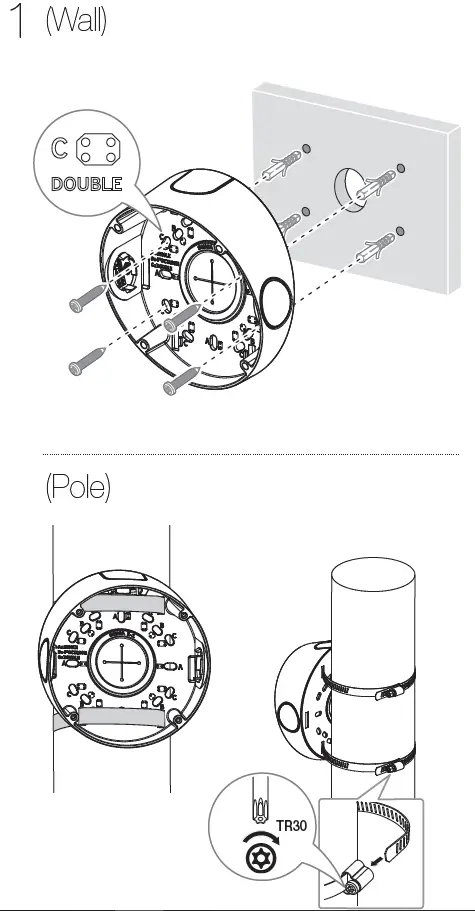

- Install the tilt mount onto a wall or pole using the included screws.
- Attach the camera to the tilt mount using the appropriate screws or mounting hardware.
- Adjust the tilt angle of the camera to the desired position.
Note: For outdoor installations, ensure that interlocking devices made of stainless steel are used to prevent damage from weather conditions.

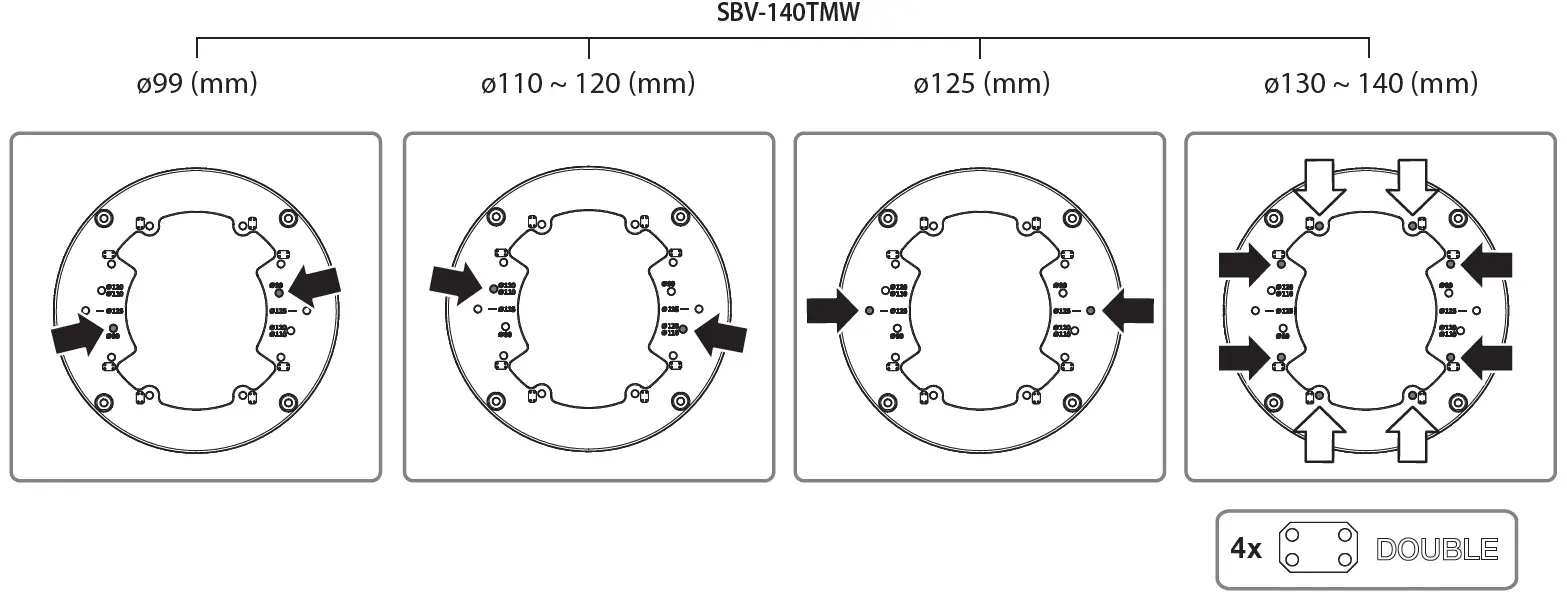

Mounting Hole by Camera Size

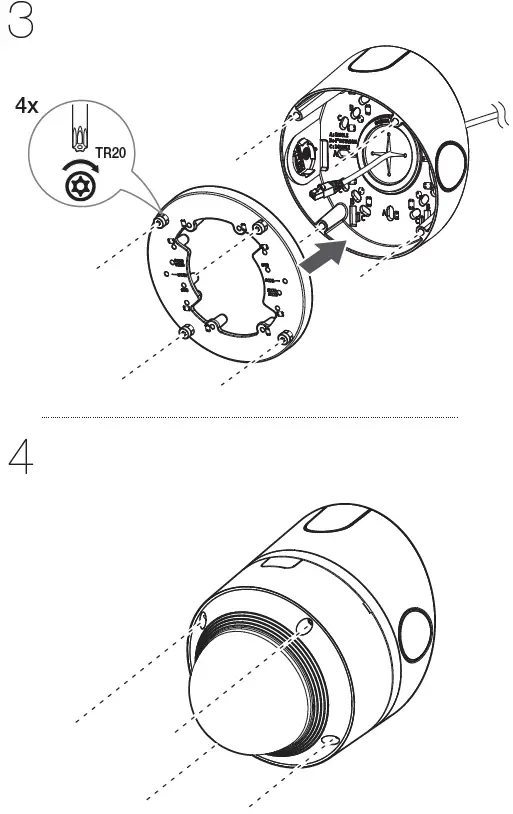

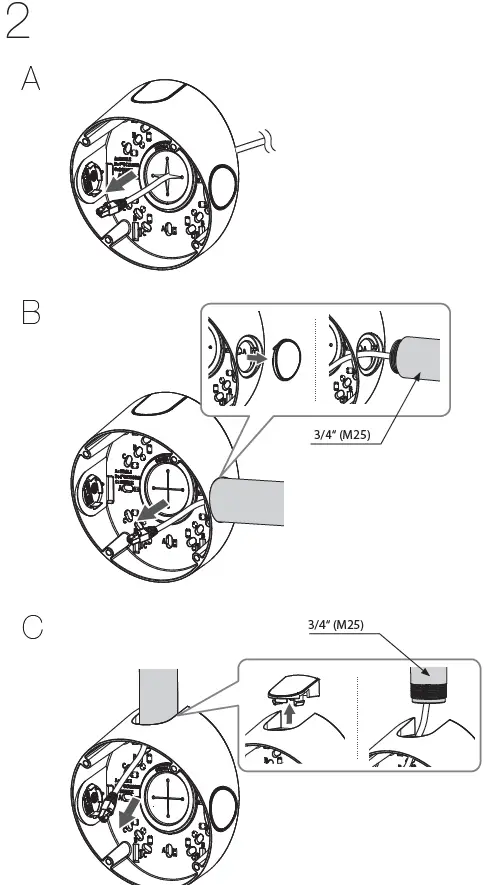

INSTALLATION
