8415 BL Tilt 400 Wall Mount
Installation Guide
Installationsanleitung
BL Tilt 400 | Art.-Nr.: 8415
8415 BL Tilt 400 Wall Mount
Caution!
Technical devices are of considerable value. You should therefore handle the components carefully during installation and protect them if necessary.
If necessary, the installation area should also be secured. Falling parts can cause injuries and material damage.
The materials included in the scope of delivery may not be suitable for the special conditions at the installation site. Please check this in advance and replace it with suitable materials if necessary.
If you are unsure about the installation of the product or have any questions, please contact us or other trained specialists.

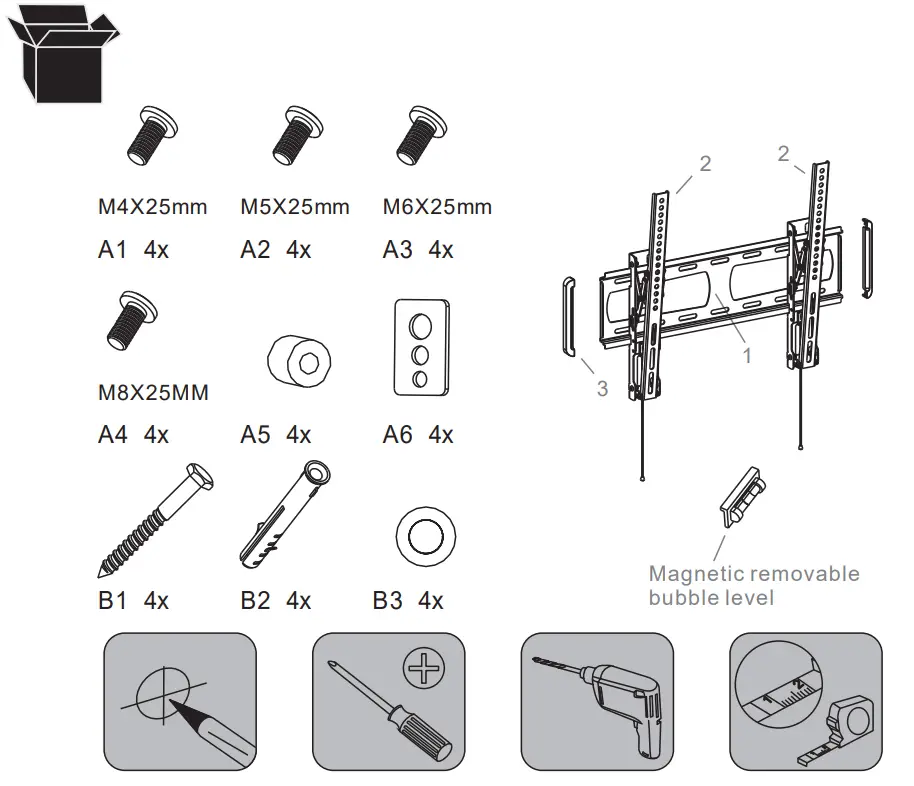

Scope of delivery
2a
2b
3a
3b
5a
Press the brackets after you put them on the wall plate, then they would be locked with wall plate.
5b

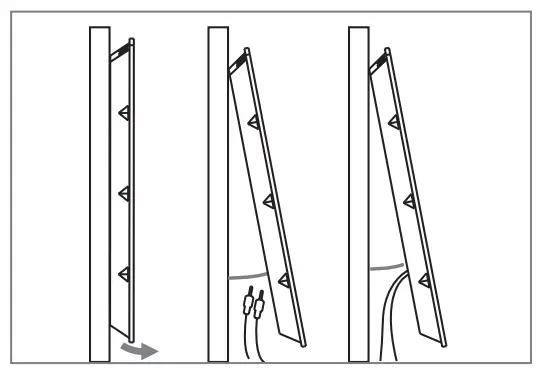

Install the cable easily after you unlock the brackets from wall plate.
5c

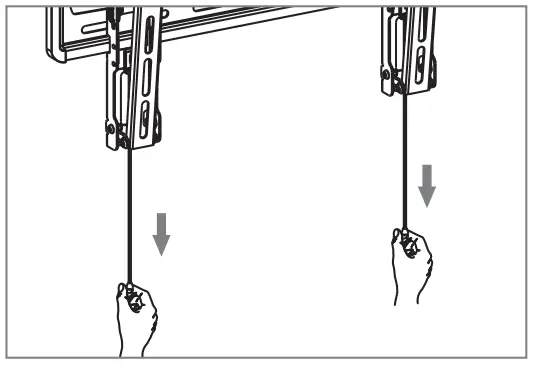

Pull down two strings together to unlock the brackets from the wall plate, then you can take brackets down.
HAGOR Products GmbH
Oberbecksener Straße 97
D-32547 Bad Oeynhausen
Telefon: +49(0)57 31-7 55 07-0
Mail: [email protected]
