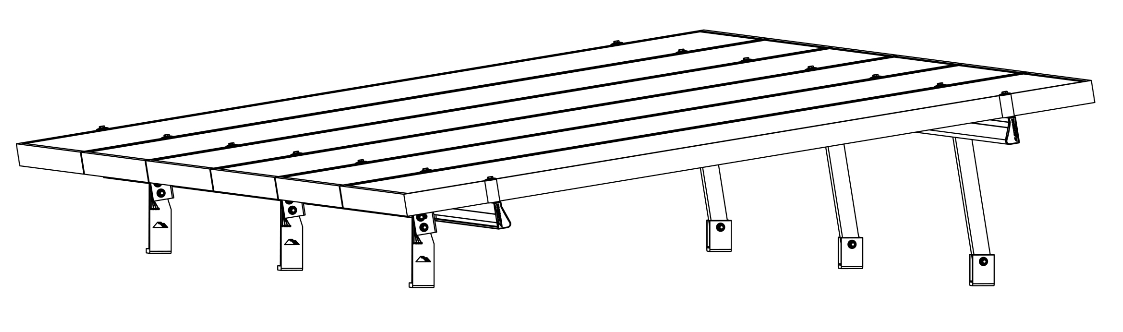

Tilt Mount
Installation Guide
DISCLAIMER
This manual describes proper installation procedures and provides necessary standards required for product reliability.Warranty details are available on website. All installers ust thoroughly read this manual and have a clear understanding of the installation procedures prior to installation. Failure to follow these guidelines may result in property amage, bodily injury or even death.
IT IS THE INSTALLER’S RSPONSIBILITY TO:
- Ensure safe installation of all electrical aspects of the array. All electrical installation and procedures should be conducted by a licensed and bonded electrician or solar contractor. Routine maintenance of a module or panel shall not involve breaking or disturbing the bonding path of the system. All work must comply with national, state and local installation procedures, product and safety standards.
- Comply with all applicable local or national building and fire codes, including any that may supersede this manual.
- Ensure all products are appropriate for the installation, environment, and array under the site’s loading conditions.
- Use only IronRidge parts or parts recommended by IronRidge; substituting parts may void any applicable warranty.
- Review the Design Assistant and Certification Letters to confirm design specifications.
- Ensure provided information is accurate. Issues resulting from inaccurate information are the installer’s responsibility.
- Ensure bare copper grounding wire does not contact aluminum and zinc-plated steel components, to prevent risk of galvanic corrosion.
- If loose components or loose fasteners are found during periodic inspection, re-tighten immediately. Any components showing signs of corrosion or damage that compromise safety shall be replaced immediately.
- Provide an appropriate method of direct-to-earth grounding according to the latest edition of the National Electrical Code, including NEC 250: Grounding and Bonding, and NEC 690: Solar Photovoltaic Systems.
- Disconnect AC power before servicing or removing modules, AC modules, microinverters and power optimizers.
- Review module manufacturer’s documentation for compatibility and compliance with warranty terms and conditions.
RATINGS
UL 2703 LISTED
Conforms to STD UL 2703 Standard for Safety Fjirst Edition: Mounting Systems, Mounting Devices, Clamping/ Retention Devices, and Ground Lugs for Use with Flat-Plate Photovoltaic Modules and Panels
- Max Overcurrent Protective Device (OCPD) Rating: 40A
- Max Module Size: 30.5 ft²
- Module Orientation: Portrait or Landscape
- System Design Load Rating: 10 PSF downward, 5 PSF upward, 5 PSF lateral
- Actual system structural capacity including spans and cantilevers is are defined by PE stamped certification letters.
- CAMO Specific Ratings Load Rating: 50 PSF downward, 50 PSF upward, 15 PSF lateral
Certified to CSA TIL No. A-40 Photovoltaic Module Racking Systems:
- Load Rating: 2400 PA [50 PSF]
Class A System Fire Rating Per UL 2703
- Any System Tilt with Modules Types 1, 2, 3, 13, 19, 25 & 29 on Low Slope Roofs (< 9.5 degrees)
- Any System Tilt with Module Types 1 & 2 on Steep Slope Roofs (≥ 9.5 degrees)
- Any module-to-roof gap is permitted, with no perimeter guarding required. This rating is applicable with any third-party attachment.
- Class A rated PV systems can be installed on Class A, B, and C roofs without affecting the roof fire rating.
Structural Certification
- Designed and Certified for Compliance with the International Building Code & ASCE/SEI-7
MARKINGS
Product markings are located on the South Tilt Leg.
CHECKLIST
IRONRIDGE COMPONENTS
PRE-INSTALLATION
☐ Verify module compatibility. See Page 13 for info.
TOOLS REQUIRED
☐ Cordless Drill (non-impact)
☐ Impact Driver (for lag bolts)
☐ Torque Wrench (0-250 in-lbs)
☐ 5/16” Socket
☐ 7/16” Socket
☐ 9/16” Socket (deep)
☐ String Line
TORQUE VALUES
☐ Tilt Leg Nuts (9/16″ Socket): 250 in-lbs
☐ Rail Grounding Lug Nut (7/16″ Socket): 80 in-lbs
☐ Rail Grounding Lug Nut (7/16” Socket): 80 in-lbs
☐ Rail Grounding Lug Terminal Screws (7/16” Socket): 20 in-lbs
☐ Module Grounding Lug Nut (3/8” Socket): 60 in-lbs
☐ Module Grounding Lug Terminal Screws (1/2”
Socket): 20 in-lbs
☐ Universal Fastening Objects (7/16″ Socket): 80 in-lbs
☐ Expansion Joint Nuts (7/16″): 80 in-lbs
☐ Microinverter Kit Nuts (7/16″ Socket): 80 in-lbs
☐ Frameless Module Kit Nuts (7/16″ Socket): 80 in-lbs
➢ If using previous version of: Integrated Grounding Mid Clamps, End Clamps, and Expansion Joints please refer to Alternate Components Addendum (Version 1.9)
➢ Unless otherwise noted, all components have been evaluated for multiple use. They can be uninstalled and reinstalled in the sameor new location.

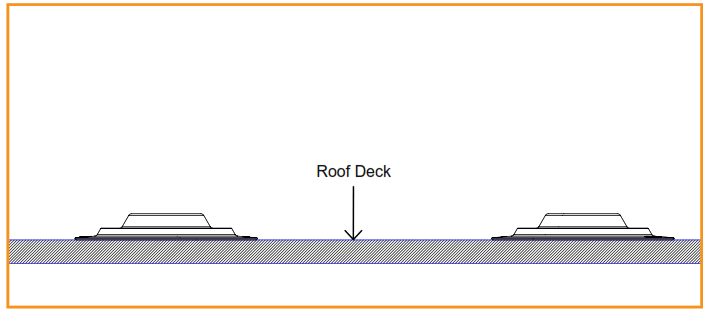

1.ATTACH BASES
Mark locations for Flat Roof Attachment. Type, size, and quantity of roof screws to be specified by Structural Engineer. Fastener size not to exceed #15. Screws should be nstalled symmetrically to each other. If using a membrane flashing, remove the silicone washer’s protective liner prior to attaching the membrane. Ensure membrane flashing compatible with existing roofing material.
Additional tested or evaluated third-party roof attachments:
- S-5! Standing Seam Metal Roof Clamps – Certification of metal roof clamps includes bonding to both painted and galvalume metal roofs. Tighten S-5! and S-5! Mini set screws to 130-150 in-lbs (≥ 24 gauge) or 160-180 in-lbs (22 gauge) roofs. Tighten S-5! M10 bolt to 240 in-lbs or S-5! Mini M8 bolt to 160 in-lbs. Use the following fastening guidelines for other S-5! roof clamps: ProteaBracket™ – firmly seat roof screws and tighten hinge bolt to 225 in-lbs; RibBracket™ – firmly seat roof screws and tighten M8 bolt (M8-1.25 x 22mm sold separately) to 160 in-lbs; and SolarFoot™ – firmly seat roof screws and tighten M8 flange nut to 160 in-lbs.
- QuickMount PV Tilt Standoffs – Qbase Mount, formerly referenced as QMLSH, and QMNC; Tighten 5/16″ bolt on top of standoff to a minimum of 174 in-lbs.
- QuickMount Lynx – See Lynx Infromation for approved metal roof types. Tighten 1/2″ Serated Flange Lock Nut and 3/8″ Allen Hex Drive Set Screw to 150 in-lbs.

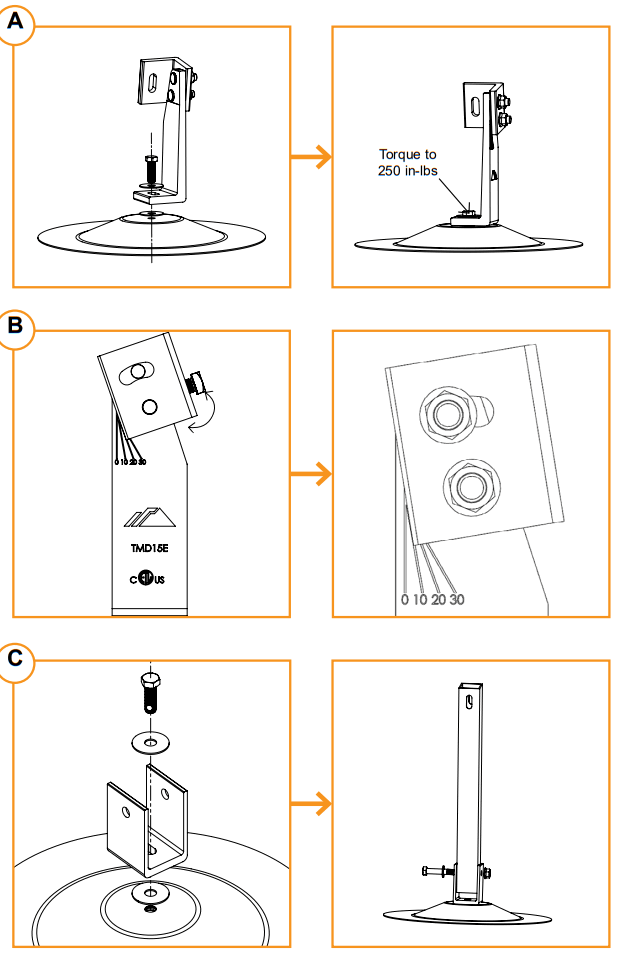

2.ADD TILT LEGS
A. ASSEMBLE SOUTH LEGS
Mount South Tilt Leg Assembly to southern row of roof attachments. The IronRidge logo should face east to ensure proper South Leg orientation. Tighten Flat Roof Attachment hardware to 250 in-lbs. If using a third-party roof attachment refer to manufacturer’s instructions forproper tightening torque.

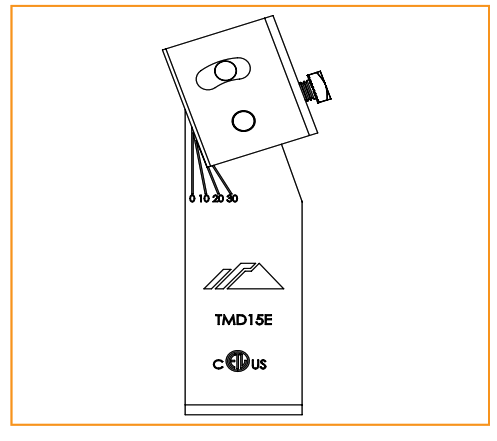

B. SET ANGLE
Set top pivot bracket of South Tilt Leg to the desired angle using the angle indicator on the face of the leg. Finger tighten bolts to allow for adjustment if necessary.
C. ASSEMBLE NORTH LEGS
Mount U-foot to northern row of roof attachments. Tighten Flat Roof Attachment hardware to 250 in-lbs. If using a third-party roof attachment refer to manufacturer’s instructions for proper tightening torque.Mount North Tilt Leg to northern row of U-feet and loosely secure hardware.

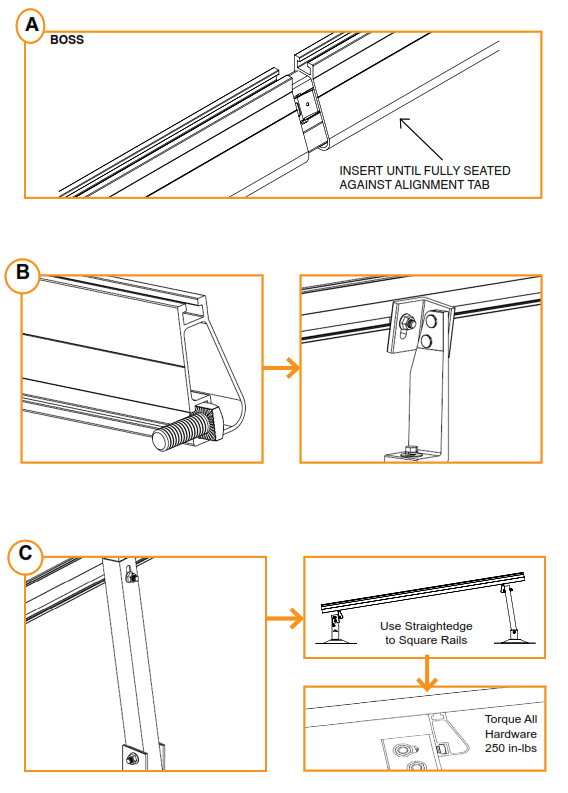

3. PLACE RAILS
A. CONNECT SPLICES
Use BOSS(Bonded Structural Splice), as needed, to join multiple sections of Rail.
BOSS – Bonded Structual Splice.
Insert BOSS into first Rail up until the Alignment Tab. Slide second Rail fully into place.
➢ Rows using BOSS and exceeding 100 feet of Rail must use Expansion Joints.
➢ Boss Splices may be installed any location within a span.
➢ UFO and Bonding Hardware must be installed 1″ away from the point where two Rails join together.
B. ATTACH SOUTH RAILS
Slide 1″ long bonding bolt into side-facing rail slot. Mount rail to pivot bracket of South Legs and loosely tighten nuts.
C. ATTACH NORTH RAILS
Slide 2.25″ bonding bolt into side-facing rail slot. Mount rail to top of North Legs. Tighten all 3/8” hardware to 250 in- lbs once rails are square.
➢ Use a straight edge to ensure South and North rails are on the same plane. An extra section of rail works well.
➢ Rails can mount on either north or south side of North Tilt Leg.
4. SECURE LUGS

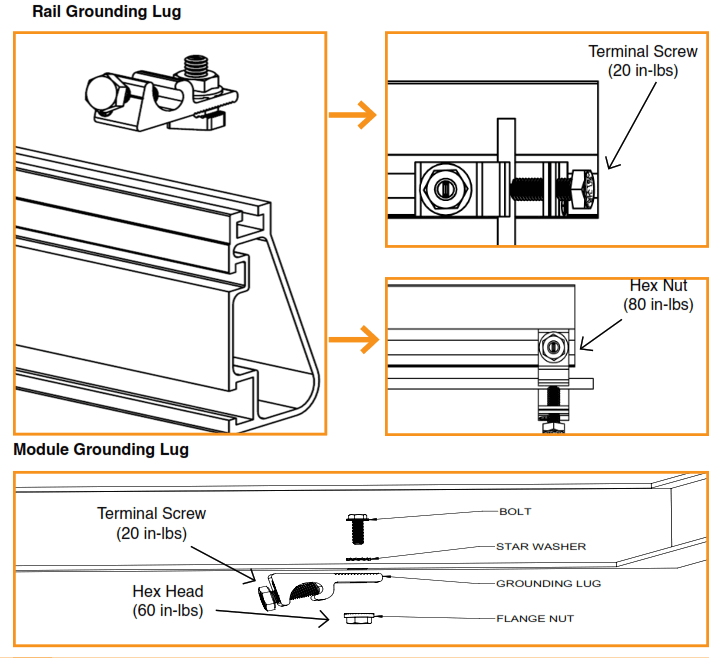

Grounding Lugs
Only one Grounding Lug (Rail or Module) required per continuous subarray, regardless of subarray size (Unless frameless modules are used, see Page 12).
➢ Grounding Lugs are intended to for use with one solid or stranded copper wire, conductor size 10-4 AWG.
Rail Grounding Lug
Insert T-bolt in Top Rail slot and torque Hex Nut to 80 in-lbs. Install
a minimum 10 AWG solid copper or stranded grounding wire. Torque terminal screw to 20 in-lbs.
➢ Rail Grounding Lugs can be installed anywhere along the Rail and in either orientation shown.
Module Grounding Lug
Insert Bolt through Module Manufacturer approved grounding location and torque Hex nut to 60 in-lbs. One Module Grounding Lug may be installed to one module per ontinious array. Install a minimum 10 AWG solid copper or stranded grounding wire. Torque terminal screw to 20 in-lbs.
➢ If using Enphase microinverters or Sunpower AC modules, Grounding Lugs may not be needed. See Page 11 for more info.
➢ Refer to module manufacturer manual for grounding instructions.
5. SECURE MODULES
A. SECURE FIRST END

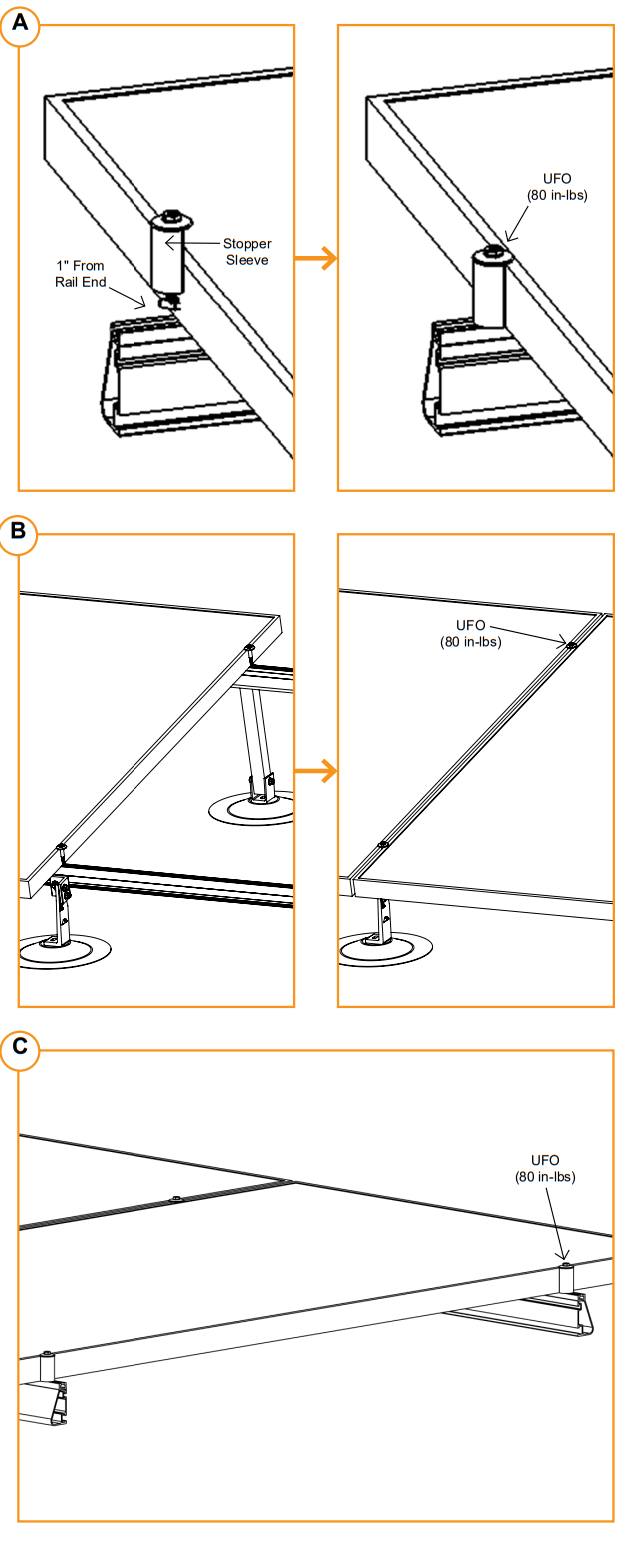

Place first module in position on rails, a minimum of 1” from rail ends. Snap Stopper Sleeves onto UFO. Fastenthe module to the rail with the UFO, ensuring that the UFO is ooked over the top of the module. Torque to 80 in-lbs.
➢ Ensure rails are square before placing modules.
➢ Hold Stopper Sleeves on end while torquing to prevent rotation.
➢ If using CAMO instead of UFO + Stopper Sleeve, refer to Page 7 for CAMO installation procedure.
➢ UFO can be installed on modules 30 to 46mm.
B. SECURE NEXT MODULES UFO
Place UFO into each rail, placing them flush against first module. Slide second module against the UFO. Torque to 80 in-lbs. Repeat for each following module.
➢ When reinstalling UFO, move modules a minimum of 1/16″ so UFOs are in contact with a new section of module frame.
➢ When UFOs are loosened and re-tightened, ensure UFO T-bolt bottoms out in rail channel before re-torquing UFO to achieve full engagement between T-bolt and rail. ➢ If using Wire Clips, refer to Page 9.
C. SECURE LAST END
Place last module in position on rails, a minimum of 1” from rail ends. Snap Stopper Sleeves onto UFO. Secure UFO on rail, ensuring it is hooked over the top of the module. Torque to 80 in-lbs.
➢ Hold Stopper Sleeves on end while torquing to prevent rotation.
➢ Repeat all steps for each following row of modules, leaving a minimum 3/8″ gap between rows.
➢ If using CAMO instead of UFO + Stopper Sleeve, refer to Page 7 for CAMO installation procedure.
CAMO
A. SLIDE INTO RAIL
Slide CAMO into rail channel far enough to clear the module frame. CAMO requires 6″ of clearance from end of rail.
B. PLACE MODULE
Place module on rails (module cells not shown for clarity). When installing CAMO the module can overhang the rail no more than 1/4″.
C. PULL TOWARDS END
Pull CAMO towards rail ends, at 45 degree angle, so the bonding bolt contacts the module flange edge.
D. SECURE TO FRAME

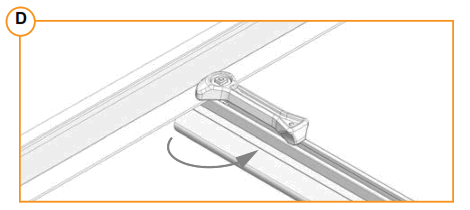

Rotate handle with an upwards motion until CAMO snapsinto rail channel. Ensure CAMO bonding pins are fullyseated on top of module frame.
FRAME COMPATIBILITY
CAMO has been tested or evaluated with all modules listed in the Module Compatibility section having frames within the referenced dimensions. Be sure the specific module eing used meets the dimension requirements.
➢ For installations with Hanwha Q CELLS modules with 32 mm frame heights, the maximum ground snow is 45 PSF (33 PSF module pressure).
➢ CAMO’s compatiblity with Canadian Solar modules CS1YxxxMS andCS3N-xxxMS. “xxx” refers to the module power rating.
EXPANSION JOINTS
Expansion Joints are required every 100′ of continuous rail to allow for thermal expansion and contraction of the system.
➢ Do not install modules over expansion joints.
BOSS

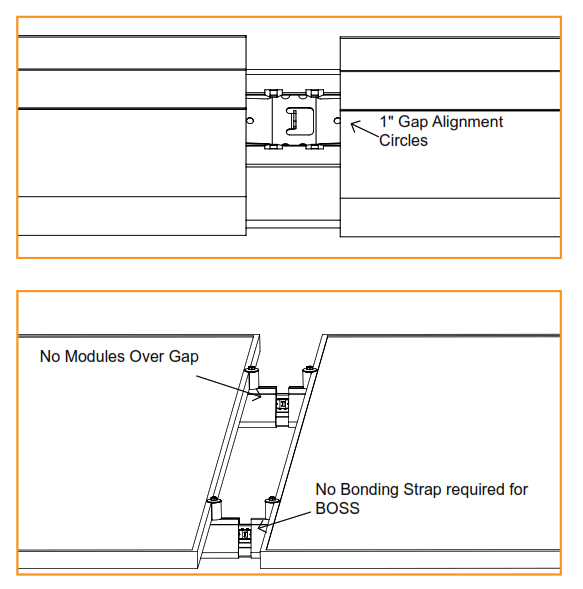

Insert BOSS into first Rail up to the Alignment Circle, Slide second Rail over BOSS to the second Alignment Circle, leaving a 1″ gap between the Rails.
There must be a 1″ of space between the edge of the Rail and the edge of the panel to allow proper installation of the UFO and Stopper Sleeve.

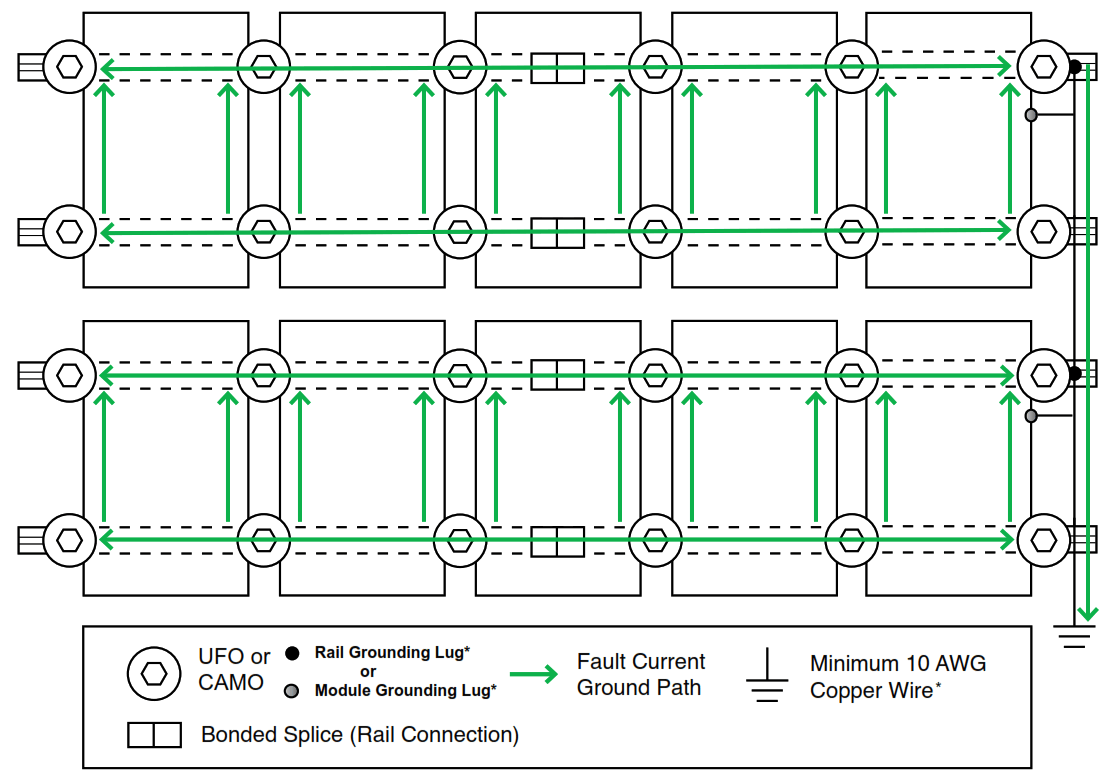

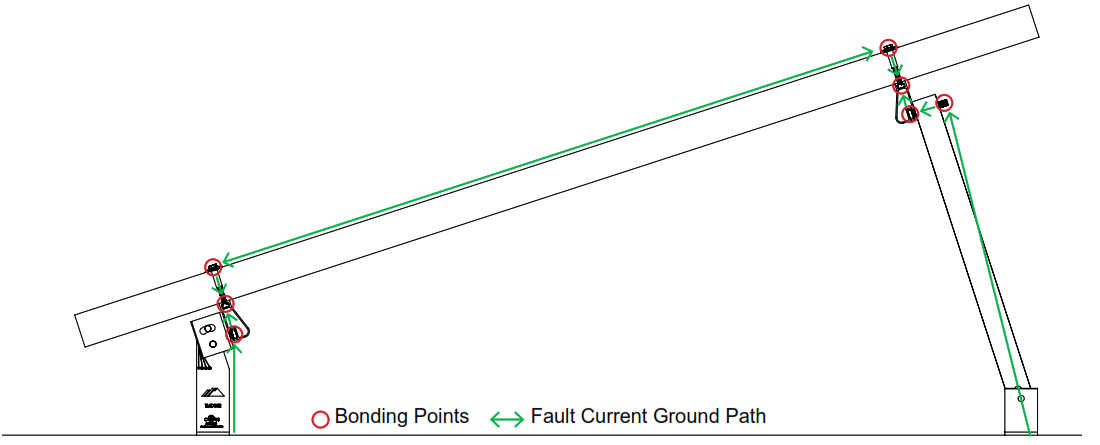

ELECTRICAL DIAGRAM
*One Module Grounding Lug or Rail Grounding lug is required per row of a system.
Grounding Lugs and wire are not required in systems using certain Enphase microinverters or certain Sunpower modules. Equipment grounding is achieved with the Engage able for Enphase or the AC module cable system for Sunpower via their integrated EGC.
END CAPS

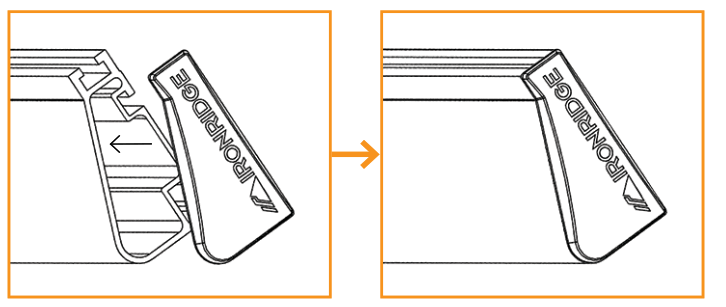

End Caps add a completed look and keep debris and pests from collecting inside rail. Firmly press End Cap onto rail end.
➢ End Caps come in sets of left and right. Check that the proper amount of each has been provided.
➢ For open-structure installations, you can use adhesive to secure the End Caps.
WIRE CLIPS
Wire Clips offer a simple wire management solution. Firmly press Wire Clip into top rail slot. Run electrical wire through open clip. Snap closed once all wires have been placed.
SYSTEMS USING MICROSTORAGE PRODUCTS
Use IronRidge’s Microinverter Kit to bond compatible microstroage devices to the racking system. Insert Microinverter Kit T-bolt into top rail slot. Place compatible icrostorage into position and tighten hex nut to 80 in-lbs.
COMPATIBLE PRODUCTS
PHAZR
PHAZR Devices PHAZR-X, where X is 6-12.
➢ Running a separate equipment grounding conductor to the PHAZRs is not required.
➢ If installing in areas with ground snow loads greater than 40 psf andunderneath a module, install PHAZR devices as close as possible to module frame edge.
➢ Use the number of IronRidge Microinverter kits allowed by the MLPE mounting flange. Some will require 1 kit and others 2 kits.
MICROINVERTER KITS
Use IronRidge’s Microinverter Kit to bond compatible microinverters and power optimizers to the racking system.

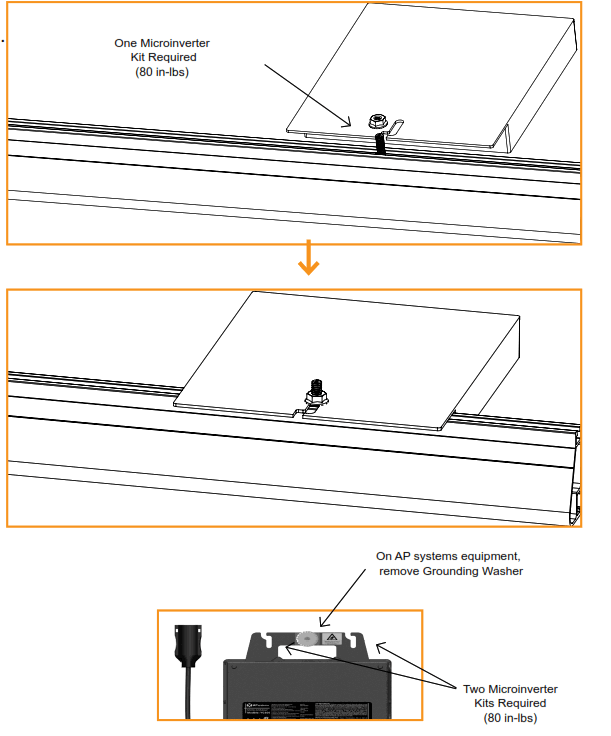

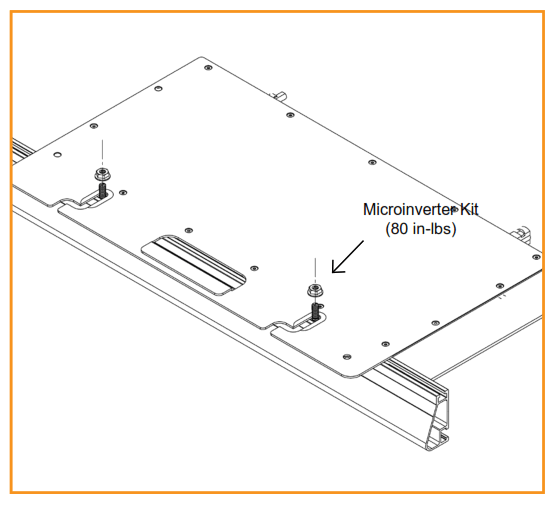

Insert Microinverter Kit T-bolt into top rail slot. Place compatible microinverter or power optimizer into position and tighten hex nut to 80 in-lbs.
➢ If installing in areas with ground snow loads greater than 40 psf, install MLPE devices directly next to module frame edge.
COMPATIBLE PRODUCTS
Enphase
M250-72, 250-60, M215-60, C250-72, S230, S280, IQ 6, IQ 6+, IQ IQ7, IQ 7A, IQ 7+, IQ7 PD, IQ 7X, Q Aggregator; IQ8-60, IQ8PLUS-72, IQ8A-72, IQ8H-208-72, IQ8H-240-72, IQ8M-72, may be followed by -2-US.
Darfon
MIG240, MIG300, G320, G640 Solar Edge.
M1600, P300, P320, P340, P370, P400, P401, P405, P485, P505, P600, P700, P730, P750, P800p, P800s, P801, P850, P860, P950, P960, P1100, P1101, S440, S500, S1200, 1201
SMA
RoofCommKit-P2-US, TS4-R Module Retrofit Kits (TS4-R-S, TS4- R-O, TS4-R-F).
Tigo
Tigo Access Point (TAP).
TS4-R-X (where X can be F, M, O, or S).
TS4-R-X-DUO (where X can be M, O, or S).
TS4-A-X (where X can be F, 2F, O, O-DUO, or S).
Generac
S2502
AP Systems
DS3, QS1, QT2 and YC600
NEP
BDM-300, BDM-300X2 and BDM-800
➢ Remove Grounding Washer on AP Systems QS1, QT2, DS3 and YC600 inverters before installing to XR rails.
➢ Remove the Stainless Steel Clip on Tigo-”A” MLPE Devices before attaching to XR rails.
➢ Use the number of IronRidge Microinverter kits allowed by the MLPE mounting flange. Some will require 1 kit and others 2 kits.
SYSTEMS USING ENPHASE MICROINVERTERS OR SUNPOWER AC MOD-
IronRidge systems using approved Enphase products or SunPower modules eliminate the need for lay-in lugs and field installed equipment grounding conductors (EGC). his solution meets the requirements of UL 2703 for bonding and grounding and is included in this listing.
COMPATIBLE PRODUCTS
Sunpower
Modules with model identifier Ab-xxx-YY and InvisiMount (G5) 46mm frame; where “A” is either E, or X; “b” can be 17, 18, 19, 20, 21, or 22; and “YY” can be C-AC, D-AC, BLK-C-AC, or BLK-D-AC.
Enphase
Microinverters M250-72, M250-60, M215-60, C250-72, and Engage cables ETXX-240, ETXX-208, ETXX-277.
➢ A minimum of two inverters mounted to the same rail and connected to the same Engage cable are required.
➢ The microinverters or Sunpower AC modules must be used with a maximum 20 A branch rated overcurrent protection device (OCPD).
➢ If an AC module is removed from a circuit for maintenance, you must first disconnect AC power and then install a temporary EGC to bridge the gap by inserting an AC extension cable (or via other NEC-compliant means), in order to maintain effective ground continuity to subsequent modules.

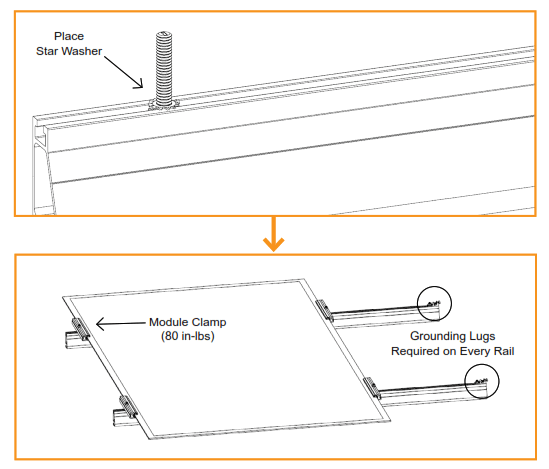

FRAMELESS MODULE KITS
Insert Frameless Kit T-bolt in top rail slot. Place star washer over T-bolt, allowing it to rest on top of rail. Secure module clamps with a hex nut and torque to 80 in-lbs.
COMPATIBLE PRODUCTS
Sunforson
Sunforson silver or black SFS-UTMC-200(B) mid and SFS-UTEC- 200(B) end clamps.
Sunpreme
Sunpreme silver or black mid and end clamps with part numbers 7500105X where “X” is 1, 5, 6 or 7.
Ironridge
IronRidge silver or black mid and end clamps with part numbers FMLS-XC-001-Y where “X” is E or M and “Y” is B or blank.
➢ Follow module manufacturer’s installation nstructions to install the module clamps.
➢ Frameless modules require using a Grounding Lug on every rail.
➢ For Sunpreme Modules Only: If required to use slide prevention hardware, see Module Slide Prevention Addendum (Version 1.10).
MODULE COMPATIBILITY
The Tilt Mount System may be used to ground and/or mount a PV module complying with UL 2703 only when the specific module has been evaluated for grounding nd/or ounting in compliance with the included instructions. Unless otherwise noted, “xxx” refers to the module power rating and both black and silver frames are included the certification.
FRAMED MODULE LIST
| Adani | Adani modules with 35 and 40mm frames ASX-Y-ZZ-xxx Where “X” can be B, M or P, “Y” can be 6, 7 or M10 and “ZZ” can be blank, 144, PERC, B-PERC, or AB- PERC |
| AIONRISE | AIONRISE modules with 35 and 40mm frames AIONyyG1-xxx Where “yy” can be 60 or 72 |
| Amerisolar | Amerisolar modules with 35 and 40 mm frames AS-bYxxxZ. Where “b” can be 5 or 6; “Y” can be M, P, M27, P27, M30, or P30; and Z” can be blank, W or WB |
| Aptos Solar | Aptos modules with 35 and 40 mm frames DNA-yy-zzaa-xxx. Where “yy” can be 120 or 144; “zz” can be MF or BF; and “aa” can e 23 or 26 |
| Astronergy Solar | Astronergy modules with 30, 35 and 40 mm frames aaSMbbyyC/zz-xxx Where “aa” can be CH or A; “bb” can be 60, 66, or 72; “yy” can be blank, 10 or 12; “C” can M, P, M(BL), M-HC, M(BL)-HC, P-HC, M(DG), or M(DGT); and “zz” can be blank, HV, F-B, or F-BH |
| ASUN | ASUN modules with 35 and 40 mm frames ASUN-xxx-YYZZ-aa Where “YY” can be 60 or 72; “ZZ” can be M,or MH5; and “aa” an be blank or BB |
| Auxin | Auxin modules with 40 mm frames AXN6y6zAxxxB. Where “y” can be M or P; “z” can be 08, 09, 10, 11, or 12; and “A” can be F, M or T; and “B” can be blank, A, B or C |
| Axitec | Axitec Modules with 30, 35 and 40 mm frames. AC-xxxY/aaZZb Where “Y” can be M, P, MB or MH; “aa” can be blank, 125- or 56-; “ZZ” can be 54, 60, 72, 108, 120, or 144; “b” can be S, X, V, VB, XV, or MX |
| Bluesun Solar | Bluesun modules with 30 and 35mm frames BSMxxxY-AAA. Where “Y” can be M or M10; and “AAA” can be 60HPH or 72HBD |
| Boviet | Boviet modules with 35 and 40mm frames BVMZZaaYY-xxxBcc Where “ZZ” can be 66 or 76; “aa” can be 9, 10 or 12; “YY” is M or P; and “B” can be blank, L or S; and “cc” can be blank, H, H-BF, H-BF-DG, H-HC, H-HC-BF, H-HC-BF-DG, HC-BF or HC-BF-DG |
| BYD | BYD modules with 35 mm frames BYDxxxAY-ZZ Where “A” can be M6, P6, MH or PH; “Y” can be C or K; and “ZZ” can be 30 or 36. |
| Canadian Solar | Canadian Solar modules with 30, 32, 35 and 40 mm frames CSbY-xxxZ Where “b” can be 1, 3, 6 or 7 “Y” can be H, K, L, N, P, R, U, V, W, X or Y; and “Z” can be M, P, MS, PX , M-SD, P-AG, P-SD, MB-AG, PB-AG, MS-AG, MS-HL, or MS-SD |
| CertainTeed | CertainTeed modules with 35 and 40 frames CTxxxYZZ-AA Where “Y” can be M, P, or HC; “ZZ” can be 00, 01, 10, or 11; and “AA” can be 01, 02, 03, 04 or 06. |
| CSUN | Csun modules with 35 and 40 mm frames YYxxx-zzAbb Where “YY” is CSUN or SST; “zz” is blank, 60, or 72; and “A” is blank, P, or MM; “bb” is blank, BB, 5BB, BW, or ROOF |
| Dehui | Dehui modules with 30, 35 and 40mm frames DH-MYYYZ-xxx Where “YYY” can be 760, 772, 860, 872; and “Z” can be B, F or |
| Ecosolargy | Ecosolargy modules with 35 and 40 mm frames ECOxxxYzzA-bbD Where “Y” can be A, H, S, or T; “zz” can be 125 or 156; “A” an be M or P; “bb” can be 60 or 72; and “D” can be blank or B |
| ET Solar | ET Solar modules with 30, 35 and 40 mm frames ET-YZZZxxxAA Where “Y” can be P, L, or M; “ZZZ” can be 660, 660BH, 672, 72BH, 754BH, 766BH, 772BH; and “AA” can be GL, TB, TW, WB, WW, BB, WBG, WWG, WBAC, WBCO, WWCO, WWBCO or BAC |
| Flex | Flex modules with 35 and 40 mm frames FXS-xxxYY-ZZ; Where “YY” can be BB or BC; and “ZZ” can be MAA1B, MAA1W, AB1W, SAA1B, SAA1W, SAC1B, SAC1W, SAD1W, SBA1B, SBA1W, SBC1B, or SBC1W. |
| Freedom Forever | Freedom Forever modules with 35mm frames FF-MP-BBB-xxx |
| GCL | GCL modules with 35 mm and 40 mm frames GCL-ab/YY xxx. Where “a” can be M or P; “b” can be 3 or 6; and “YY” can be 60, 2, 72H, or 72DH. |
| GigaWatt Solar | Gigawatt modules with 40 mm frames GWxxxYY. Where “YY” can be either PB or MB. |
| Hansol | Hansol modules with 35 and 40 frames HSxxxYY-zz. Where “YY” can be PB, PD, PE, TB, TD, UB, UD, or UE; and “zz” can be H2, AN1, AN3, AN4, HH2, HV1, or JH2. |
| Hanwa Solar | Hanwha Solar modules with 40 mm frames. HSLaaP6-YY-1-xxxZ. Where “aa” can be either 60 or 72; “YY” can be PA or PB; and “Z” can be blank or B. |
| Hanwha Q CELLS | Hanwha Q CELLS Modules with 32, 35, 40mm frames aaYY-ZZ-xxx. |
| Heliene | Heliene modules with 35 and 40 mm frames YYZZxxxA Where “YY” can be 36, 60, 72, 96, 120 or 144; “ZZ” can be HC, M, P, or MBLK; and “A” can be blank, HomePV, Bifacial, M10 Bifacial or M10 SL-Bifacial |
| HT-SAAE | HT-SAAE modules with 35 and 40 mm frames HTyy-aaaZ-xxx Where “yy” can be 60, 66, 72 or 78, “aaa” can be 18, 156 or 166, “Z” can be M, P, M-C, P-C, M(S), M(VS), M(V), P(V), M(V)-C, P(V)-C, or X |
| Hyundai | Hyundai modules with 32, 33, 35 and 40mm frames HiY-SxxxZZ Where “Y” can be A, D or S; “S” can be M or S; and “ZZ” can be GI, HG, HI, KI, MI, MF, MG, PI, RI, RG, RG(BF), RG(BK), SG, TI, TG, YH(BK) or XG(BK) |
| Itek | Itek Modules with 40 mm frames IT-xxx-YY Where “YY” can be blank, HE, or SE, or SE72 |
| JA Solar | JA Solar modules with 30, 35 and 40 mm frames JAyyzz-bbww-xxx/aa Where “yy” can be M, P, M6 or P6; “zz” can be blank, (K), (L), (R), (V), (BK), (FA), (TG), (FA)(R), (L)(BK), (L) (TG), (R)(BK), (R)(TG), (V)(BK), (BK)(TG), or (L)(BK)(TG); “bb” can be 48, 54, 60, 66, 72 or 78; “ww” can be D09, D10, D20, D30, S01, S02, S03, S06, S09, S10, S12, S17, S20, S30 or S31; and “aa” can be BP, MB, MR, SI, SC, PR, 3BB, 4BB, 4BB/RE, 5BB |
| Jinko | Jinko modules with 35 and 40 mm frames JKMYxxxZZ-aa Where “Y” can either be blank or S; “ZZ” can be M, P, or PP; and “aa” can be blank, 60, 60B, 60H, 60L, 60BL, 60HL, 60HB, 60HBL, 6HBL-EP, 60-J4, 60B-J4, 60B-EP, 60(Plus), 60-V, 60-MX, 6RL3, 6RL3-B, 6TL3-B, 7RL3-V, 7RL3-TV, 72, 72B, 72-J4, 72B-J4, 72(Plus), 72-V, 72H-V, 72L-V, 72HL-V, 72HL4-V, 72HL4- TV, 72-MX, 72H-BDVP, 72HL-TV, or 72HL-V-MX3 |
| Kyocera | Kyocera Modules KYxxxZZ-AA Where “Y” can be D or U; “ZZ” can be blank, GX, or SX; and “AA” can be LPU, LFU, UPU, LPS, LPB, LFB, LFBS, LFB2, LPB2, 3AC, 3BC, 3FC, 4AC, 4BC, 4FC, 4UC, 5AC, 5BC, 5FC, 5UC, 6BC, 6FC, 8BC, 6MCA, or 6MPA |
| LG | LG modules with 35 and 40 mm frames LGxxxYaZ-bb Where “Y” can be A, E, M, N, Q, S; “a” can be A, 1, 2 or 3 “Z” can be C, K, T, or W; and “bb” can be A3, A5, A6, B3, B6, E6, E6.AW5, G3, G4, J5, K4, L5, N5, V5, V6 |
| Longi | Longi modules with 30, 35 and 40 mm frames LRa-YYZZ-xxxM Where “a” can be 4, 5 or 6; “YY” can be blank, 60, 66, or 72; and “ZZ” can be blank, BK, BP, HV, PB, PE, PH, HBD, HIB, HIH, HPB, HPH, or HIBD |
| Maxeon | Maxeon modules with 35, 40 and 46mm frames SPR-AAAY-xxx-zzz Where “AAA” can be MAX, P or X; “Y” can be 3, 5, 6, 21 or 22; and “zzz” can be BLK, COM or UPP |
| Mission Solar | Mission Solar modules with 33, 35 and 40 mm frames YYYbb-xxxZZaa Where “YYY” can be MSE or TXS; “bb” can be blank, 6 or 60A; “ZZ” can be blank, MM, SE, SO, SQ , SR, SX, TS, 120 or 144; and “aa” can be blank, BB, BW, 1J, 4J, 4S, 5K, 5R, 5T, 60, 6J, 6S, 6W, 6Z, 8K, 8T, or 9S |
| Mitsubishi | Mitsubishi modules PV-MYYxxxZZ Where “YY” can be LE or JE; and “ZZ” can be either HD, HD2, or FB |
| Moltech | IM and XS series modules with 40 mm frames |
| Next Energy Alliance | Next Energy Alliance modules with 35 and 40mm frames yyNEA-xxxZZ where “yy” can be blank or US; “ZZ” can be M, MB or M-60 |
| Neo Solar Power | Neo Solar Power modules with 35 mm frames D6YxxxZZaa Where “Y” can be M or P; “ZZ” can be B3A, B4A, E3A, E4A, H3A, H4A; and “aa” can be blank, (TF), ME or ME (TF) |
| Panasonic (HIT) | Panasonic modules with 35 and 40 mm frames VBHNxxxYYzzA Where “YY” can be either KA, RA, SA or ZA; “zz” can be either 01, 02, 03, 04, 06, 06B, 11, 11B, 15, 15B, 16, 16B, 17, or 18; and “A” can be blank, E, G, or N |
| Panasonic (EverVolt) | Panasonic modules with 30 mm frames EVPVxxxA Where “A” can be blank or H, K or PK |
| Peimar | Peimar modules with 40 mm frames SbxxxYzz Where “b” can be G, M or P; “Y” can be M or P; and “zz” can be blank, (BF) or (FB) |
| Philadelphia Solar | Philadelphia modules with 35 and 40 mm frames PS-YzzAA-xxx Where “Y” can be M or P; “zz” can be 60, 72 or 144; and “AA” can be blank, (BF), (HC) or (HCBF) |
| Phono Solar | Phono Solar modules with 30, 35 and 40mm frames PSxxxY-ZZ/A Where “Y” can be M, M1, MH, M1H, M4, M4H, M5GF, M5GFH, M6, M6H, M8GF, M8GFH or P; “ZZ” can be 18, 20 or 24; and “A” can be F, T, TH, U, UH, UHB, VH or VHB |
| Prism Solar | Prism Solar modules with 35mm frames PST-xxxW-M72Y Where “Y” can be H, HB or HBI |
| Recom | Recom modules with 35 and 40 mm frames RCM-xxx-6yy Where “yy” can be MA, MB, ME or MF |
| REC Solar | REC modules with 30 and 38 mm frames RECxxxYYZZ Where “YY” can be AA, M, NP, NP2, PE, PE72, TP, TP2, TP2M, TP2SM, TP2S, TP3M or TP4; and “ZZ” can be blank, Black, BLK, BLK2, SLV, 72, or Pure |
| Renesola | ReneSola modules with 35 and 40 mm frames AAxxxY-ZZ Where “AA” can be SPM(SLP) or JC; “Y” can be blank, F, M or S; and “ZZ” can be blank, Ab, Ab-b, Abh, Abh-b, Abv, Abv-b, Bb, Bb-b, Bbh, Bbh-b, Bbv, Bbv-b, Db, Db-b, or 24/Bb |
| Renogy | Renogy Modules with 40 mm frames RNG-xxxY Where “xxx” is the module power rating; and “Y” can be D or P |
| Risen | Risen Modules with 30, 35 and 40 mm frames RSMyy-a-xxxZZ Where “yy” can be 60, 72, 110, 120, 132 or 144; “a” can be 6, 7 or 8; and “ZZ” can be M, P or BMDG |
| S-Energy | S-Energy modules with 35 and 40mm frames SABB-CCYYY-xxxZ Where “A” can be C, D, L or N; “BB” can be blank, 20, 25, 40 or 45; “CC” can be blank, 60 or 72; “YYY” can be blank, BDE, MAE, MAI, MBE, MBI, MCE or MCI; and “Z” can be V, M-10, P-10 or P-15 |
| SEG Solar | SEG Solar with 30, 35 and 40 mm frames SEG-aYY-xxxZZ Where “a” can be blank, 6 or B; “YY” can be blank, MA, MB, PA, or PB; and “ZZ” can be blank, BB, BG, BW, HV, WB, WW, BMB, BMA-HV, BMA-BG, BMA-TB, BMB-TB, BMB-HV, BMD-HV, BMB-BG |
| Seraphim USA | Seraphim modules with 30, 35 and 40 mm frames SRP-xxx-YYY-ZZ Where “xxx” is the module power rating; and “YYY” can be BMA, BMD, 6MA, 6MB, 6PA, 6PB, 6QA-XX-XX, and 6QB-XX-XX; ZZ is blank, BB, BG or HV |
| Sharp | Sharp modules with 35 and 40 mm frames NUYYxxx Where “YY” can be SA or SC |
| Shinsung E&G | Shinsung Modules with 35mm frames SSVxxx-144MH |
| Silfab | Silfab Modules with 35 and 38 mm framesSYY-Z-xxxAb Where “YY” can be IL, SA, LA, SG or LG; “Z” can be blank, M, P, or X; “A” can be blank, B, H, M, N; and “b” can be A, C, G, K, L, N, T, U or X |
| Solaria | Solaria modules with 35 and 40 mm frames PowerA-xxxY-ZZ Where “A” can be X or XT, “Y” can be R or C; and “ZZ” can be blank, AC, BD, BX, BY, PD, PL, PM, PM-AC, PX, PZ, WX or WZ |
| Solarcity (Tesla) | Solarcity modules with 40 mm frames SCxxxYY Where “YY” can be blank, B1 or B2 |
| SolarTech | SolarTech modules with 40 mm frames AAA-xxxYY Where “AAA” can be PERCB-B, PERCB-W, HJTB-B, HJTB-W or STU; “YY” can be blank, PERC or HJT |
| SolarWorld AG | SolarWorld Sunmodule Plus, Protect, Bisun, XL, Bisun XL, may be followed by mono, poly, duo, black, bk, or clear; modules with 31 and 33 mm frames SW-xxx |
| SolarWorld Americas | SolarWorld Sunmodule Plus, Protect, Bisun, XL, Bisun XL, may be followed by mono, poly, duo, black, bk, or clear; modules with 33 mm frames SWA-xxx |
| Sonali | Sonali Modules with 35 and 40 mm frames SS-M-xxx Where “M” can be blank or M |
| Stion | Stion Thin film modules with 35 mm frames STO-xxx or STO-xxxA |
| SunEdison | SunEdison Modules with 35 and 40 mm frames SE-YxxxZABCDE Where “Y” can be B, F, H, P, R, or Z; “Z” can be 0 or 4; “A” can be B,C,D,E,H,I,J,K,L,M, or N ; “B” can be B or W; “C” can be A or C; “D” can be 3, 7, 8, or 9; and “E” can be 0, 1 or 2 |
| Suniva | Suniva modules with 35, 38 and 40 mm frames OPTxxx-AA-B-YYY-Z MVXxxx-AA-B-YYY-Z Where “AA” is either 60 or 72; “B” is either 4 or 5; “YYY” is either 100,101,700,1B0, or 1B1; and “Z” is blank or B |
| Sunmac Solar | Sunmac Solar modules with 30 and 35mm frames SMxxxMaaaZZ-BB Where “aaa” can be 660 or 754; and “ZZ” can be NH or SH |
| Sunpower | Sunpower standard (G3 or G4) or InvisiMount (G5) 35 and 40mm frames SPR-Zb-xxx-YY Where “Z” can be A, E, M, P or X; “b” can be blank, 17, 18, 19, 20, 21, or 22; and “YY” can be blank, BLK, COM, C-AC, D-AC, E-AC, BLK-E-AC, G-AC, BLK-G-AC, H-AC, BLK-H-AC, BLK-C-AC, or BLK-D-AC |
| Sunspark | Sunspark modules with 40 mm frames SYY-xxxZ-A Where “YY” can be MX or ST; and “Z” can be M, MB, M3, M3B, P or W; and “A” can be 60 or 72 |
| Suntech | Suntech Modules with 35 and 40mm frames STPxxxy-zz/aa Where “y” is blank or S; and “zz” can be 20, 24, A60, A72U, B60 or B72; and “aa” can be Vd, Vem, Vfw, Vfh, Vnh, Wdb, Wde, Wd, Wfhb or Wnhb |
| Talesun | Talesun modules with 30, 35 and 40mm frames TAByZZaa-xxx-b Where “A” can be D or P; “B” can be 6 or 7; “y” can be blank, F, G, H, I or L; “ZZ” can be 60, 66, 72 or 78; “aa” can be M, M(H), or P; and “b” can be blank, B, T, or (H) |
| Tesla | Tesla modules with 40 mm frames TxxxYwhere “Y” can be H or S |
| Trina | Trina Modules with 30, 35 and 40mm frames TSM-xxxYYZZ Where “YY” can be DD05, DD06, DD14, DE14, DE15, DE15V, DEG15, DEG15VC, DE18M, DEG18MC, DE09, DE19, DEG19C.20, DE06X, PA05, PC05, PD05, PD06, PA14, PC14, PD14, PE14, or PE15 ; and “ZZ” can be blank, .05, .05(II), .08, .08(II), .10, .18, .08D, .18D, 0.82, .002, .00S, 05S, 08S, .20(II), A, A.05, A.08, A.10, A.18, (II), A(II), A.05(II), A.08(II), A.082(II), A.10(II), A.18(II), C.05, C.07, C.05(II), C.07(II), H, H(II), H.05(II), H.08(II), HC.20(II), HC.20(II), M, M(II), M.05(II), MC.20(II) |
| URE | URE modules with 35 mm frames DyZxxxaa Where “D” can be D or F, “y” can be A, B, 6 or 7; “Z” can be K or M; and “aa” can be C8G, H3A, H4A, H8A, E7G-BB, E8G, E8G-BB or MFG-BB |
| Vikram | Vikram solar modules with 35 and 40 mm frames XVSyy.ZZ.AAA.bb. Where “X” can be blank, Paradea, Prexos or Somera; “yy” can be M, P, MBB, MDH, MDHT, MH, MS, MHBB, or PBB; “ZZ” can be 60 or 72; “AAA” is the module power rating; and “bb” can be 03, 04 or 05. |
| VSUN | VSUN modules with 30, 35 and 40 mm frames VSUNxxx-YYz-aa. Where “YY” can be 60, 72, 108, 120, or 144; “z” can be M, P, MH, PH, or BMH; and “aa” can be blank, BB, BW, or DG |
| Waaree | Waaree modules with 40mm frames AAyy-xxx Where “AA” canbe WS or Bi; and “yy” can be blank, M, MB, 55 or 66 |
| Winaico | Winaico modules with 35 and 40 mm frames Wsy-xxxZa Where “y” can be either P or T; “Z” can be either M, P, or MX; and “a” can be blank or 6 |
| Yingli | Yingli modules with 35 and 40 mm frames YLxxxZ-yy Where “Z” can be D or P; “yy” can be 29b, 30b, 34d, 35b, 36b or 40d |
| ZN Shine | ZN Shine modules with 35mm frames ZXMY-AAA-xxx/M Where “Y” can be 6, 7 or 8; “AAA” can be 72, NH120, NH144, NHDB144, NHLDD144, SH144, SHDB144, SHLDD144 or TP120 |
| Astronergy Solar | Astronergy frameless modules CHSM6610P(DG)-xxx |
| Canadian Solar | Canadian Solar frameless modules CSbY-xxx-Z Where “b” can be 3 or 6; “Y” is K, P, U, or X; and “Z” can be M-FG, MS-FG, P-FG, MB-FG, or PB-FG |
| Heliene | Heliene frameless modules YYZZxxxA Where “YY” can be72; “ZZ” can be M; and “A” can be GH |
| Jinko | Jinko frameless modules JKMxxxPP-DV |
| Prism Solar | Prism Solar frameless modules BZYY-xxxAAA Where “Z” can be i or N; “YY” can be 48, 60, 60S, 72 or 72S; and “AAA” can be blank or BSTC |
| Risen | Risen frameless modules RSMyy-6-xxxZZ Where “yy” can be 60, 72, 120 or 144; and “ZZ” can be MDG or PDG |
| Stion | Stion frameless modules STL-xxx or STL-xxxA |
| Sunpreme | Sunpreme frameless modules GXB-xxxYY Where “YY” can be blank or SL |
| Trina | Trina frameless modules TSM-xxxYY Where “YY” can be either DEG5(II), DEG5.07(II), DEG5.40(II), DEG5.47(II), DEG14(II), DEG14C(II), DE- G14C.07(II), DEG14.40(II), PEG5, PEG5.07, PEG5.40, PEG5.47, PEG14, or PEG14.40 |
© 2022 IRONRIDGE, INC. VERSION 3.3
