Mi-Light
Subordinate New Brand
IP Rate: IP66
6W RGB+CCT Smart LED Garden Light
Model No.: FUTC04
Features
 | RGB+CCT 16 Millions of colors to choose |
 | Color temperature 2700K~6500K |
 | Dim brightness/ Saturation |
 | 2.4G RF wireless transmission technology |
 | Remote control Control distance 30m |
 | Smartphone APP control (2.4GHz gateway is needed) |
 | Support third party voice control (2.4GHz gateway is needed) |
| Waterproof and dustproof grade IP66 | |
 | Signal transmitting & Modes synchronization |
 | Beam angle 25° Illumination distance more than 10m |

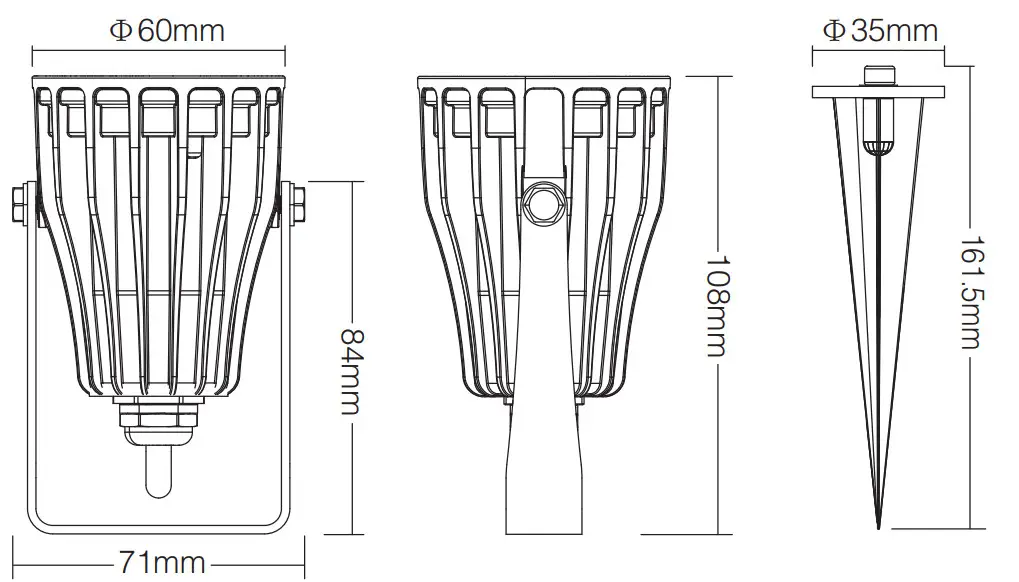

Parameters
| Model No.: FUTC04 Input: AC100~240V 50/60Hz Power: 6W Working Temp.: -20~45°C Color Temp.: 2700K~6500K Luminous Flux: 550LM Light Efficiency: 90LM/W Lifespan: 50000 hours | CRI: >80 PF: >0.5 Beam Angle: 25° Illumination Distance: >10m IP Rate: IP66 RF: 2.4GHz Control Distance: 30m Lamp body weight: 180g |

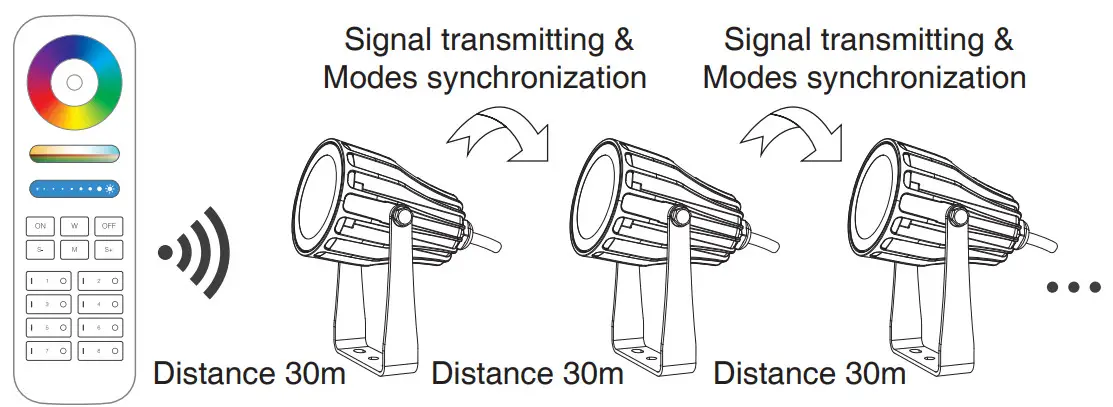

Signal transmitting
One garden light can transmit the signals from the remote control to another garden light within 30m, as long as there is a garden light within 30m, the remote control distance can be limitless.
Modes synchronization
Different garden lights can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance.
Connection diagram
Link/Unlink

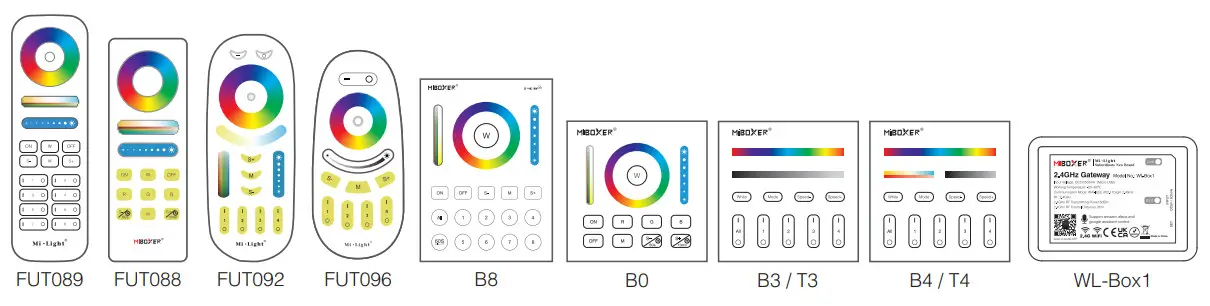

Compatible with these remote controls (Purchased separately)
NOTE:
Lighting can be working after linking with remote; for more details, pls read the remote instruction.
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness /Saturation / Speed |
| 1 | Mardi Gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow Color Splash |
Attention
- When installing the lighting fixtures, pls switch off the power to make sure safety.
- Please check whether the input voltage supply is in accordance with the lighting fixtures.
- Non-professional users cannot dismantle the lighting fixtures directly, otherwise, it may cause fire and electric shock.
- The working temperature is -20~45°C; do not use the device to direct sunlight, moist and another high temperature area.
- Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
- Users must be correct, strict, and solid to install the lighting fixtures; do not use the lighting fixtures on strenuous vibration areas.
- The lighting fixtures will be heating on working, pls do not cover the lighting housing.
Signal transmitting & Modes synchronization
Made in China
