Subordinate New Brand
9W RGB+CCT LED Bulb
Model No.: FUT012
Features
 | RGB+CCT 16 Millions of colors to choose |
| Color temperature 2700K~6500K | |
| Dimmable Saturation control | |
| 2.4G RF wireless transmission technology | |
| Signal transmitting & Modes synchronization | |
| Remote control Control distance 30m | |
| Smartphone APP control (2.4GHz gateway is needed) | |
| Support third party voice control (2.4GHz gateway is needed) | |
| DMX512 controllable (DMX512 transmitter is needed) |

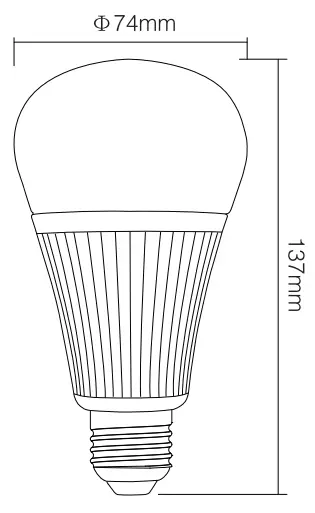

Parameters
| Model No.: FUT012 Power: 9W Voltage: AC100~240V Frequency: 50/60Hz Color Temp.: 2700K~6500K Light Efficiency: 95 LM/W Luminous Flux: 850LM | CRI: ＞80 PF: >0.5 Lifespan: 50000h Beam Angle: 220° RF: 2.4GHz Control Distance: 30m |
Link/Unlink

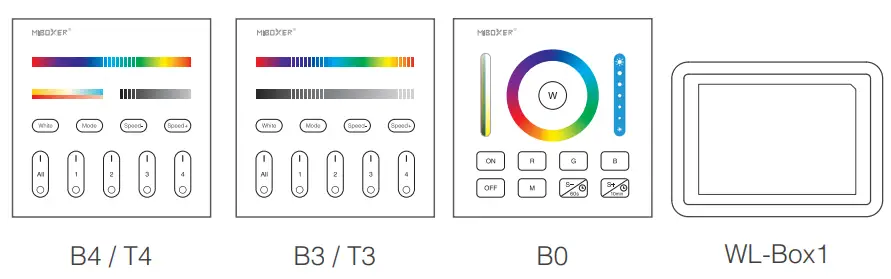

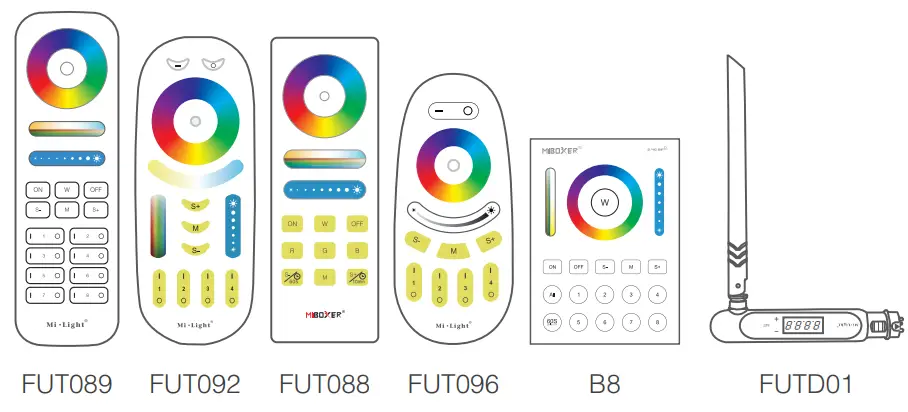

Compatible with these remote controls (Purchased separately)
NOTE:
LED bulb can be working after linking with a remote controller or DMX512 transmitter; for more details, please read the remote controller or DMX512 transmitter instructions.
DMX512 LED Transmitter Link/Unlink
Compatible with DMX512 LED Transmitter (Purchased separately)

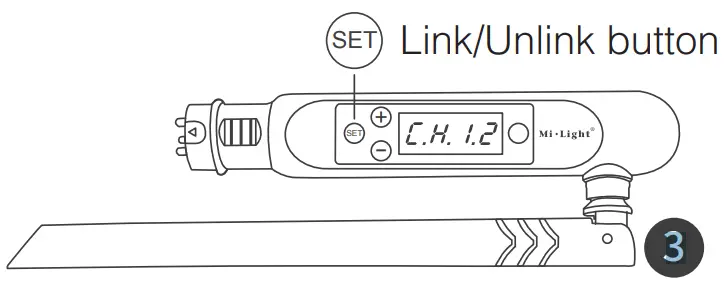

Choose the zone for the controller by pressing ‘ + ’ or ‘ – ’ (e.g. ‘CH12’ means zone 12)
 |  |  |

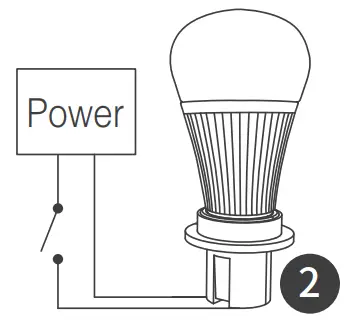

| Link Switch off the bulb, after 10 seconds switch on again | When the bulb pilot lamp is on, short Press ” SET ” 3 times within 3 seconds | The bulb blinks slowly 3 times, which means the linking is done successfully |
| Unlink Switch off the bulb, after 10 seconds switch on again | When the bulb pilot lamp is on, short press ” SET” 5 times within 3 seconds | The bulb blink quickly 10 times, means the unlinking is done successfully |
If the link or unlink failed, please follow the above steps again.

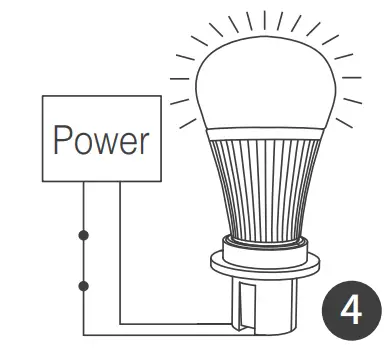

DMX512 LED Transmitter Connection Diagram
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness! Saturation / Speed |
| 1 | Mardi Gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow Color Splash |

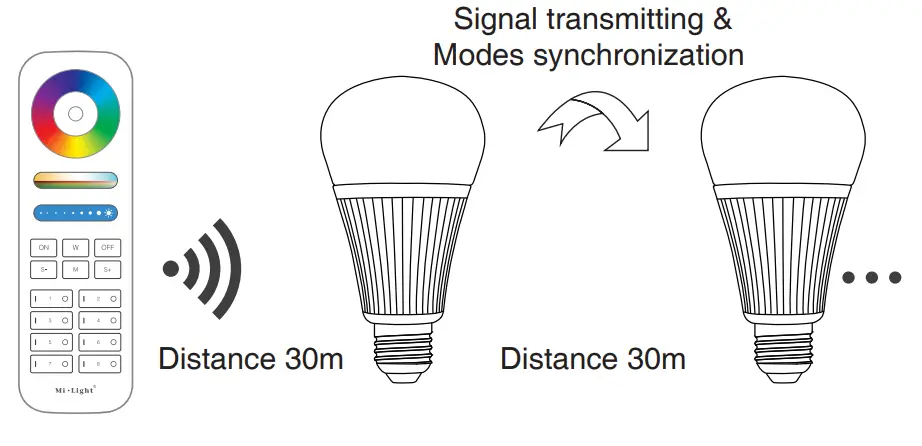

Signal transmitting
One bulb can transmit the signals from the remote control to another bulb within 30m, as long as there is a bulb within 30m, the remote control distance can be limitless.
Modes synchronization
The different bulbs can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance.
Attention
- Make sure the voltage is between AC100~240V.
- When installing the light, pls switch off the power to make sure safety.
- The working power is a high voltage alternating current, so it must be far away from people and must with ground connection.
- Avoid using under high temperature or moisture.
