RGB+CCT LED Garden Light (Zigbee 3.0)
Model No.: FUTC02Z / FUTC04Z

Features

This item supports Zigbee 3.0 standard protocol with low consumption, a strong ability to pair with the network automatically, and resist interference. Users can use Zigbee wireless remote to dim light. It supports to pair with Zigbee gateway and enjoy the function (wireless dimmable, remote control, timmer, group control, and music rhythm)

	16 Million of colors to choose
	Color temperature 2700K~6500K
	Dim brightness/ Saturation
	Product follow Zigbee 3.0 standard protocol
	Zigbee 3.0 remote control Control distance 100m (open area)
	Smartphone App Control (Zigbee 3.0 gateway is needed)
	Support third party voice control (Zigbee 3.0 gateway is needed)
	Waterproof and dustproof grade IP66

Parameters

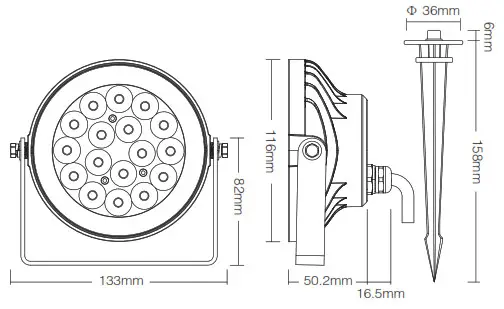

9W RGB+CCT LED Garden Light (Zigbee 3.0)
Model No.: FUTC02Z
Input: 100-240V~ 50/60Hz
Power: 9W
Working Temp.: -20~45°C
Color Temp.: 2700K~6500K
Luminous Flux: 900LM
Light Efficiency: 100LM/W
Control Distance: 100m (open area)
CRI: >80
PF: >0.5
Beam Angle: 15°
Illumination Distance: >10m
Lifespan: 50000 hours
IP Rate: IP66

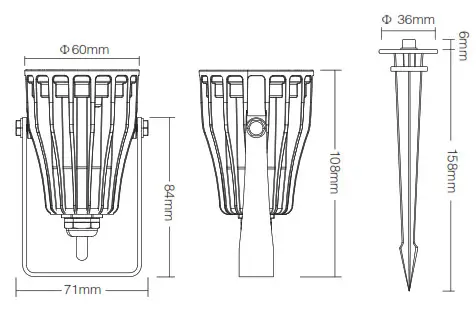

6W RGB+CCT LED Garden Light (Zigbee 3.0)
Model No.: FUTC04Z

Input: 100-240V~ 50/60Hz
Power: 6W
Working Temp.: -20~45°C
Color Temp.: 2700K~6500K
Luminous Flux: 550LM
Light Efficiency: 90LM/W
Control Distance: 100m (open area)
CRI: >80
PF: >0.5
Beam Angle: 25°
Illumination Distance: >10m
Lifespan: 50000 hours
IP Rate: IP66

Connection diagram

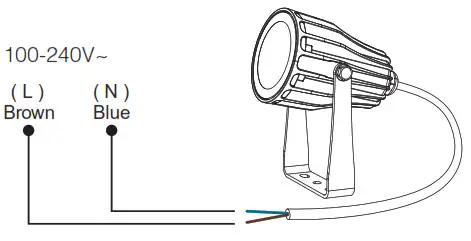

FUTC02Z Connection diagram

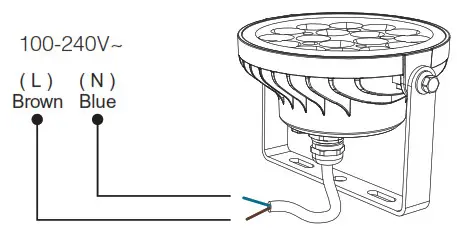

FUTC04Z Connection diagram

How to control the light via phone App?

Please add Zigbee 3.0 gateway to [ MiBoxer Smart ] App firstly

1. Connect with power supply.
2. Turn on/off light continuously over 3 times, confirm the light with red color in breathing ambiance.

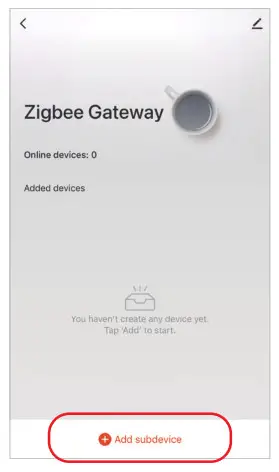

3. Open [ MiBoxer Smart ] App and add sub-device ( see the following screenshot).
4. You can dim light, group control, and ambiance control after adding the device completely.

Match and Dispatch with Zigbee 3.0 remote

stay a closer distance between the light and remote

Instruction of Matching

1. Connect with power supply.
2. Ensure the light is always on ( please wait 5 seconds and turn off, turn on again 1 time if the light is in red color with breath ambiance).
3.  Long press the group control ” ” button for 3 seconds until the indicator of remote flashes slowly ( check details in remote instruction).
4.  Please keep closer for the remote and the light which you want to connect ( within 1 meter).
5.  Matching is done if the light breathes 3 times.

Instruction of Dispatching

1. Connect with power supply.
2. Ensure the light is always on.
3. Long press group control ” ” button with 3 seconds until the indicator of remote flashes quickly ( check details in remote instruction).
4. Please keep closer for the remote and the light which you want to connect ( within 1 meter).
5. Dispatching is done if the light breathes 3 times.

Please repeat the above steps if you are failed

Attention

1. Remote only match or mismatch with one light at one time, it will match or mismatch with the nearest light.
2. Remote doesn’t pair with gateway: one light is only controlled by one remote.
3.  Light doesn’t pair with the gateway: it can not be controlled by a remote which already paired with the gateway.
4.  If remote and light are both connected with the gateway: one light can be controlled by many remotes.

Warning

1. When installing the lighting fixtures, pls switch off the power to make sure safety.
2. Please check whether the input voltage supply is in accordance with the lighting fixtures.
3. Non-professional users cannot dismantle the lighting fixtures directly, otherwise, it may damage the lighting fixtures.
4. Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
5. Users must be correct, strict, and solid to install the lighting fixtures; do not use the lighting fixtures on strenuous vibration areas.
6. The lighting fixtures will be heating on working, pls do not cover the lighting housing.
