Miboxer Fut039s Rgb+cct Led Controller Instruction Manual

RGB+CCT LED Controller
Model No.: FUT039S

Features
The controller adopts the widely used 2.4GHz wireless technology with the features of low power consumption, long signal transmitting, and strong anti-interference, etc. The controller has auto-transmitting and auto-synchronizing functions. Widely used on the controlling of hotel lighting and home lighting.

	16 Millions of colors to choose		Remote control Control distance 30m
Contents hide 1 Parameters 2 Dynamic mode table 1 (default) 3 DMX512 LED Transmitter Connection Diagram 4 Controller can not use in a humid area Made in China 5 Documents / Resources 6 Related Posts	Color temperature adjustable		Smartphone APP control (2.4GHz gateway is needed)
	Dimmable Saturation control		Support third party voice control (2.4GHz gateway is needed)
	2.4G RF wireless transmission technology		DMX512 controllable (DMX512 LED transmitter is needed)

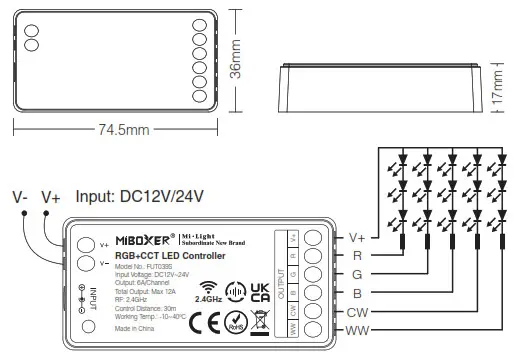

Parameters

Working Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
Output Connection: Common anode
RF: 2.4GHz
Max Controlling Distance: 30m
Working Temperature: -10~40°C

Dynamic mode table 1 (default)

Dynamic mode table 2 (need to switch manually)

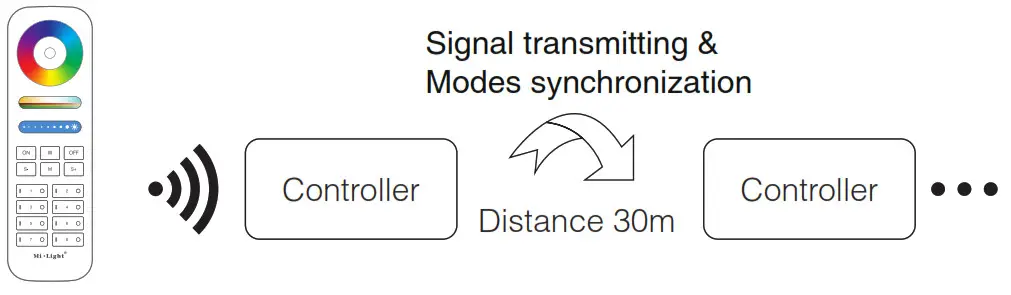

Signal transmitting
One strip controller can transmit the signals from the remote control to another controller within 30m, as long as there is a strip controller within 30m, the remote control distance can be limitless.
Modes synchronization
Different controllers can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance.
The same dynamic mode, the same speed can be synchronized.

Link/Unlink

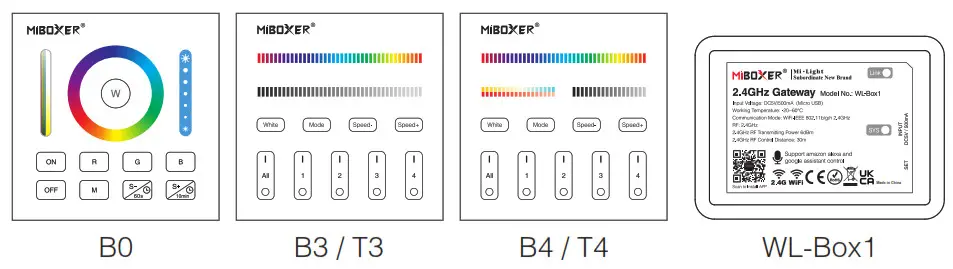

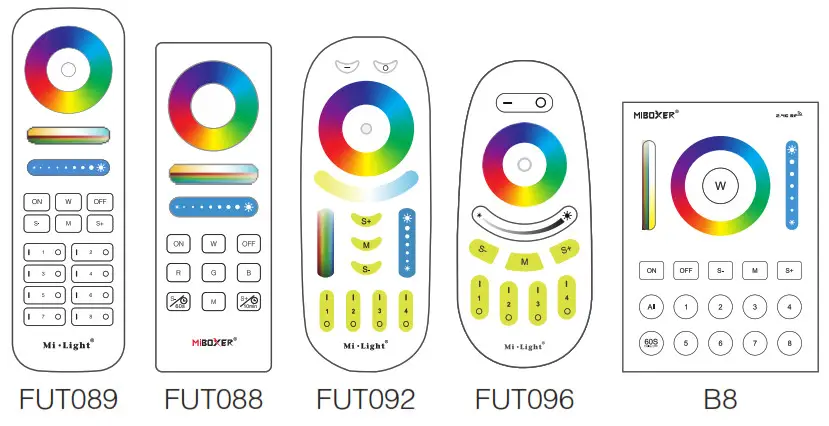

Compatible with these remote controls (Purchase separately)

Light will work after linking with remote control;
for more details, pls read the remote instruction.

PWM high frequency / low-frequency switching
Switch to high frequency (8KHz): on the condition of turning on the light

1. Short press the “OFF” button of the remote control once;
2. Short press the “ON” button 5 times within 3 seconds, the white light blinks 2 times quickly, indicating successfully.

Switch to low frequency (500Hz): on the condition of turning off the light

1. Short press the “ON” button of the remote control once;
2. Short press the “OFF” button 5 times within 3 seconds, the white light blinks 2 times slowly, indicating successfully.

Dynamic mode table selection
Select dynamic mode table 1: The controller is powered off for 10 seconds and then powered on. Within 3 seconds, press the ” S+ ” button 5 times, the blue light blink 3 times slowly, indicating successfully.
Select dynamic mode table 2: The controller is powered off for 10 seconds and then powered on. Within 3 seconds, press the ” S- ” key 5 times, and the yellow light blink 3 times slowly, indicating successfully.

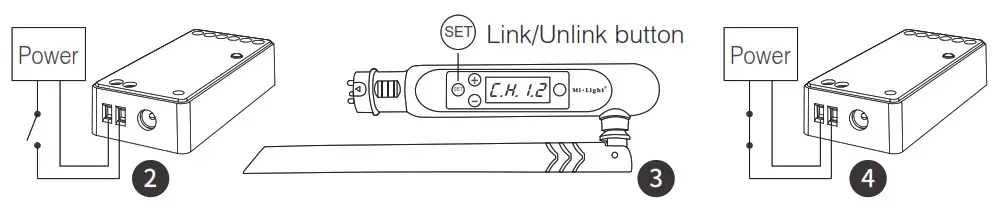

DMX512 LED Transmitter Link/Unlink
Compatible with DMX512 LED Transmitter (Purchase separately)
Choose the zone for the controller by pressing ‘ + ’ or ‘ – ’ (e.g. ‘CH12’ means zone 12)

Link

Unlink

If the link or unlink failed, please follow the above steps again.

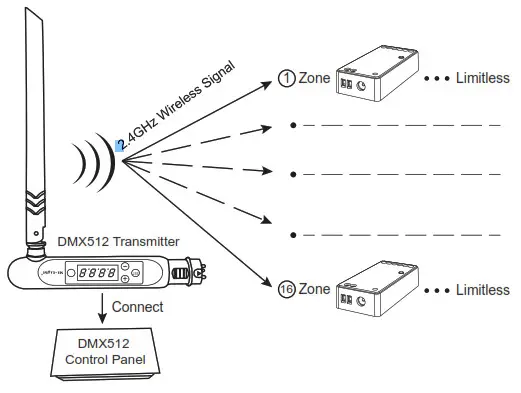

DMX512 LED Transmitter Connection Diagram

Attention

1. Please check whether the voltage of the power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise, the controller will be broken.
2.  Please don’t connect wires with power on. Please turn it on again only when it is in the right connection and has no short circuit.
3. Please do not use the controller in a place with a wide range of metal areas or strong electromagnetic waves nearby, otherwise, the remote distance will be seriously affected.


   Controller can not use in a humid area
   Made in China
