RGB+CCT LED Downlight
Model No.: FUT060-FUT069

Features

	RGB+CCT 16 Million of colors to choose
	Color temperature 2700K~6500K
	Dim brightness/ Saturation
	2.4G RF wireless transmission technology
	Signal transmitting &Modes synchronization
	Remote control Control distance 30m
	Smartphone APP control (2.4GHz gateway is needed)
	Support third party voice control (2.4GHz gateway is needed)

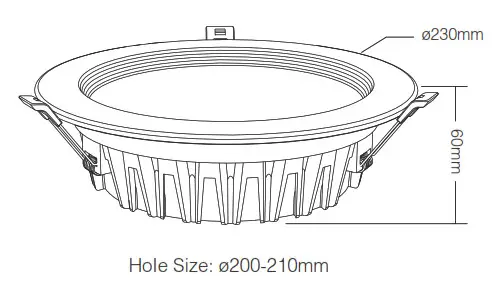

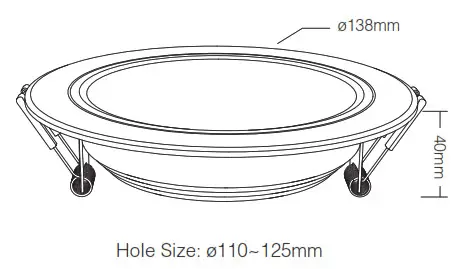

25W RGB+CCT LED Downlight
Model No.: FUT060
Input Voltage: AC100~240V 50/60Hz
Power: 25W
Working Temp.: -20~60°C
CRI: >80 PF: >0.5
Color Temperature: 2700K~6500K
Luminous Flux: 2000LM
Light Efficiency: 80LM/W
Lifespan: 50000 hours
Beam Angle: 120°
RF: 2.4GHz
Control Distance: 30m
Material: ALuminum+PC Cover
Product Weight: 855g

9W RGB+CCT LED Downlight
Model No.: FUT061
Input Voltage: AC100~240V 50/60Hz
Power: 9W
Working Temp.: -20~60°C
CRI: >80 PF: >0.5
Color Temperature: 2700K~6500K
Luminous Flux: 720LM
Light Efficiency: 80LM/W
Lifespan: 50000 hours
Beam Angle: 120°
RF: 2.4GHz
Control Distance: 30m
Material: ALuminum+PC Cover
Product Weight: 200g

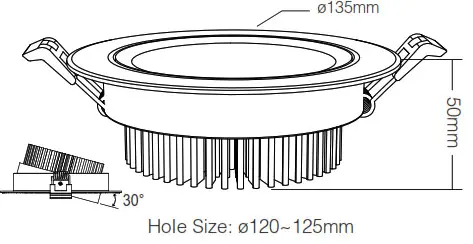

9W RGB+CCT LED CeiIing Spotlight
Model No.: FUT062
Input Voltage: AC100~240V 50/60Hz
Power: 9W
Working Temp.: -20~60°C
CRI: >80 PF: >0.5
Color Temperature: 2700K~6500K
Luminous Flux: 700LM
Light Efficiency: 80LM/W
Lifespan: 50000 hours
Beam Angle: 15°
RF: 2.4GHz
Control Distance: 30m
Material: ALuminum+PC Cover
Product Weight: 320g

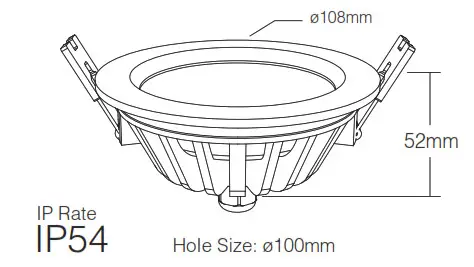

6W RGB+CCT LED Waterproof Downlight
Model No.: FUT063
Input Voltage: AC100~240V 50/60Hz
Power: 6W
Working Temp.: -20~60°C
CRI: >80 PF: >0.5
Color Temperature: 2700K~6500K
Luminous Flux: 500LM
Light Efficiency: 80LM/W
Lifespan: 50000 hours
Beam Angle: 120°
RF: 2.4GHz
Control Distance: 30m
Material: ALuminum+PC Cover
Product Weight: 267g

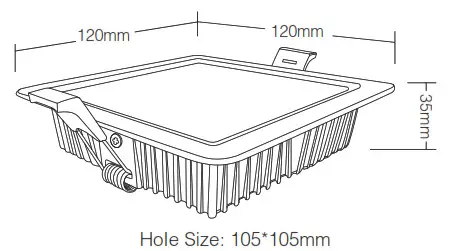

9W RGB+CCT Square LED Downlight
Model No.: FUT064
Input Voltage: AC100~240V 50/60Hz
Power: 9W
Working Temp.: -20~60°C
CRI: >80 PF: >0.5
Color Temperature: 2700K~6500K
Luminous Flux: 720LM
Light Efficiency: 80LM/W
Lifespan: 50000 hours
Beam Angle: 120°
RF: 2.4GHz
Control Distance: 30m
Material: ALuminum+PC Cover
Product Weight: 240g

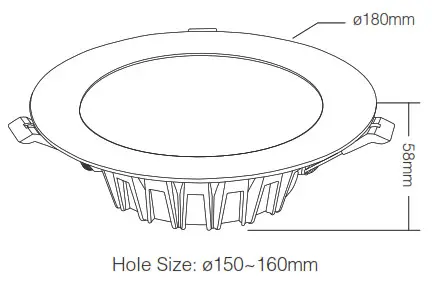

18W RGB+CCT LED Downlight
Model No.: FUT065
Input Voltage: AC100~240V 50/60Hz
Power: 18W
Working Temp.: -20~60°C
CRI: >80 PF: >0.5
Color Temperature: 2700K~6500K
Luminous Flux: 1500LM
Light Efficiency: 85LM/W
Lifespan: 50000 hours
Beam Angle: 120°
RF: 2.4GHz
Control Distance: 30m
Material: ALuminum+PC Cover
Product Weight: 410g

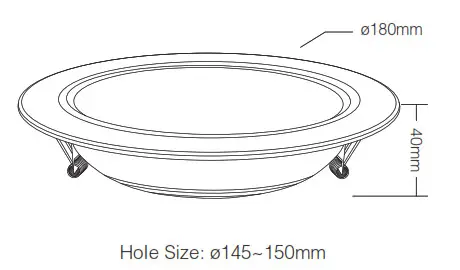

12W RGB+CCT LED Downlight
Model No.: FUT066
Input Voltage: AC100~240V 50/60Hz
Power: 12W
Working Temp.: -20~60°C
CRI: >80 PF: >0.5
Color Temperature: 2700K~6500K
Luminous Flux: 1100LM
Light Efficiency: 88LM/W
Lifespan: 50000 hours
Beam Angle: 120°
RF: 2.4GHz
Control Distance: 30m
Material: ALuminum+PC Cover
Product Weight: 320g

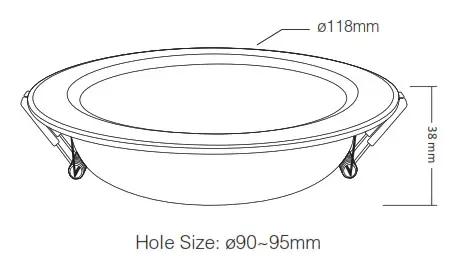

6W RGB+CCT LED Downlight
Model No.: FUT068
Input Voltage: AC100~240V 50/60Hz
Power: 6W
Working Temp.: -20~60°C
CRI: >80 PF: >0.5
Color Temperature: 2700K~6500K
Luminous Flux: 600LM
Light Efficiency: 85LM/W
Lifespan: 50000 hours
Beam Angle: 120°
RF: 2.4GHz
Control Distance: 30m
Material: ALuminum+PC Cover
Product Weight: 160g

15W RGB+CCT LED Downlight
Model No.: FUT069
Input Voltage: AC100~240V 50/60Hz
Power: 15W
Working Temp.: -20~60°C
CRI: >80 PF: >0.5
Color Temperature: 2700K~6500K
Luminous Flux: 1200LM
Light Efficiency: 80LM/W
Lifespan: 50000 hours
Beam Angle: 120°
RF: 2.4GHz
Control Distance: 30m
Material: ALuminum+PC Cover
Product Weight: 640g

Instructions

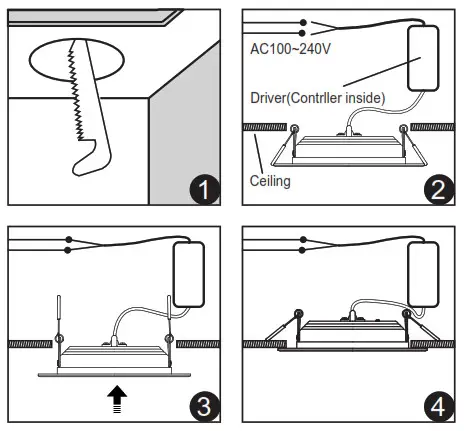

1. Please open the hole on the ceiling according to Diagram 1. ( For the size of the hole, please refer to the parameters of the corresponding model. )
2.  Connect the driver properly according to the wire connection Diagram 2. And then put the driver and wire into the ceiling from the hole.
3.  Push in the two spring elements, make sure that they are deployed and anchored on the back of the ceiling Diagrams 3 and

Link/Unlink

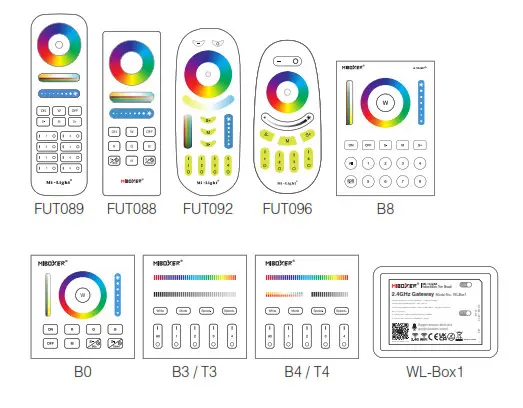

Compatible with these remote controls (Purchased separately)

NOTE:

Lighting can be working after linking with remote; for more details, pls read the remote instruction.

Dynamic Mode Sheet

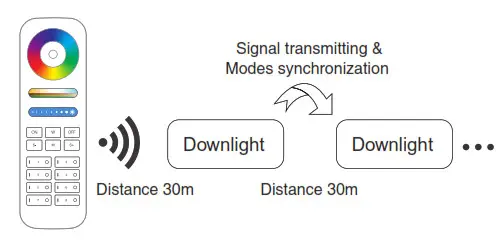

Signal transmitting

One Downlight can transmit the signals from the remote control to another Downlight within 30m, as long as there is a Downlight within 30m, the remote control distance can be limitless.

Modes synchronization

Different Downlights can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance.

Attention

1. When installing the lighting fixtures, pls switch off the power to make sure safety.
2.  Please check whether the input voltage supply is in accordance with the lighting fixtures.
3.  Non-professional users cannot dismantle the lighting fixtures directly, otherwise, it may cause fire and electric shock.
4. Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.

Signal transmitting & Modes synchronization
Made in China
