Subordinate New Brand
6W GU10 RGB+CCT LED Spotlight
Model No.: FUT106
Features
RGB+CCT 16 Million colors to choose
Color temperature 2700K~6500K
Dim brightness/ Saturation
Signal transmitting & Modes synchronization
2.4G RF wireless transmission technology
Remote control Control distance 30m
Smartphone APP control (2.4GHz gateway is needed)
Support third party voice control (2.4GHz gateway is needed)
Instructions

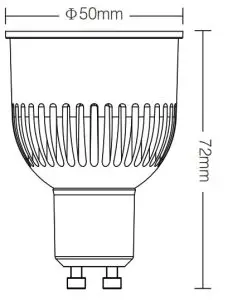

6W GU10 RGB+CCT LED Spotlight
Model No.: FUT106
Power: 6W
Voltage: 100-240V~ 50/60Hz
Rated Current: 0.11A
Working Temp.:-10~40°C
Color Temp.: 2700K~6500K
Luminous Efficiency: 90LM/W
Luminous Flux: 550LM
CRI: >80 PF: 0.55
Lifespan: 50000h
Beam Angle: 30°
RF: 2.4GHz
Control Distance: 30m
Product Weight: 69g
Step 1

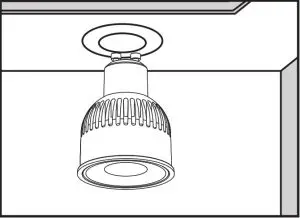

Put the light bulb in the suitable lighting fixture.
NOTE:
For lamps with a weight significantly higher than that of the lamps for which they are a replacement, attention should be drawn to the fact that the increased weight may reduce the mechanical stability of certain luminaires and lamp holders and may impair contact-making and lamp retention.
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness / Saturation / Speed |
| 1 | Mardi Gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow Color Splash |
Step 2: Link/Unlink

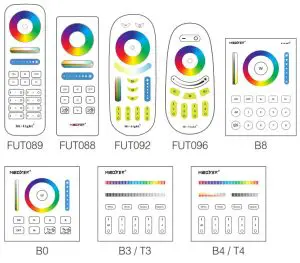

Compatible with these remote controls ( Purchased separately)
WL-Box1
NOTE:
Lighting can be working after linking with remote; for more details, pls read the remote instruction.
Signal transmitting & Modes synchronization
Signal transmitting
One lighting fixture can transmit the signals from the remote control to another lighting fixture within 30m, as long as there is a lighting fixture within 30m, the remote control distance can be limitless.
Modes synchronization
The different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance.
Signal transmitting & Modes synchronization
Attention
- When installing the lighting fixtures, pls switch off the power to make sure safety.
- Please check whether the input voltage supply is in accordance with the lighting fixtures.
- Non-professional users cannot dismantle the lighting fixtures directly, otherwise, it may cause fire and electric shock.
- Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
Lamp not suitable for use under moisture
Can not connect with a dimmable electric circuit, please use a remote to dim lighting
Made in China
